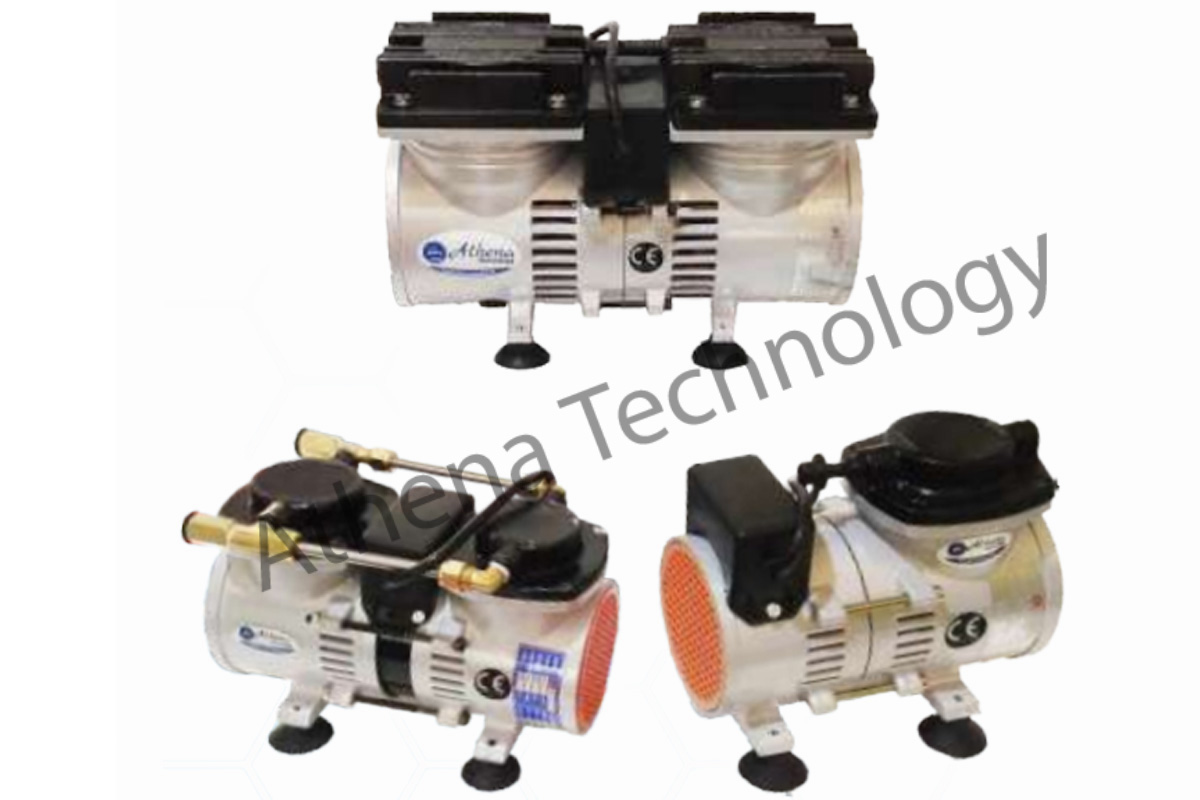

Athena We have established ourselves as a prestigious business that is devoted to providing a wide selection of diaphragm vacuum pumps. This pump is made at our seasoned production facility under the tight supervision of a skilled crew using quality authorised materials and advanced procedures. Additionally, in order to meet the varying needs of our clients, we offer our full range in a variety of specifications.

Features:

• Industry approved design
• Enhanced durability
• Ruggedness

Technical Specification:

MODEL	MAX. FLOW (Ltrs/min)	MAX. VACUUM (In./mm Hg)	MAX. PRESS. (PSIg)	APPROX. Weight (kg)	MOTOR HP	APPROX Dimensions (mm)
ATV-15	15	22" (554)	25	3.0	1/20	175X110X150
ATV-25-S	15	27" (680)	35	5.5	1/16	220X110X150
ATV-25-P	25	22" (554)	25	5.5	1/16	220X110X150
ATV-25-AX	15	27" (680)	--	--	1/16	--
AVT-45	45	22" (554)	35	7.0	1/8	200X125X200
AVT-45-CRP	30	22" (554)	10	7.0	1/8	220X150X220
ATV-75-S	45	27" (680)	55	12.5	1/4	300X130X200
ATV-75-P	75	22" (554)	40	12.5	1/4	300X130X200
ATV-75-CRP	38	22" (554)	10	--	1/4	--

High Volume Nitrogen Evaporator

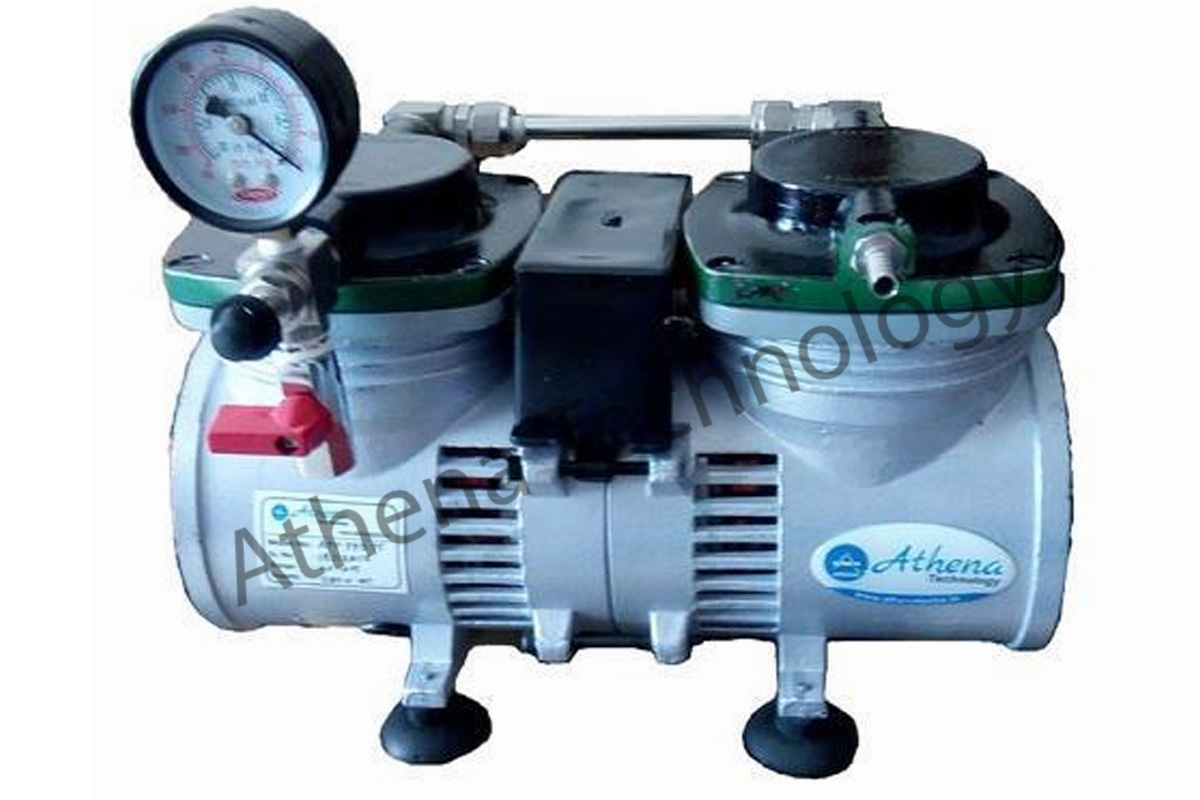

With the help of our skilled team of technologists, we are able to meet the various needs of our customers by providing Oil Free Vacuum Pump of the highest calibre. Several industries use the given pump. This pump is made with the highest-quality components and to industry standards of quality. Among our customers, this pump is well-known for its durability and simple installation.
No lubrication is necessary.
Noiseless operation
Fully Transportable
Completely oil-free building
almost completely maintenance-free
Micro suction filter built-in
There are special diaphragms (Teflon, vi-ton, etc.) available.
Larger bearings for trouble-free, smooth operation
Pumps with flame-proof motors are available (Model ATV - 45 - FM)
Available with 24 V or 48 V DC pumps (Model ATV - 15 - DC - 1500)
Available pump with chemically resistant components
Teflon, SS, PP, PVC, and PVC contact parts (Model ATV - 45 - CRP)
Pumps for gas charging are available in air conditioners (Model ATV - 25 - AX)
Construction motors are available in single-phase and three-phase forms.
Additionally 110 V AC motors are available, making them perfect for original equipment manufacturers.

Features

• No Lubrication required
• Noiseless performance
• Absolutely Portable

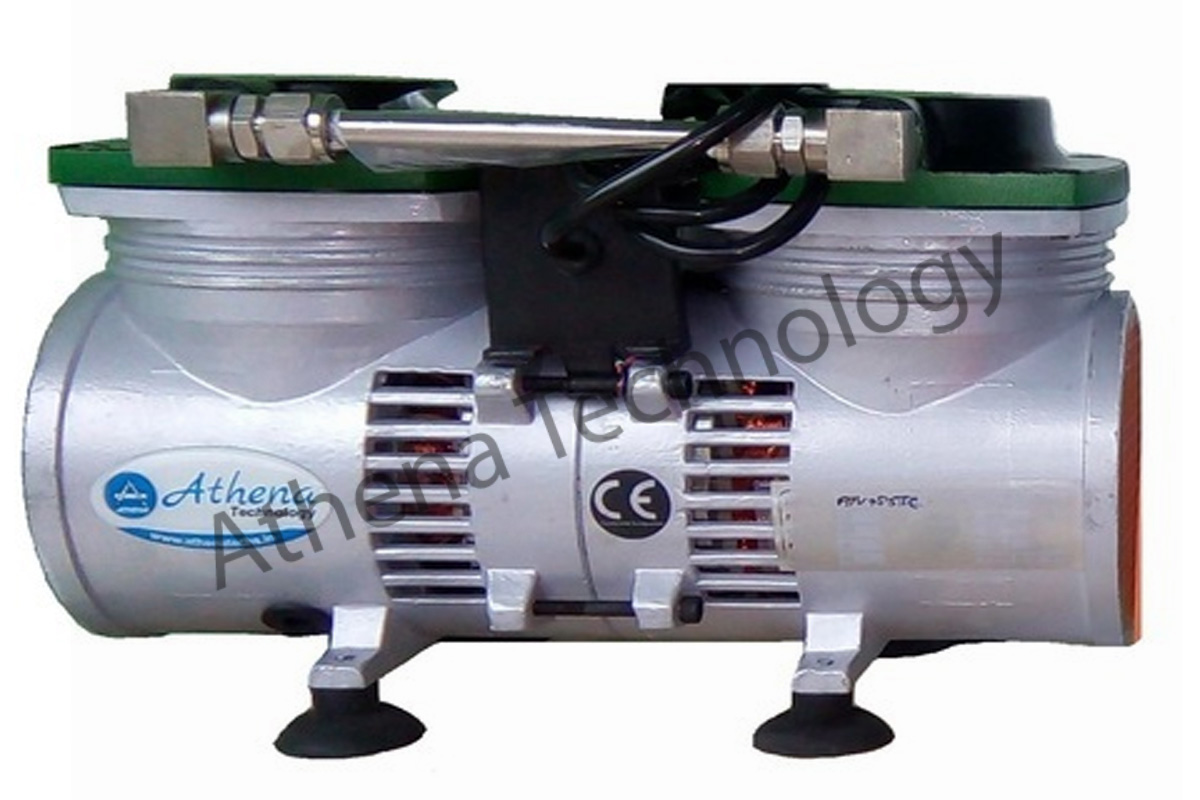

Diaphragm Vacuum Pumps:
We provide Diaphragm Vacuum Pumps/Compressors that are completely oil-free. They are made to deliver clean air, gases, or vapours and can be utilised as oil-free compressors or vacuum pumps. They can be used to create vacuum or compressed air that is free of oil.

Advantages:

• Diaphragm type - hence no rubbing of parts and negligible wear & tear
• Practically maintenance free.
• No lubrication required, hence oil - free
• Low operational cost of equipment. This results from the modest cost for replacement of diaphragm and valves.

Features

• Heads are made of aluminum alloy castings
• Diaphragms are made of neoprene rubber or other elastomers depending on applications
• Specially designed motors in single - phase and three-phase constructions
• Pumps are mounted on rubber pads for silent, vibration-free running
• Compact, light-in-weight, hence portable
• Due to compact design, these pumps are ideal for laboratories and original equipment manufacturers

Applications:

Pollution Monitoring Equipment, Chemical Analyzers, Laminating press, Material Handling Equipment, Labeling Machines, Plastic Welding Machines, Gas Welding Machines, Soldering iron, Agitation of Chemicals in Tanks, Aeration.

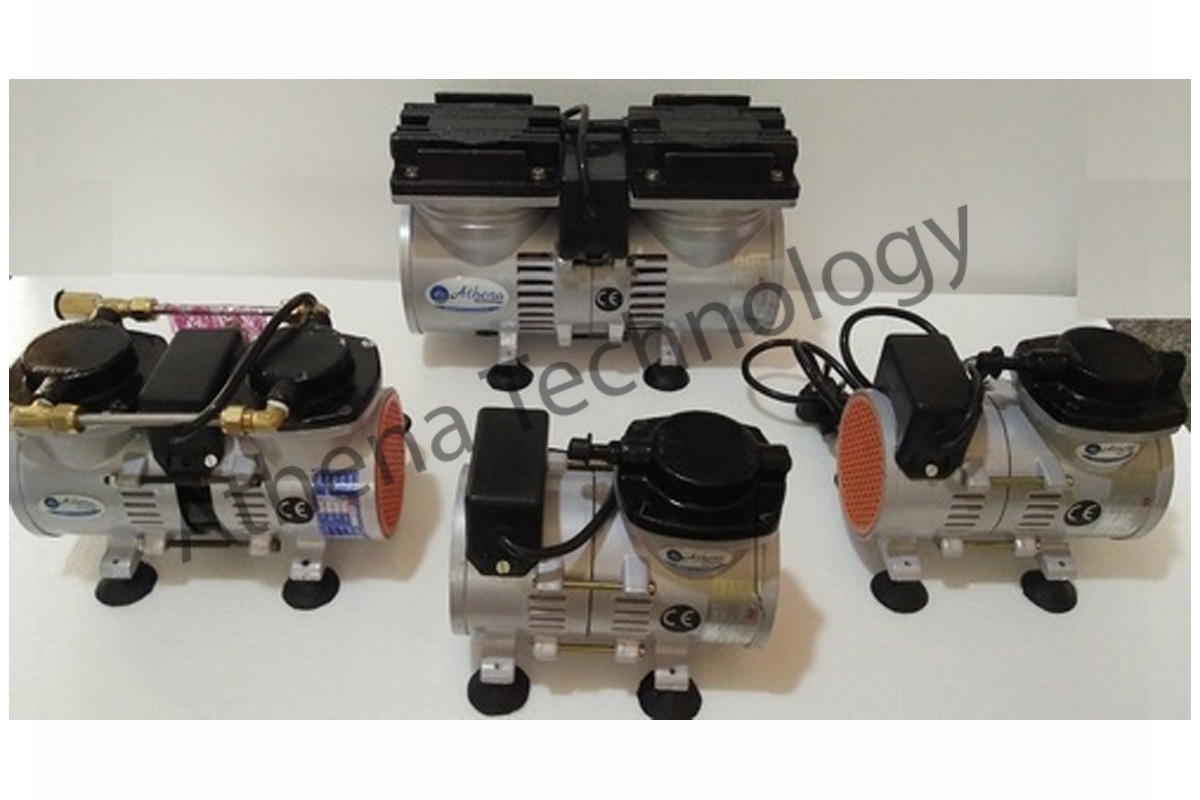

Vacuum Pump for HPLC

• Laboratories
• Pollution Control Equipments
• Material Handling Equipments
• Labeling machines
• Desoldering station
• Glass forming
• Medical Instruments
• Dentists
• Chemical analisers
• Suction machines
• Photographic developing machines
• HPLC Filtration
• Solvent Filtration System

Specification:

MODEL	MAX. FLOW (Ltrs/min)	MAX. VACUUM (Inches Hg)	MAX. PRESS. (PSlg)	APPROX. Weight (Kg)	MOTOR HP	Dimensions (mm)
ATV-15	15	22"	25	3.0	1/20	175X110X150
ATV-15-RD	15	22"	25	2.7	1/20	150X100X150
ATV-25-S	15	27"	35	5.5	1/16	220X110X150
ATV-25-P	25	22"	25	5.5	1/16	220X110X150
ATV-45	45	22"	40	7.0	1/8	200X125X200
ATV-75-S	45	27"	60	12.5	1/4	300X130X200
ATV-75-P	75	22"	45	12.5	1/4	300X130X200
ATV-15-DC- 1500	15	22"	25	3.5	1/20	230X110X150
ATV-45-FM	45	22"	30	15.0	1/4	400X150X220
ATV-45-CRP	30	22"	20	7.0	1/8	220X150X220

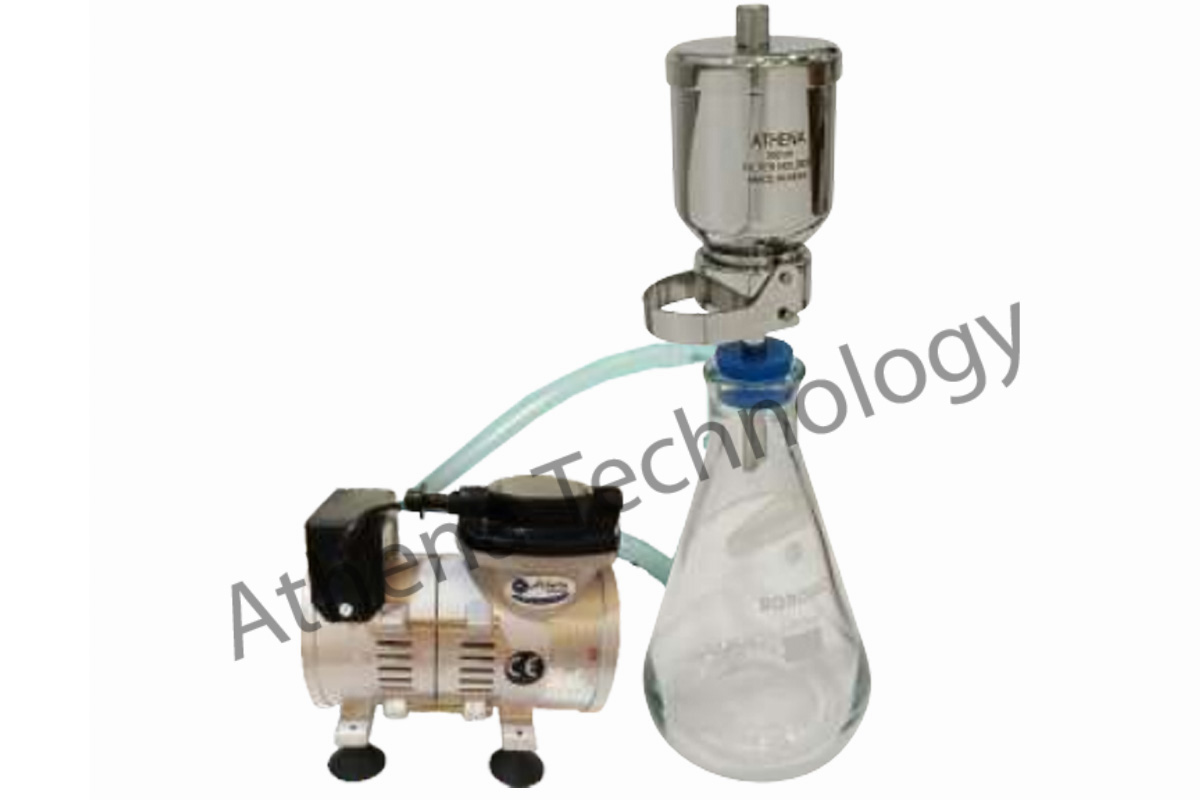

Solvent & Sample Filtration Kit:
Assembly for Solvent Filtration Ready to use, whole kit. Ideal for general-purpose filtration or filtering HPLC solutions.

The kit comprises of:
All-glass, 47mm, borosilicate membrane filter holder with sintered disc for membrane stability and metal "duck" clamp. ATV-15 vacuum pump model. efficient and portable. Silicon rubber tubing measuring 6 x 9 mm long. 100 Membranes, 47mm, in a pack. SS Membrane Filter Holders Stainless Steel Membrane Filter Holders. Made from SS 316.
