SPE Vacuum Manifold
SPE Vacuum Manifold System Vacuum SPE Manifold, Solid phase extraction SPE is a chromatographic technique used to prepare samples for subsequent analysis by removing interfering substances that may be present. The general procedure includes sorbent activation, loading, washing and eluting. This is done either by retaining the substance of interest and washing off everything else or by retaining the interfering substances and eluting the product of interest. The vacuum SPE devices are designed to concentrate or isolate analytes from complex sample matrices. It allows processing of extraction columns with high sample throughput at minimal expense. Solvents and samples are aspirated through the columns by a vacuum of 0-20 inches Hg. Eluates are collected in tubes positioned in a removable rack inside the manifold. The 12-ports and 24-ports manifold accommodate up to 12 and 24 columns, respectively.

Application:

• Multiple sample processing saves time and money.
• Female Luer inlets fit all male Luer tipped SPE tubes and cartridges.
• Compatible with standard Luer-tipped SPE and filtration columns.
• Glass chamber allows easy visual monitoring.
• Adjustable racks accommodate a variety of test tubes, vials and flasks.
• Available in 12 and 24-position for standard tubes

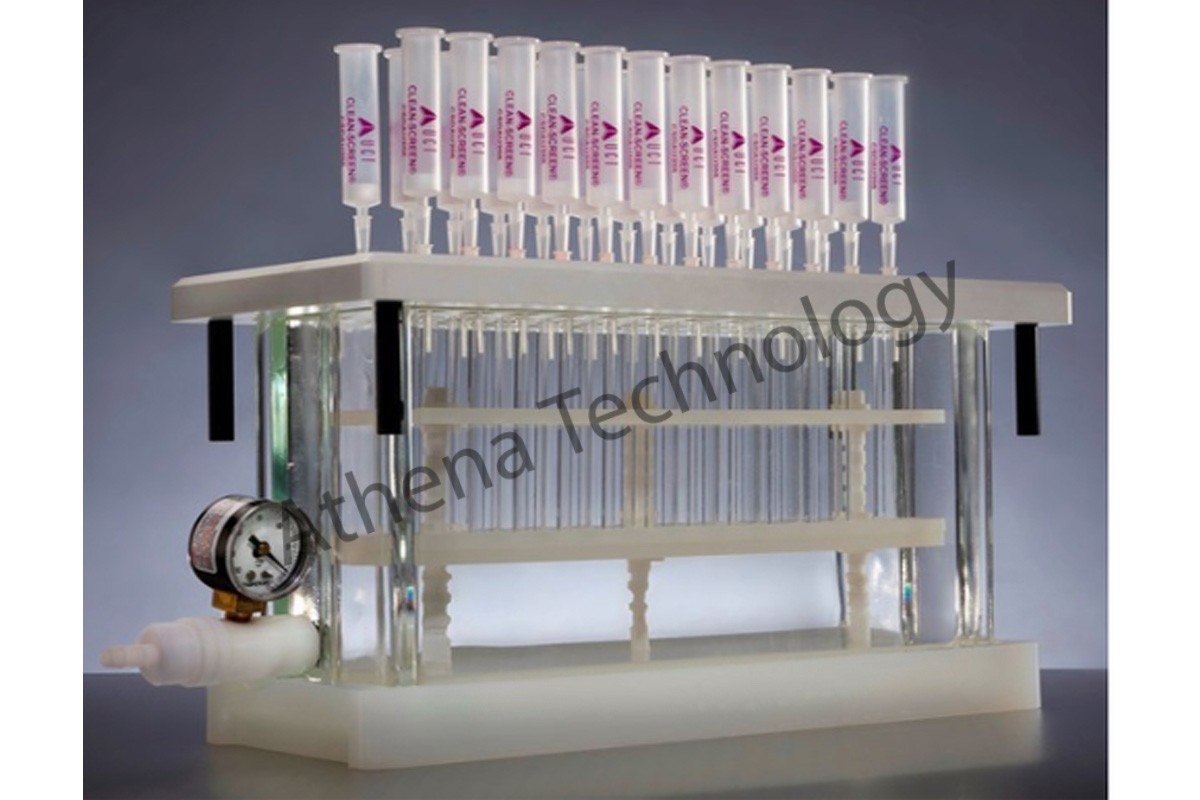

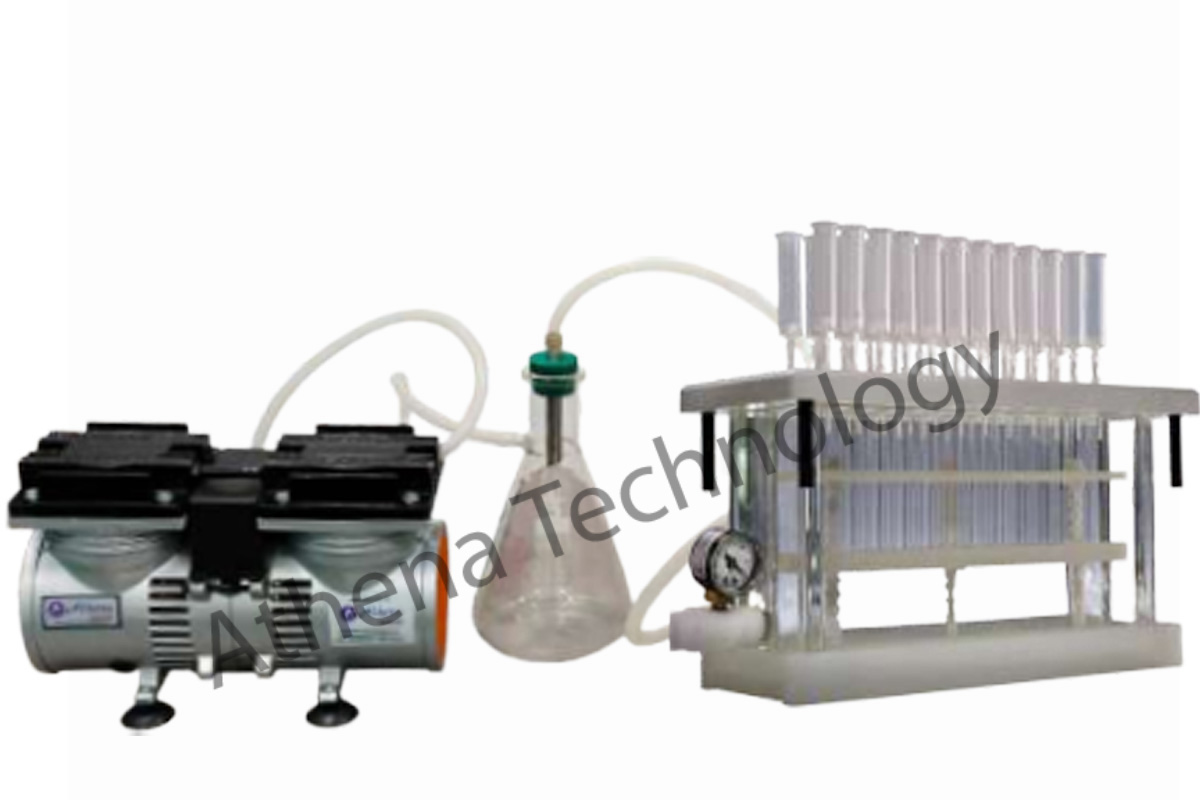

VACUUM MANIFOLD SYSTEM For Solid Phase Extraction

Rectangular Acrylic Cabinet; 2 Sizes Available:
Small For Up To 12 Columns Cartridges
Large For Up To 12 Lv Columns Or Up To 24 Cartridges (Depending On Lid)
Polypropylene Lid
Vacuum Gauge For Pressure Reading
Control Valve For Adjustment Of Vacuum
Replaceable Valves For Vacuum Control Of Individual Spe Columns
Variable Rack With Exchangeable Partitions, Which Accept A Wide Variety Of Vessels Like Test Tubes, Measuring Flasks, Scintillation Vials, Autosampler Vials, Plastic Vials Etc. 20um Columns With 5-10 Ml Sample Reservoir For Medium Size Samples
Polypropylene Sample Reservoir (5 Or 50 Ml Available)
Adapter For Sample Reservoirs
Spe Manifold Tubing Adapters

SPE Vacuum Manifold System Vacuum SPE Manifold, Solid phase extraction SPE is a chromatographic technique used to prepare samples for subsequent analysis by removing interfering substances that may be present. The general procedure includes sorbent activation, loading, washing and eluting. This is done either by retaining the substance of interest and washing off everything else or by retaining the interfering substances and eluting the product of interest. The vacuum SPE devices are designed to concentrate or isolate analytes from complex sample matrices. It allows processing of extraction columns with high sample throughput at minimal expense. Solvents and samples are aspirated through the columns by a vacuum of 0-20 inches Hg. Eluates are collected in tubes positioned in a removable rack inside the manifold. The 12-ports and 24-ports manifold accommodate up to 12 and 24 columns, respectively.

Application:

• Multiple sample processing saves time and money.
• Female Luer inlets fit all male Luer tipped SPE tubes and cartridges.
• Compatible with standard Luer-tipped SPE and filtration columns.
• Glass chamber allows easy visual monitoring.
• Adjustable racks accommodate a variety of test tubes, vials and flasks.
• Available in 12 and 24-position for standard tubes

Specifications:

Glass chamber	Vacuum gauge
12 position cover with Luer Fittings	12 Retaining Clips
Gasket	4 Supports
12 Individual Flow Control Stopcocks	12 Luer Plugs
3 Posts	Valve Assemble
6 Shelves	Waster container
12 Guide needles
