Digital Rotary viscometers
Digital Rotary viscometers
Digital viscometers
Digital Rotary viscometers
Brookfield ViscometerViscometer

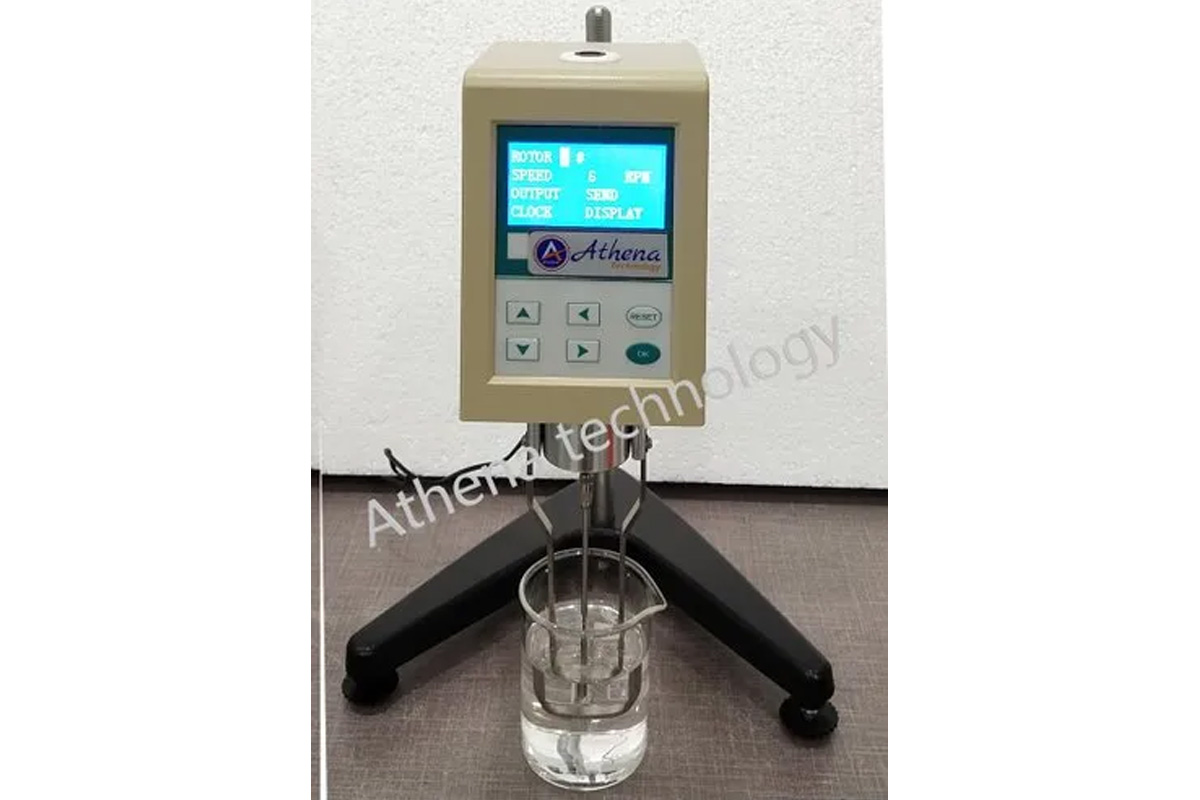

Digital Rotary Viscometer
Product Details:
| Model Name/Number | ATV-8S |
|---|---|
| Brand | Athena |
| Viscosity | 1 ~ 2 x 1000000 mPa |
| Material | Stainless Steel |
| Usage/Application | Laboratory |
| Number Of Cups | 8 |
| Type | Digital Rotary viscometers |
| Maximum Viscosity Range | 32 combinations |
| Features | Automatic |
| Viscocity Rpm | 0.3,0.6,1.5,3,6,12,30,60 rpm |
Digital Rotary viscometers
The Digital Viscometer ATV-8S has the characteristics of high
sensitivity, reliable test results, convenient operation
and beautiful appearance. It is used to measure the apparent
viscosity of Newtonian liquid and the apparent viscosity of
non Newtonian liquid. It can be widely used in oil, paint, plastics,
drugs, ornaments, coatings, detergents and so on.
Measurement of the viscosity of various objects.
This instrument is a digital viscometer. The motor drives the rotor
at a constant speed by changing the speed. When the
rotor rotates in the liquid, the liquid will produce a viscosity
torque acting on the rotor, and the viscous torque will
also be greater; conversely, the smaller the viscosity of the
liquid, the smaller the viscous torque. The viscous moment
acting on the rotor is The sensor is detected and processed by the
computer to obtain the viscosity of the measured
liquid.
The instrument adopts microcomputer technology and can conveniently
set the range (rotor number and rotation speed),
digitally process the data detected by the sensor, and clearly
display the rotor number, rotation speed, and measured
value set on the display. The liquid viscosity and its full-scale
percentage value.
The ATV-8S is equipped with four rotors (No. 1, 2, 3, 4) and eight
rotating speeds (0.3, 0.6, 1.5, 3, 6, 12, 30, 60
rpm). The 32 combinations can be used to measure the viscosity of
various liquids in the range of measurement.
Measurement range 1 ~ 2 x 1000000 mPa
The rotor specifications 1-4 rotor matching 0 th rotor can be
measured the low viscosity to 0.1 mPa
The rotor speed of 0.3, 0.6, 1.5, 3, 6, 12, 30, 60, turn/points
Since the move files can choose the right number and automatic rotor
speed
Interface choose Chinese/English
Reading ShuTiao square with stable cursor cursor division shows
reading basically stable
Measuring precision plus or minus 2% (Newton liquid)
The power supply ac 110,220 V plus or minus 10% frequency 50 Hz plus
or minus 10%
Work environment temperature 5 ℃ to 35 ℃, relative humidity is not
more than 80%
Shape dimension 370 x 325 x 280 mm
Net weight of 6.8KG
| model(viscometer) | ATV-8S |
|---|---|
| Measurement Range(mPa·s) | 1 ~2×106 |
| Rotor Specification | 1, 2, 3, 4# (0# optional) |
| Rotating Speed of Rotor(rpm) | 0.3,0.6,1.5,3,6,12,30,60rpm |
| Interface(Extra configuration) |
1. Printer Interface 2. PC Interface 3. Temperature Sensor Interface |
| Automatic Switch | free selection of proper rotating speed or rotor number. |
| Stable Cursor | Strip-type cursor fully charged displayed when reading basically stable |
| Measurement Tolerance | ±2%(newtonian liquid) |
| Voltage (V) | AC(220-240V 50HZ / 110-120V 60HZ) |
| Working Condition | Temperature 5-35°C,Relative humidity no more than 80% |
| Outline Dimension(mm) | 370*325*280 |
| Packaging size(mm) | 400*360*310 |
| Net Weight(kg) | 6.8 |
| Gross Weight(kg) | 7.5 |
