Ultrasonic Cleaners
We are proficient in the manufacturing and supplying of best quality Glassware Ultrasonic Cleaners. Known for their resistance to corrosion and alkali, the whole range of the glassware ultrasonic cleaners offered by us is highly popular among the customers we have. Committed to the satisfaction of our clients, we assure an optimum range of products for our revered clients

Features:

• Resistant to corrosion
• Longer functional life
• Resistant to alkali

Specifications:

• Tank : 58 ltrs
• U/s. Power: 700 Watts
• U/s: 33 + 3 Khz

Applications:

• Laboratory :For Glassware, Filters Cleaning & HPLC Mobile Phase, Degassing
• Industrial : Semi-Conductors, Electronic Components, Precious Parts & Mechanisms.
• Medical : Dental & Surgical Instruments
• Opticals : Spectacles, Spectacle Frames, Lenses
• Jewellery : For all kinds of Jewellery, Precious Stones etc
• TO REMOVE : Dust, Oils, Greases, Polishing Compounds, Waxes,Swarf, Stains, Soils and any other contaminan

Applications:

• Cleaning the glass ware, Lab instruments
• Dissolve, disperse and emulsify samples
• Sonochemistry i.e. degassing the solution
• Degassing HPLC Samples Sonication

Why Our Ultrasonic Sonicator Bath?

• Use of Pulse Sweep Energy
• Precision cleaning
• Time saving
• Provide safe solution
• Highly effective for removing chemical residues from

Ultrasonic Sonicator Bath / Ultrasonic Bath / Degassing Sonicator
We are engaged in the production and distribution of optical lens ultrasonic cleaners of the highest calibre. It is well regarded by our clientele, who are spread out over the country, and is frequently utilised in hospitals. Our whole selection of ultrasonic cleaners is warranted to be of the highest quality because it has undergone quality checks on a number of different factors. Features: Digital timer, miniature! Live a long life! outstanding performance
Ultrasonic Cleaner / Sonicator Bath
We are having different type of Ultrasonic Cleanser for different application

Multi Stage UltraSonic Cleanser * Ultrasonic Jewelry Cleaner

Ultrasonic Mold Cleaner * Ultrasonic PCB Cleaner

Ultrasonic Part Cleaner * Ultrasonic stencil cleaner

Ultrasonic Filter Cleaner * Ultrasonic Surgical Instrument Cleaner

Applications:

• Cleaning the glass ware Lab instruments Dissolve, disperse and emulsify samples Sonochemistry i.e. degassing the solution Degassing HPLC Samples Sonication
• Use of Pulse Sweep Energy Precision cleaning Time saving Provide safe solution Highly effective for removing chemical residues from Ultrasonic Cleaner / Sonicator Bath

Model	ATS-1
Ultrasonic Power(W)-Max	60W
Ultrasonic Power setting-%	10%-100%
	(step by 10%)
Heating Power(W)-Max	100
Capacity (L)-Max	1.5
Tank Size(L*W*H)-MM	200*135*100
External Size(L*W*H)-MM	265*165*235
Transducer Qty(PCS)	2
Drain Valve(Yes or No)	Yes
Carrying Handle(Yes or No)	Yes
Ultrasonic Freq(KHz)	40 KHs
Temp Setting(???)-Max	RT to 60 dC
Timer Setting(MINS)	1-99 min
Cleaning Basket(Yes or No)	YES

Other model available: ATS-7

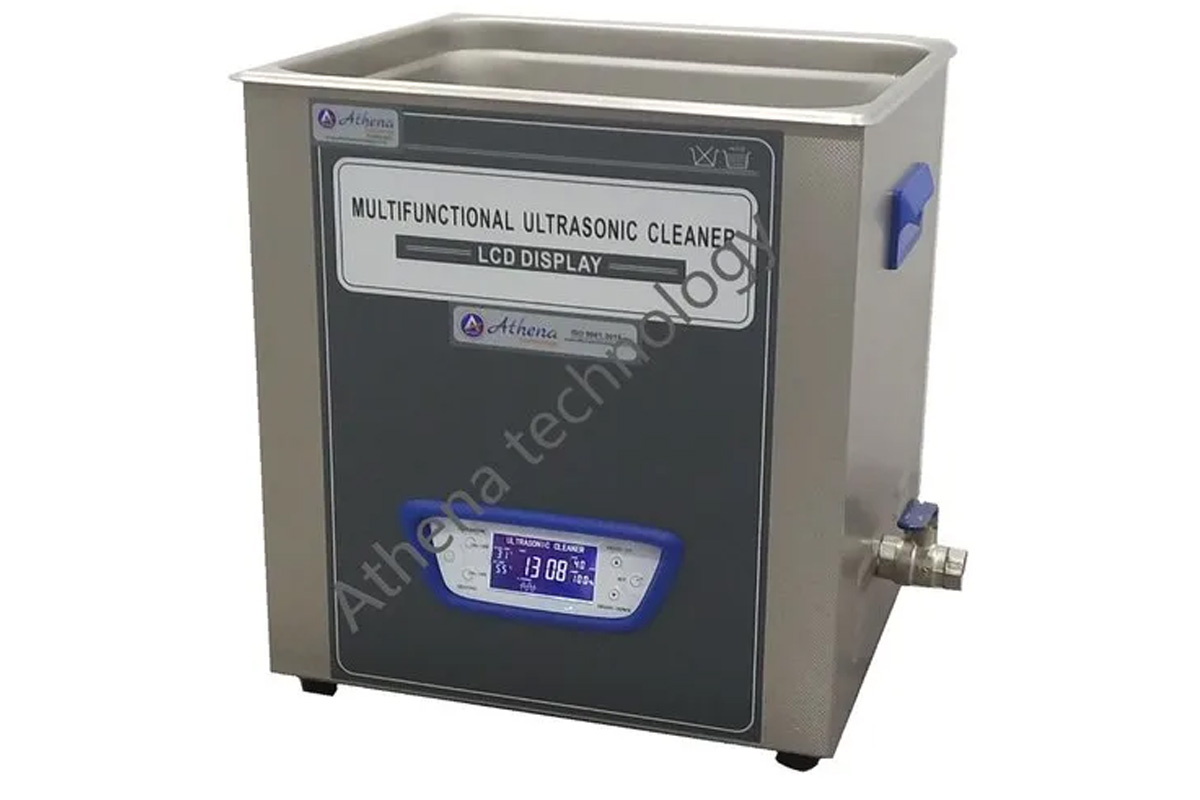

ULTRASONIC CLEANER
The multipurpose ultrasonic cleaner meets your cleaning needs!
With a huge LCD display, which displays the exact time, temperature, and power level, the device also has a built-in heater that heats the environment to 60°C and an adjustable power range of 10%–100%. The "sound insulation paste" built into this series keeps it quiet.
includes sweep and degas functions
For all versions, a humanised drain valve and carrying handle
The most recent configuration parameters will be automatically saved by the memory function for subsequent use.
With sleeping mode to keep electrical energy saving
Adjustable power
Large LCD display
Adjustable time
Memory function
Sleeping mode
Heating function
Low noise
Sweep function
Degas function
Power is adjustable (step by 10%) accordingly to the user's actual requirement Large LCD display screen always show the clear parameters when operate different functions
Make the cleaning process is more evenly and more thoroughly
Make the cleaning process is more efficiently and more quickly
Built-in "sound insulation paste" keep this series with low noise

Applications:

Cleaning the glass ware Lab instruments Dissolve, disperse and emulsify samples Sonochemistry i.e. degassing the solution Degassing HPLC Samples Sonication

Why Our Ultrasonic Sonicator Bath?

Use of Pulse Sweep Energy Precision cleaning Time saving Provide safe solution Highly effective for removing chemical residues from Ultrasonic Cleaner / Sonicator Bath

Model	ATS-6	ATS-7
Ultrasonic Power(W)-Max	180	240
Ultrasonic Power setting-%	10%-100%	10%-100%
	(step by 10%)	(step by 10%)
Heating Power(W)-Max	200	500
Capacity (L)-Max	6.5	7
Tank Size(L*W*H)-MM	300*150*150	300*240*100
External Size(L*W*H)-MM	330*180*310	330*270*260
Transducer Qty(PCS)	3	4
Drain Valve(Yes or No)	Yes	Yes
Carrying Handle(Yes or No)	Yes	Yes
Ultrasonic Freq(KHz)	40 KHs	40 KHs
Temp Setting(???)-Max	RT to 60 dC	RT to 60 dC
Timer Setting(MINS)	1-99 min	1-99 min
Cleaning Basket(Yes or No)	YES	YES

Ultrasonic Bath (Sonicator) with Chiller:
The following is how the ultrasonic cleaning procedure works: The cleaning tank has piezoelectric transducers attached to it. They produce ultrasonic waves that accelerate the cleaning fluid's vibrations and lead to a phenomenon known as cavitation. Within seconds, filth and grime are removed when millions of tiny bubbles rupture within the cleaning solution and enter every crevice of the object being cleaned. The sample can be kept chilled by our built-in chiller unit when set to a chosen temperature between 5 and 20 degrees centigrade. While cleaning, the ultrasonic generator will produce heat. A Chiller System is offered from outside the bath to regulate the heat. The chiller included in the ultrasonic cleaner controls temperature and preserves the machine's functionality for a long time.The ultrasonic cleaner comes with a chiller that controls temperature and maintains the machine's health for a longer functional life. One of the leading producers and providers of premium Ultrasonic Baths with Chiller that are made in compliance with established industry standards is Athena Technology. It is heavily utilised in laboratories and is in high demand on the market. The included chiller unit and longer working life of the given product are also highly valued features.

Features:

• In-built chiller unit
• Longer functional life
• Used in labs

Why Our Ultrasonic Sonicator Bath?:

• Use of Pulse Sweep Energy
• Precision cleaning
• Time saving
• Provide safe solution
• Highly effective for removing chemical residues from

Technical Specification of Ultrasonic Bath:

• Electric Supply : 230V AC, 50hZ 1PHASE
• Tank Material : S.S. 304 Grade Inner & Outer.
• Construction : Ultrasonic Generator & SS Tranducerised.
• Tank are housed in one S.S 304 grade cabinet.
• Transducer : PZT Sandwich type bonded on the base of S.S. Tank. With Transduser Protection for chilled water Condensation.
• Cooling Coils : SS Coil of 1/2" dia are fitted in the SS tank to cool the liquid inside the tank, through
• which chilled water has to be circulated water in & out connection are provided for the coils
• Special tray to collect & drain water of condensation (chilled water)
• Capacity available :10 lit, 20 lit, 30 lit & higher as per requirement
• Two digit 0-30 mts. timer for Ultrasonic with lid & basket

Applications:

• Laboratory : For Glassware, Filters Cleaning & HPLC Mobile Phase, Degassing To prevent solvent which gets evaporated above ambient temperature while sonicator during mobile phase.
• Industrial : Semi-conductors, Electronic, Components, Precious parts & Mechanisms
• Medical : Dental & Surgical Instruments
• Opticals : Spectacles, Spectacle Frames, Lenses
• Jewellery : For all kinds of Jewellery, Precious Stones etc.
• To remove : Dust, Oils, Greases, Compounds, Waxes, Swarf, Stains, Soils and any other contaminant

Athena, the Ultrasonic Bath We are one of the reputable Ultrasonic Sonicator Bath Manufacturers, Suppliers, and Exporters. Utilizing the most recent microcontroller base technology and MOSFET/IGBT, the Sonicator Bath was created. All of the labs' cleaning requirements are met using an ultrasonic bath. In QC, R&D and analytical, scientific and pharmaceutical labs, ultrasonic sonicators are used. There are no impurities left over from the previous process thanks to the use of an ultrasonic sonicator bath, which offers gentle yet effective cleaning action. Our experts have mastered the skill of producing higher capacity degassing sonication baths. Additionally, we provide our clients a tailored production facility.

Athena Ultrasonic Cleaners:

Higher Efficiency Solid-State Circuits. With Auto-tuning Facility.

Easy to Operate and maintain.

Operating Frequencies 36+-3 Khz or 22+-3Khz. However for all General purpose Cleaning 363 Khz is highly recommended.

Principle of Ultrasonic Cleaning: Ultrasonic (sometimes known as ultrasound) is a sound that humans cannot hear. Ultrasonic uses frequencies up to and including 18 kHz (18000 cycles per second) Ultrasonic Transducers, which are attached to the base of a stainless steel cleaning tank, transform high frequency electrical energy into ultrasonic waves. These high-frequency sound waves cause many squid to become active. Vacuum bubbles in the microscopic range that rapidly expand and deflate. This condition is called CAVITATION. These bubbles function as tiny, high-speed brushes that force the liquid into all crevices and openings of the submerged object. All of the dirt and soil are removed from the object by intense cavitation, and the object is then perfectly replicated. Complex items can be cleaned with either full or minimal disassembly.

Features:

Easy operate

Higher Efficiency

Minimum maintenance

Specifications:

• Cleaning the glass ware, Lab instruments Dissolve, disperse and emulsify samples Sonochemistry i.e. degassing the solution Degassing HPLC Samples Sonication

Why Our Ultrasonic Sonicator Bath?

Use of Pulse Sweep Energy
Precision cleaning
Time saving
Provide safe solution
Highly effective for removing chemical residues from

Ultrasonic Sonicator Bath / Ultrasonic Bath / Degassing Sonicator: We are engaged in the production and distribution of optical lens ultrasonic cleaners of the highest calibre. It is well regarded by our clientele, who are spread out over the country, and is frequently utilised in hospitals. Our whole selection of ultrasonic cleaners is warranted to be of the highest quality because it has undergone quality checks on a number of different factors.

Features:

• Mini digital timer !! Long lasting life !! Superior performance

ULTRASONIC CLEANER
The multipurpose ultrasonic cleaner meets your cleaning needs!
With a huge LCD display, which displays the exact time, temperature, and power level, the device also has a built-in heater that heats the environment to 60°C and an adjustable power range of 10%–100%.
The "sound insulation paste" built into this series keeps it quiet.
includes sweep and degas functions
For all versions, a humanised drain valve and carrying handle
The most recent configuration parameters will be automatically saved by the memory function for subsequent use.
With sleeping mode to keep electrical energy saving
Adjustable power
Large LCD display
Adjustable time
Memory function
Sleeping mode
Heating function
Low noise
Sweep function
Degas function
Power can be changed (step by 10%) to meet the user's actual needs.
When performing various functions, a large LCD display screen always shows the clear parameters.
Make sure the cleaning is done more completely and uniformly.
Improve the effectiveness and speed of the cleaning procedure.
The "sound insulation paste" built into this series with low noise

Applications:

• Cleaning the glass ware Lab instruments Dissolve, disperse and emulsify samples Sonochemistry i.e. degassing the solution Degassing HPLC Samples Sonication

Why Our Ultrasonic Sonicator Bath?

• Use of Pulse Sweep Energy
  Precision cleaning
  Time saving
  Provide safe solution
  Highly effective for removing chemical residues from Ultrasonic Cleaner / Sonicator Bath


Model	ATS-15
Ultrasonic Power(W)-Max	360
Ultrasonic Power setting-%	10%-100%
	(step by 10%)
Heating Power(W)-Max	500
Capacity (L)-Max	15
Tank Size(L*W*H)-MM	330*300*150
External Size(L*W*H)-MM	360*330*330
Transducer Qty(PCS)	6
Drain Valve(Yes or No)	Yes
Carrying Handle(Yes or No)	Yes
Ultrasonic Freq(KHz)	40 KHs
Temp Setting(???)-Max	RT to 60 dC
Timer Setting(MINS)	1-99 min
Cleaning Basket(Yes or No)	YES

Features:

• Customized size available
• 28/40KHz frequency optional
• Power adjustable
• Industrial grade integrated circuit
• 1~999 min working time
• SUS304/SUS316 stainless steel housing optional

Application:

Clean irregular and complex specialized instruments, components and PCBs of sundry shops, workshops, factories etc.
