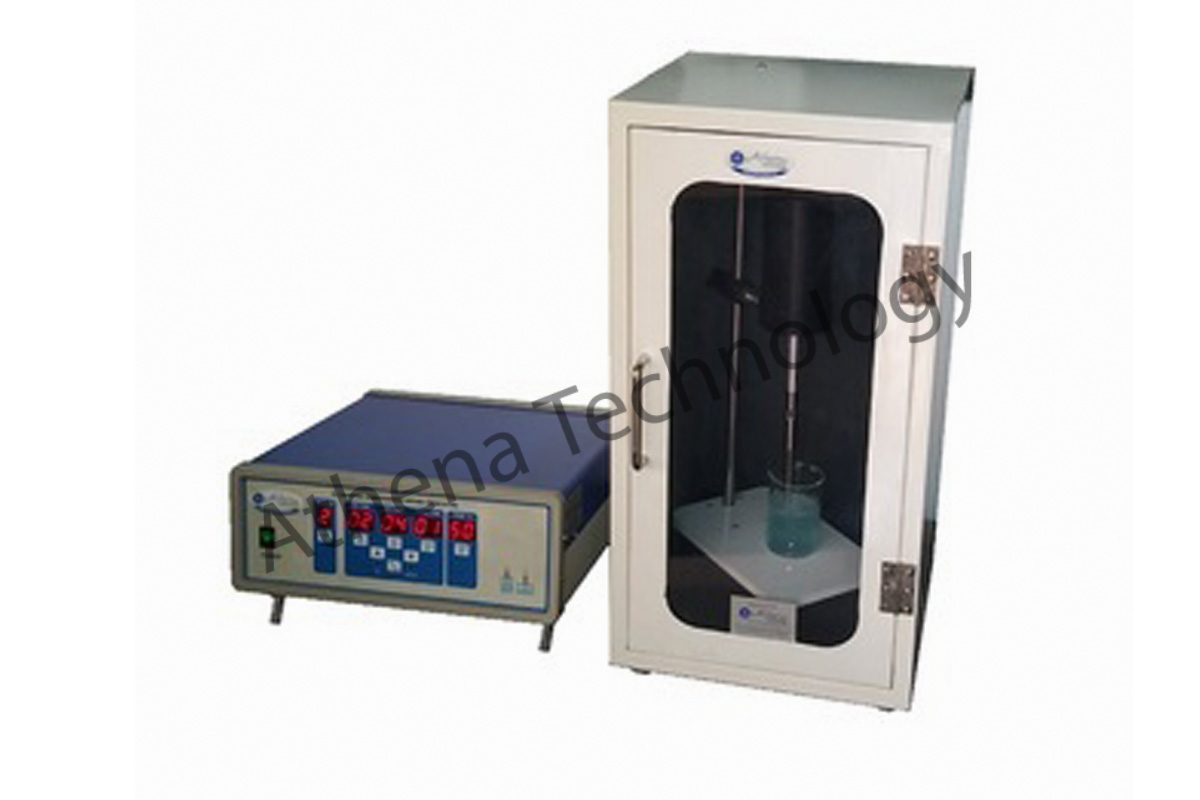

Ultrasonic Sonicator (Indigenous):

For the homogenization and analysis of laboratory samples that don't need to be processed using conventional grinding or rotor-stator cutting processes, ultrasonic homogenizers are advised. Precision engineering is provided by the ATHENA Ultrasonic Homogenizers, which have all the features required to build a complete system for ultrasonic disruption. The Probe Sonicator is frequently used in biological applications to damage cell membranes and release cellular contents. The probe sonicator can also break up DNA molecules. In order to break down particles to nano size and to evenly distribute nanoparticles in liquids, probe sonicators are frequently employed in nanotechnology.

1. Timer: digital 1 min –99 min adjustable Impulse: digital closed loop, open loop: 1s , 4s , 8s
2. Programmable : 5/10 program set
3. Temp Range : 10-80°C (Temp settable)
4. Piezoelectric frequency energy converter : Lead zirconate TITANIUM (PZT) pyro electric ceramics .
5. Standard probe: Titanium Alloy material Diameter (probe): 3mm/6mm/ 10mm / 12mm.
6. Power Supply: AC 230, 50 Hz/60 Hz
7. CE & ISO 9001: 2008 Certified
8. Variable Amplitude Control
9. Micro Based, processer, Digital Display with user prompts
10. Full Function pulsar ON & OFF
11. Laboratory Jack
• Ultrasonic Power : 150 -750W ( Average )
• Ultrasonic Frequency : 20+2 Hz
• Processor Controller with time Operation in : Micro Processor based Programmable Timer Two digit display is provided for selecting On Off Time and Total time of Processing Cyclic Mode
• Probe Tips : Detachable type made of TITANIUM
• 3 mm Dia and 20 mm Dia
• Cyclic Mode on : Maximum on time 15 Seconds no
• clamping off time
• Ultrasonic Horn: Is made of TITANIUM
• Ultrasonic Generator Tuning : Is Housed in a separate box. It has auto facility & the required control Unit
• Standard Accessories : Stand for Ultrasonic Probe Sonicator & Jack type for sample Placement.
• Probe Sonicator (Advanced)

Main Features :

• Auto frequency chasing, avoiding adjustment liquid crystal display at peak value.
• Main Instruction, Convenient operation
• Display Temperature Control Checking and set over - hot protection on the samples
• Output Amplitude 0-100% adjustment
• Overload Protection, so that equipment can not be damaged
• 10 Operating Programs for application or reserve after refreshing.

1. Timer: digital 1 min –99 min adjustable Impulse: digital closed loop, open loop: 1s , 4s , 8s
2. Programmable : 5/10 program set
3. Temp Range : 10-80°C (Temp settable)
4. Piezoelectric frequency energy converter : Lead zirconate TITANIUM
(PZT) pyro electric ceramics .
5. Standard probe: Titanium Alloy material Diameter (probe): 3mm/6mm/ 10mm / 12mm.
6. Power Supply: AC 230, 50 Hz/60 Hz
7. CE & ISO 9001: 2008 Certified
8. Variable Amplitude Control
9. Micro Based, processer, Digital Display with user prompts
10. Full Function pulsar ON & OFF
11. Laboratory Jack

Athena Ultrasonic Processor (Probe Sonicator)

1. Timer: digital 1 min –99 min adjustable Impulse: digital closed loop, open loop: 1s , 4s , 8s
2. Programmable : 5/10 program set
3. Temp Range : 10-80°C (Temp settable)
4. Piezoelectric frequency energy converter : Lead zirconate TITANIUM (PZT) pyro electric ceramics .
5. Standard probe: Titanium Alloy material Diameter (probe): 3mm/6mm/ 10mm / 12mm.
6. Power Supply: AC 230, 50 Hz/60 Hz
7. CE & ISO 9001: 2008 Certified
8. Variable Amplitude Control
9. Micro Based, processer, Digital Display with user prompts
10. Full Function pulsar ON & OFF
11. Laboratory Jack
For the homogenization and analysis of laboratory samples that don't need to be processed using conventional grinding or rotor-stator cutting processes, ultrasonic homogenizers are advised. Precision engineering is provided by the ATHENA Ultrasonic Homogenizers, which have all the features required to build a complete system for ultrasonic disruption. The Probe Sonicator is frequently used in biological applications to damage cell membranes and release cellular contents. The probe sonicator can also break up DNA molecules. In order to break down particles to nano size and to evenly distribute nanoparticles in liquids, probe sonicators are frequently employed in nanotechnology.

Major Function:

1. The user-friendly power control and auto-tuning.
2. The entire working time is controlled by a timer from 1 to 99 minutes;
3. Adjust TEMP as necessary.
3. Show the remaining time while the countdown is active.
4. A digital display controlled by a CPU
5. Configurable to 5 or 10 USER Settings
6. ON/OFF impulse timer: Be careful handling samples that are temperature-sensitive. On and off settings can be continued from 1s, 4s, or 8s;7. Automatic amplitude compensation to make the amplitude not changed following the carrying.
8.Digital operation , easy , direct type.

Technical parameters :

1. Timer: digital 1 min –90 min adjustable Power adjustable: 20%--100%, Impulse: digital closed loop, open loop: 1s, 4s, 8s
2. Piezoelectric frequency energy converter: Lead zirconate TITANIUM(PZT) pyro electric ceramics
3. Standard probe: titanium alloy material Diameter (probe): 3mm /6mm /9-10mm /12mm.

Model	Particulars
ATP-750	Capacity : 25 – 900ml Probe Size : 6mm / 12mm / 20 mm Ultrasonic Power : 750 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-500	Capacity : 5 – 500ml Probe Size : 3mm / 6mm / 12mm Ultrasonic Power : 500 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-250	Capacity : 1 – 300ml Probe Size : 3mm / 6mm Ultrasonic Power : 250 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-150	Capacity : 0.1ml – 200ml Probe Size : 3mm / 6mm Ultrasonic Power : 150 W Frequency (KHz): 20 Timer : Cyclic ON / OFF

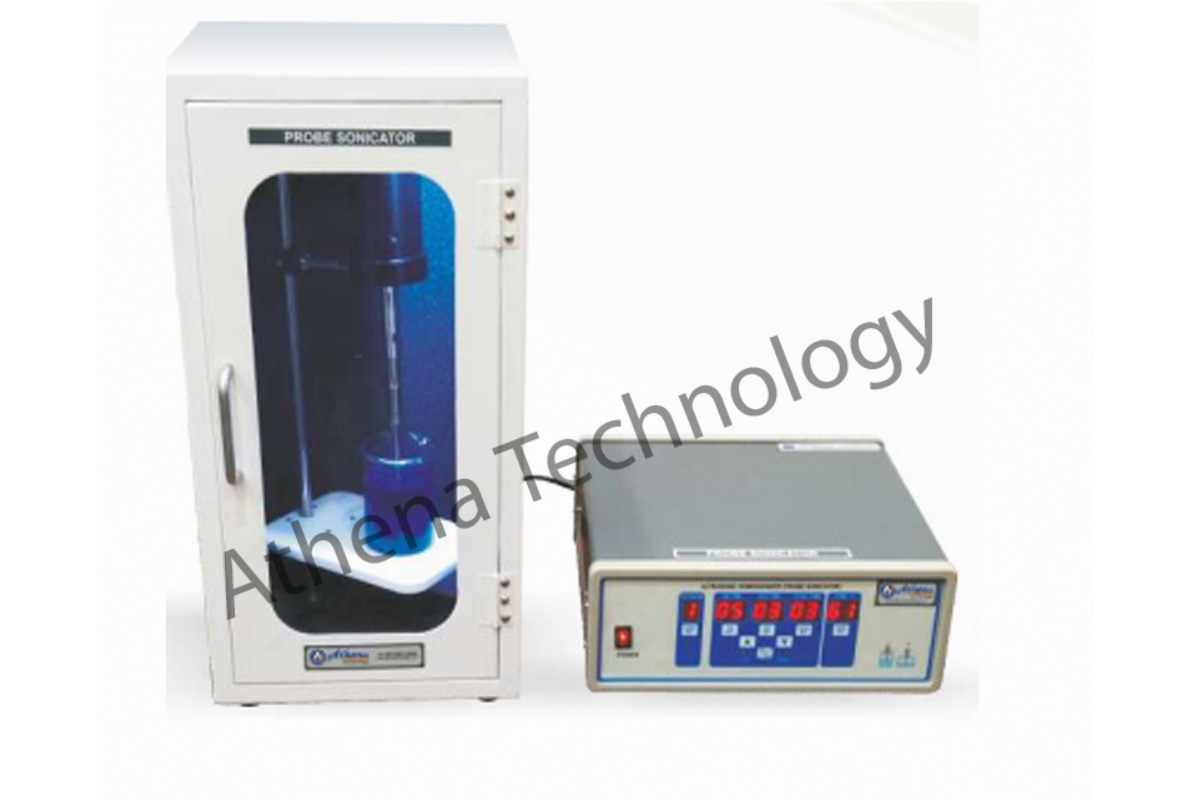

Ultrasonic Processor
1. Timer: digital 1 min –99 min adjustable Impulse: digital closed loop, open loop: 1s , 4s , 8s
2. Programmable : 5/10 program set
3. Temp Range : 10-80°C (Temp settable)
4. Piezoelectric frequency energy converter : Lead zirconate TITANIUM(PZT) pyro electric ceramics .
5. Standard probe: Titanium Alloy material Diameter (probe):3mm/6mm/ 10mm / 12mm.
6. Power Supply: AC 230, 50 Hz/60 Hz
7. CE & ISO 9001: 2008 Certified
8. Variable Amplitude Control
9. Micro Based, processer, Digital Display with user prompts
10. Full Function pulsar ON & OFF
11. Laboratory Jack
Applications:

• Prepare Tissue , Prepare Emulsions , Immiscible Liquids
• Accelerate Enzymatic Reactions , Accelerate Chemical Reactions , Stimulate Bacterial Activity
• Disperse Solids , Degassing of Liquids , De-agglomerate Powders
• Dissolve Powders, Dissolve Tablets , Emulsify Cosmetics
• Extract DNA / RNA , Extract Proteins , Emulsify Liposomes.

* PZT Crystals were added to the SS Velocity Horn (Transducer Elements) The ultrasonic generator's electrical frequency energy is transformed into mechanical vibrations at the rate of applied electrical frequency by the velocity horn assembly. This velocity Horn amplifies the mechanical vibrations' amplitude. The processing applications are utilised with this velocity horn.

Advantages:

When compared to processes, homogenization and microfined emulsion are *more stable. It is very adaptable and may be quickly switched from one batch to another without the need for additional steps like emptying, cleaning, and refilling. The ultrasonic processor can be moved to different places where samples are processed.

Model	Particulars
ATP-750	Capacity : 25 – 900ml Probe Size : 6mm / 12mm / 20 mm Ultrasonic Power : 750 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-500	Capacity : 5 – 500ml Probe Size : 3mm / 6mm / 12mm Ultrasonic Power : 500 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-250	Capacity : 1 – 300ml Probe Size : 3mm / 6mm Ultrasonic Power : 250 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-150	Capacity : 0.1ml – 200ml Probe Size : 3mm / 6mm Ultrasonic Power : 150 W Frequency (KHz): 20 Timer : Cyclic ON / OFF

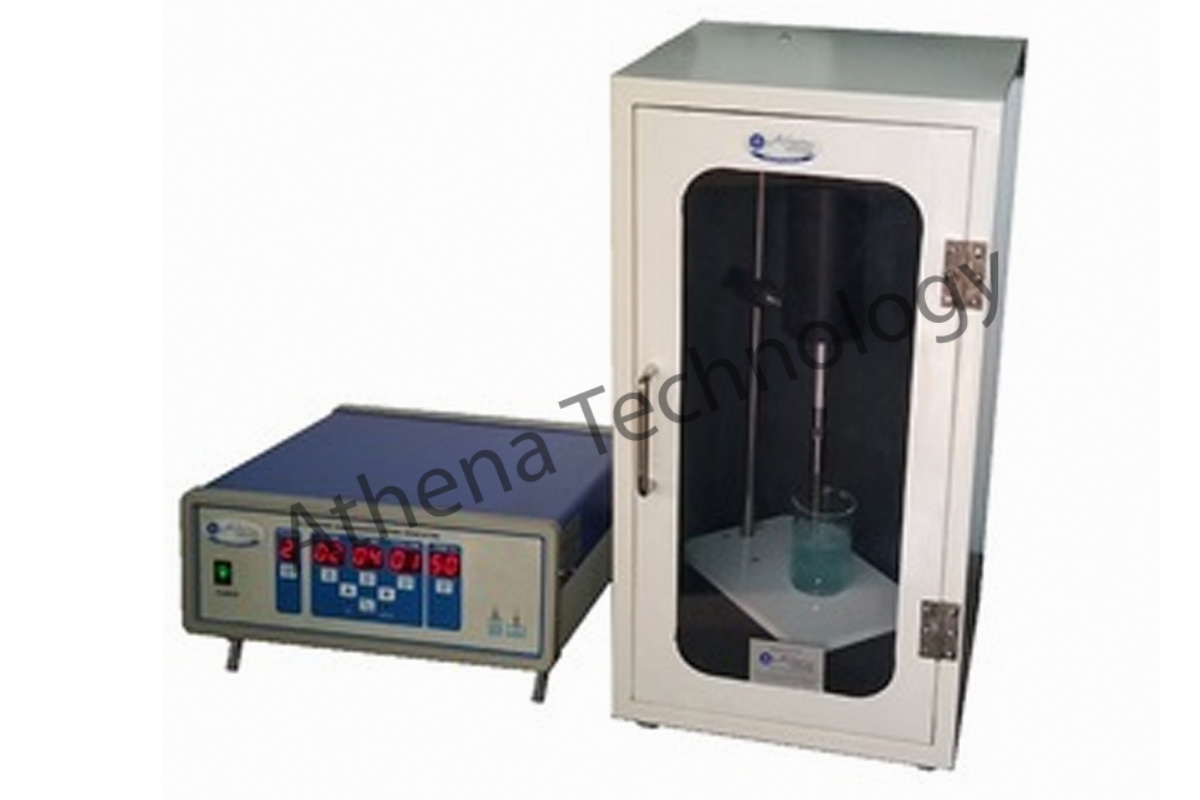

Probe sonicator

1. Timer: digital 1 min –99 min adjustable Impulse: digital closed loop, open loop: 1s , 4s , 8s
2. Programmable : 5/10 program set
3. Temp Range : 10-80°C (Temp settable)
4. Piezoelectric frequency energy converter : Lead zirconate TITANIUM
(PZT) pyro electric ceramics .
5. Standard probe: Titanium Alloy material Diameter (probe): 3mm/6mm/ 10mm / 12mm
6. Power Supply: AC 230, 50 Hz/60 Hz
7. CE & ISO 9001: 2008 Certified
8. Variable Amplitude Control
9. Micro Based, processor, Digital Display with user prompts
10. Full Function pulsar ON & OFF
11. Laboratory Jack Sonicator, ultrasonic homogenizers,ultrasonic processor,ultrasonic cell crusher, ultrasonic cell disrupter

Probe sonicator (sonicator,ultrasonic homogenizers,ultrasonic processor, ultrasonic cell crusher, ultrasonic cell disrupter)

Ultrasonic Cell Disrupter
titanium alloy Ultrasonic Sonochemistry Equipment for drug extraction,cosmetic emulsifier and biodiesel production
The pharmaceutical and cosmetic industries are now employing the energy of Ultrasonic vibration as a more efficient means of creating:
(1) Consistent emulsions;
(2) eEmulsions with ideal viscosities;
(3) Emulsions with a chosen particle size;
(4) A system requiring high-intensity mixing or the thorough dispersion of solid particles in a liquid medium. With standard tools, it has been challenging to anticipate the outcomes for those systems in advance.

Emulsions and dispersions are frequently created using inexpensive, propeller mixers, which requires a laborious procedure and results in a product of low quality and big particle size. Colloid mills and piston homogenizers are other pieces of equipment that are employed, and while they do produce a nice emulsion, they also have low throughput, high power requirements, high maintenance costs, and maybe unfavourable heating effects. Equipment is also expensive to buy outright and is bulky.

Today, there is ultrasonic equipment that can be built to practically any capacity and used in any liquid processing system. More and more companies making drugs and cosmetics are turning to this equipment as an effective, affordable method of creating top-notch emulsions and dispersions.

A novel idea for mechanically generating ultrasonic energy enables low-cost, high-volume production. The Clangsonic Ultrasonic Transducer Corporation produces such machinery. The machinery is extensively used to make a range of lotions, cold creams, and other cosmetics, as well as drug and cosmetic items such antacid emulsions, antibiotic salves and ointments, and antibiotic salves and ointments.
economy of materials Smaller particle size can be achieved through cavitation's extremely high energy, which in many instances also make it possible to use less emulsifying agent.
The benefits of the ultrasonic emulsification system from Athena Technology
1. Simple, affordable design
Initial equipment expenditures are a small portion (typically one-fourth or one-fifth) of what is needed for traditional equipment to produce an equivalent result. Installing a Clangsonic emulsification system frequently just entails swapping out an existing component without altering the way products are made.
2. Minimal running costs
a. Effectiveness
b. Minimal upkeep
More rapid emulsification.

Model	Particulars
ATP-750	Capacity : 25 – 900ml Probe Size : 6mm / 12mm / 20 mm Ultrasonic Power : 750 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-500	Capacity : 5 – 500ml Probe Size : 3mm / 6mm / 12mm Ultrasonic Power : 500 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-250	Capacity : 1 – 300ml Probe Size : 3mm / 6mm Ultrasonic Power : 250 W Frequency (KHz): 20 Timer : Cyclic ON / OFF
ATP-150	Capacity : 0.1ml – 200ml Probe Size : 3mm / 6mm Ultrasonic Power : 150 W Frequency (KHz): 20 Timer : Cyclic ON / OFF

Ultrasonic Mixers

Sonic Wave Cell Disruptor
Currently, the pharmaceutical and cosmetic industries use the power of
The use of ultrasonic vibration as a more effective method of producing
(1) Consistent emulsions;
(2) Emulsions that are at their ideal viscosity;
(3) Emulsions with a chosen particle size;
(4) Dispersion of solid particles evenly across a liquid medium, or any system requiring vigorous mixing. With standard tools, it has been challenging to anticipate the outcomes for those systems in advance.

Emulsions and dispersions are frequently created using inexpensive, propeller mixers, which requires a laborious procedure and results in a product of low quality and big particle size. Colloid mills and piston homogenizers are other pieces of equipment that are employed, and while they do produce a nice emulsion, they also have low throughput, high power requirements, high maintenance costs, and maybe unfavourable heating effects. Equipment is also expensive to buy outright and is bulky.

Today, there is access to Athena ultrasonic equipment, which can be built to practically any capacity and used in any liquid processing system. More and more companies making drugs and cosmetics are turning to this equipment as an effective, affordable method of creating top-notch emulsions and dispersions.
A novel idea for mechanically generating ultrasonic energy enables low-cost, high-volume production. The Clangsonic Ultrasonic Transducer Corporation produces such machinery. The machinery is extensively used to make a wide range of lotions, cold creams, and other cosmetics in addition to antacid emulsions, antibiotic salves and ointments, and other medicine and cosmetic items.
The benefits of the ultrasonic emulsification system from Athena Technology
1. Simple, affordable design — Initial equipment expenditures are a small portion (typically one-fourth or one-fifth) of what is needed for traditional equipment to produce an equivalent result. Installing a Clangsonic emulsification system frequently just entails swapping out an existing component without altering the way products are made.
2. Low operating expenses
a. Effectiveness
High operating efficiency is achieved as a result of all the energy being created and utilised within the fluid. With a small fraction of the electricity required by conventional mixing equipment, high output rates can be reached.
b. Minimal upkeep
More rapid emulsification.
3. The use of materials
Smaller particle size can be achieved through cavitation's extremely high energy, which in many instances also make it possible to use less emulsifying agent.

Specification

Frequency(KHz)	20	20	28	40
Watts	500	1000	500	200
Voltage(V)	220±10	220±10	220±10	220±10
Temperature(°C)	150	150	150	150
Sonic Intensity(W/cm²)	≤80	≤100	≤60	≤40
Liquid Volume(mL)	≤2000	≤2000	≤1000	≤500

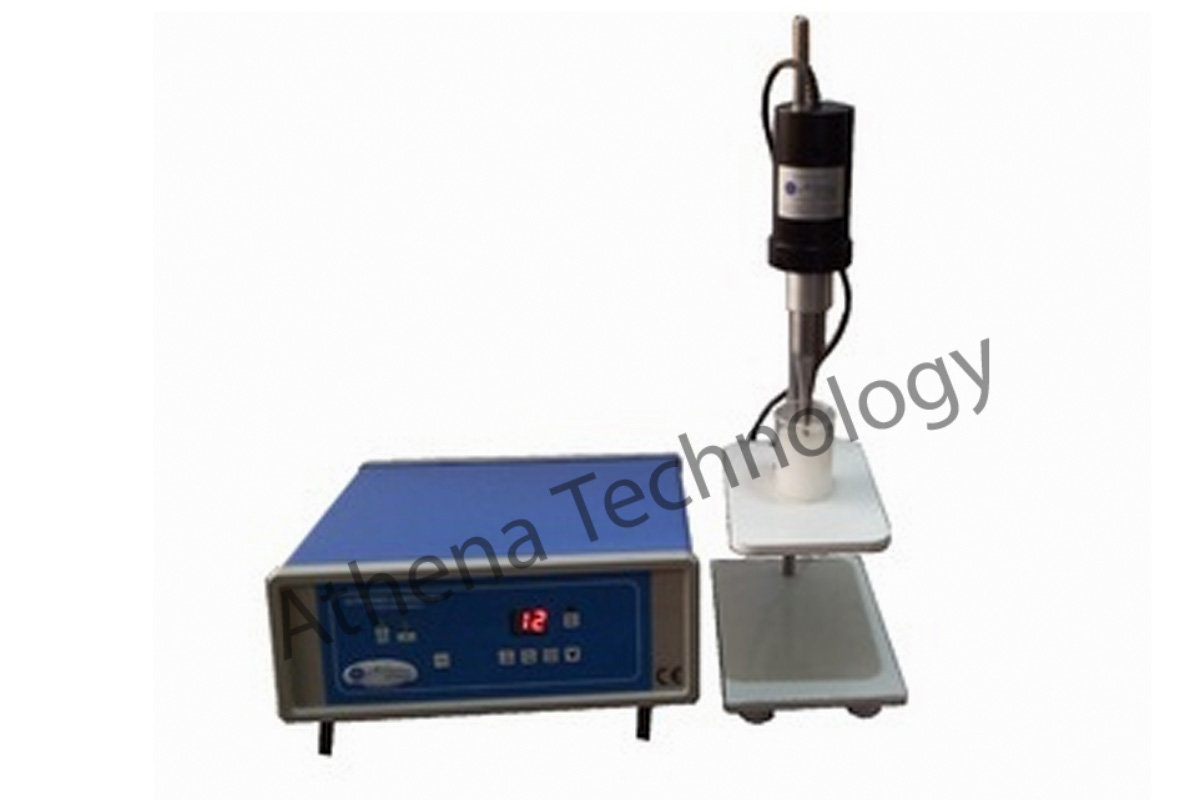

Ultrasonic cell disrupters / cell homogeninzers
Probe Sonicator
Product description:
The ultrasonic homogenizer is a flexible, multifunctional equipment that uses ultrasonic cavitation in liquid effects. However, it may also be used for emulsification, separation, homogenization, extraction, anti-foaming, clearness, nanomaterials, distribution, and accelerating chemical reactions. It can be employed with a variety of animals and plants, viruses, cells, bacteria, and tissue damaged. Instruments are widely employed in a variety of sectors, including nanomaterials, sewage treatment, zoology, agriculture, pharmaceuticals, microbiology, physics, and others.

Main Features:

• vast display Electronic display.
• 50 categories of work data can be stored on a microcomputer. Ultrasonic timers can be set for up to 999 minutes, with adjustable ultrasonic power.
• To avoid the ultrasonic power changing when the sample temperature changes, automatically detect the ultrasonic power.
• integrated temperature control to stop the sample from getting too hot.
• automated tracking of frequency, automatic fault alarm

AT-650w main technical parameters:

• frequency :20-25khz, automatic frequency tracking
• ultrasonic power: 650w
• accompany: φ6
• optional tip(probe): φ2, φ3, φ8,φ10,φ12,φ15,
• crushing capacity :0. 5-500ml
• duty cycle: 0. 1-99. 9%
• power supply: 220/110 50hz/60hz
• work environment: indoor (no moisture, no sunlight, no corrosive gas)
• warranty: 1 year, horn parts subject to wear their warranty period of three months. Power supply: 220-240v 50/60hz ,or 110-115v 50/60hz; standard configuration: sjia-650w includes a 6mm probe and sound abating chamber.

Optional probe: φ2, φ3, φ8,φ10,φ12,φ15mm,probe choose reference as follow's

Features:

complete control over amplitude A higher degree of resolution and the ability to precisely determine the amplitude required to properly process your sample are made possible by the control of amplitude (intensity), which ranges from 1 to 100%.
mode of pulse Temperature-sensitive samples can benefit from varying the pulse on and off times to lessen heat gain. To ensure electrical efficiency at all times, the auto-tuning sonicator digitally tracks frequency changes in the converter/tip assembly brought on by changes in load and temperature. Tuning by hand is not necessary. temperature surveillance Customers who want to keep track of the temperature of their sample can purchase an optional temperature probe. To avoid overheating, sonication stops if the temperature limit is reached.

Ultrasonic Probe Sonicator
Athena Ultrasonic Processor (Probe Sonicator) Model : ATP-120, ATP-150, ATP-250 & 500
1. Timer: digital 1 min –99 min adjustable Impulse: digital closed loop,open loop: 1s , 4s , 8s
2. Programmable : 5/10 program set
3. Temp Range : 10-80°C (Temp settable)
4. Piezoelectric frequency energy converter : Lead zirconate TITANIUM(PZT) pyro electric ceramics .
5. Standard probe: Titanium Alloy material Diameter (probe):3mm/6mm/ 10mm / 12mm.
6. Power Supply: AC 230, 50 Hz/60 Hz
7. CE & ISO 9001: 2008 Certified
8. Variable Amplitude Control
9. Micro Based, processer, Digital Display with user prompts
10. Full Function pulsar ON & OFF
11. Laboratory Jack

Ultrasonic Homogenizer

For the homogenization and analysis of laboratory samples that don't need to be processed using conventional grinding or rotor-stator cutting processes, ultrasonic homogenizers are advised.
Precision engineering is provided by the ATHENA Ultrasonic Homogenizers, which have all the features required to build a complete system for ultrasonic disruption. The Probe Sonicator is frequently used in biological applications to damage cell membranes and release cellular contents. The probe sonicator can also break up DNA molecules. In order to break down particles to nano size and to evenly distribute nanoparticles in liquids, probe sonicators are frequently employed in nanotechnology.

Major Function:

1. Auto-tuning and power control convenience for user.
2. Timer control the total working time from 1min to 30min;
3. Display the remaining time on countdown state.
4. On/OFF impulse timer: make sure to deal with temperature sensitive sample. On and off can be choose to continue setting from 1s , 4s or 8s;
5. Automatic amplitude compensation to make the amplitude not changed following the carrying.
6. Menu operation , easy , direct type.
7. 5-10 Programable Setting
8. Microprocessor based controlled operation

Technical parameters :

1. Timer: digital 1 min –30 min adjustable Power adjustable: 20%--100%???Impulse: digital closed loop, open loop: 1s , 4s , 8s
2. Piezoelectric frequency energy converter: Lead zirconate titanium (PZT) pyro electric ceramics .
3. Standard probe: titanium alloy material Diameter (probe): 3mm,6mm,10mm,12mm.
4. Power Supply: AC 230, 50 Hz/60 Hz

Ultrasonic Mixers
Ultrasonic Cell Disrupter
Currently, the pharmaceutical and cosmetic industries use the power of The use of ultrasonic vibration as a more effective method of producing
(1) Consistent emulsions;
(2) Emulsions that are at their ideal viscosity;
(3) Emulsions with a chosen particle size;
(4) Dispersion of solid particles evenly across a liquid medium, or any system requiring vigorous mixing. With standard tools, it has been challenging to anticipate the outcomes for those systems in advance.
Emulsions and dispersions are frequently created using inexpensive, propeller mixers, which requires a laborious procedure and results in a product of low quality and big particle size. Colloid mills and piston homogenizers are other pieces of equipment that are employed, and while they do produce a nice emulsion, they also have low throughput, high power requirements, high maintenance costs, and maybe unfavourable heating effects. Equipment is also expensive to buy outright and is bulky.
Today, there is access to Athena ultrasonic equipment, which can be built to practically any capacity and used in any liquid processing system. More and more companies making drugs and cosmetics are turning to this equipment as an effective, affordable method of creating top-notch emulsions and dispersions.
By using a novel idea to mechanically generate ultrasonic energy, low-cost, high-volume production is made possible. Clangsonic Ultrasonic Transducer Corporation is the manufacturer of such apparatus. The machinery is extensively used to make a range of lotions, cold creams, and other cosmetics as well as drug and cosmetic items such antacid emulsions, antibiotic salves and ointments, and antibiotic salves and ointments.
Athena Technology's ultrasonic emulsification technology benefits
1. Simple, affordable design — Initial equipment expenditures are a small portion (typically one-fourth or one-fifth) of what is needed for traditional equipment to produce an equivalent result. Installing a Clangsonic emulsification system frequently just entails swapping out an existing component without altering the way products are made.
2. Low operating expenses
a. Effectiveness High operating efficiency is achieved as a result of all the energy being created and utilised within the fluid. With a small fraction of the electricity required by conventional mixing equipment, high output rates can be reached.
b. Minimal upkeep
More rapid emulsification.
3. The use of materials Smaller particle size can be achieved through cavitation's extremely high energy, which in many instances also make it possible to use less emulsifying agent.

Ultrasonic Atomizer
1. Timer: digital 1 min –99 min adjustable Impulse: digital closed loop,open loop: 1s , 4s , 8s
2. Programmable : 5/10 program set
3. Temp Range : 10-80°C (Temp settable)
4. Piezoelectric frequency energy converter : Lead zirconate TITANIUM (PZT) pyro electric ceramics .
5. Standard probe: Titanium Alloy material Diameter (probe):3mm/6mm/ 10mm / 12mm.
6. Power Supply: AC 230, 50 Hz/60 Hz
7. CE & ISO 9001: 2008 Certified
8. Variable Amplitude Control
9. Micro Based, processor, Digital Display with user prompts
10. Full Function pulsar ON & OFF
11. Laboratory Jack ltrasonic Homogenizers are recommended for homogenization and Analysis of laboratory samples that do not require traditional grinding or rotor-stator cutting techniques for processing.
Precision engineering is provided by the ATHENA Ultrasonic Homogenizers, which have all the features required to build a complete system for ultrasonic disruption. The Probe Sonicator is frequently used in biological applications to damage cell membranes and release cellular contents. The probe sonicator can also break up DNA molecules. In order to break down particles to nano size and to evenly distribute nanoparticles in liquids, probe sonicators are frequently employed in nanotechnology.

• Electrical Supply: 240 V, AC, 50 - 60 Hz, 1 Phase.
• Ultrasonic Supply: 150 Watts plus
• Ultrasonic Frequency: 20 plus / 33 KHz (plus or minus 3KHz.)
• Process Control: Micro-processor based Programmable timer with display is provided for selecting ON time, OFF time & Total Time of processor operation in Cyclic mode.
• Cyclic Mode: Maximum ON time 15 seconds, no clamping on OFF time.
• Processor Tips: Detachable type made of TITANIUM of 1mm & 2 mm Dia. nozzle
• Ultrasonic Horn: Is made of Titanium & is fitted with PZT Transducer.
• Ultrasonic Generator:Is housed in a separate cabinet. It has Auto-tuning & the control Panel is provided on the outer panel.
• Standard Accessories: Stand for Ultrasonic Atomizer & table Jack Type for sample placement
• Construction: Ultrasonic Processor Horn with Titanium is one part & Ultrasonic Generator is in a cabinet with all control switches & display.
• With 2 Nos. of flow inlet in opposite direction in the Titanium Tip.
• One PTFE Sleeve with air in annulus (i.e between sleeve & tip)

Ultrasonic Processor (Probe Sonicator)
Model : ATP-150
Capacity : 1 – 200ml Probe Size : 3 mm Detachable type made of Titanium Alloy
Ultrasonic Power : 150 W Frequency (KHz): 20
Timer : Cyclic ON / OFF
Ultrasonic Processor (Probe Sonicator) Model : ATP-250
