13mm DIE SET
13mm PALLET PRESS DIE Die Set. Making use of quality assured raw material and ultra-modern methodology, the offered set is manufactured by our qualified professionals with utmost care and perfection. To ensure its quality, our quality controllers examine the entire range against numerous measures of quality. Additionally, we provide this set in different specifications to fulfill the variegated need of patrons.

Features:

• Corrosion-resistance
• High strength
• Sturdiness

Specifications:

Die Size	3mm	5mm	10mm	13mm	16mm	19mm	20mm	25mm	35mm
Part No. Total Height1	1.5" 38.1mm	2.75" 70mm	2.75" 70mm	2.83" 72mm	2.75" 70mm	2.85" 72mm	4.265" 108.3mm	4.75" 120.7mm	4.75" 120.7mm
Plunger Height	N/A	1.37" 34.8mm	1.37" 34.8mm	1.37" 34.8mm	1.37" 34.8mm	1.33" 33.8mm	2.24" 57mm	2.24" 57mm	2.24" 57mm
Base Diameter	1.12" 28.5 mm	1.97" 50mm	1.97" 50mm	2.0" 50.8mm	1.97" 50mm	1.97" 50mm	3.54" 90mm	3.54" 90mm	3.54" 90mm
Single Anvil Height	N/A	0.25" 6.35mm	0.25" 6.35mm	0.25" 6.35mm	0.25" 6.35mm	0.27" 6.85mm	0.375" 9.5mm	0.375" 9.5mm	0.375" 9.5mm

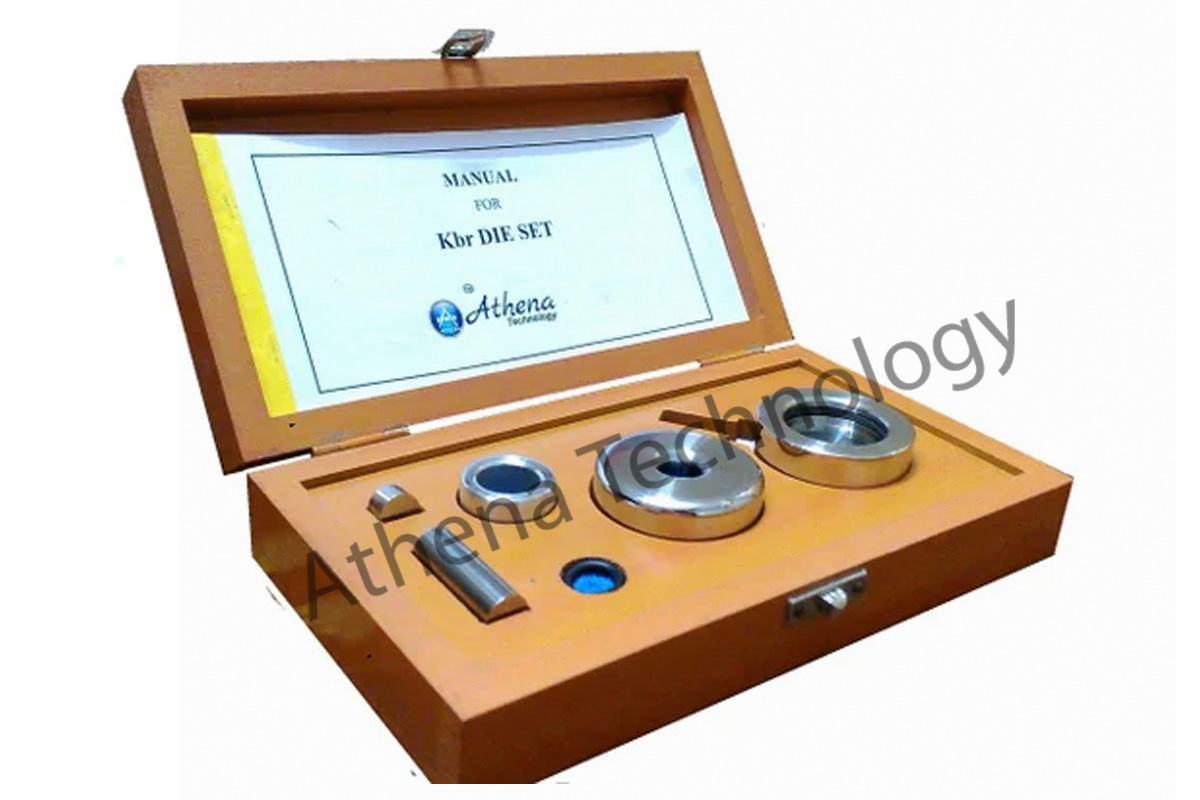

Evacuable Pellet Dies
Athena manufactures a wide range of high-quality Evacuable Pellet Dies suitable compacting powdered samples into discs or briquettes. These are particularly well suited for the preparation of solid KBr pellets for FTIR molecular spectroscopic analysis and XRF pellets for X-Ray Fluorescence atomic spectroscopic analysis (as required by a number of USLP and ASTM methods), but also find use in a broad range of other applications. Evacuable Pellet Dies are typically used in conjunction with the Athena of Hydraulic Press Products.
These Evacuable Pellet Dies produce circular pellets in sizes from 5 mm to 60 mm diameter as standard, but other shapes and sizes are available on request. These pellet dies cover a range of load capabilities. For optimum quality and durability of the pellet die, all parts are manufactured from hardened stainless steel, and surfaces that come in contact with the sample are highly polished. Each Pellet Die comprises an evacuable base, body, plunger, set of pellets, extractor ring, and O Ring Kit.

Features and Benefits

• Ideal for producing high-quality pellets
• Evacuable for sample pellet clarity and quality
• Hardened Stainless Steel for durability
• Highly Polished Pellets
• Wide range of sizes and load capabilities

exporter : USA, US, UK, Europe, London, Italy, France, Hungry, Korea, Malaysia, Singapore, Auustralia, Japan, Egypt, Saudi Arebia, California, Canada, NY, NJ, Mexico, Africa, Kenya, Ethiopia, Indonesia, Philippines, poland, germany, israel, jordan, iran, iraq, thailand, australia, newzealand, UAE, Dubai, Portugal, greece, Turkey, Peru, Brazil,

With enriched industrial experience and knowledge, we are providing our clients with a wide assortment of Evacuable Kbr & Briquetting Pellet Dies. These dies are commonly used for producing briquettes for XRF spectroscopy. Designed with utmost precision, the offered dies are manufactured using quality-proven raw material with the assistance of pioneered technology in synchronization with set industry standards. These dies undergo various tests in order to ensure their flawless nature.

Features:

• Aerospace Grade Hardened Stainless Steel
• Optically Polished Anvils
• Evaluable

Other Details:

• Hardened aerospace grade stainless steel is used to produce all of Athena die sets. The 3mm to 60mm dies are used primarily for KBr pellets for transmission analysis by IR spectroscopy, while the larger dies are most commonly used for producing briquettes for XRF spectroscopy. The 13mm Macro-Micro die is chosen by most spectroscopists for KBr pellets, and it is available with paper inserts with a variety of small apertures (1.5, 3, 5, & 11mm) that enable the user to make micro-pellets with a 13mm die set and also provide a useful frame for mounting and storing the pellets.
• All Athena dies have an upper and lower stainless steel section for ease of disassembly and they are sealed with viton seals. For ease of use, the weight was reduced in all die sets in the 13mm to 40mm range by adding an outer shield of aluminum. This feature makes them much easier to handle than 2 piece dies made completely from stainless steel due to their lighter weight, but without sacrificing strength or durability. The dies can be evacuated with a vacuum pump to reduce the moisture in the sample. 13mm and 20mm dies are typically used with 12 to 20 ton presses, while the larger size dies are used with 20 to 40 ton presses and are most commonly used for briquetting samples for XRF analysis.
• To enable preparation of the finest quality pellets and briquettes, anvils are optically polished to a mirror finish and are free from scratches or digs. All die sets in the 13mm to 40mm size range are available with optional extremely hard tungsten carbide polished anvils for use with abrasive samples.
• Water jacketed dies can be used for heating and cooling solid samples, and they are available in 5mm to 60mm diameter sizes.

DIE SET

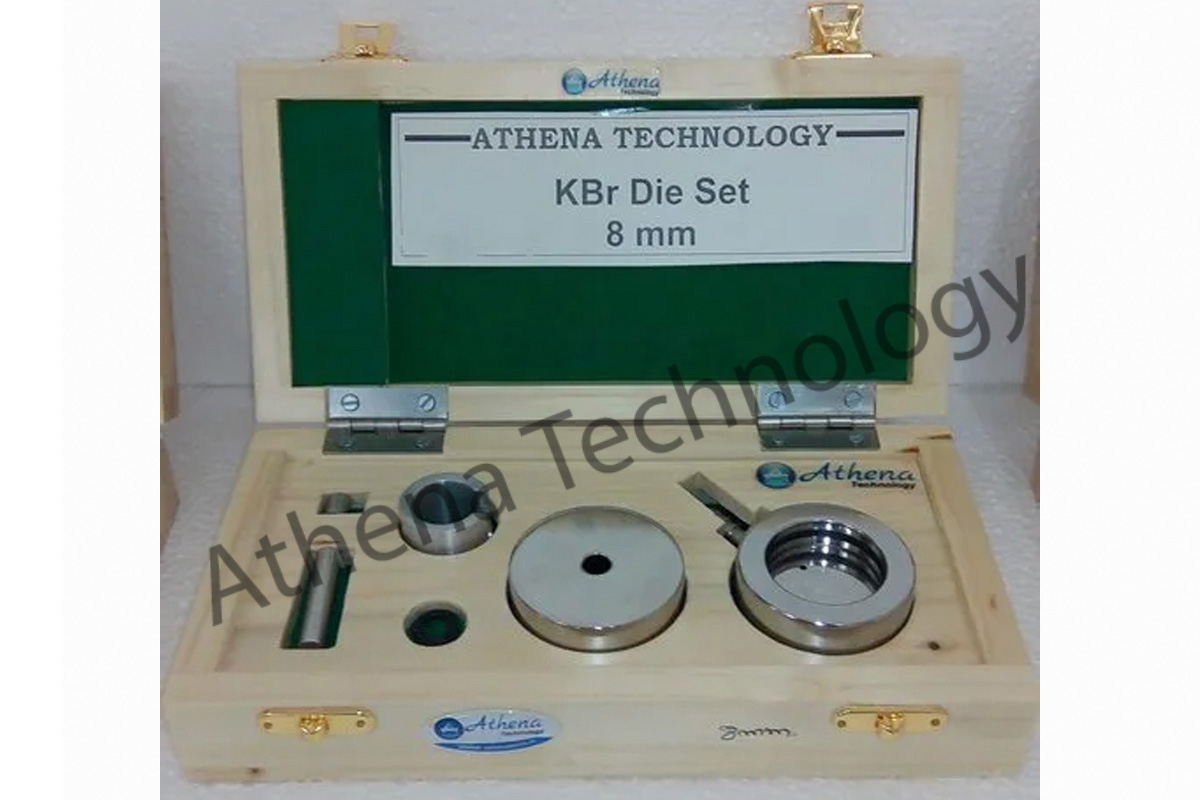

KBr Die Set

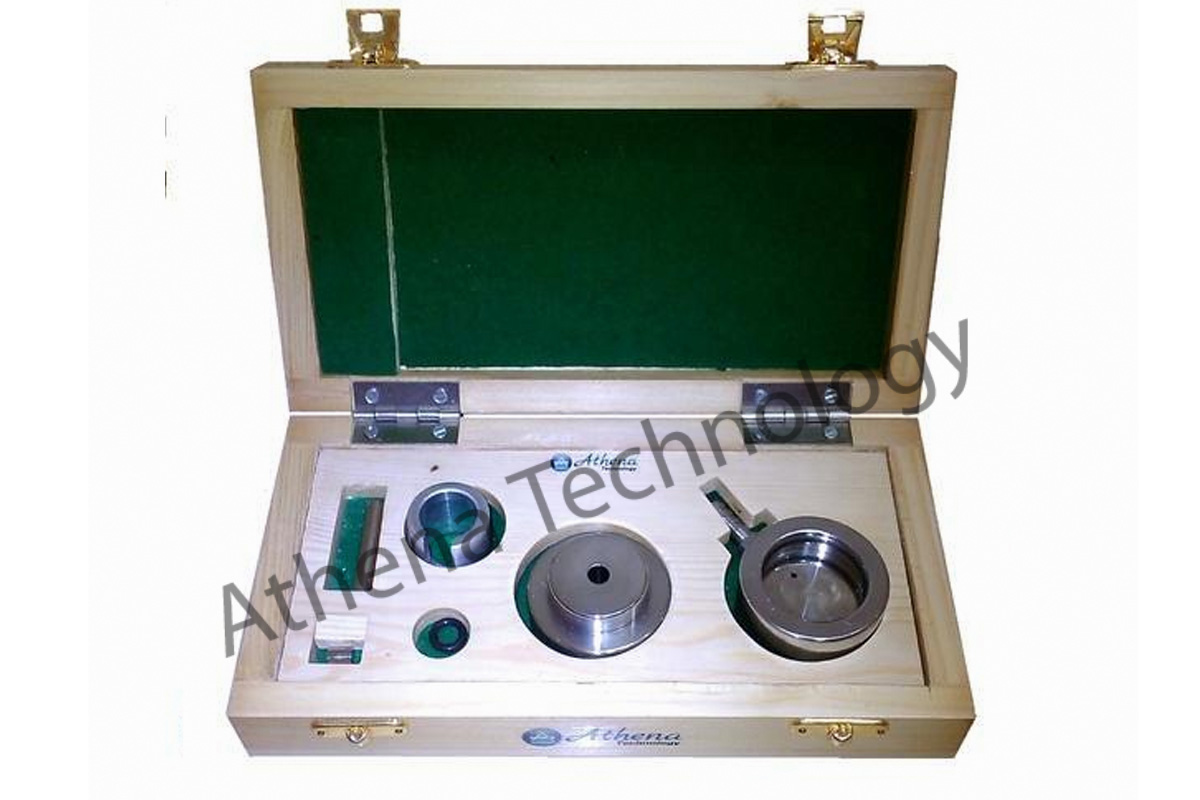

13mm Die Set

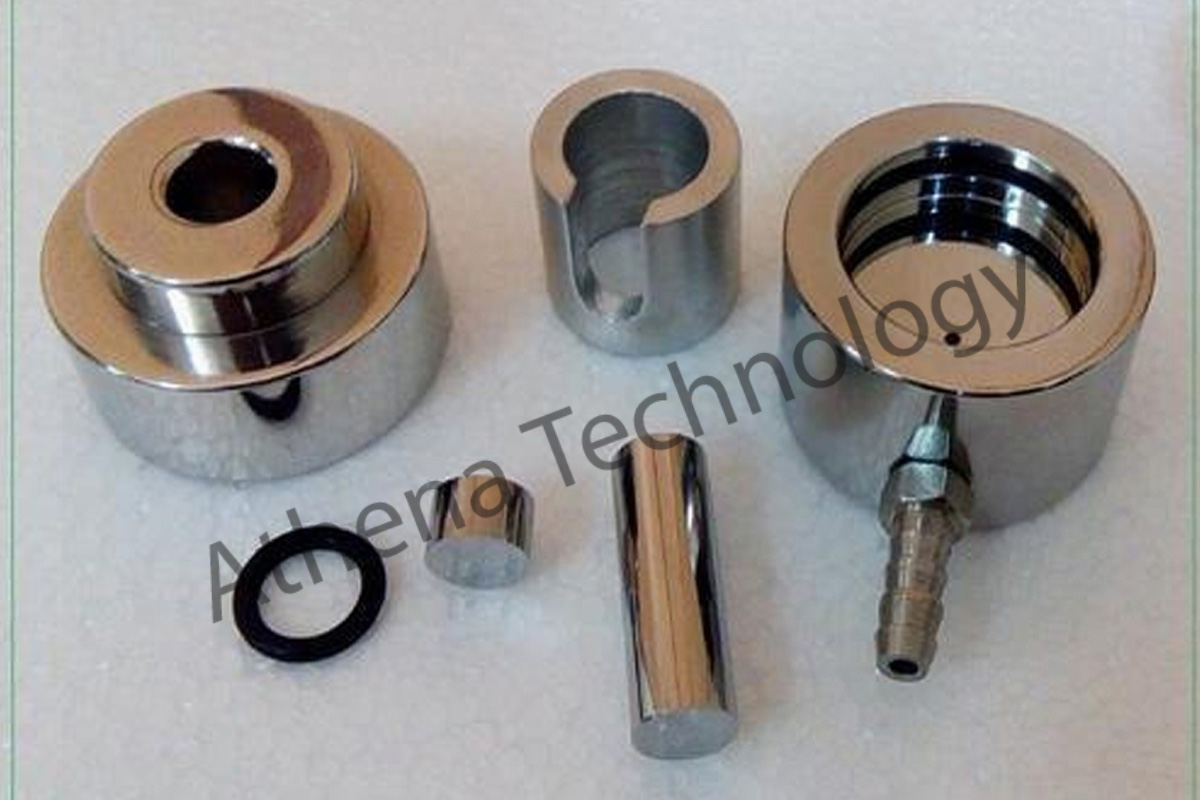

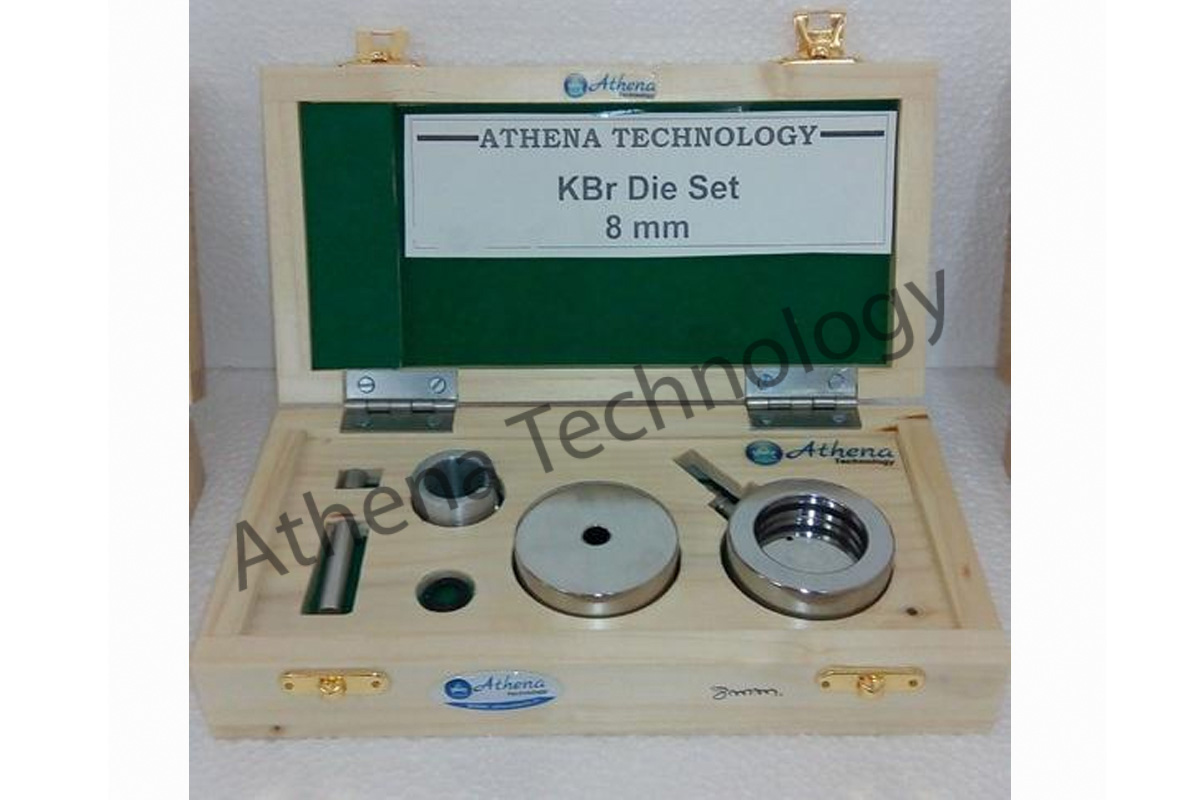

Evacuable KBr Die Set is used to form pellets/circular discs for IR-FTIR Solid Sampling /Analytical Purpose. Most commonly used die is of 13 mm dia. pellet size. 13 mm KBr Die consists of a two-piece outer die, tungsten carbide mirror finished punches (envils), pusher rod and pellet removal ring. Die is fitted with a nozzle for evacuation ( if required ). The die is manufactured from hardened stainless steel and can be easily dismantled for cleaning purposes . The entire set is enclosed in a velvetted teak-wood box , for safety and durability.
The Die can be subjected to a Max. Load of 15 Tons.

Notes

(1) Each part is separately available for replacement (2) Tungsten Carbide is brittle in nature & is not guaranteed against breakage. (3) Spare punches, pushers are sold in pairs only.

Dies are available in the sizes :- 6 mm, 8 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 37 mm, 40 mm. (Pls. refer to Hardened Alloy Steel Dies section) 13 mm KBr Pellet Holder
13mm Pallet Die Set export to USA, US, Canada, France, Iatly, UK, Africa, Korea, Singapore, Malaysia, Asia, Saudi Arebia, Jordan, Israel, Iran, Iraq, China, Thailand, Japan, UAE, Kuwait, Oman, Vietnam, phiippines, Australia, america

Pellet Holders to suit the above sizes are manufactured by us, the standard being 13 mm Aluminium Anodized Pellet Holder.

13 mm KBr Pellet Holder
Pellet Holders to suit the above sizes are manufactured by us, the standard being 13 mm Aluminium Anodized Pellet Holder.
Briquetting Pellet Dies
3mm KBr die set
5mm KBr die set
5mm SS anvils
10mm KBr die set
Set 2 replacement SS anvils, 10mm
Set 2 tungsten carbide anvils, 10mm
13mm KBr die set with 2 SS anvils & assorted paper inserts for micro sample
Set 2 replacement SS anvils, 13mm
Set 2 tungsten carbide anvils, 13mm
16mm KBr die Set with 2 SS anvils, 16mm
Set 2 replacement SS anvils,16mm
Set 2 tungsten carbide anvils, 16mm
19mm die set with 2 SS anvils; Low profile fits 12 ton EZ Press
Set 2 replacement SS anvils, 19mm
20mm die set with 2 SS anvils
Set 2 replacement SS anvils, 20mm
Set 2 tungsten carbide anvils, 20mm
25mm die set with 2 SS anvils
Set 2 replacement SS anvils, 25mm
Set 2 tungsten carbide anvils, 25mm
32mm die set with 2 SS anvils
Set 2 replacement SS anvils, 32mm
Set 2 tungsten carbide anvils, 32mm
35mm die set with 2 SS anvils
Set 2 replacement SS anvils, 35mm
Set 2 tungsten carbide anvils, 35mm
40mm die set with 2 SS anvils
Set 2 replacement SS anvils, 40mm
Set 2 tungsten carbide anvils, 40mm
45mm die set with 2 SS anvils

TECHNICAL DETAILS

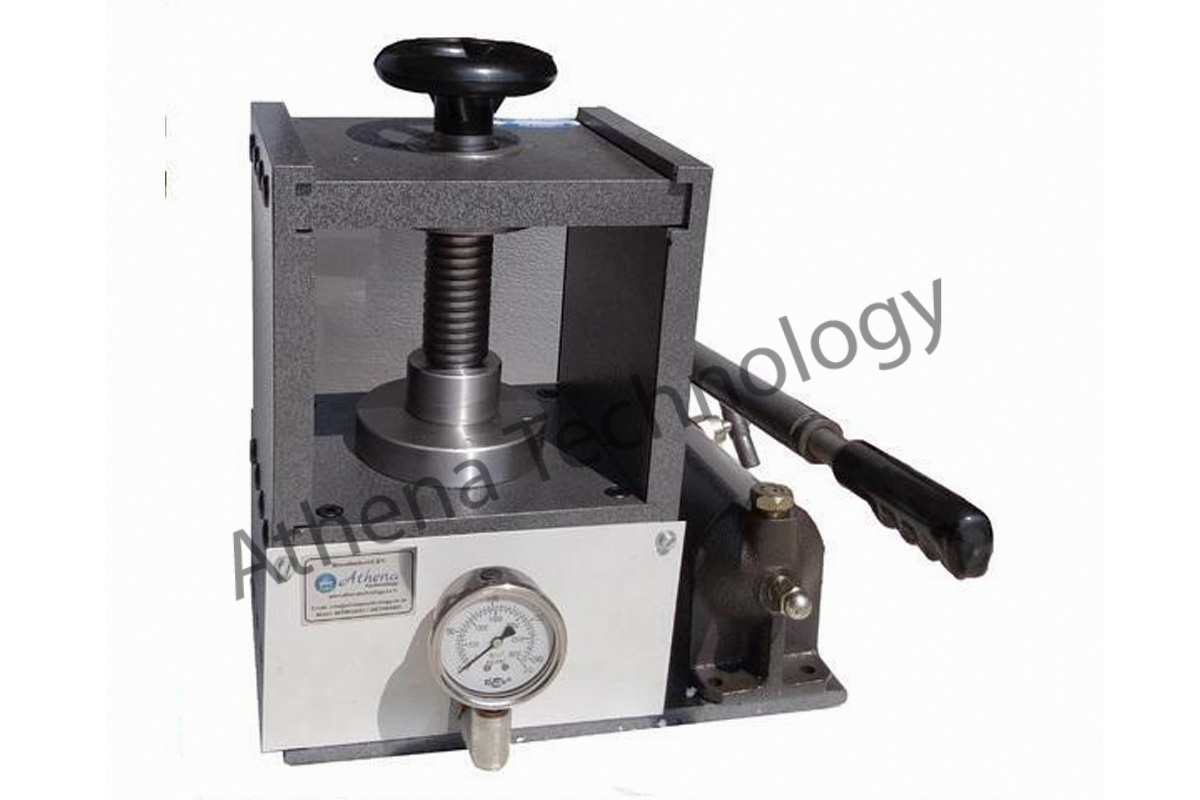

• 15 Tons Manual Hydraulic Pellet Press (Table Top)
• Press Construction : Side Plate Construction
• Max. Capacity : 15 Tons (Tolerance +/- 1 Ton or 12-15 Kg/sq.cm.)
• Max. Ram Stroke : 15 mm
• Daylight : 90 mm
• Cylinder Type : Single acting, upstroking.
• Pump Type : Hand operated.
• Platen Size : 100 mm (Die will be placed on this platen).
• Overall Weight : 50 Kgs.
• Overall Dimensions : 300 (L) X 270 (D) X 425 (H) mm.
• Safety Feature : Pressure Relief Valve to safeguard against applying over-pressure.

Details:

• A complete Laboratory hydraulic press producing a force about 15 tones use to make high quality 13 mm Pallet used for IR/FTIR/XRF Solid Sampling
• 15 ton laboratory Hydraulic Pellet Press is a compact, elegant and robust machine, typically used by R & D & QC labs for various pelletising applications for IR/XRF etc.
• The high pressure pumping unit supplies hydraulic fluid to the up- stroking ram of the cylinder. This causes the ram to rise steadily and positively in the upward direction. As a result, pressure is applied on any object placed between screw and piston top plate.

13 mm Evacuable KBr Die Set

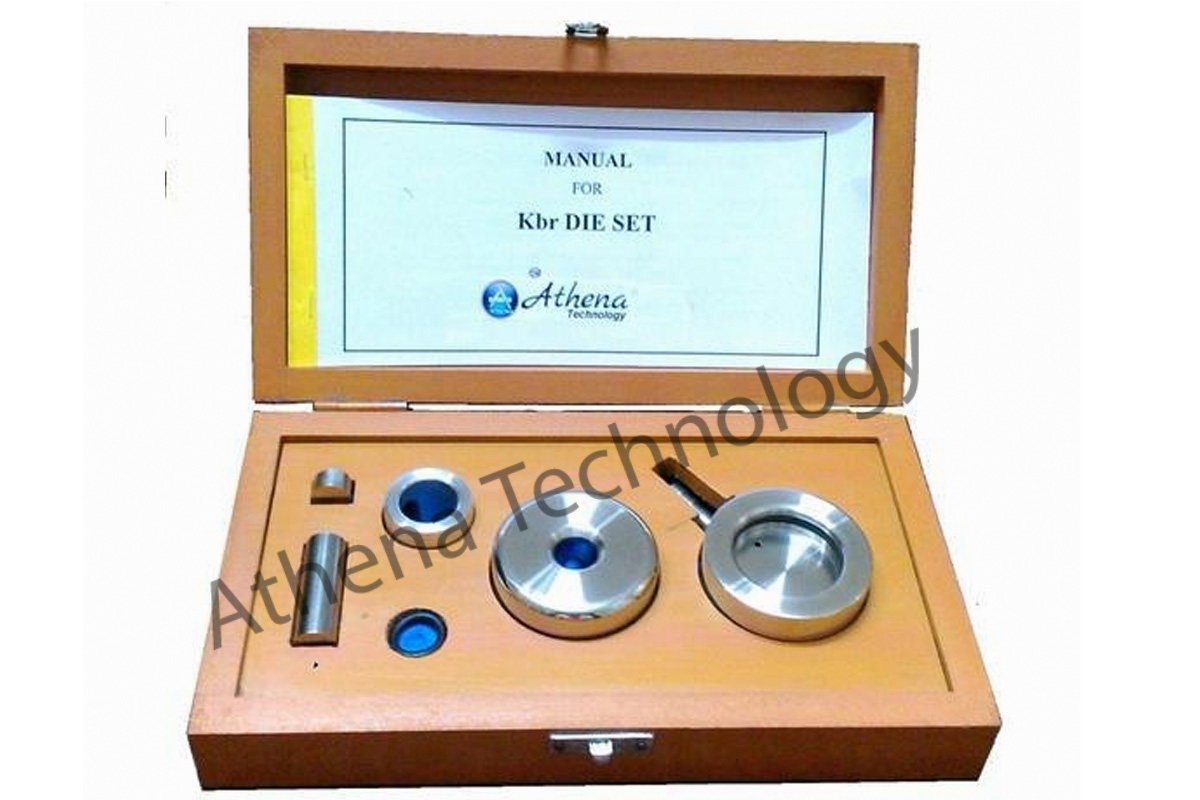

XRF Die Set

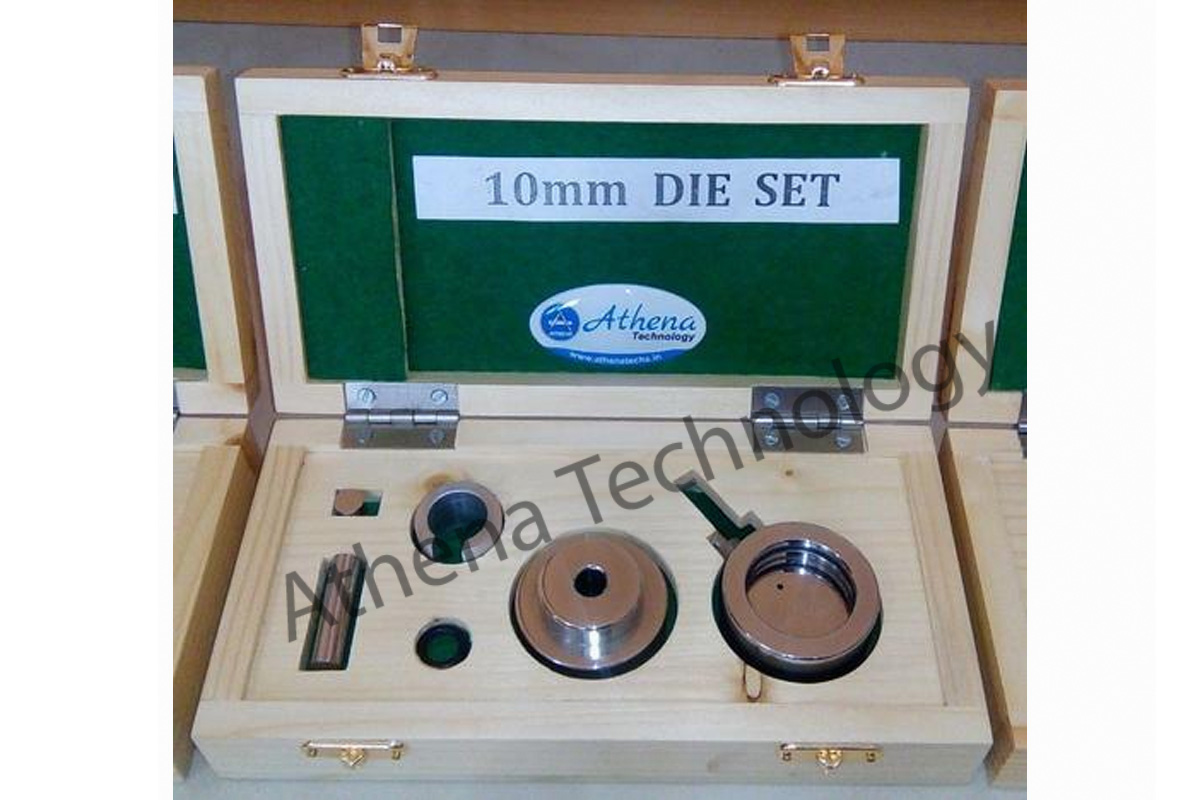

FTIR Die Set
Evacuable KBr Die Set is used to form pellets/circular discs for IR-FTIR Solid Sampling /Analytical Purpose. Most comece oumonly used die is of 13 mm dia. pellet size. 13 mm KBr Die consists of a two-piter die, tungsten carbide mirror finished punches (envils), pusher rod and pellet removal ring. Die is fitted with a nozzle for evacuation ( if required ). The die is manufactured from hardened stainless steel and can be easily dismantled for cleaning purposes . The entire set is enclosed in a velvetted teak-wood box , for safety and durability. The Die can be subjected to a Max. Load of 15 Tons.

Notes

1. Each part is separately available for replacement
2. Tungsten Carbide is brittle in nature & is not guaranteed against breakage.
3. Spare punches, pushers are sold in pairs only.

Dies are available in the sizes:

6 mm, 8 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 37 mm, 40 mm. (Pls. refer to Hardened Alloy Steel Dies section)
