Hydraulic Press
We are counted amongst reckoned names in the industry, committed towards offering a wide gamut of Hydraulic Press for FTIR. This press is used by R & D & QC labs for various pelletizing applications for IR/XRF etc. At our sound production unit, the offered press is manufactured using supreme grade components and contemporary techniques in compliance with defined industry norms. Furthermore, we provide this press in diverse specifications to fulfill the needs of our patrons.

Features:

• Sturdy construction
• Easy to use
• Resistant against corrosion

Solid Sampling:

• A complete Laboratory hydraulic press producing a force about 15 tones use to make high quality 13 mm Pallet used for IR/FTIR/XRF Solid Sampling
• 15 ton laboratory Hydraulic Pellet Press is a compact, elegant and robust machine, typically used by R & D & QC labs for various pelletizing applications for IR/XRF etc.
• The high pressure pumping unit supplies hydraulic fluid to the up- stroking ram of the cylinder. This causes the ram to rise steadily and positively in the upward direction.
• As a result, pressure is applied on any object placed between screw and piston top plate.

KBR Die Set:

Most commonly used Die for IR/FTIR for solid sampling of 13 mm pallet size consist of Anvil & Plunger, Top & Bottom Die Port, Extractor Ring, O-ring.

Pallet Holder:

The pallet holder is use to hold pallet (13 mm) of KBR, suitable to any IR/FTIR
Agate, Motor Pestle use to proper sample.

Liquid Sampling.

Nacl / Kbr Windows Nacl/ KBR windows is available in circular & Rectangular shape

Standard sizes:

Circular: dia 25 mm x 4 mm thickness
Rectangular: 38 mm x 19 mm x 4 mm

Universal Liquid Cell Holder:

Demountable / Fixed Thickness)
The cell holder is used to mount circular as well as rectangular windows & it can be used as Demountable Cell & Fixed Thickness Cell using different spacers supplied along with ptfe washers of different sizes.
Mull Cell holder is used to mount circular window & for mull samples.

Dry Box:

The ideal method of storage of FTIR/XRF Accessories which are affected by moisture since highly Hygroscopic in nature, which are to be stored in dry box.

15 Ton Manual Hydraulic Press
To meet variegated demands of our esteemed clients, we are engaged in offering an exclusive range of 15 Ton Manual Hydraulic Press. The offered press is used in mechanical industry. For manufacturing this press, our skilled professionals use only high quality components and cutting-edge techniques as per the defined industry quality standards. In addition to this, we also modify this press according to the varied requirement of our clients.

Technical Specifications:

1. 15 Tons Manual Hydraulic Pellet Press (Table Top)
2. Press Construction : Side Plate Construction
3. Max. Capacity : 15 Tons (Tolerance /- 1 Ton or 12-15 Kg/sq.cm.)
4. Max. Ram Stroke : 15 mm
5. Daylight : 90 mm
6. Cylinder Type : Single acting, upstroking.
7. Pump Type : Hand operated.
8. Platen Size : 100 mm (Die will be placed on this platen).
9. Overall Weight : 50 Kgs.
10. Overall Dimensions : 300 (L) X 270 (D) X 425 (H) mm.
11. Safety Feature : Pressure Relief Valve to safeguard against applying over-pressure.

A) Pellet Presses with Electrical Controls:

• 15 Tons Semi-Automatic Press (Table Top) - Higher End Model
• 15 Tons Semi-Automatic Press (Table Top) - Economy Model
• 25 Tons Semi-Automatic Press (Table Top) - Higher End Model
• 25 Tons Semi-Automatic Press (Table Top) - Economy Model
• 30 Tons Semi-Automatic Press (Table Top) - Higher End Model
• 30 Tons Semi-Automatic Press (Table Top) - Economy Model
• 40 Tons Semi-Automatic Press (Table Top) - Higher End Model
• 40 Tons Semi-Automatic Press (Table Top) - Economy Model

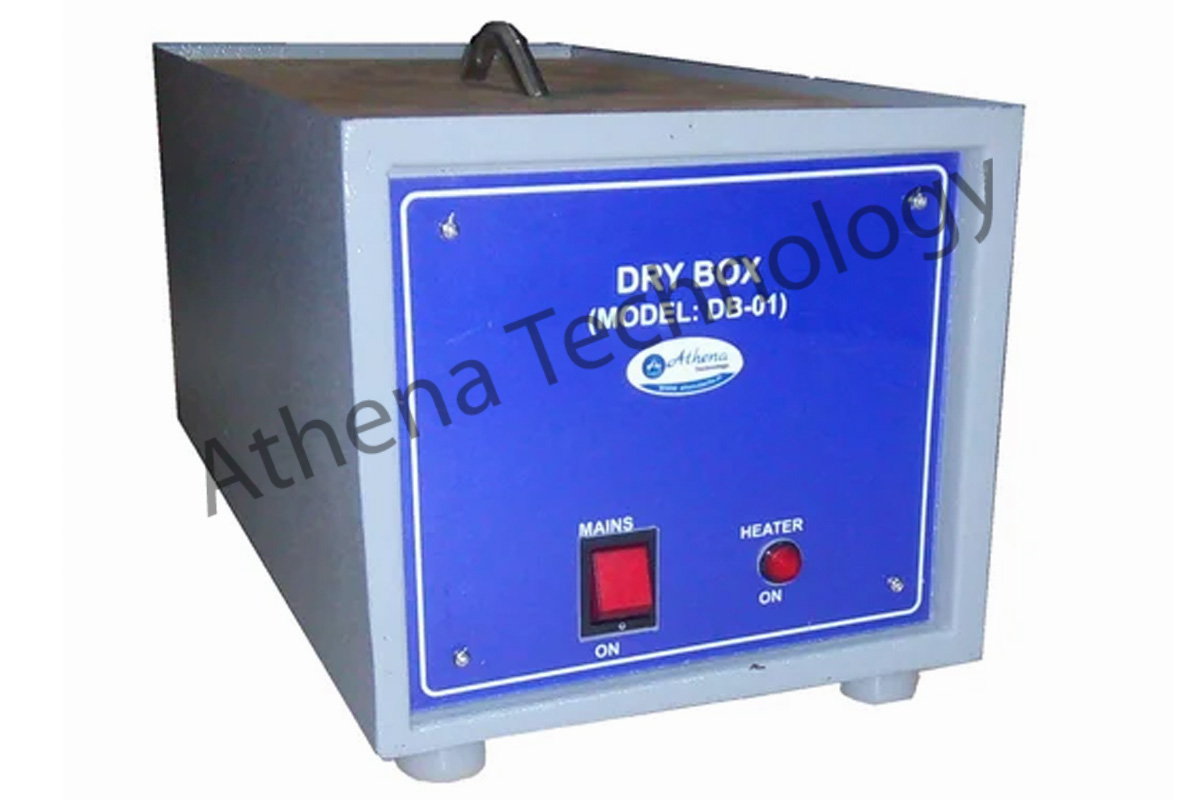

Dry Box With our rich industry experience in this domain we are dedicatedly engaged in offering Dry Box. The provided dry box is carefully manufactured by our skillful workforce using well tested components and progressive technology keeping in mind the set norms of industry. Also, this dry box undergoes several tests by our quality auditors in order to deliver a defect free range.

Features:

• Designed with excellence
• Smooth functioning
• Sturdy construction

Specifications:

• Temperature: Ambient to 45°C,
• Usable Volume: 450 x 250 x 150 mm.
• Power: 230 V, 50 Hz, 100 W

• For the creation of high-quality 13 mm Pallets used for IR/FTIR/XRF Solid Sampling, a complete laboratory hydraulic press with a force of approximately 15 tonnes is used.
• laboratory 15 tonnes R&D and QC labs frequently employ hydraulic pellet presses because they are small, beautiful, and sturdy.
• many IR-FTIR/XRF and other pelletizing uses The cylinder's up-stroking ram is supplied with hydraulic fluid by the high pressure pumping unit.
• As a result, the ram rises gradually and successfully in the upward direction. Consequently, pressure is applied.
• 15 Ton Manual Hydraulic Pellet Press (Table Top) * Side Plate Construction
• Maximum capacity: 15 tonnes, with a tolerance of 1 tonne (12 to 15 kg/sq. cm). Ram stroke maximum: 15 mm
• 90 mm of daylight * Upstroking, single-acting cylinder type
• Safety Component: Pressure Relieving Valve to prevent exerting too much pressure.

For a number of laboratory press applications, we provide a choice of hydraulic presses that are manual, electric, and automatic. We offer KBr pellet presses, XRF pellet presses, and thin film manufacturing press accessories in addition to hydraulic presses. All bench-top mounted laboratory hydraulic presses are compatible with a wide range of heated platens and hydraulic pellet press dies from Specac. The pallet holder holds a pallet of KBR (13 mm), which can be used with any IR/FTIR agate.
A motor pestle is used to properly prepare samples. For normal laboratory FTIR KBr pellet press sample preparation, hand pellet presses and dies are provided. These pellet press and pellet die sets are made to be simple to operate and to consistently produce KBr pellets of the highest quality for FTIR spectroscopy. with a heated platen equipment for manufacturing thin films for Specac hydraulic presses. These are intended to be used in the production of thin polymer films for FTIR transmission spectroscopy. There are kits available for both low- and high-temperature thin film production.

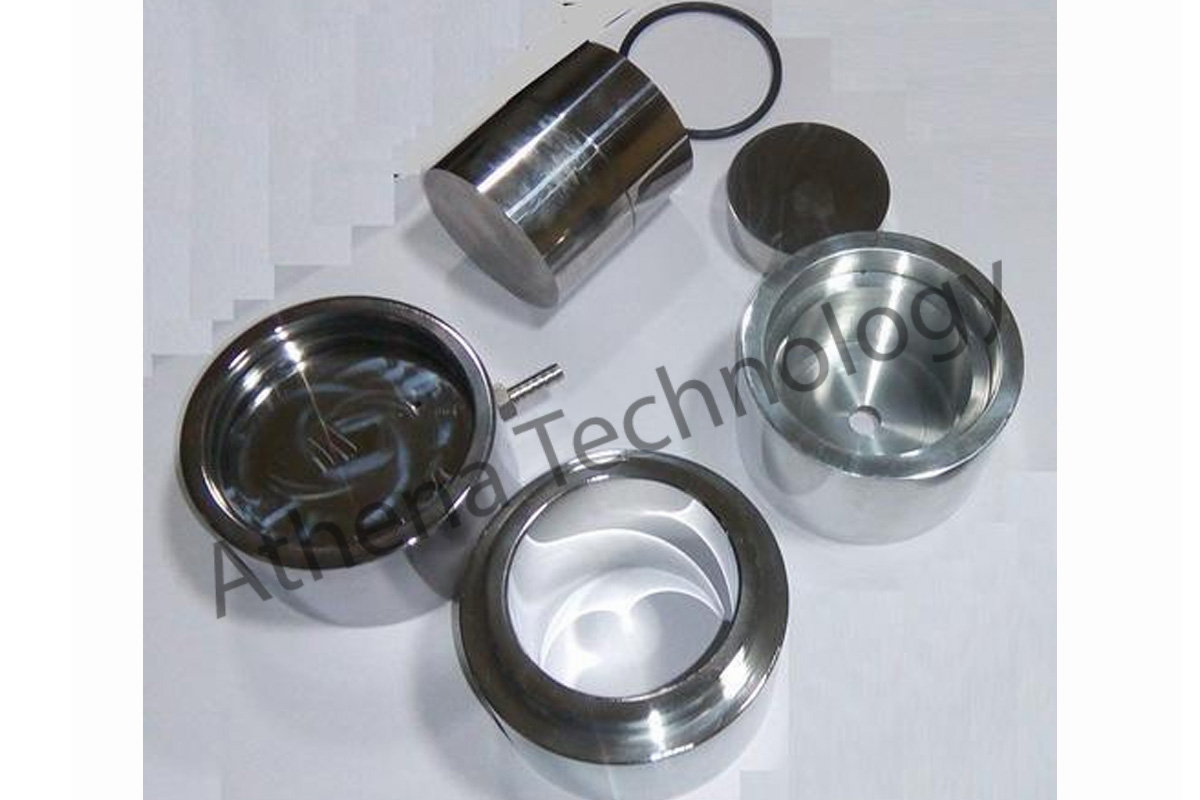

To create pellets or circular discs for IR-FTIR solid sampling or analytical purposes, utilise the DIE Set for IR-FTIR and XRF, Evacuable KBr Die Set. The most popular die size is 13 mm diameter pellets. A two-piece outer die, tungsten carbide mirror polished punches (envils), pusher rod, and pellet removal ring make up the 13 mm KBr Die. Die is equipped with an evacuation nozzle ( if required ). The die is made of hardened stainless steel and is simple to disassemble for cleaning. To ensure its security and durability, the entire set is housed in a velvet-lined teak-wood box. The maximum load that the die can withstand is 15 tonnes.

Notes

Each component is separately replaceable.
Due to its fragile nature, tungsten carbide cannot be guaranteed to not break.
Pushers and spare punches are only sold in pairs.

Dies are available in the sizes:

5 mm, 8 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 37 mm, 40 mm, 60mm. (Pls. refer to Hardened Alloy Steel Dies section)
Pellet Holders to suit the above sizes are manufactured by us, the standard being 13 mm Aluminium Anodized Pellet Holder.

Briquetting Pellet Dies:

• KBr die set in 3mm
• KBr die set in 5mm
• SS anvils in 5mm
• KBr die set in 10mm
• Set of two replacement 10mm SS anvils
• Set of two 10mm tungsten carbide anvils
• 13mm KBr die set with two stainless steel anvils and several paper inserts for a micro sample
• Set of two 13mm replacement SS anvils
• Set of two 13mm tungsten carbide anvils
• KBr 16mm die Set with two 16mm SS anvils.
• Set of 2 replacement 16mm SS anvils
• Set of two 16mm tungsten carbide anvils
• Low profile fits 12 tonne EZ Press; 19mm die set with two stainless steel anvils
• Set of 2 replacement 19mm SS anvils
• 2 SS anvils and a 20mm die set
• Set of two 20mm replacement SS anvils
• Set of two 20mm tungsten carbide anvils
• 2 SS anvils and a 25mm die set
• Set of two replacement 25mm SS anvils
• Set of two 25mm tungsten carbide anvils
• 2 SS anvils and a 32mm die set
• Set of 2 replacement 32mm SS anvils
• Set of two 32mm tungsten carbide anvils
• SS anvils and a 35mm die set
• Set of 2 replacement 35mm SS anvils
• Set of two 35mm tungsten carbide anvils
• 2 SS anvils and a 40mm die set
• 40mm set of 2 new SS anvils
• 40mm pair of tungsten carbide anvils
• 2 SS anvils and a 45mm die set

All Athena die sets are made of stainless steel that has been hardened to aerospace standards. The larger dies are typically used to produce briquettes for XRF spectroscopy, whereas the smaller dies are utilised to produce KBr pellets for transmission investigation by IR spectroscopy. Most spectroscopists choose the 13mm Macro-Micro die for KBr pellets because it comes with paper inserts with various small holes (1.5, 3, 5, & 11mm) that allow the user to create micro-pellets with a 13mm die set and also serve as a helpful frame for mounting and storing the pellets.
All Athena dies are sealed with viton seals and have an upper and lower stainless steel part for simple dismantling. All die sets in the 13mm to 40mm range now include an exterior shield made of aluminium, reducing weight for convenience of use. As a result of this feature, they are more lighter and easier to handle than two-piece dies manufactured entirely of stainless steel without compromising strength or longevity. To lessen the amount of moisture in the sample, the dies can be evacuated with a vacuum pump. The bigger size dies are often used with 20 to 40 tonne presses and are most frequently used for briquetting samples. 13mm and 20mm dies are normally used with 12 to 20 tonne presses for XRF examination.

Hydraulic Press for FTIR Presses hydraulic As one of the most reputable companies in the field, we are dedicated to providing a broad range of hydraulic presses for FTIR. R & D and QC laboratories use this press for a variety of pelletizing tasks for IR/XRF, among other things. The supplied press is made at our efficient production facility utilising premium-grade materials and cutting-edge methods in accordance with established industry standards. Additionally, we provide this press in a variety of parameters to meet the needs of our customers.

Solid Sampling:

High quality 13 mm Pallets used for IR/FTIR/XRF Solid Sampling are made using a complete laboratory hydraulic press with a force of roughly 15 tonnes.
15 tonnes of lab A hydraulic pellet press is a small, beautiful, and sturdy device that is frequently used in R&D and QC labs for various pelletizing applications for IR/XRF, among other things.
The up-stroking ram of the cylinder is supplied with hydraulic fluid by the high pressure pumping unit. As a result, the ram starts to ascend up slowly and positively. As a result, anything positioned between the screw and the piston top plate will experience pressure.

KBR Die Set:

Die for IR/FTIR solid sampling with a 13 mm pallet size are most frequently used with anvil and plunger, top and bottom die ports, extractor ring, and O-ring.

Liquid Sampling.

Kbr / Nacl Windows Windows by Nacl and KBR are available in round and rectangular shapes.

Pallet Holder:

The pallet holder is used to store a pallet of KBR (13 mm) that may be used with any IR/FTIR agate and a motor pestle to properly prepare samples.

Standard sizes:

Circular: dia 25 mm x 4 mm thickness
Rectangular: 38 mm x 19 mm x 4 mm

Universal Liquid Cell Holder:

Fixable or Demountable Thickness The cell holder is used to instal both circular and rectangular windows, and it may be used as either a demountable cell or a fixed thickness cell by using the various spacers and ptfe washers that are included. Mull samples are mounted on a circular window using a Mull Cell Holder.

Dry Box:

The best way to preserve FTIR/XRF accessories—which are highly hygroscopic by nature and impacted by moisture—is in a dry box.

KBR Die Set 13mm DIE SET FTIR Accessories PALLET PRESS DIE Die Set in 13mm. Our skilled workers carefully and perfectly craft the given set using high-quality raw materials and cutting-edge manufacturing techniques. Our quality controllers assess the full range against a variety of quality parameters to ensure its quality. Additionally, we provide this set in a variety of specifications to meet the diverse needs of customers.

Features:

Sturdiness

High strength

Corrosion-resistance

Specifications:

Die Size	3mm	5mm	10mm	13mm	16mm	19mm	20mm	25mm	35mm
Part No. Total Height1	1.5" 38.1mm	2.75" 70mm	2.75" 70mm	2.83" 72mm	2.75" 70mm	2.85" 72mm	4.265" 108.3mm	4.75" 120.7mm	4.75" 120.7mm
Plunger Height	N/A	1.37" 34.8mm	1.37" 34.8mm	1.37" 34.8mm	1.37" 34.8mm	1.33" 33.8mm	2.24" 57mm	2.24" 57mm	2.24" 57mm
Base Diameter	1.12" 28.5 mm	1.97" 50mm	1.97" 50mm	2.0" 50.8mm	1.97" 50mm	1.97" 50mm	3.54" 90mm	3.54" 90mm	3.54" 90mm
Single Anvil Height	N/A	0.25" 6.35mm	0.25" 6.35mm	0.25" 6.35mm	0.25" 6.35mm	0.27" 6.85mm	0.375" 9.5mm	0.375" 9.5mm	0.375" 9.5mm
