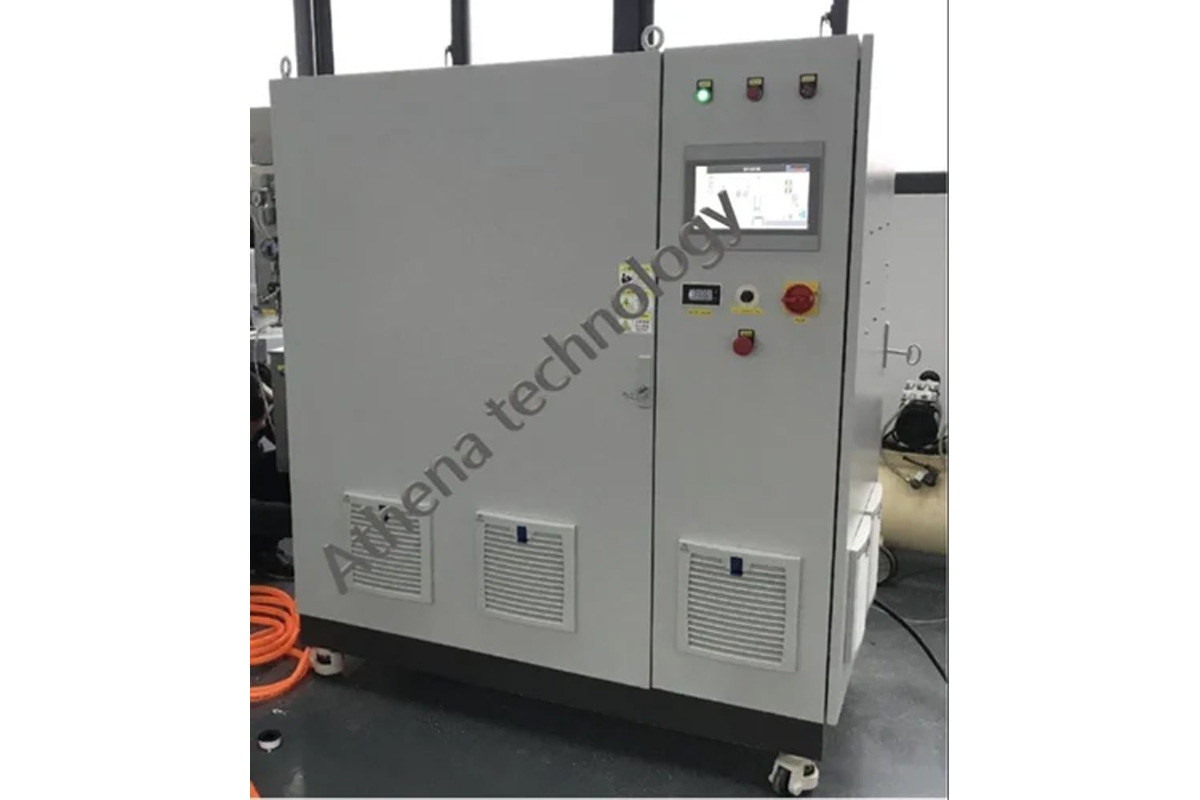

Water Electrolysis Based Hydrogen Gas Plant
ATHH series hydrogen generators are advanced patented products, which are light, highly effective , energy saving and of environmental protection , producing extremely pure hydrogen through the electrolysis of pure water The Electrolyte electrodes, as the core of the product, are highly active catalytic electrode with nearly zero distance between the electrodes, which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency. The other key parts are all produced by use of top-grade engineering plastics dies with superior quality. With perfect electric control system, designs of the generators are advanced with reliable quality, high automation, extremely pure generated hydrogen, huge output, the models and specifications of the generators are complete, and the generators are widely used. H2 out put flow from 0-- 10M3/hr, which could meet different customer’s needs

Operational Principle Electrolytic water meeting the requirements (With electrical resistivity >1MΩ/ cm, and deionized or redistilled water in electronic and analysis industries can be used for this purpose.) , after being put into the anode chamber of electrolytic cell, when power is switched on ,will be decomposed at once at the anode : 2H2 O = 4H++ 2O-2. The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2), which will then be discharged from the anode chamber, with some water, into the water tank.
The water can be used circularly, and oxygen will be discharged from the small hole of the top cover of the water tank into the atmosphere. The hydrogen proton, in the form of aqua ion (H+·XH2 O), and under the action of electric field force, through Electrolysis ion membrane, will arrive in the cathode to absorb electron to form hydrogen, which will then be discharged from the cathode chamber into the gas/water separator, where most of water it brought with from the electrolytic cell will be removed. The hydrogen with little water will be under moisture absorption of the desiccator, with its purity thus reaching 99.999 % or above.

Product Structure Characteristics :

(1) Electrolysis of pure water to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
(2) Cell voltage is low, purification of hydrogen is high, and cycle of changing desiccants is long.
(3) Small electrolytic current, large output of hydrogen and voltage increasing quickly (3 to 5 minutes).
(4) Hydrogenation is produced with stable pressure and output, output of hydrogenation can be controlled according to the requirements, and automatic control technology is perfect and reliable.
(5) Stable hydrogen pressure, stable current output, track with the using hydrogen automatically, and credibly automatic protection technology when there are deaquation, overpressure and water-jet.
(6) Little noise (the fan needn't to work when use the generator).
(7) The electrolysis efficiency is high, and power consumption is less.
(8) Excellent seal performance.
CVD Hydrogen Generator Hydrogen Generator for CVD mpCVD Hydrogen Generator

Hydrogen Gas Generator
High Purity Hydrogen Gas Generator
Adopt the world's leading Electrolysis technology to produce hydrogen by electrolyzing pure water.
High purity hydrogen 99.9995% stable output flow, safe and convenient to operate, various alarm devices
(overpressure alarm, water shortage alarm, water accumulated alarm)
Easy to operate, safe and reliable, generating hydrogen through electrolyzing pure water, switching power on to produce gas
High Electrolytic Efficiency, Long Term Use, Purity, Flow Attenuation.
It Has High Reliability And Simple Maintenance For Daily Use
Capable To Meet The Domestic And Foreign Various GC Requirements
No Corrosion No Pollution.
De-ionized Water / Double Distill Water
High Resolution and sensitivity
LED Digital display for flow rate
Max. Ambient Humidity < 85% RH Suitable Environment non-corrosive and dust-free

Model : ATH-1S Output Volume : 0-16 lpm (1000 Ltrs / Hr)
Max H2 using : 16 lpm
H2 Purity : 99.999% Min H2 using 0 ml/min
Surrounding Using temperature : 5~40ᵒC
Water Requirement (Pure water) : Resistivity >1MΩ/cm
Water Tank Volume : 200 liters
Shortest Water Adding Period : Automatically add water by pump
H2 outlet pipe size: ¼ “
Output Pressure : 20 ~ 180psig (9 Bar)
Fluctuation rate of output pressure : < 0.2% Dew Point : -65C Second Protective Pressure : 180 psi Power voltage : 220 / 380V, three phase Input power for the whole equipment : < 10 KVA ATHH series hydrogen generators are advanced patented products, which are light, highly effective , energy saving and of environmental protection , producing extremely pure hydrogen through the electrolysis of pure water The Electrolyte electrodes, as the core of the product, are highly active catalytic electrode with nearly zero distance between the electrodes, which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency. The other key parts are all produced by use of top-grade engineering plastics dies with superior quality. With perfect electric control system, designs of the generators are advanced with reliable quality, high automation, extremely pure generated hydrogen, huge output, the models and specifications of the generators are complete, and the generators are widely used. H2 out put flow from 0-- 10M3 / hr, which could meet different customer’s needs

Product Function Characteristics :

1) Electrolysis of pure water to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
2) Cell voltage is low, purification of hydrogen is high, and cycle of changing desiccants is long.
3) Small electrolytic current, large output of hydrogen and voltage increasing quickly 3 to 5 minutes).
4) Hydrogenation is produced with stable pressure and output, output of hydrogenation can be
controlled according to the requirements, and automatic control technology is perfect and reliable.
5) Stable hydrogen pressure, stable current output, track with the using hydrogen automatically, and credibly automatic protection technology when there are deaquation, overpressure and water-jet.
6) Little noise (the fan needn't to work when use the generator).
7) The electrolysis efficiency is high, and power consumption is less.
8) Excellent seal performance.
