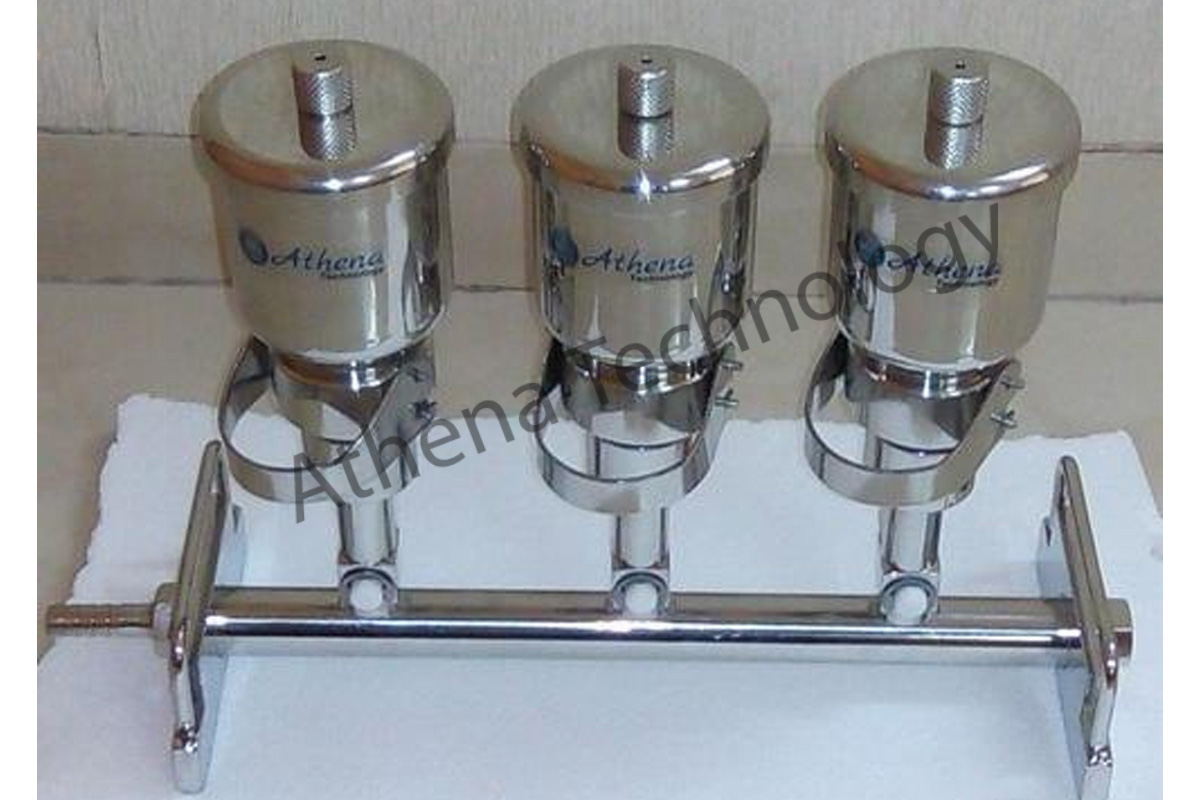

Applications:

• Filtration for microbiology test.
• General liquid filtration.
• Chemical experiment.

Specification:

• Moc:- SS-316 with spin lock adoptor
• 1,3,6 and 9 number of branches.
• Filter Diameter:- Optional.
• Value Type:- 2way, 3way.
• Pressure:- Vaccum only.
• Outlet Connection:- ½” Hose barb

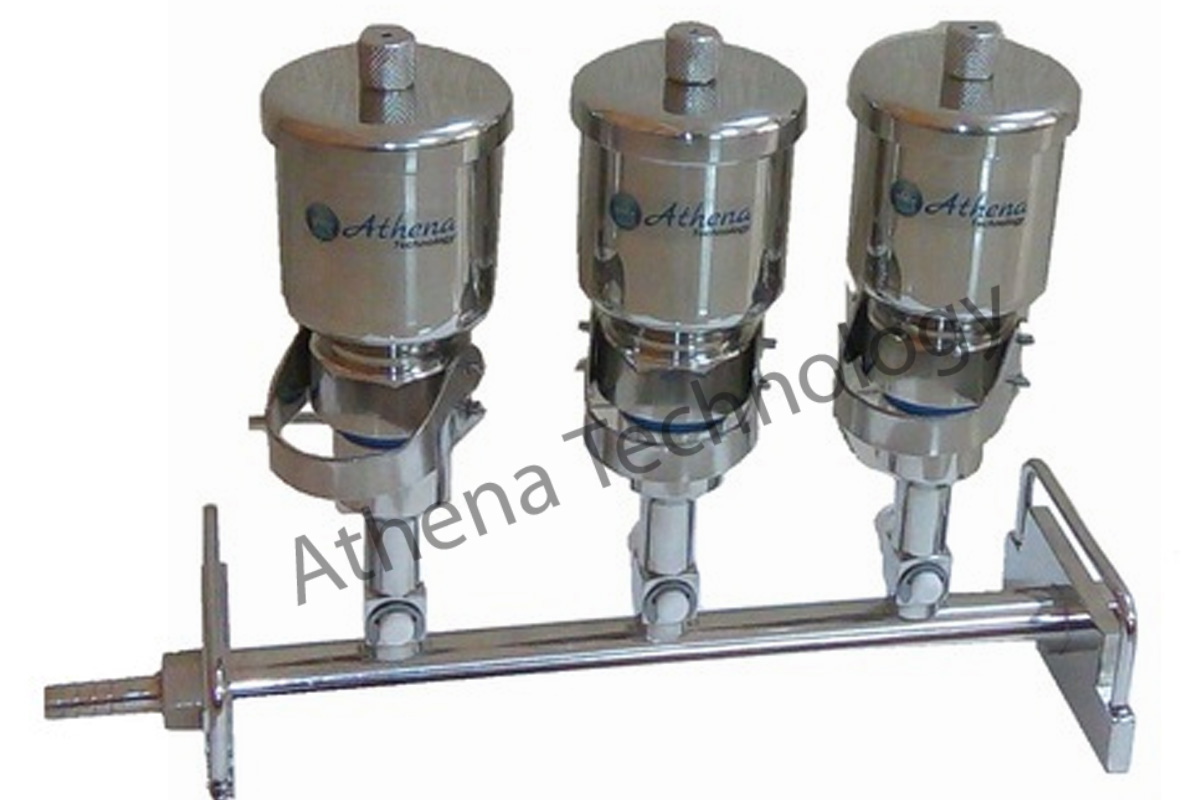

STERILITY UNITS

Consists of S.S. holders in manifold of 3 of 6 to hold 47 mm dia, membrane filters. The top of the holders are connected to the outlets of the flushing tube . Supplied without Wolfs Bottle & vaccum/Pressure pump. These units are used for sterility testing when the membranes filter is to be removed from the holder for incubation in culture media. Filtration areas is 12.5 cm & has a holding capacity of 250ml. though only vacuum is required for filtration; some pressure is required for flushing liquids.
Consists of S. S. holders in manifold of 3 of 6 to hold 47 mm dia, membrane filters.
The top of the holders are connected to the outlets of the flushing tube.
Supplied without Wolfs Bottle & vacuum/Pressure pump.
These units are used for sterility testing when the membranes filter is to be removed from the holder for incubation in culture media.
Filtration areas is 12.5 cm & has a holding capacity of 250ml. though only vacuum is required for filtration; some pressure is required for flushing liquids.

Without filter holder

3 Test

6 Test

Sterility Test Apparatus
Our qualified personnel use cutting-edge technology and premium stainless steel to produce this instrument. In pharmaceutical facilities, our equipment is used to check the sterility of liquids and medications. It is made up of a stainless steel flask with clamps made of stainless steel and a stainless steel support screen with 316 characteristics. Additionally, this Sterility Test Apparatus is offered at market-beating pricing in a range of configurations.

Features

• Corrosion proof
• Durability
• Smooth finish
• High strength

Available in:

• Single station without stand
• Single 3 station with stainless steel stand
• Single 6 station with stainless steel stand

consists of a manifold made of three or six S.S. holders that can each hold a membrane filter measuring 47 mm in diameter. Silicone tubing and glass stopcocks are used to link the holders' tops to the flushing tube's outputs. The manifold and vacuum pump must be separated by a vacuum-resistant flask or wolf bottle (these items are not included). When the membrane filter needs to be withdrawn from the holder to be incubated in culture media, these units are utilised for sterility testing. With a holding capacity of 250ml, the filtering area measures 12.5 cm. Even though only vacuum is needed for filtering, flushing liquids still needs some pressure.

Feature:

• The filter manifold mode of SS-316 with ss valve
• For excellent chemical resistance and can be fastly sterilized by flame, steam and oven.
• Individual control teflon valve.
• Compatible to mounting silicon stopper with vaccum holder.
• Special adaptors provide for proper vaccum holder fitting.
• Fully leak proof plat form.
• Light weight to handle easy.

Applications:

• Filtration for microbiology test.
• General liquid filtration.
• Chemical experiment.

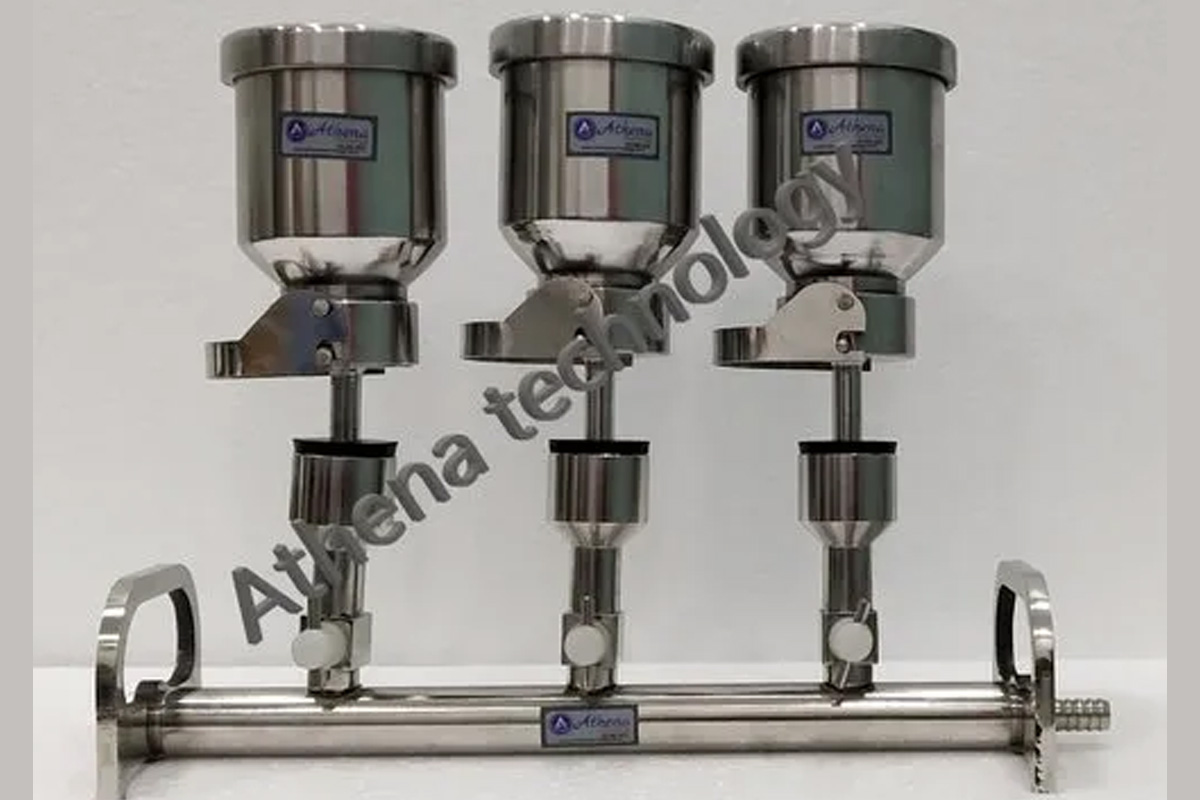

Sterility Testing Manifold Standard (Teflon Valve )

Feature:

• The filter manifold mode of SS-316 with ss valve
• For excellent chemical resistance and can be fastly sterilized by flame, steam and oven.
• Individual control teflon valve.
• Compatible to mounting silicon stopper with vaccum holder.
• Special adaptors provide for proper vaccum holder fitting.
• Fully leak proof plat form.
• Light weight to handle easy.

Product Description The 316L stainless steel three-branched Starlab solvent filter has the following qualities: acid and alkali resistance, quick filtering, long service life, acceptable structure, simple cleaning and operation. It has numerous applications in the chemical business, biochemical pharmacy, environmental protection, food and beverage sector, and so forth. When using ATHENA filter hold manifolds, a vacuum pump is also installed and available.

Features

1. 47mm or 50mm diameter membrane
2. Acid-resistance, alkali resistance and fast filtering speed for 316L version
3. Can worked under 180℃ - 200℃ high temperature
4. Individual control valve, convenient to operate several samples filtration at same time
5. Suggest together with

APPLICATION

1. Continuous filtration
2. Filtration pf biological solutions (proteins)
3. Microbiological fluids removal and particle analysi
   • 300ml Glass Solvent Filter,1 Pcs/pack
   • 500ml Glass Solvent Filter,1 Pcs/pack
   • Multiple vacuum filtration system - 3 branches glass,300ml Funnel Size,1000ml Collection Bottle,1 Pcs/pack
   • Multiple vacuum filtration system - 3 branches stainless steel,300ml Funnel Size,1000ml Collection Bottle,1 Pcs/pack
   • Multiple vacuum filtration system - 3 branches glass,500ml Funnel Size,2000ml Collection Bottle,1 Pcs/pack
   • Multiple vacuum filtration system - 3 branches stainless steel,500ml Funnel Size,2000ml Collection Bottle,1 Pcs/pack

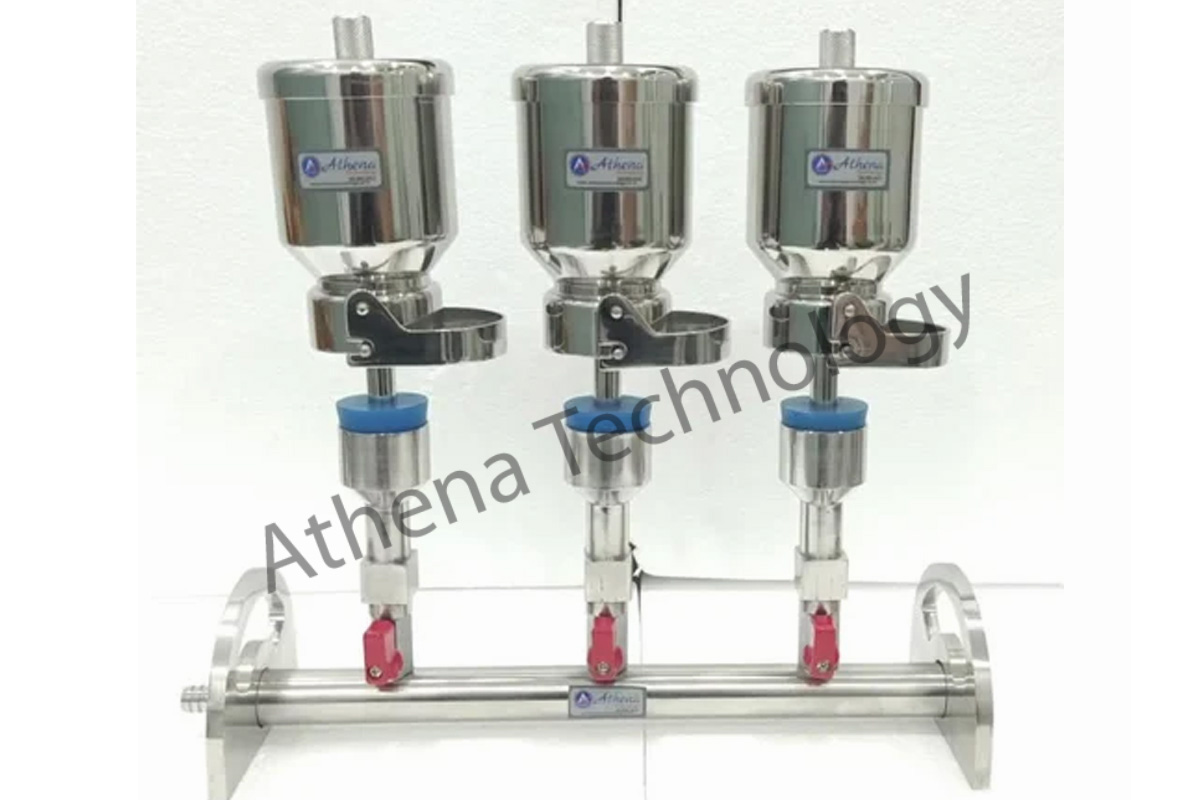

Laboratory manifolds with multiple branch funnels for vacuum filtration
widely used for biochemical, pharmaceutical, sanitary, and environmental testing, as well as for food, drink, science research, and other purposes. The product complies with USP standards, can test three or six samples at once, is highly sensitive, easy to use, and can filter a variety of samples, including bacteria, suspended solids, chlorophyll, and others, depending on the needs of the operator. It is also suitable for solids filtration in laboratories.

Components :

1. Glass funnel (300ml) / Stainless steel funnel(300ml) SS316L
2. Borosilicate glass filter head / Stainless steel filter head SS316L
3. Stainless steel holder ( SS316L)
4. PTFE valve
5. Clamp of aluminum alloy

Brief instruction:

In microbiological and analytical operations that require gathering a particle (bacteria, precipitate, etc.) from a liquid suspension, manifolds vacuum filtration is frequently utilised. They were specifically created and built to filter many samples simultaneously. Since each filter holder has its own control valve, only one set of vacuum pumps can support the operation of a single or multiple branch manifold filters.

Components:

• All Glass funnel (300ml) / SS316L funnel (300ml / 500ml)
• Borosilicate glass support screen / SS316L support screen (40μm)
• Stainless steel base (SS 316)
• SS 316 valve
• Clamp of aluminum alloy
• Silicon Stopper

Characteristic:
Each holder have individual control valve, agility for use,convenience in antisepsis,high efficiency.
Test three or six samples at the same time, high sensitivity, low false –positive, and easy to operation.

Operation range:

Widely used for chemistry analyze,biochemical-pharmaceutical,sanitation test,environment test,water quality
analyze,food staff, beverage and science research and so on.

Specification:

• Moc:- SS-316 with spin lock adoptor
• 1,3,6 and 9 number of branches.
• Filter Diameter:- Optional.
• Value Type:- 2way, 3way.
• Pressure:- Vaccum only.
• Outlet Connection:- ½” Hose barb

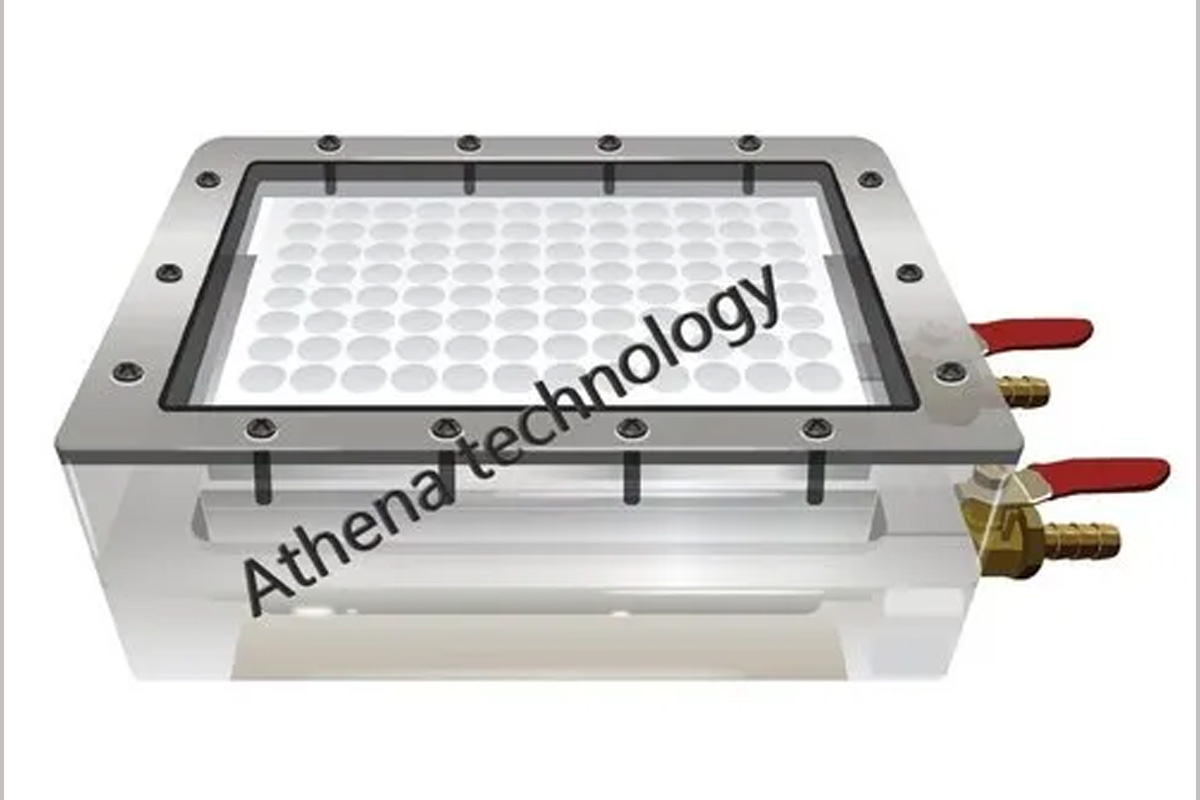

96 WELL VACUUM MANIFOLD

• For use with 96 well Purification kits
• Includes Single Column Adapter Plate
• Constructed of cast Acrylic

The IBI 96 well Vacuum manifold is intended for use with single prep columns and high throughput 96 well plate nucleic acid purification products.
With a waste tray, collection plate spacer, and single column adapter plate included, the unit can accommodate numerous extractions of single column preps and is made of cast acrylic for simple maintenance and cleaning.
A vacuum valve and a release valve are also included.
Plasmid DNA may be extracted and purified with the greatest efficiency thanks to the upper portion of the manifold's design, which lessens cross contamination between wells.
Genomic DNA, Viral DNA, Total RNA and PCR products.

Material: Manifold - Cast Acrylic -

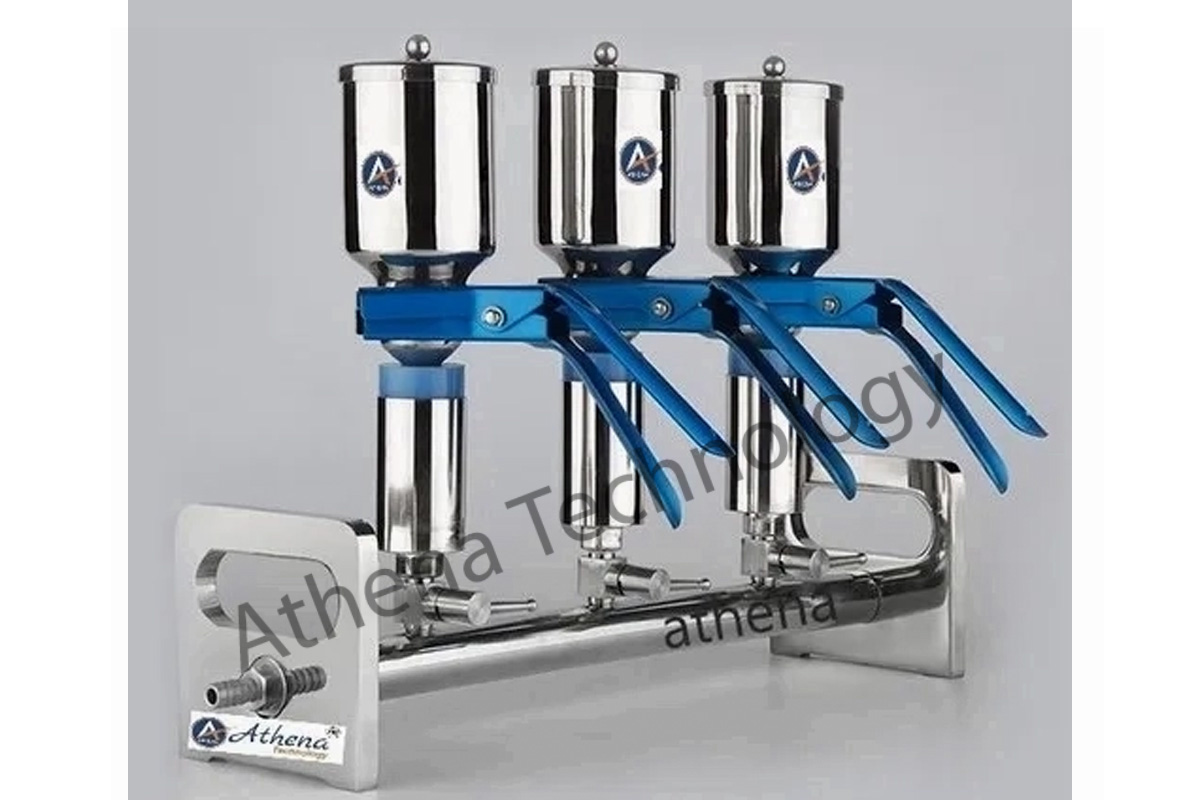

Laboratory Stainless Steel Funnel Vacuum Filtration 3 Way Manifolds
autoclaved 300ml funnel One-branch Stainless Steel Vacuum Filtration Manifold
An instrument used in laboratories for solvent filtration is the multi-branch Manifolds filter. For the operator who needs to filter multiple samples at once, it is more practical and effective than the glass sand core. Due to the unique control valves on each filter holder, only one set of vacuum pumps can support the operation of a single or multiple branch manifold filters.

Key feature:

1. Stainless steel material, which replaces glass, is more durable, considerably reduces anthropogenic damage, and lowers costs.
2. Acid and alkali resistance, easy high temperature disinfection (180 degrees, 30 minutes), and corrosion resistance
3. One set can filter four samples simultaneously, considerably enhancing the effectiveness of the task.
4. Appropriate for filtering laboratory sample work, drug injection, large-infusion sterile detection, microbial limit test, and various bacteria count.
5. Each filter has a separate valve and can be used separately or simultaneously. A common type of solution filter in chemistry labs is the stainless steel multi-connection filter.

Components:

1. Glass funnel (300ml) / Stainless steel funnel(300ml) SS316L
2. Borosilicate glass filter head / Stainless steel filter head SS316L
3. Stainless steel holder ( SS316L)
4. PTFE valve
5. Clamp of aluminum alloy
6. Lid

Multi-branch Vacuum Filtration Manifold
A multi-branch vacuum filtration system is an integrative filter that can filter one sample or many samples at once, saving time while testing many samples. It has a sensible structure, a beautiful shape, and no wedding spots. Hawach solvent filters are composed of 316L stainless steel, which has the advantages of being resistant to acids and alkalis, having a quick filtering time, having a long service life, having a fair structure, and being simple to clean and use. It has numerous applications in the chemical business, biochemical pharmacy, environmental protection, food and beverage sector, and so forth.

Applications:

• Continuous filtration
• Microbiological fluids removal and particle analysis
• Filtration pf biological solutions (proteins)

1. Link every component according to the structure chart and confirm that the whole system is placed in closeness appearance.
2. Put on the membrane and fix with the clamp.
3. Start the vacuum pump, open the valve door soon afterward.
4. The sample will be taken out into the collection bottle

• 300ml Glass Solvent Filter
• Multiple vacuum filtration system - one branch stainless steel
• Multiple vacuum filtration system - one branch glass
• 500ml Glass Solvent Filter
• Multiple vacuum filtration system - 3 branches glass
• Multiple vacuum filtration system - 3 branches stainless steel
• Multiple vacuum filtration system- 6 branches glass
• Multiple vacuum filtration system - 6 branches stainless steel

Manifold Filtration System
Athena series Manifold filtration system adopts membrane filtration, by the use of a certain aperture of sterile membrane intercept microbes and then cultivated and counting.
Applicable to lab microbiological testing of raw materials, semifinished products and finished goods in food, beverage, beer industries, microbial limit test of production water, raw materials, intermediates and finished products in the pharmaceutical industries, microbial detection of ionized water in in the electronics industries and microbial limit test in the environmental monitoring institutions.
Optimize structure and workflow, take control and convenient
Assembly and disassembly can only by hand
Adjust itself when test on the rough worktable
Independent operation of valve and processed handle
Designed to improve confortble Special Taking membrane groove, easy and safe
Each side can connect with vacuum pump PP and SS funnel for choice Accept 47mm and 50mm membrane.
Filter head is detachable, easy to sterilize key parts.
Whole set can be moist heat sterilization and filter head can use
flame fast sterilization during test

Technical Parameter:

Filtration device: stainless steel

Handle : Aluminum

Effective filtration rate: 12.5cm2

Material of Funnel: PP and Stainless Steel

Filter head: Detachable, screw it with holder

Membrane Diameter: 47mm and 50mm

Filter head: 6-place

SS funnel: SS100(100ml), SS250(300ml), SS500(500ml)

Option: pp funnel, ss funnel(100ml, 300ml, 500ml), lid of ss funnel(300ml), clamp of ss funnel, diaphragm vacuum pump, sterile membrane, flame sterilization tool, tweezer, tweezer stand, flask fittings
