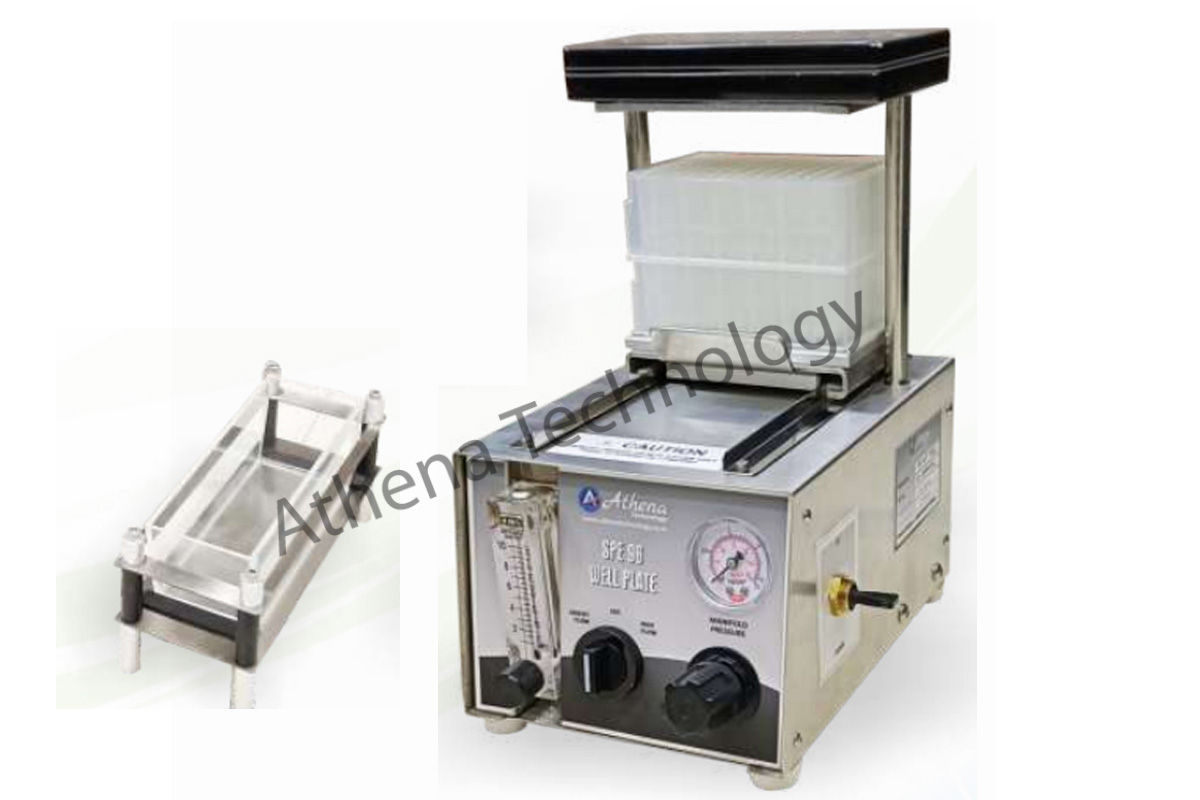

Positive Pressure-96 Processor

The Athena System 96 Processor For Positive Pressure SPE Provides SPE In 96-well Plate Formats With State-Of-The-Art Operation. SPE Plate Processing Under Positive Pressure Has Several Benefits Over Vacuum Processing Under Traditional Conditions. more reliable reproducibility More Convenient Highly Uniform Flow Column to Column For open column ports, there is no need for caps or plugs. Processing of Pressure-sealed Columns with Reduced Carry-over and a Higher Pressure Differential for Viscous Samples More effective extract drying using air or built-in nitrogen SPE Plates with 96 wells A Full Line Of Spe Plates Designed Specifically For Use With The System 96 Processor Are Available From SPE ware. Athena SPE Plates Offer Much Higher Performance Than Conventional SPE Sorbents, With Greater Relative Capacities And Reduced Elution Volumes, Thanks To Patented Manufacturing Technology And Advanced Microparticulate Sorbents.
Application SPE Processor
pressure+ 48 collection rack 12 x 75 mm
pressure+ 48 collection rack 13 x 100 mm
pressure+ 48 collection rack 16 x 100 mm
pressure+ 48 SPE column rack 1 ml
pressure+ 48 SPE column rack 3 ml
pressure+ 48 SPE column rack 6 ml
pressure+ 48 waste bin inserts
pressure+ 48 waste bin rack with inserts
pressure+ 96 collection tray 10 ml 24 well
pressure+ 96 column holder 96
pressure+ 96 spacer (16mm) for µelution plates

Features

• 96 samples, capacity (in tonnes)
• Company Athena
• Processor for SPE applications

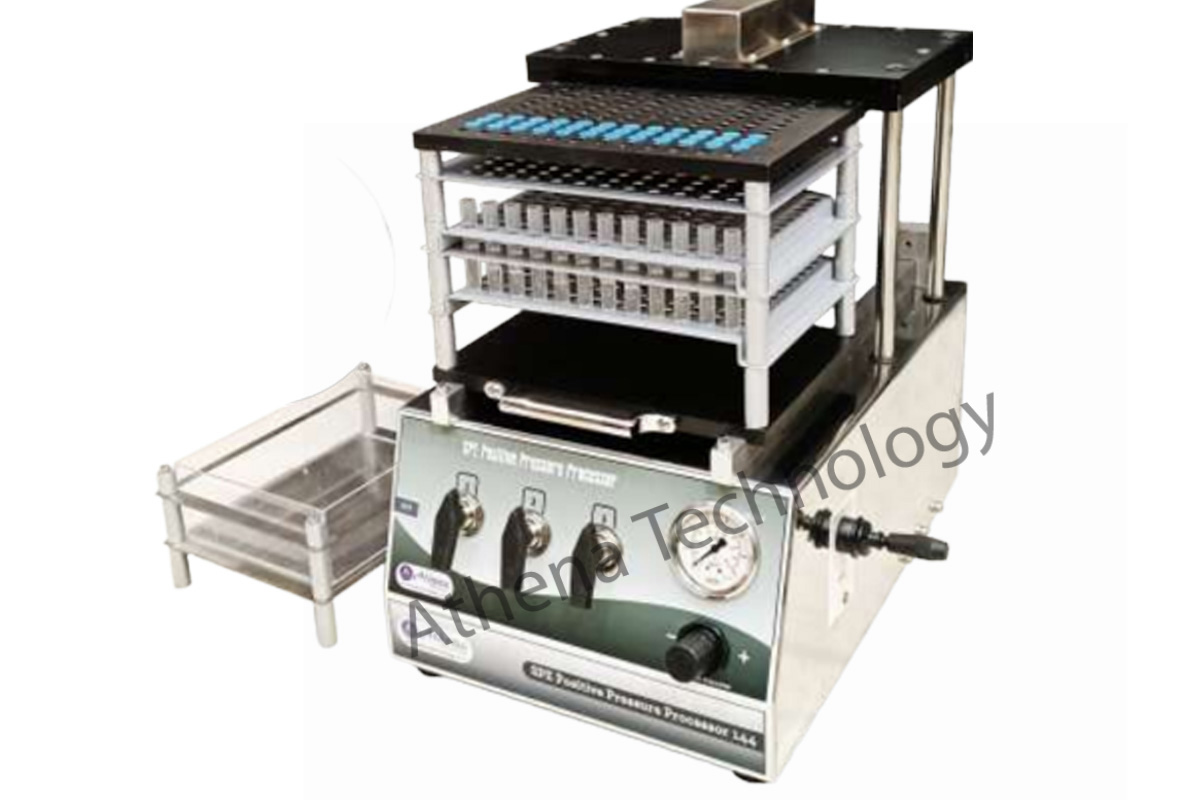

144 Positive Pressure Manifold
SPE Manifold positive pressure 144 position
Purchase specification

• No of position : 144 individually regulated
• No of Rows : 12
• SPE cartridge size : 1 mL,3mL
• Standard with equipment : 1 mL
• SPE sizes can be switched between each size by changing the adapter plate
• Dual setting allow users to set different pressure for extraction and column drying.
• 2 Collection Rack for specific test tubes size
• Single switch raises and lowers the sample racks and creates an airtight seal.
• Using manual positive pressure manifolds with flow restriction
• Includes waste reservoir with stopcock assembly to allow for direct drainage of waste.

Features Advantages

• Uniform flow across all columns
• High end positive pressure manifold
• Higher pressure. Up to 80 PSI
• More effective on difficult matrices such as oral fluid, viscous urines or whole blood
• Active drying of the SPE bed to facilitate complete dryness
• Programmable pressure profiles
• Electronic, programmable flow control

Benefits

• Decreased variation in column processing, improved analyte recovery reproducibility Formatted
• for Athena SPE ware micro particulate sorbents
• Vacuum manifolds max out at 1 Atmosphere
• Further improves ruggedness of methods and produces more reproducible methods
• Increased flexibility in method optimization.
• Reduced run to run variability, reduced operator variability
• More reproducible methods with reduced risk of errors.

Export : USA, Europe, Africa, Canada, Germany, France, Italy, UK, NY, NJ US, Turkey, Egypt,

Features and Advantages

• Highly uniform flow from sample to sample for SPE, Protein Precipitation and Supported Liquid Extraction
• Easy to set-up and use with just a gas source
• Improved reproducibility, accuracy and extraction efficiency, even with viscous samples
• Parallel processing for increased sample throughput
• Universal designs accommodate all 96 well plates, or 1 mL, 3 mL and 6 mL SPE columns
• Built-in safety features ensure ease of use and safe operation
• Modular Rack System
• Racks only fit the system in one direction, ensuring consistent processing throughout.
• By using stackable collection racks and extraction racks on the Athena PRESSURE+ 48 96 manifold, many combinations are possible to accommodate varying methodologies.

Manufacturer of Positive Pressure Manifold System
Indian Positive Pressure Manifold
Compatible Gas Brand Athena

Gas pressures up to the provided line pressure (usually 60–75 psi) are permitted by the Athena System 96, providing more force for viscous sample flow. Smooth and quick column flow responses result from pressure changes, either up or down. When working with non-polar elution solvents, the heated manifold option allows for quick and thorough column drying, producing cleaner extracts and better specificity. The System 96, in contrast, makes use of special, restricted-flow gas ports. Because of these ports' greater flow management, even if 95 out of 96 wells are dry, wet, or empty, the final well will still experience normal pressure, facilitating processing.

Positive Pressure Manifolds Modular Rack System Manufacturer:
On the Athena PRESSURE 48 96 manifold, stackable collection racks and extraction racks can be combined in a variety of ways to support various techniques. System racks can only fit in one direction, ensuring uniform processing all the way through.

Automated Solid Phase Extractor
Athena Fat Analyzer is based on the Soxhlet Extraction Principle and Integrates such functions as soaking, extraction, leaching, heating condensation and Solvent recovery.

Features :

• Computer-Based Control System
• Function for Audio and Visual Alarms
• Integral Dry Heating offers extensive temperature control options with excellent accuracy.
• Device security is ensured by the isolation of the electric circuit from the extraction space.
• Features to remind you about overheating and timers.
• Multiple interface elements display the specified temperature, actual temperature, and set time heating time at once.
• specialised temperature insulation for the air protection from overheating and steady temperature.

Automated Solid Phase Extractor:

Automated Extraction System uses Solid Phase Extraction technology replacing the old, labor-intensive liquid-liquid extraction technique. The procedure reduces up to 90 percent of solvent consumption when compared with the conventional methods, exhibiting a significant reduction in purchase and disposal costs of chlorinated solvents such as methylene chloride.

Technical parameter

Numerical Control Solid Phrase Extraction System
Statistical control SPE supports the entire experiment of solid phrase extraction at every stage. It uses a digital control pump to provide each SPE column with consistent positive or negative pressure. According to the normal analytical protocol, each liquid will be injected into the column at a specific flow rate. After effectively extracting the target analyte, the column will be moved to the elution rack and uniformly eluted under positive pressure to prevent cross-contamination.

Feature

• Single track has a flow rate of 0.01–7 ml/min. It supports positive-pressure elution and large volume injection, both of which can prevent cross pollution.
• A timer and LED digital display may show the actual speed.
• The connectors for the columns are well-resistant to acids, alkalis, organic solvents, and oxidising agents.
• The processing of up to 8 samples simultaneously increases working efficiency.
• Good consistency, simple to manage and modify.
• The relationship between rotation speed and flow speed is linear, with good leakproofness and stability.

• Tube of digital control pump: 8
• Diversion Pipe: 24
• Column Connector: 8
• Solution Collecting Rack: 24 positions
• Adapter: 16
