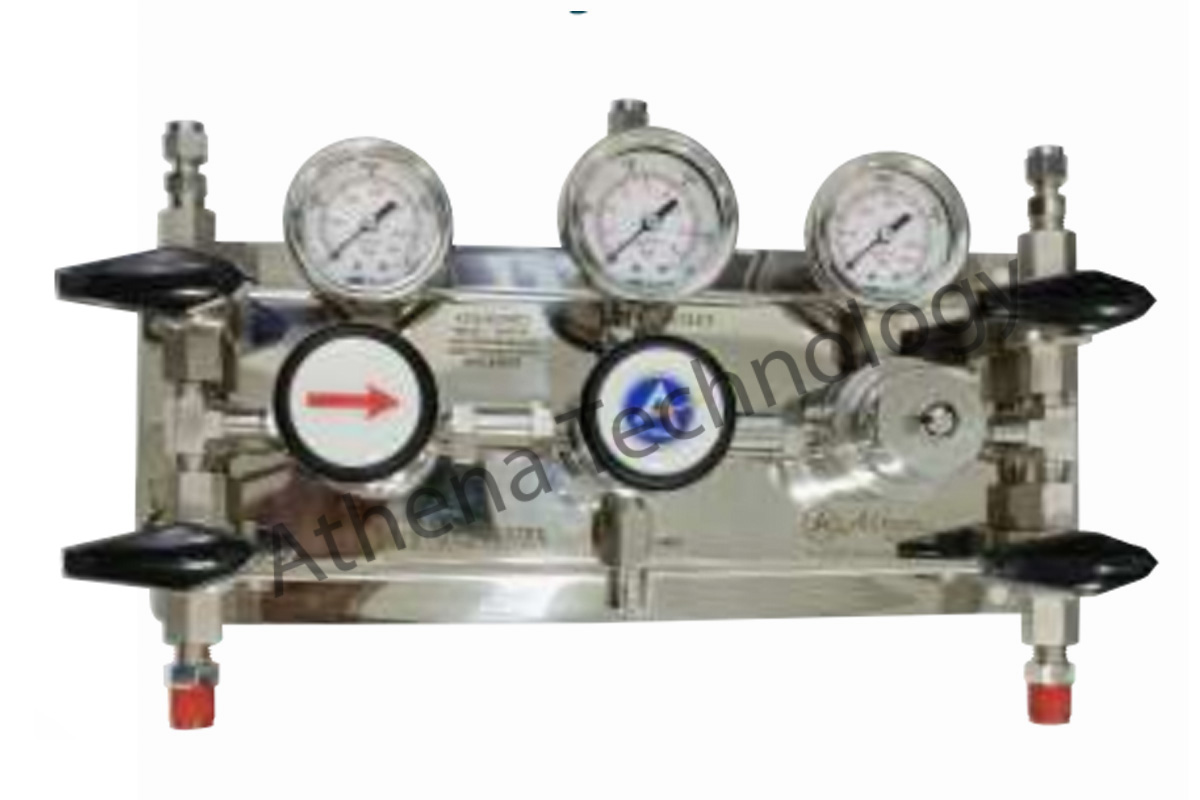

Manifold for Mechanical Automatic Gas Changeover A top-notch selection of Mechanical Auto Gas Change Over is what we specialise in providing. It can be applied to different cylinder banks. This system is created at our sound manufacturing facility under the strict supervision of our seasoned technocrats using premium grade components and cutting-edge methods. Prior to delivery to our clients, the offered system is put through a number of quality checks to assure its functionality.

Features:

• Precisely designed
• Smooth performance
• High strength

Specifications:

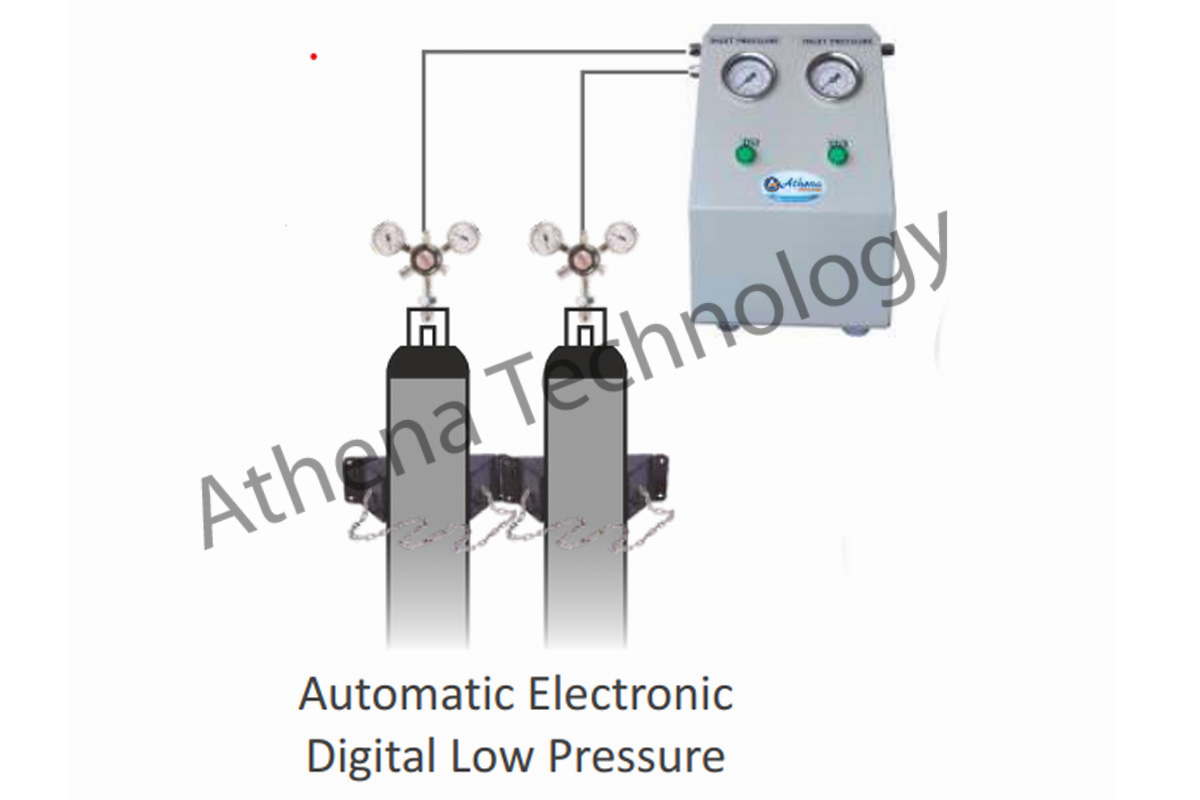

Automatic Change Over Manifold System
We are skilled at providing an exclusive selection of Automated Change Over Manifold Systems, which are frequently used in two-cylinder systems where automatic switching over is necessary when the pressure in one cylinder falls below the preset pressure. Our offered system is made utilising quality-tested components under the direction of skilled specialists in accordance with established industry rules and norms.

Features:

• Set the outlet pressure as per requirement With outlet press Regulator
• Inlet Pressure Gauge : 2 nos. of 0 – 210 Kg Gauge
• Open outlet valve to use as per requirement

Specifications:

• Inlet Pressure Gauge : 2 nos. of 0 – 210 Kg Gauge.
• Outlet Pressure Gauge : 1 no. of 0 – 14 Kg Gauge.
• Flow : 300 LPH (MAX)
• Gas services : Air ,N2, H2 ,He, Ace,
• Arg ,N2o,P10 and other gas
• Outlet Connection : ¼”OD ferrule fitting with ball valve
• Inlet connection : 1/4:” BSP male to suit pigtail
• Size : H 38 mm X D 235 mm X L 500 mm

Mounting Dimension:
Setting Procedure :

• Connect both cylinders with flexible pigtails
• Open the cylinder 1 and apply the pressure of Cylinder 1 ( Line 1) to the manifold
• Set the pressure through cylinder 1 regulator ( e.g. 7 kg)
• Open the cylinder 2 and apply the pressure of cylinder 2 ( Line 2 ) to the manifold.
• Set the pressure through cylinder 2 regulator ( e..g. 6 Kg.)
• Set the outlet pressure as per requirement With outlet press Regulator
• Open outlet valve to use as per requirement
• Vent valve 1 and vent valve 2 is use to purge vent the gas Cylinder change Procedure :- if cylinder1cylinder got empty close the shutt off vale replace Cylinder with filled cylinder open the vent valve for few seconds to purge and close the valve repeat same procedure for cylinder 2 if .it get empty

Electronic (Digital) / Manifold System / Gas Monitoring System Mechanical / Automatic Gas Changeover
Electron (Digital) / Mechanical Automatic Gas Manifold System

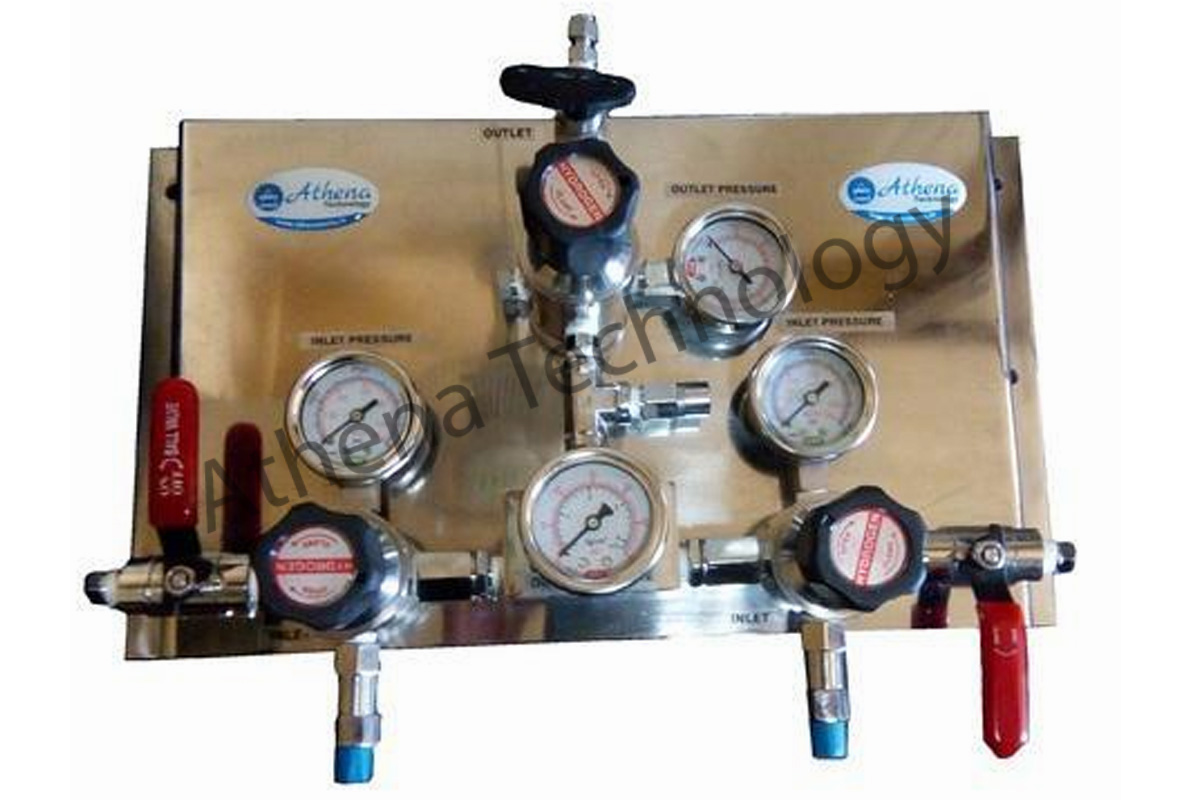

SS Gas Cylinder Manifold
we are manufacturing and supplying a comprehensive range of Simple Manifold System XR (O2, N2, Ag, He, Zero Air, H2, D/A, CO2, HCL, NH3, N2O, SF6, Methane, Ethane, Propene, Clorine, Krypton, Neon, Lesar Gas etc.) Offered products are manufactured by our skilled professionals using the best technology to render maximum clients' satisfaction. In order to meet variegated demands of clients, these are made available in various customized options.

Features:

• Industry approved design
• Light weight
• High durability

Specifications:

The SGEPL-XR manifold system is designed to provide a single source of supply from one cylinder bank. Although these manifolds can be used as a primary source of gas, the typical application finds this model as a high pressure back-up system for liquid or bulk tank systems in industry and medical environments

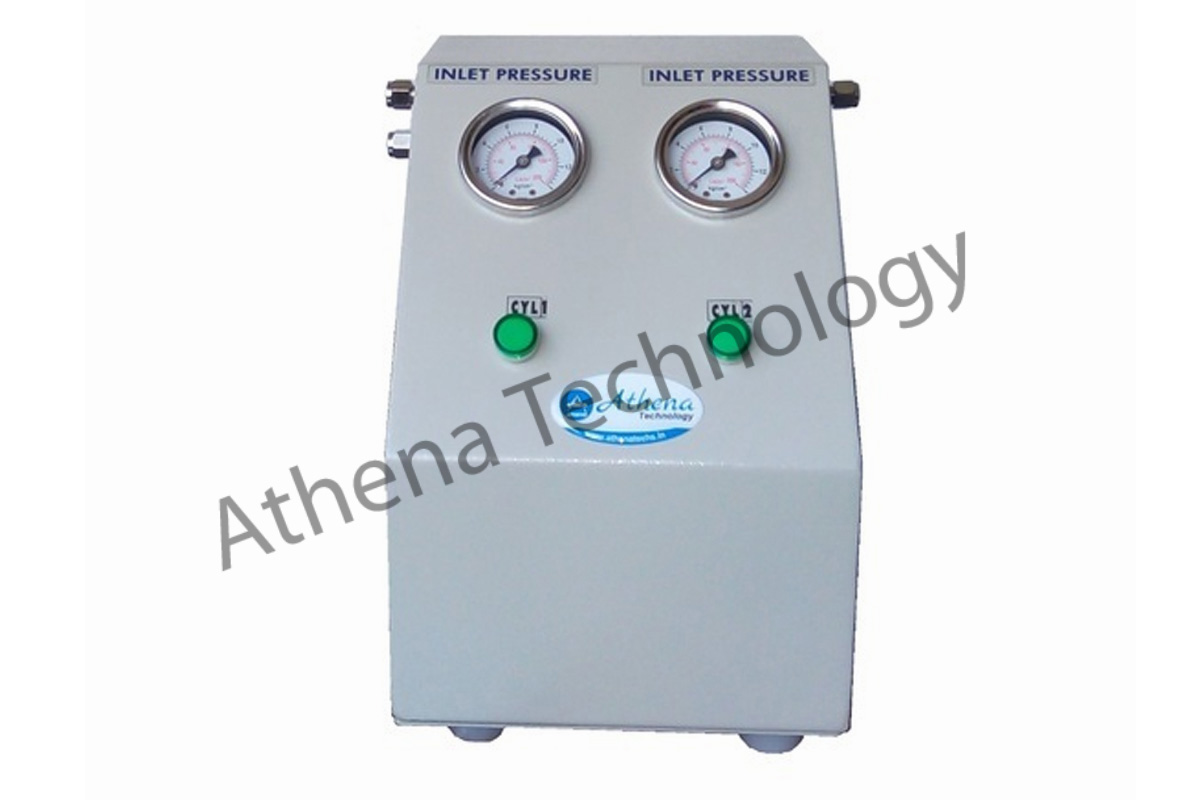

Semi-Automatic Manifold System
Banking on our skilled professionals, we are engaged in manufacturing and supplying Semi-Automatic manifold system. Offered rangeis designed to provide an uninterrupted supply to any application requiring no down-time. As the primary supply is depleted a reserve supply is waiting to automatically begin service. In ahead of their final dispatch, these systems are inspected on various parameters.

Features:

• Precision-designed
• Enhanced durability
• Minimal maintenance

Specifications:

Through pressure differential the switchover takes place without interruption of service, once depleted the primary bank can be replaced and becomes the new reserve bank.

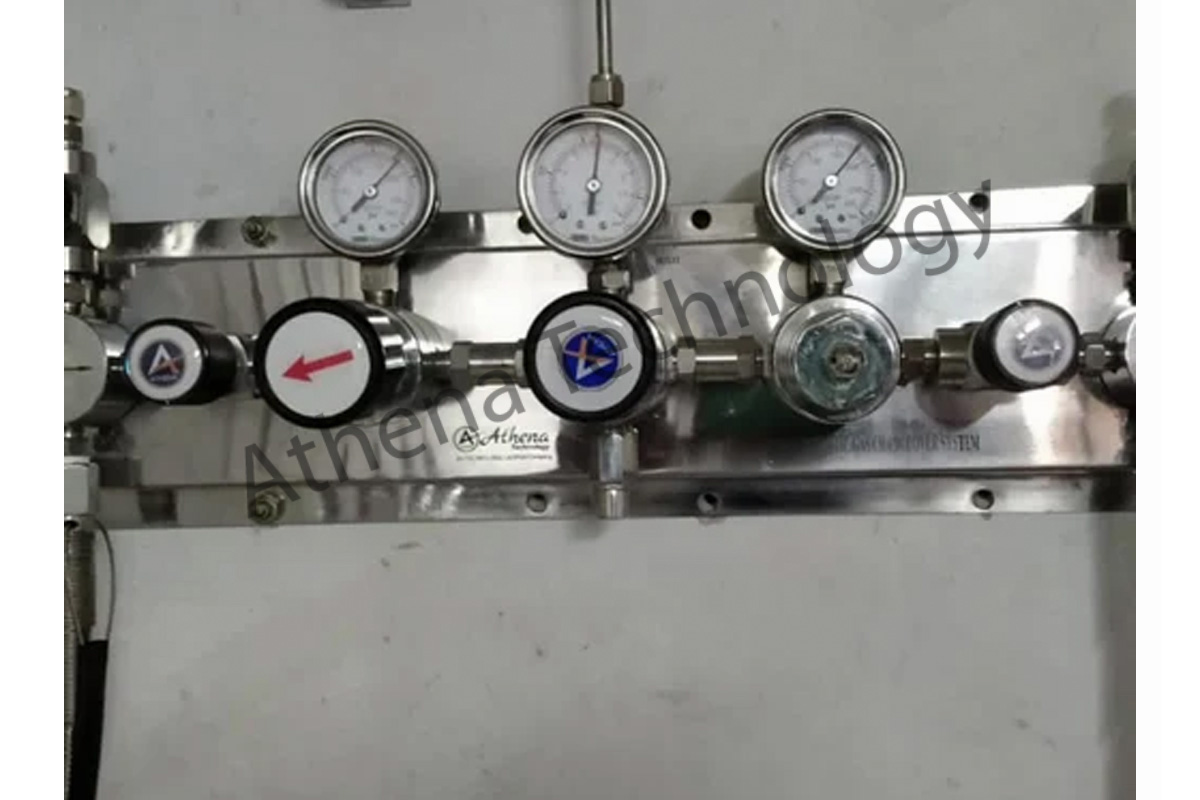

Manual Change Over Manifold System:
We manufacture and offer Manual manifold systems, relying on our qualified personnel. The product line is intended to supply any application that requires continuous operation without interruption. A reserve supply is ready to instantly start providing product as the primary source runs out. These systems are examined on a number of parameters before being sent on their final mission.

Features:

• Precision-designed
• Enhanced durability
• Minimal maintenance

When the primary bank is emptied, a replacement can be installed, and it will then take over as the new reserve bank. This switchover is accomplished using pressure differential. Mechanical-Auto Gas Switch Auto Gas Switch Athena Make a lot of pressure When switching from one cylinder to another automatically is necessary in a two-cylinder system because one cylinder's pressure is below the prescribed pressure, a mechanical-automatic gas manifold is utilised. Users may adjust the pressure in two cylinders as necessary (Refer Setting Procedure). It can be applied to different cylinder banks.

Specification:

• Air, N2, H2, He, Ace, Arg, N2o, P10, and other gases, as well as flammable, nonflammable, and corrosive gases, are all provided through gas services.
• Outlet Connection: 14" OD ball valve-equipped ferrule.
• Inlet connection: 14" BSP male to fit the cylinder's pigtail

Manifold for Mechanical Automatic Gas Changeover A top-notch selection of Mechanical Auto Gas Change Over is what we specialise in providing. It can be applied to different cylinder banks. This system is created at our sound manufacturing facility under the strict supervision of our seasoned technocrats using premium grade components and cutting-edge methods. Prior to delivery to our clients, the offered system is put through a number of quality checks to assure its functionality.

Features:

• precisely planned
• Smooth operation
• High power

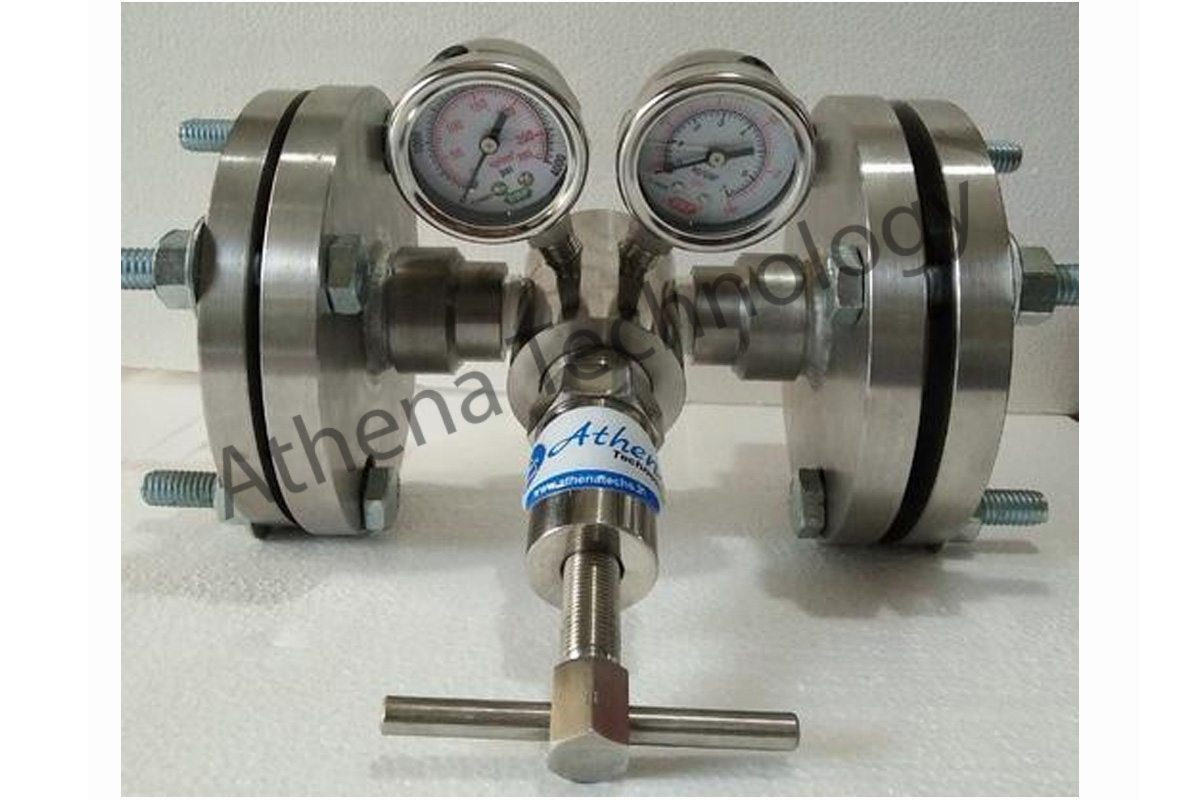

Our company has created specifically for fruit ripening applications gas line high pressure gas regulators and manual ripening systems. This system has every component required for ripening, ensuring flawless operation. This method of ripening uses gas cylinders or cans and is carried out in cold rooms. These ripening systems come in a variety of sizes, capacities, and specifications to satisfy the needs of our diverse clientele.

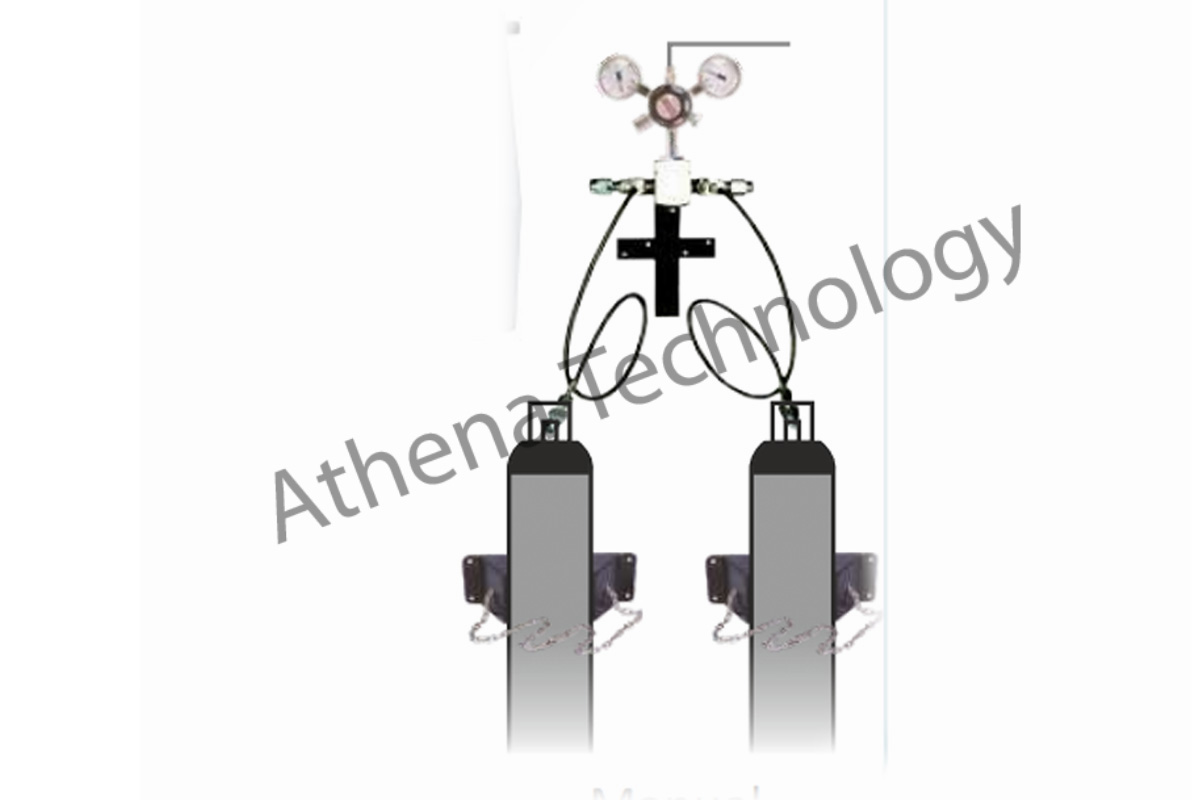

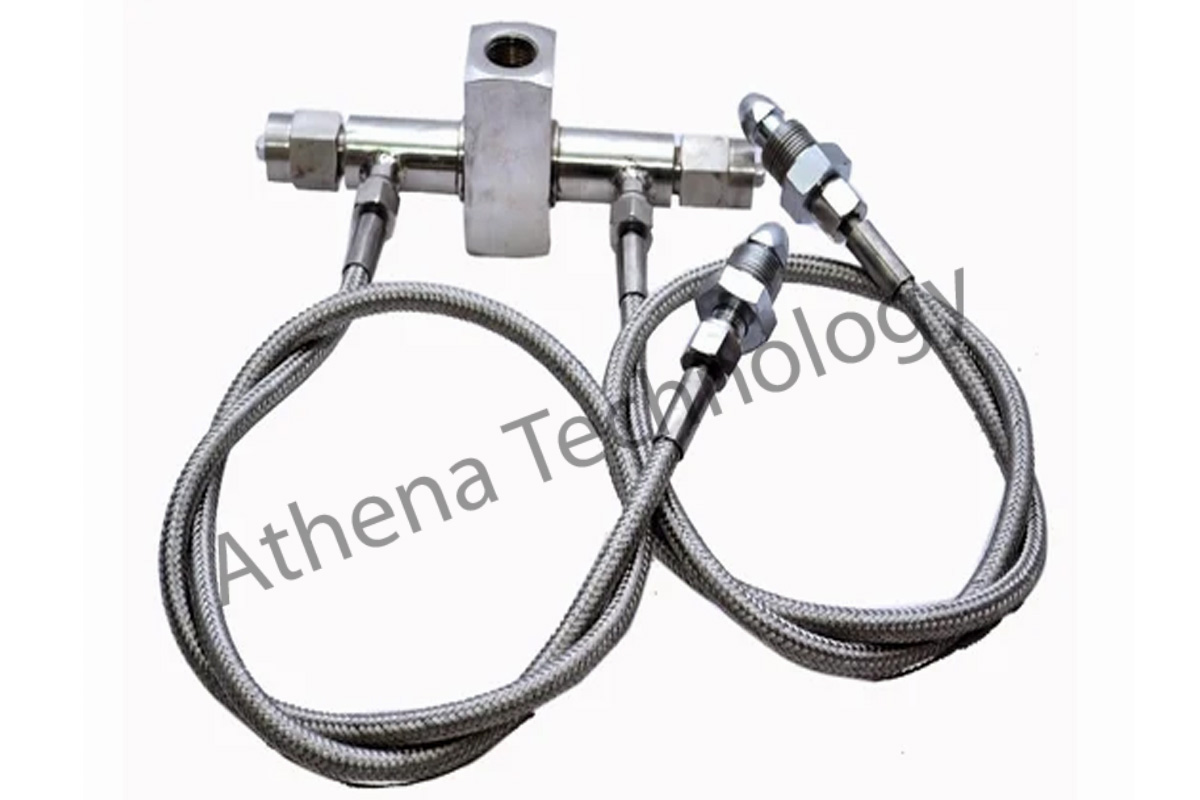

Two Cylinder Manifold, High Pressure Manual Gas Manifold System:
For corrosive and inert gas, available in SS316 and brass that has been chrome-plated. able to be attached to one or more cylinders. High stress When switching from one cylinder to another automatically is necessary in a two-cylinder system because one cylinder's pressure is below the prescribed pressure, a mechanical-automatic gas manifold is utilised. Users may adjust the pressure in two cylinders as necessary (Refer Setting Procedure). It can be applied to different cylinder banks.

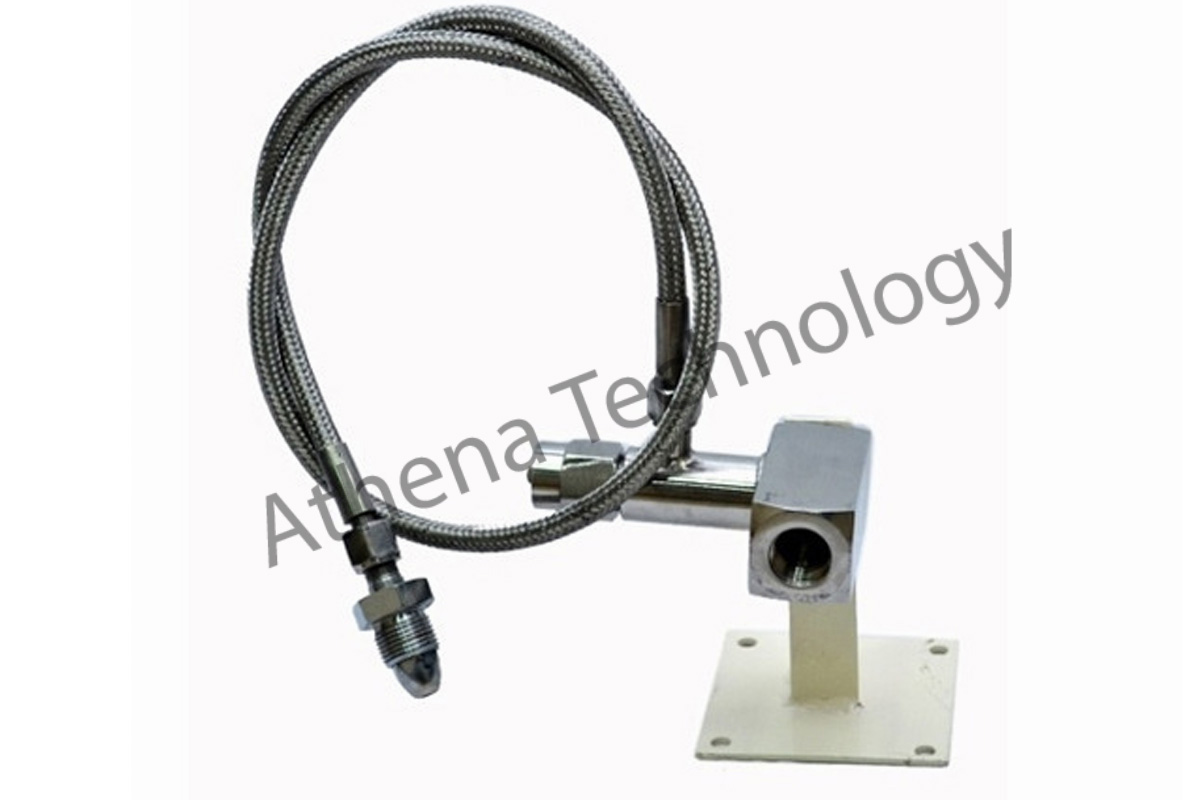

SS Gas Cylinder Manifold:
A wide variety of Simple Manifold System XR (O2, N2, Ag, He, Zero Air, H2, D/A, CO2, HCL, NH3, N2O, SF6, Methane, Ethane, Propene, Clorine, Krypton, Neon, Lesar Gas, etc.) are produced and supplied by us. To ensure optimum client pleasure, our expert specialists use the greatest technology to make the products we offer. These are offered in a variety of customised solutions to satisfy the diverse expectations of customers.

Features:

• Design accepted by the industry
• Low in weight
• extremely robust

One cylinder bank will serve as the sole source of supply for the SGEPL-XR manifold system. Although these manifolds can be used as a primary source of gas, the common application for this model in industrial and medical settings is as a high pressure backup system for liquid or bulk tank systems.

We play a key role in supplying the highest calibre Gas Cylinder Manifold to our customers. Because of the qualities of these products, our clients demand them a lot. Simple Manifold System XR (O2, N2, Ag, He, Zero Air, H2, D/A, CO2, HCL, NH3, N2O, SF6, Methane, Ethane, Propene, Clorine, Krypton, Neon, Lesar Gas, etc.) are among the many products we manufacture and provide. To ensure optimum client pleasure, the items we offer are made by our qualified professionals utilising the greatest technology. These are provided in a variety of customised solutions to satisfy the wide range of client expectations.

Specifications:

• One cylinder bank will serve as the sole source of supply for the SGEPL-XR manifold system.
• Although these manifolds can be used as a primary source of gas, the common application for this model in industrial and medical settings is as a high pressure backup system for liquid or bulk tank systems.

Features:
