FEATURES:

• Timer : Digital Display with 0-99 min settable.
• Frequency : 33khz ± 3 Khz.
• Transducers : Imported make PZT type bonded at the bottom of the tank with weld bond technique.
• Ultrasonic Generator : Advanced latest MOSFET based SMPS
• PSP : Pulse Sweep Mode for uniform distribution of ultrasonic energy
• Sensor : PT-100 Simplicon make
• Digital Temp Controller : Digital temperature controller with setting 10°C to max-30°C
• Drain : ½” BSP with ball valve
• Solvent : Aqua/Solvent Based
• Accessories: SS 304 lid, SS 304 Basket, Drain valve & User friendly operation manual.

Cooling facility

1. Temperature range 10˚C to Room Temp. Max.30°C.
2. Temperature stability: ± 2 ˚ C
3. Display: Dual 7 segment LED
4. Display resolution: 1 ˚ C
5. Refrigerant: CFC free

We will provide copper cooling coils around outer surface of the tank. Which will be properly insulated & will be connected to a condenser & compressor built-in the machine (Chillier system) this will control bath temperature as per your requirement.

SALIENT FEATURES OF ULTRASONIC CLEANING CHAMBER

• Imported PZT Sandwich type bonded at the bottom of the tank
• High Frequency Built in MOSFET based SMPS
• Timer 0 to 99 minute’s Digital count down with display.
• Auto degassing present 5 minutes for ultrasonic tank
• Easy to operate and made up of SS 304 (16 SWG) Fabricated tank.
• Pulse Sweep Power for Uniform distribution of Ultrasonic energy for ultrasonic tank.
• Extensive protected generator circuits for longer & safer operation.
• SS perforated sheet tray type Basket provided.
• Drain with Ball valve will be provided.
• SS 304 Basket provided.
• Complete Instruction Manual for easy operation will be provided.

ULTRASONIC BATH (SONICATOR) WITH CHILLER: (Special combined model) Table Tope Type (Make : Athena)

• Fully SS 304 Body & SS 304 Tank
• Digital Timer
• Operating Frequency 33+/-3 KHz
• MOC : SS
• Compressor : Emerson make
• Micro Controller based timer
• Compact, regged and highly durable systems
• With Standard supply of LID, basket etc.

S.S. ½” OD Cooling Coils inside tank for chilled water circulation and digital temp. controller to set temp, It consists of Chiller unit connected to SS water Storage Tank of above 15 liters capacity to reduce the water temp. to about 15 It has an inbuilt pump & re-circular unit to Circulate chilled water through the SS cooling coils and bring back to chiller unit. This is a table top model and is fitted in powder coated cabinet.

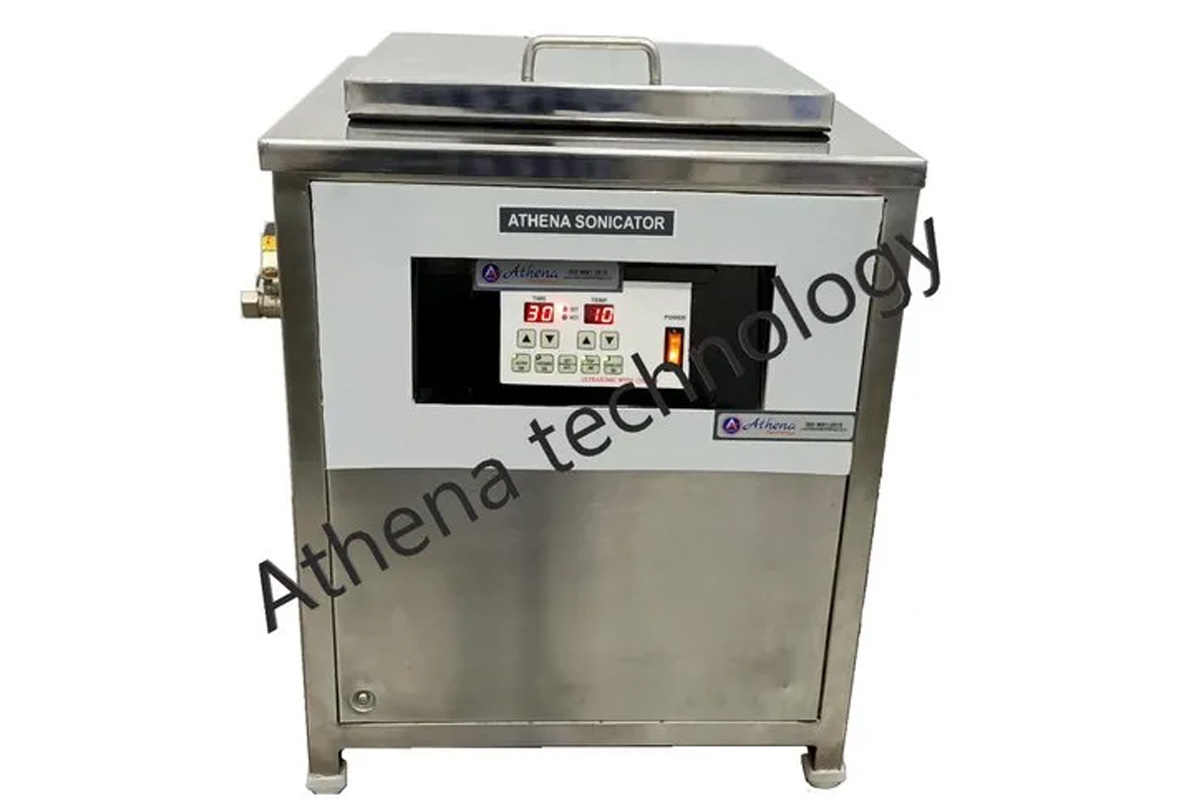

Ultrasonic Cleaners with Cooling Facility
These cleaners are used to maintain the bath temperature below the room temperature upto 12°C to avoid adding of "Ice Flakes" with inbuilt cooling facility. It helps to control the bath temperature without personalized attention & reduces the chance of damage to process liquid in a professional way. Under the guidance of talented professionals, the offered cleaners are precisely manufactured making use of high quality components and advanced technology.

Features:

• Digital Tuning of Transducers with Generators to avoid any frequency shifted even during demanding applications
• Compact, rugged and highly durable systems
• Extensively protected electronic circuits means longer and safer operations

Other Details:

• Fast Clean Ultrasonic Cleaners With Cooling Facility (Single Stage)
• To maintain the bath temperature below the room temperature upto 12°C to avoid adding of "IceFlakes" with inbuilt cooling facility.
• It helps to control the bath temperature without personalized attention & reduces the chance of damage to process liquid in a professional way.
• his system consists of 2 parts viz.:
• A) Ultrasonic Chamber B) Cooling Components like coils, condenser & compressor of suitable capacity. It has a control panel to control various features of ultrasonic as well as the cooling system.

Principle of Ultrasonic Cleaner:

• High frequency electrical energy is converted into ultrasound waves by means of ultrasonic Tranducers, which are bonded on the base of S. S. Water Tank. These high frequency sound waves create in the liquid countless, Microscopic Vacuum Bubbles, which repidly expand and collapse.
• This phenomenon is CAVITAION. These bubbles act like miniature high speed brushes, driving the liquid in to all openings and minutes recesses of the Object immersed in the liquid. Intense scrubbing of Cavitation cleans away all the dirt and soil from the object immersed and the object is perfectly cleaned.

We are dedicated to providing a comprehensive choice of Ultrasonic Bath With Chiller with the aim of meeting the needs of our customers. The system, which is included in the ultrasonic cleaner, controls the temperature and maintains the unit in excellent working order. The offered system is created by our skillful engineers using premium class components and cutting-edge technology in accordance with established industry standards, keeping in mind the most recent market developments.

Features:

• Voltage: 220V/50Hz
• Ultrasonic Power: 240 - 360 W or higher
• Tank Size: 10, 20, 25, 30, 40, 50 liters

The machine consists of the following:

• Voltage: 220V/50Hz
• Ultrasonic Power: 240 - 360 W or higher
• Tank Size: 10, 20, 25, 30, 40, 50 liters
• Chiller Temp: 5 – 25 deg.cent.
• Temp. Controller with Indicator
• Digital Timer: 0-30 minutes digital timer for Ultrasonic ON / OFF
• SS Lid and wire mesh Basket ( various level adjustable )
• Fast Clean Ultrasonic Cleaners With Cooling Facility (Single Stage)

Objective:

• To maintain the bath temperature below the room temperature upto 12°C to avoid adding of
• "IceFlakes" with inbuilt cooling facility. It helps to control the bath temperature without personalized
• attention & reduces the chance of damage to process liquid in a professional way.
• This system consists of 2 parts viz.:
• A) Ultrasonic Chamber B) Cooling Components like coils, condenser & compressor of suitable capacity. It has a control panel to control various features of ultrasonic as well as the cooling system.
• A specially designed & developed ultrasonic system to generate efficient ultrasonic energy compatible to low bath temperature & it greatly enhances the work efficiency

Cooling Facility:

• Temperature range 12°C to Room Temp. Max.30°C.
• Temperature stability: a 2°C
• Display: Dual 7 segment LED
• Display resolution: 1°C
• Refrigerant: CFC free
• We will provide copper cooling coils around outer surface of the tank. This will be connected to a condenser & compressor built-in in the machine (Chilling Unit) this will control bath temperature as per your requirement.

Applications:

• Laboratory : For Glassware, Filters Cleaning & HPLC Mobile Phase, Degassing
• To prevent solvent which gets evaporated above ambient temperature while sonicator during mobile phase.
• Industrial : Semi-conductors, Electronic, Components, Precious parts & Mechanisms
• Medical : Dental & Surgical Instruments
• Opticals : Spectacles, Spectacle Frames, Lenses
• Jewellery : For all kinds of Jewellery, Precious Stones etc.
• To remove : Dust, Oils, Greases, Compounds, Waxes, Swarf, Stains, Soils and any other contaminant

Additional Information:

Minimum Order Quantity: 1 Number

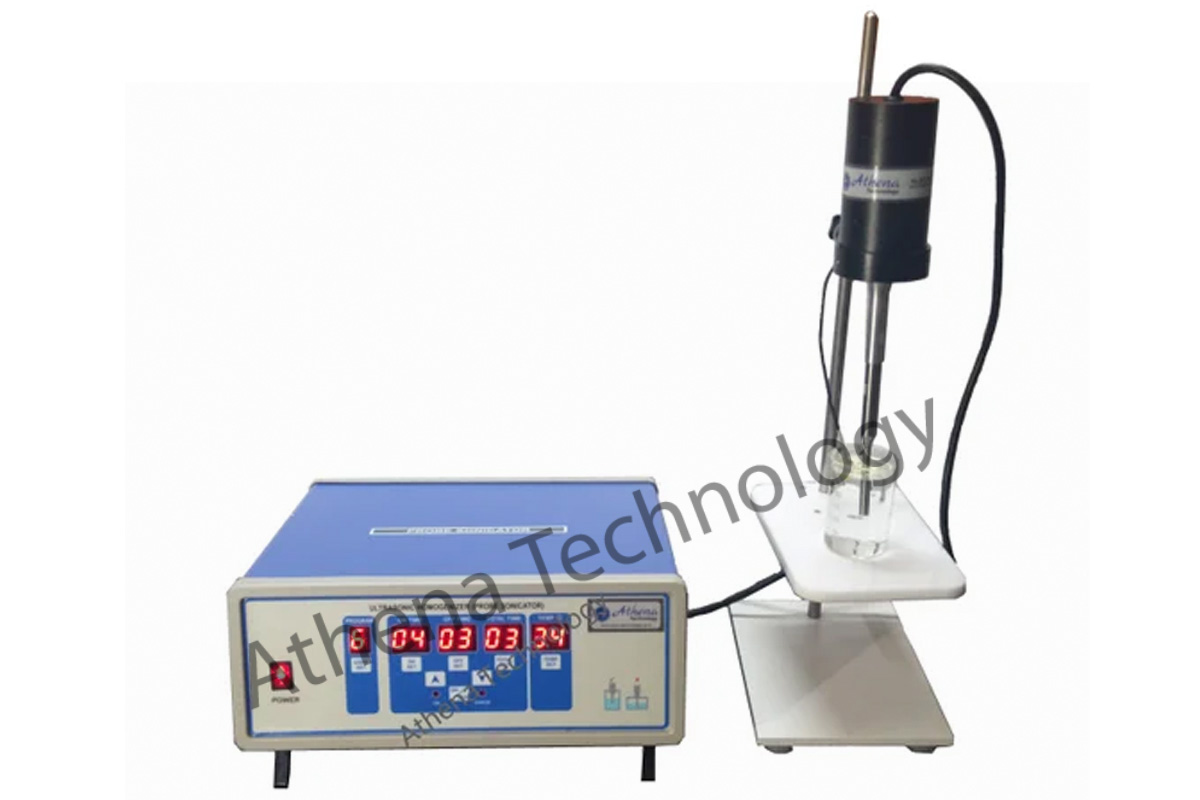

Ultrasonic Probe Sonicator Product Description We bring forth best quality Ultrasonic Probe Sonicator for domestic and international customers. Ultrasonic Probe Sonicator, manufactured, supplied and exported by us, can disintegrate most cells, bacteria, spores or tissue. Ultrasonic Probe Sonicator can prepare an emulsion down to 1/100 of a micron homogenize liquids, accelerate enzymatic and chemical reactions, stimulate bacterial activity, disperse solids in liquids and degas liquids.
120, 150, 250, and 500 ATP Major Function: Titanium standard probe alloy substance
converter of piezoelectric frequency and energy user-friendly power management and auto-tuning. Timer controls the duration of the workday from 1 to 99 minutes; the needed TEMP (100°C) is set.
Show the remaining time when in the countdown mode. a digital display that is controlled by a CPU 10 USER Programmable Settings
A temperature-sensitive sample should be handled while using an ON/OFF impulse timer. On and off settings can be continued from 1s, 4s, or 8s. 0 to 100% for variable amplitude control Simple, direct digital operation

pyroelectric ceramics made of titanium (PZT). The typical probe is made of titanium alloy. Probe diameter: 3 mm, 6 mm, 9–10 mm, and 12 mm. Power Source: 50/60 Hz AC 230
A homogenised, fine-grained emulsion Compared to processes, more stable.
It is very adaptable and may be quickly switched from one batch to another without the need for additional steps like emptying, cleaning, and refilling.
The ultrasonic processor may be moved to different places where samples are processed. assemble tissues Prepare immiscible liquids and emulsions.
Boost Bacterial Activity, Speed Up Chemical Reactions, and Speed Up Enzymatic Reactions Solids are dispersed, liquids are degassed, and powders are de-agglomerated.

Applications of Probe Sonicator

Formulation	Tissue Homogenizers	Stimulate Bacterial	Homogenizer Processor
Pharma	Dissolve Powders	Deaglomerate	Ultrasonic Homogenizer
R & D Lab	Probe Sonicators	Activity	Emulsify Cosmetics
Sonication Cell	Emulsify Liposomes	Ultra Sonicators	Extract DNA / RNA
De-gas Liquids	Sonication of Bacteria	Disperse Solids	Prepare Emulsions
Reactions	Sonication Cell Lysis	Extract Proteins	Accelerate Chemical
Reactions	Accelerate Enzymatic	Dissolve Tablets	Immiscible Liquids

Ranges of Ultrasonic Homogenizer / Probe Processor / Probe Sonicator

General Specifications	AT 120P	AT 250P
In Put Power Supply	230 V AC	230V AC
Ultrasonic Power	125 W	300 W
Horn Dia	6 mm, 12mm & 20mm	6 mm, 12mm & 20mm
Timer	0 - 30 min	0 - 20 min

Summary Of Features:

• From micro-liters to liters – continuous or intermittent
• Dispenses material with virtually no overspray
• Pressure-less atomization – low velocity mist
• Low cost atomization probe replacement
• Minimal atmospheric contamination
• Virtually uncloggable
• Programmable operation
• Multiple probe operation
• No heating / No temperature rise

Typical Applications:

• Increase of humidity level
• Coating non-woven fabric, paper, etc…
• Laboratory spray drying
• Injection moisture into a gas stream
• Applying minute amount of oil, fragrance or flavor onto a product
• Injecting small volume of reagents into a reactor

Ultrasonic Bath (Sonicator) With Chiller (Special combined model) Table Top Type

• Fully SS 304 Body & SS 304 Tank
• Digital Timer
• Operating Frequency 33+/-3 KHz
• MOC : SS
• Compressor : Emerson make
• Micro Controller based timer
• Compact, regged and highly durable systems
• With Standard supply of LID, basket etc.

Capacity : - 10 liters
Tank Size : 12” x 9” x 6” H
Enclosure Size : 34” x 15” x 16”
Ultrasonic Power : 250 W
S.S. ½” OD Cooling Coils inside tank for chilled water circulation and digital temp. controller to set temp, It consists of Chiller unit connected to SS water Storage Tank of above 15 liters capacity to reduce the water temp. to about 15 It has an inbuilt pump & re-circular unit to Circulate chilled water through the SS cooling coils and bring back to chiller unit. This is a table top model and is fitted in powder coated cabinet.

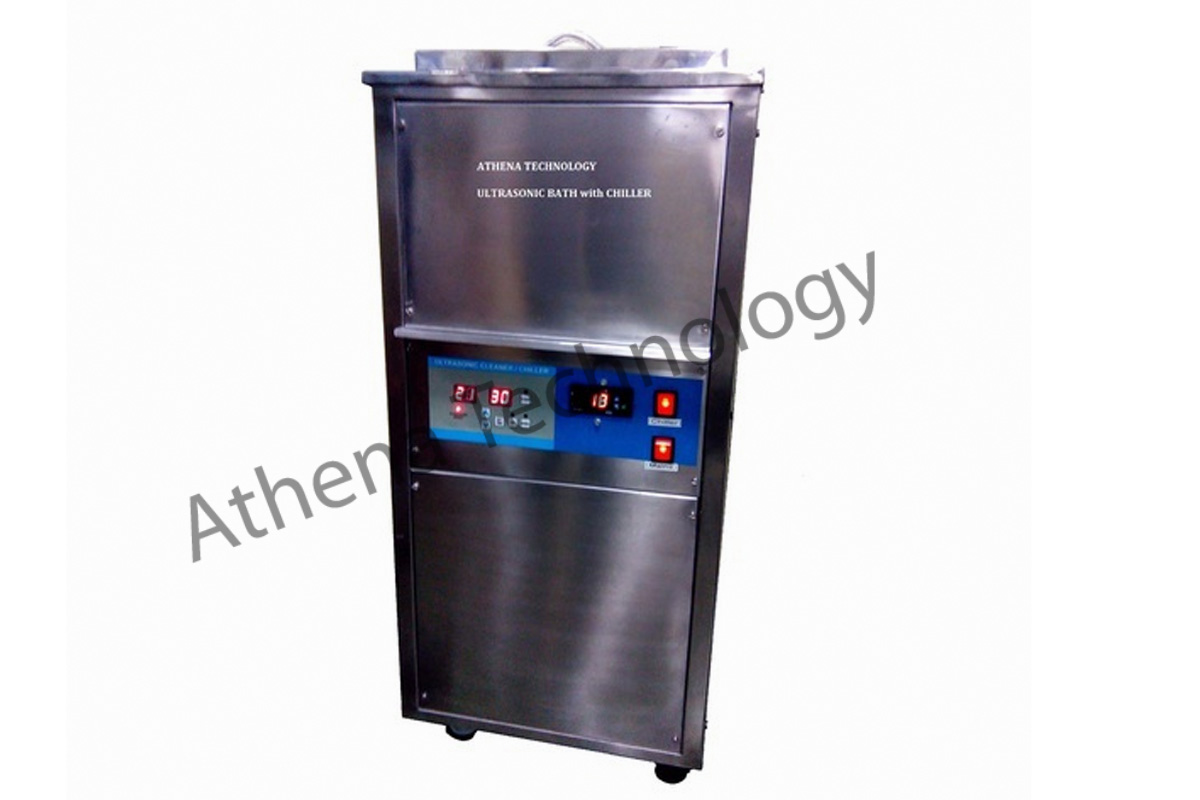

ULTRASONIC BATH (SONICATOR) WITH CHILLER:
(Special combined model) Table Top
Capacity : - 20 liter’s (Approx)
Tank Size : 18” x 12” x 6” H
Enclouser Size : 36” x 18” x 17”
Ultrasonic Power : 400 W

ULTRASONIC BATH (SONICATOR) WITH CHILLER:
(Special combined model) Floor Mounted
Capacity : - 20 liter’s (Approx)
Tank Size : 18” x 12” x 6” H
Enclouser Size : 26” x 20” x 36”
Ultrasonic Power : 400 W
ULTRASONIC BATH (SONICATOR) WITH CHILLER:
(Special combined model) Floor Mounted
Capacity : - 30 liter’s (Approx)
Tank Size : 15” x 15” x 8” H
Enclouser Size : 23” x 23” x 36”
Ultrasonic Power : 600 W

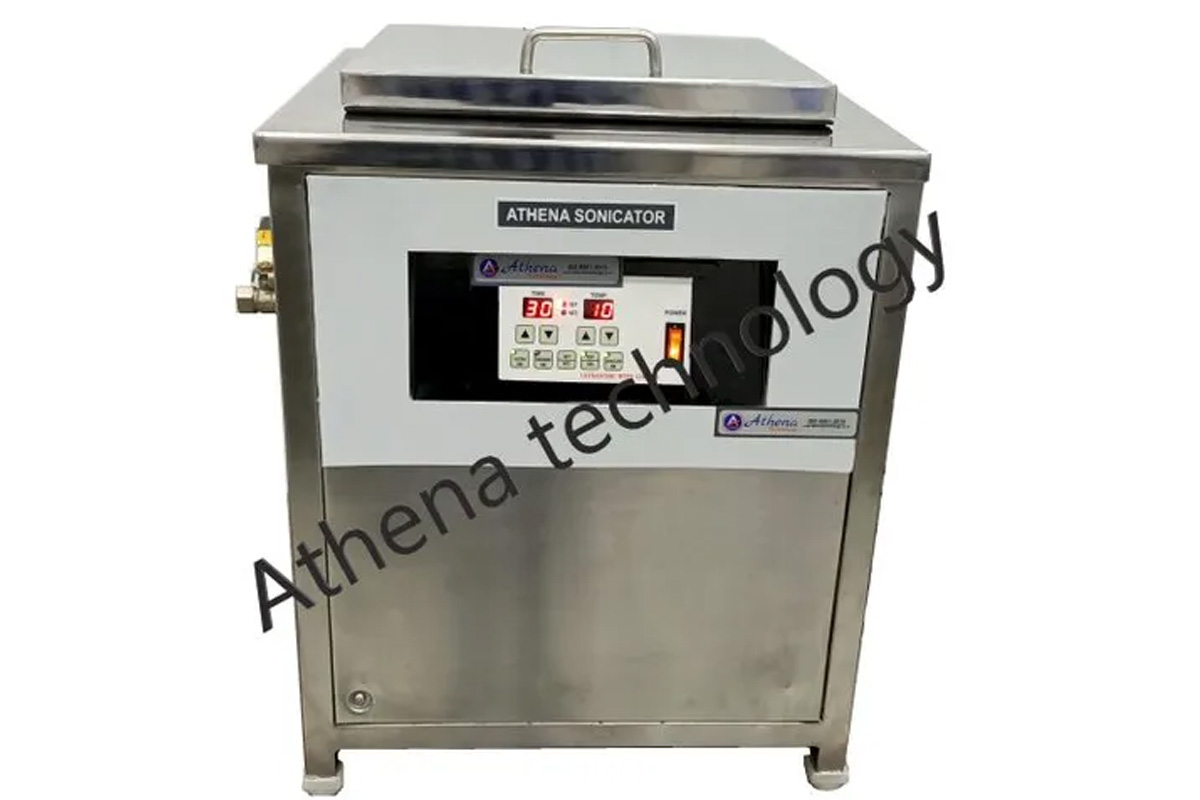

Chiller Sonicator

FEATURES:

• Timer : Digital Display with 0-99 min settable.
• Frequency : 33khz ± 3 Khz.
• Transducers : Imported make PZT type bonded at the bottom of the tank with weld bond technique.
• Ultrasonic Generator : Advanced latest MOSFET based SMPS
• PSP : Pulse Sweep Mode for uniform distribution of ultrasonic energy
• Sensor : PT-100 Simplicon make
• Accessories: SS 304 lid, SS 304 Basket, Drain valve & User friendly operation manual
• Digital Temp Controller : Digital temperature controller with setting 10°C to max-30°C
• Solvent : Aqua/Solvent Based
• Drain : ½” BSP with ball valve

Cooling facility

1. Temperature range 10˚C to Room Temp. Max.30°C.
2. Temperature stability: ± 2 ˚ C
3. Display: Dual 7 segment LED
4. Display resolution: 1 ˚ C
5. Refrigerant: CFC free

Copper cooling coils will be provided to cover the tank's outside. That will be properly insulated and connected to a condenser and compressor that are incorporated into the machine (the chillier system), which will manage the bath temperature according to your needs.

SALIENT FEATURES OF ULTRASONIC CLEANING CHAMBER

• Imported PZT Sandwich type bonded at the bottom of the tank
• High Frequency Built in MOSFET based SMPS
• Timer 0 to 99 minute’s Digital count down with display.
• Pulse Sweep Power for Uniform distribution of Ultrasonic energy for ultrasonic tank.
• Auto degassing present 5 minutes for ultrasonic tank
• Easy to operate and made up of SS 304 (16 SWG) Fabricated tank.
• SS perforated sheet tray type Basket provided.
• Extensive protected generator circuits for longer & safer operation.
• SS 304 Basket provided.
• Drain with Ball valve will be provided.
• SS 304 LID provided.
• Complete Instruction Manual for easy operation will be provided.

ULTRASONIC BATH (SONICATOR) WITH CHILLER: (Special combined model) Table Tope Type (Make : Athena)

• Fully SS 304 Body & SS 304 Tank
• Digital Timer
• Operating Frequency 33+/-3 KHz
• MOC : SS
• Compressor : Emerson make
• Micro Controller based timer
• Compact, regged and highly durable systems
• With Standard supply of LID, basket etc.

Capacity : - 10 liters
Tank Size : 12” x 9” x 6” H
Enclosure Size : 34” x 15” x 16”
Ultrasonic Power : 250 W
Chiller unit linked to SS water Storage Tank of over 15 litres capacity to reduce the water temperature to approximately 15 degrees Celsius. S.S. 12" OD Cooling Coils inside tank for chilled water circulation and digital temperature controller to set temperature To circulate chilled water through the SS cooling coils and return it to the chiller unit, it contains an integrated pump and recirculation unit. This model fits on a tabletop and has a powder-coated cabinet.

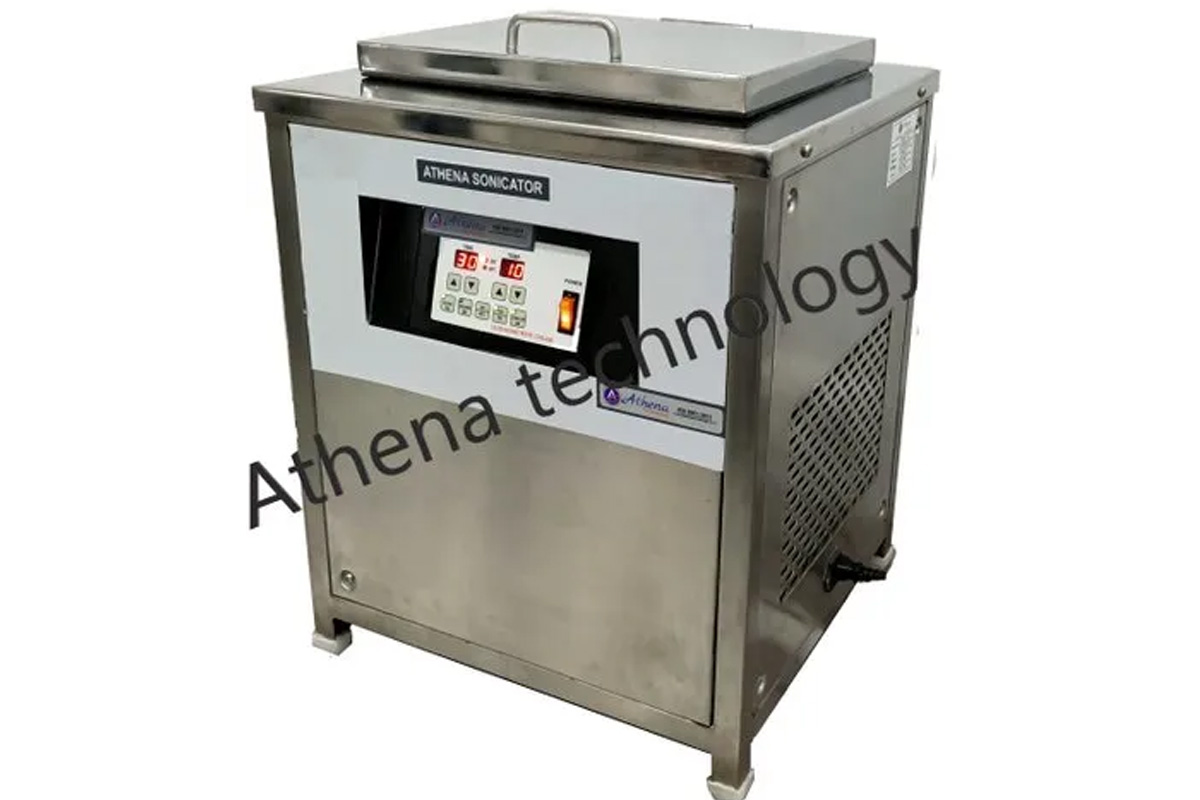

Ultrasonic Sonicator Bath Chiller Sonicator Bath Chiller Sonication generates heat which may be detrimental to some applications. This compact and powerful chiller easily automates the cooling process. It keeps samples cool while occupying very little bench space. Controlling temperature by adding ice chips and repeatedly changing the water is no longer necessary.
Quick-connect tubing and fittings are used to attach the chiller to the ports on the cup horn and micro plate horn. Simply set the chiller to a desired temperature, from 2-45°C, and cold water will recirculate through the ultrasonic horn reservoir
We have emerged as a dependable Manufacturer, Supplier and Exporter of Ultrasonic Sonicator Bath Chiller in the global market. The Ultrasonic Sonicator Bath Chiller, offered by us, is available in various grades and specifications as per the customer requirement. Ultrasonic Sonicator Bath Chiller uses hi-tech Ultrasonic technology during the degassing at laboratory & R & D Lab . The Ultrasonic Sonicator Bath Chiller is used in pharma industries.
Sonicator generates heat which may be harmful to some applications. Controlling temperature by adding ice chips and repeatedly changing water is no longer necessary

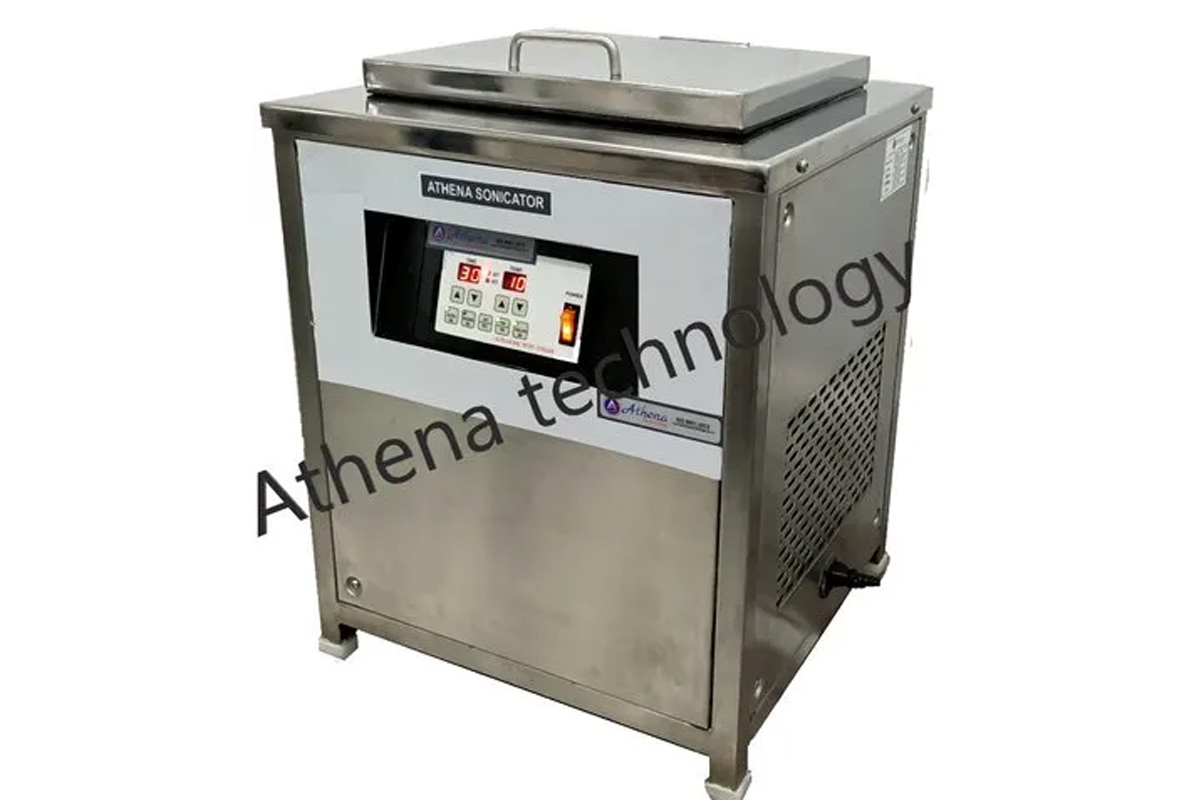

Athena Degassing Ultrasonic Sonicator Bath with Chiller maintain the bath temp. 5 Deg. C & keep sample cool.
Simply set the chiller to a desired temperature from 5 - 20°C and cold / chilled water will be re-circulate in the Ultrasonic Bath and it will keep the Ultrasonic Bath temp. cool / chilled with the help of chiller.

Features:

• Powerful chiller to keep the samples cool / chilled.
• Dissolved , disperse & emulsify samples.
• Degassing the Sample Solution .
• Application Laboratory Sonicator , Scientific Sonicator , Ultrasonic Sonicator Bath .
• Micro Controller base Digital Timer & Digital Temp. Controller.
• With latest MOSFET base technology

Capacity 10-100 liters
Temperature 5C to 60C
Size Regular
Phase Single Phase
Automatic Grade Automatic

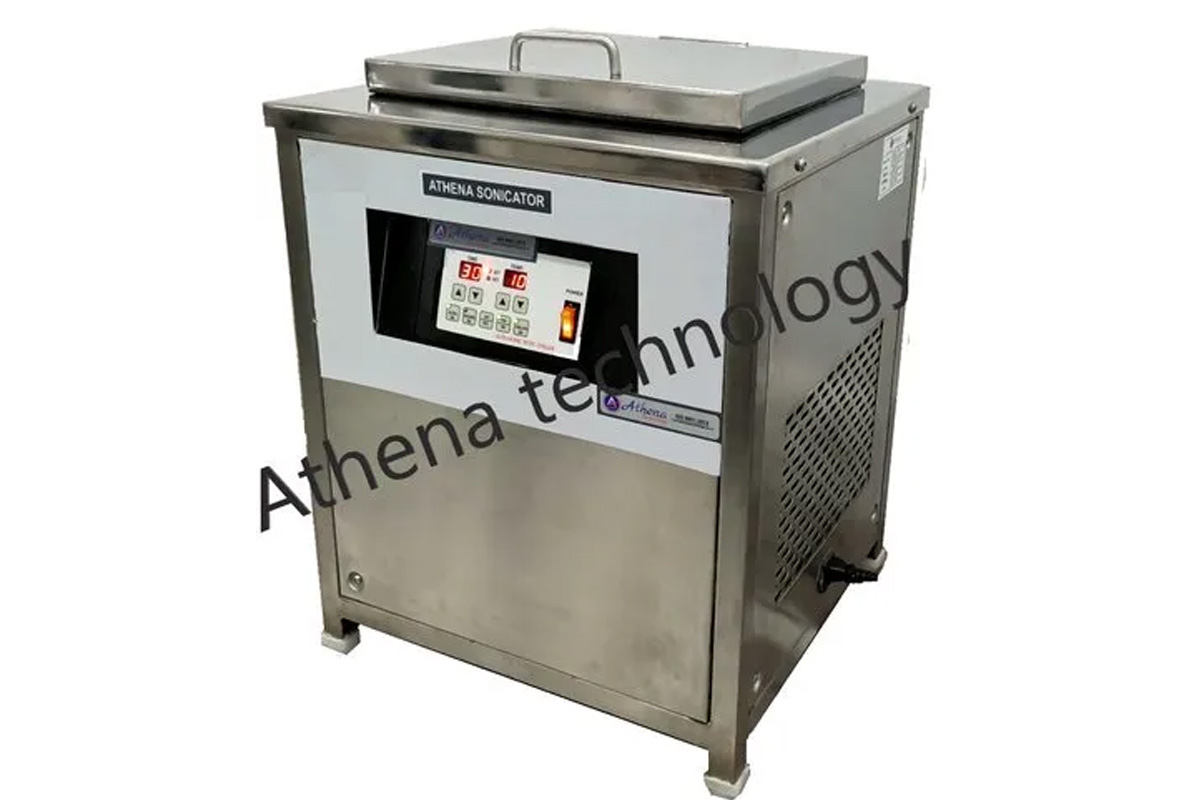

Ultrasonic Sonicator Bath with Chiller \ Lowe temp. Sonicator Bath Product Range

Model	Tank Capacity Liters.
Athena - 10 (with chiller )	10
Athena - 20 ( with chiller)	20
Athena- 25 ( with chiller )	25
Athena - 30 ( with chiller )	30
Athena - 50 ( with chiller )	50
