Being a client-centric organization, we are engaged in providing HPLC Column Washing Pumps. These pumps are mainly used to wash and clean HPLC systems and also work as metering pump. Our highly experienced professionals manufacture these pumps from high grade components and modern technologies in line with set industry standards. Ahead of their final dispatch, the provided pumps are thoroughly examined by our quality experts against diverse measures.

Features:

• Can easily be modified for analytical and semi-preparative techniques.
• Self-flushing pump head
• Incorporates a diaphragm-type pulse damper which reduces pulsation in the system by as much as 90% integrated prime/purge valve.

Other Details:

• Can easily be modified for analytical and semi-preparative techniques.
• Incorporates a diaphragm-type pulse damper which reduces pulsation in the system by as much as 90% integrated prime/purge valve.
• Self-flushing pump head.
• Led readout on the front panel shows the flow rate.
• Tactile response, chemically resistant front panel keypad.
• Microprocessor advanced control.
• Digital stepper motor design prevents flow rate drift over time and temperature, which is a common problem found in analog design. Back panel Rs232 serial communications port for complete control And status monitoring.

Specification:

• Flow Rate:0.01 10 Ml/Min In 0.01 Steps
• Maximum Operating Pressure:3500 Psig
• Flow Accuracy:±2% Of A Flow Rate Of 0.20Ml/Min
• Waisted Materials:Stainless Steel/Peek/ Ptfe
• Flow Precision:0.5% Rsd
• Control:By Keypad, Rs 232
• Power Supply:230 V ± 10%, 50 Hz
• Remote Inputs:Rs-232
• Power Input:35 Va

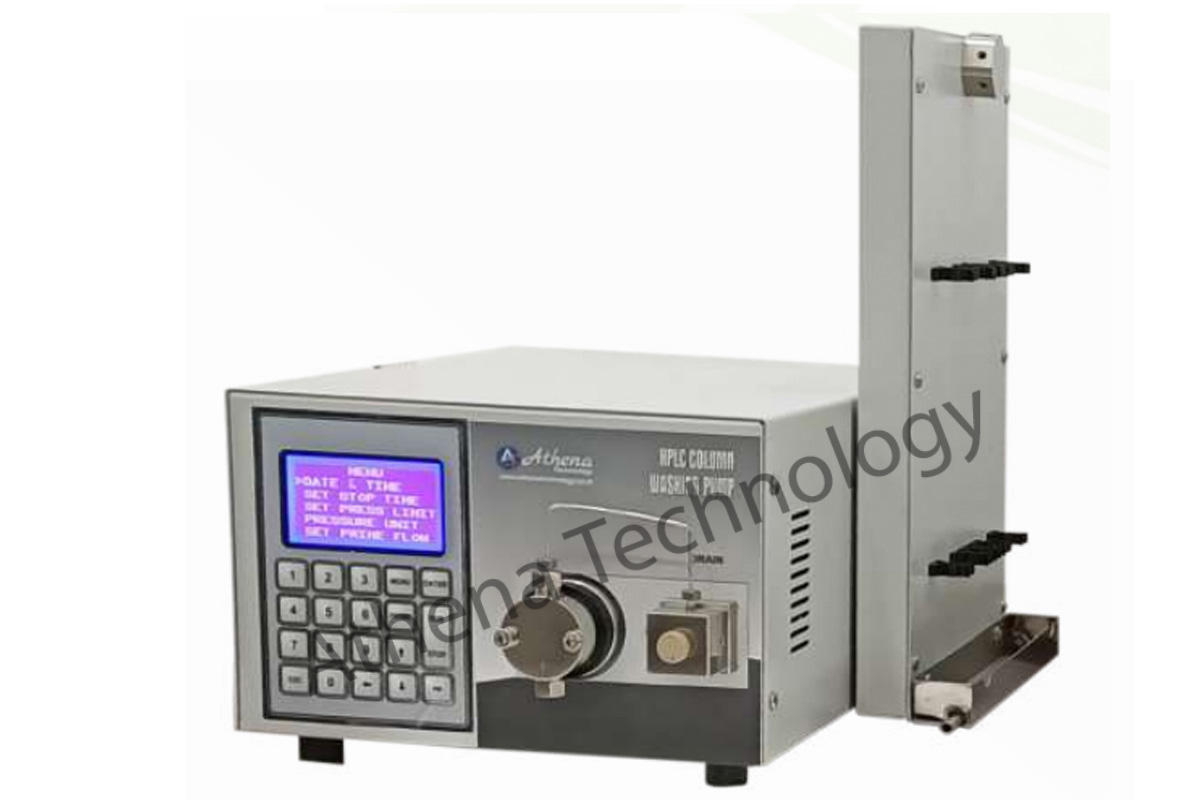

HPLC Column Washing Pumps LCP - 02 (Series II) :
The high performance liquid chromatography (HPLC) pump is designed to be a reliable component within a basic analytical or sophisticated research instruments. While ideal for HPLC applications the pump is also useful as a metering pump for general laboratory or industrial use.
The flow rate of the pump fitted with a standard 10mL pump head can be set in 0.01 mL increments from 0.01 to 10.0 mL/min; size is available in type 316 stainless steel or biocompatible (metal-free) PEEK.
The low pulsation flow produced by the reciprocating, single piston pump is achieved by using an advanced rapid-refil cam design, programmed stepper motor acceleration, and an internal pulse damper.

Pump Details:

• Can easily be modified for analytical and semi-preparative techniques.
• Incorporates a diaphragm-type pulse damper which reduces pulsation in the system by as much as 90%
• ntegrated prime/purge valve.
• Self-flushing pump head.
• LED readout on the front panel—shows the flow rate.
• Tactile response, chemically resistant front panel keypad.
• Microprocessor advanced control.
• Digital stepper motor design prevents flow rate drift over time and temperature, which is a common problem found in analog design.
• Back panel RS232 serial communications port for complete control and status monitoring.

Specification

1. Maximum operating pressure:6000 psig
2. Flow rate:0.01 – 10 ml/min in 0.01 steps
3. Wetted materials:Stainless steel, PEEK, PTFE
4. Flow accuracy:±2% of a flow rate of 0.20ml/min
5. Flow precision:0.5% RSD
6. Control:By keypad, RS 232
7. Remote inputs:RS-232
8. Power supply:230 V ± 10%, 50 Hz
9. Power input:200 VA

HPLC Pump
We are passionately committed to providing a remarkable selection of Column Washing Pumps. The provided pump can be used as a typical laboratory or industrial metering pump. The offered pump is made at our technologically advanced production facility under the strict supervision of knowledgeable personnel using premium components and cutting-edge technology. Our esteemed clients place a high value on the given pump because of its unique qualities, including durability and good performance.

Features

• precisely constructed
• reduced-volume damper
• high gradient of pressure

Other Details:

• The Model P200 high performance liquid chromatography (HPLC) pump is made to be a dependable part of simple analytical or complex research devices. The Model 200 pump is helpful as a metering pump for general laboratory or industrial use, even though it is best for HPLC applications.
• High operating pressure, smaller pulsation, steady performance, and convenient operation are all features of a microprocessor-controlled reciprocating pump with parallel connected plungers.
• The computer controls the flow in real-time and keeps track of the actual pressure. If the pressure limit is surpassed, the pump will immediately stop operating and sound an alert.
• The system pulsation is reduced by an integrated diaphragm-type pulse damper, which also exceeds the criteria of the flow profi..
• two outlets and inlets
• Check valve guarantees dependability
• Microprocessor
• improved command
• a pressure ceiling
• prime purging device
• reduced-volume damper
• high gradient of pressure
• alternative with two pumps

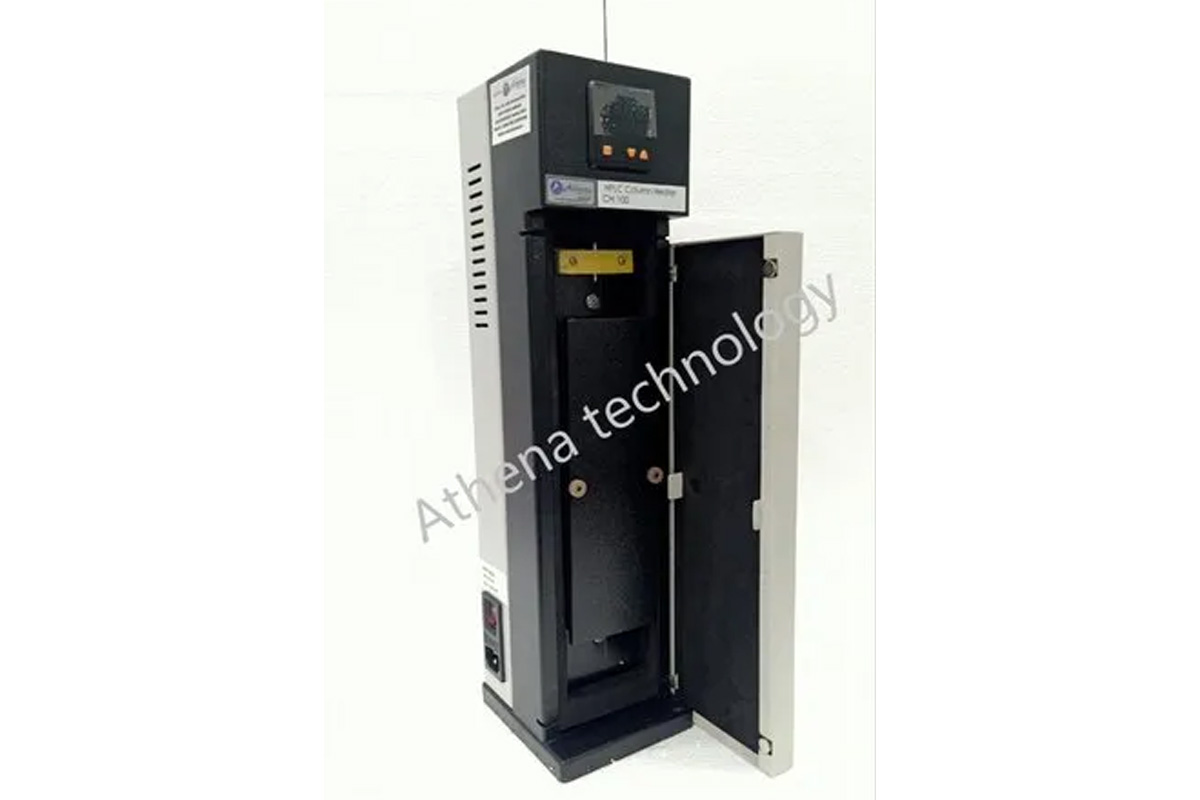

We offer HPLC Column Oven that accepts varieties of column sizes. Designed in line with international quality standard, our range guarantees safe and accurate control action. These are available in various models to meet the requirements of several industry applications.

Salient Features:

• Precise Temperature Control
• Digital display of set & actual temp
• Insures Reproducible Analysis
• Accepts Varieties of Column Sizes
• Assures Safe Accurate Control action
• Assures Safe, Accurate Control Action

Model Selection:

• Separate Oven & Temp Controller
• Inbuilt temperature controller & Oven
• Inbuilt heating of Rheodyne Injector
• Force air circulation heating type oven

Features:

• Operational fluency
• Low maintenance
• Durable
• HPLC Column Oven Range : Ambient 5 "C to 100o C with Digital Display with Block Heating / Force Air Circulation

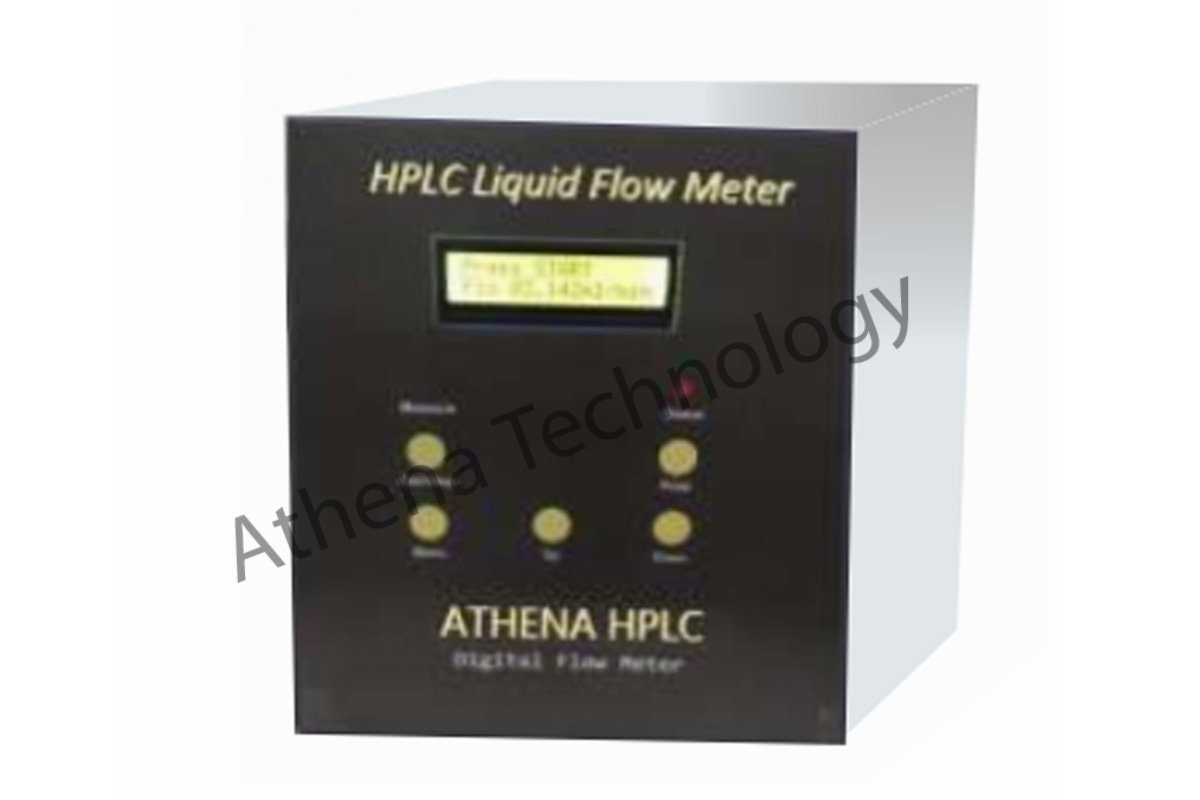

HPLC liquid FlowmeterHPLC liquid Flowmeter with 3-point calibration Calibrated at 0.5, 1.0 & 2.0ml/min - other flow rates available by request HPLC liquid Flowmeter with 3-point traceable calibration.
Includes carrying case, power adapter, waste container, tripod stand and calibration certificate.
Standard calibration setpoints are 0.50, 1.00 & 2.00ml/minute - others available upon request by completing the HPLC flowmeter calibration form Specification: Measuring Range 0.05-10ml/min, Resolution 1ul/min, Display 4-digit LCD display, Flow Accuracy <1.0% of reading at> 0.2ml/min, 2.0% 3.0% at 0.1ml min Flow precision 0.1% Includes carrying case, power adapter, waste container, tripod stand and calibration certificate. The Athena flowmeter is used by service engineers, metrologists and laboratory staff around the world to verify the flow of HPLC and UPLC pumps. When used in combination with AutoFlow software flow readings are collected automatically via your PC / laptop USB port and flowrate reports can be produced checking accuracy, precision and linearity. Particularly useful when doing low flowrate measurement on UPLC.

Liquid Flow Meter in various models and technical specifications

Features:

• Digital value display
• Low maintenance
• Low power consumption
• Accurate measurement

Specifications:

• The ideal instrument for IQ/OQ/PQ and troubleshooting
• Accurate to 1% of reading with guaranteed linearity from 0.05 to 25.00 ml/min
• Durable and easy to use with any HPLC pump
• Easy diagnosis of leaking piston seals or malfunctioning check valves
• Automatic Data Transfer
• Dramatically simplify liquid flow rate data collection for HPLC IQ/OQ/PQ

We are very excited about our newly designed flow meter for HPLC. These liquid flow meters have improved performance and a dramatic reduction in size and weight - one third the size and weight of the previous models The FlowCal 5000 digital liquid flow meter accurately and reliably determines liquid flow. It is designed primarily as a flow meter for HPLC systems used at the end of a flow system where measured liquid is collected. Our latest liquid flow meter has the following improvements: New PEEK valve which is fitted with a soft elastomer seal and PTFE diaphragm.
The newly designed sensor head is more stable.
The user replaceable inlet pipe - is made with a 1/16 inch diameter PEEK tube.
New modern looking and light weight brushed aluminum case the total unit now weighs only 12 ounces.

New PEEK valve which is fitted with a soft elastomer seal and PTFE diaphragm. The newly designed sensor head is more stable. The user replaceable inlet pipe - is made with a 1/16 inch diameter PEEK tube. New modern looking and light weight brushed aluminum case the total unit now weighs only 12 ounces.

Specifications:

Hydraulic system	Dual piston in series pump, main & auxiliary
Pump head	10ml stainless steel /PEEK analytical 50 ml stainless steel /PEEK semi-preparative
Maximum working pressure	10ml pump head 42Mpa for stainless steel /30Mpa for PEEK 50ml pump head 30Mpa for stainless steel /20Mpa for PEEK
Flow Range	10ml pump head 0.001-9.999ml/min 50ml pump head 0.001-49.99ml/min
Flow rate accuracy	±0.5% measurement at 1ml/min
Flow rate precision	RSD≤0.1% measurement at 1ml/min
Display	320 X 240 blue background color
Protection	Adjustive Pmax & Pmin, the pump stop automatically when the pressure higher than Pmax or lower than Pmin for 2 minutes, meanwhile the data will be automatically saved
System connection	1/16”capillaries
Control	Stand-alone mode by front keypad HPG Mode: one pump work as master, others work as slave CXTH control software(e.g. CXTH3000,Clarity etc. )
Communications	RS-232
Power supply	AC220V±10%,50Hz,400W
Dimensions and weight	410 X 270 X 180mm(LX W X H) 14Kg

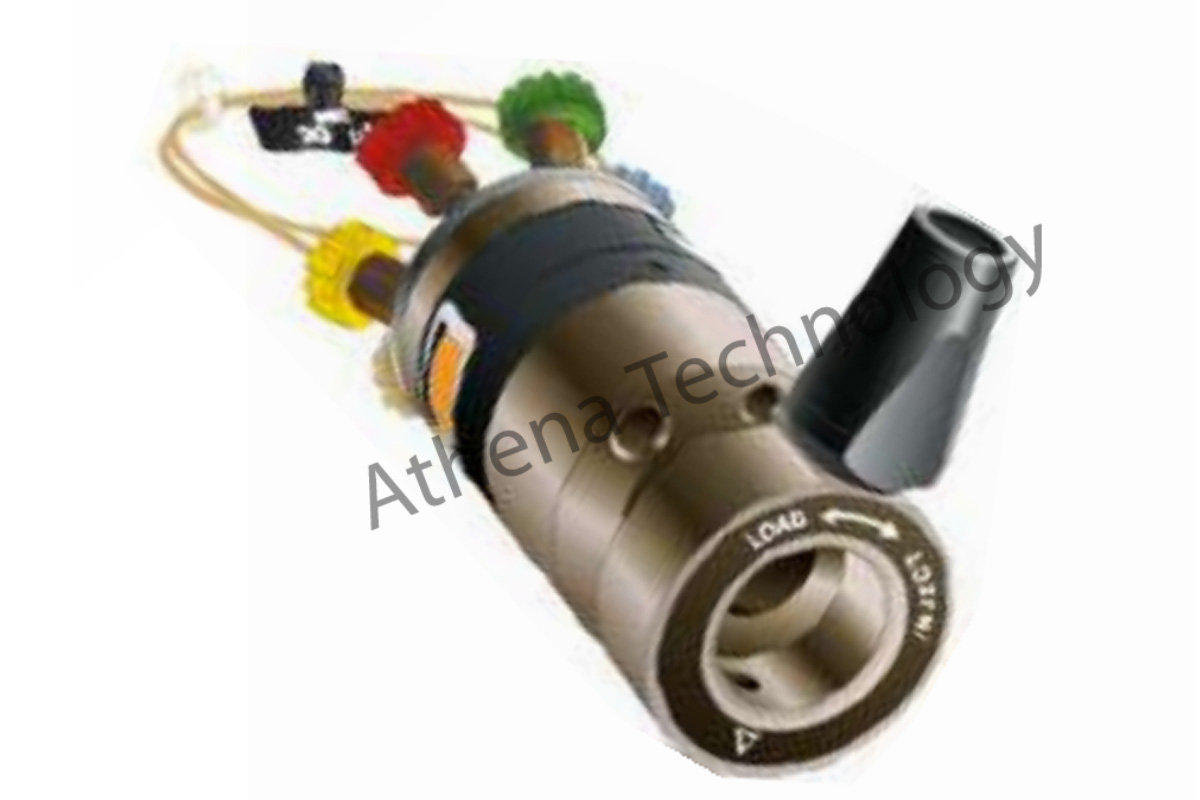

Manual Dual Mode Sample Injectors for HPLC from Rheodyne The two positions for manual sample injectors are LOAD and INJECT. The LOAD position enables the loading of samples into the sample chamber or loop. The sample injector is frequently loaded with a syringe. After loading, the loaded sample can be flushed into a column by manually turning the sample injector's handle to the INJECT position.
both partial and full loop filling
analytical, preparatory, and micro scale
with a position switch accessible
Details Dual mode injectors are the valves that are listed on this page (models that terminate in -25). Both the partial-filling and the complete-filling approaches can be used by dual mode injectors to load the sample loop. They can load a range of sample volumes, making them variable volume injectors. These front-loading dual mode injectors have a needle port incorporated into the handle for loading sample. The special injection port design of the Rheodyne prevents sample loss during loading by connecting the needle's tip directly to the sample loop. The only difference between models with a I suffix and those with the same model number is that the I stands for a built-in position sensing switch. We are Rheodyne Injector dealers.

Specifications:

22-gauge Luer hub

Rheodyne Injector: 7725i with 20μl loop & mounting bracket

Inlet Filters, Debubbler
Mobile Phase Reservoir Low-Pressure Slip-On Inlet Filter A corrosion-resistant 316 stainless steel filter element is sealed to the tip by a Tefzel collar. Without the need for tools, the slip-on filter is simply attached to the pump's input line. Standard PTFE tubing inner diameters can be accommodated with the universal 1/8" OD tip. The cylinder filter has a standard porosity of 10 m. fits several pumps, including Altex, ISCO, LDC, Varian, Waters, and PerkinElmer.
Filter for the solvent input that is disposable; 1/16" OD stem for 1/16" ID tubing Pore size of the inlet filter assembly is 10 m Pore size of a Slip-On Inlet Filter is 10 m.
Pore size of the stainless steel inlet filter is 2 m.
Filters with a 2 m PEEK sparging frit built right into the bottom of the bottle are made by Upchurch. Push-on connectors are used to connect to 1/8 inch tubing.
A changeable 10 m ultra-high molecular weight polyethylene filter that fits into a Tefzel holder makes up this metal-free Upchurch device's inlet filter. Through a flangeless Tefzel, the unit is connected to the intake tube.

Flow Chemistry Pump
Manufacturer of HPLC and UHPLC components is Pumps for HPLC and UHPLCFlow. Choose from a wide selection of pumps, including simple, low-cost pumps and high performance models with automatic flow rate control.

makes it possible to get ultra low pulsation flow by minimising pulsation to the absolute minimum.

Bubble issues are significantly decreased

Plunger seal lifespan increased

both high and low pressure limit switches

Stainless steel, PEEK, or fluorocarbon polymer are your options.

excellent accuracy and constant flow volumes

an easily readable backlit LCD display

Pressure variations are considerably reduced via a self-regulating system.

column integrity is safeguarded with a handy pressure switch upper limit

When a leak is detected, a low-pressure limit switch enables automatic shutdown.

For computer control, use the RS-232C interface.

Various seals available based on solvent

can select one of three models to correspond to desired flow ranges.

chose stainless steel or PEEK to match the solvent used.

excellent accuracy and constant flow volumes

fitted with pulse regulation to reduce pressure swings

an easily readable backlit LCD display

display of pressure in real-time

column integrity is safeguarded with a handy pressure switch upper limit

Setting desired flow volumes is possible in the metered flow mode.

For computer control, use the RS-232C interface.

can select one of three models to correspond to desired flow ranges.

Various seals available based on solvent

optional pump made of fluorocarbon polymer or inert PEEK

Medium to High Pressure Single Pump Developed using our intelligent pump technology, but aiming for high performance at a low price

Using a pressure sensor

containing a pulse control mechanism (quick return mode)

an easily readable backlit LCD display

display of real-time pressure

column integrity is safeguarded with a handy pressure switch upper limit

the easy pouring of precision calibrated solvent volumes

For computer control, use the RS-232C interface.

can select one of five models to fit desired flow ranges.

optional (PEEK) inert pump

SP-21 Single Plunger Pump Series

lacking a pressure sensor

containing a pulse control mechanism (quick return mode)

an easily readable backlit LCD display

the easy pouring of precision calibrated solvent volumes

For computer control, use the RS-232C interface.

optional (PEEK) inert pump

can select one of five models to fit desired flow ranges.

Various seals available based on solvent
