Speed range	500~2500rpm
Orbit	4mm
Temp setting range	1min ~100hour
Max load	4.5kg
Power supply	70W
Voltage	AC110~220V 50/60Hz
Dimension	410x276x432mm

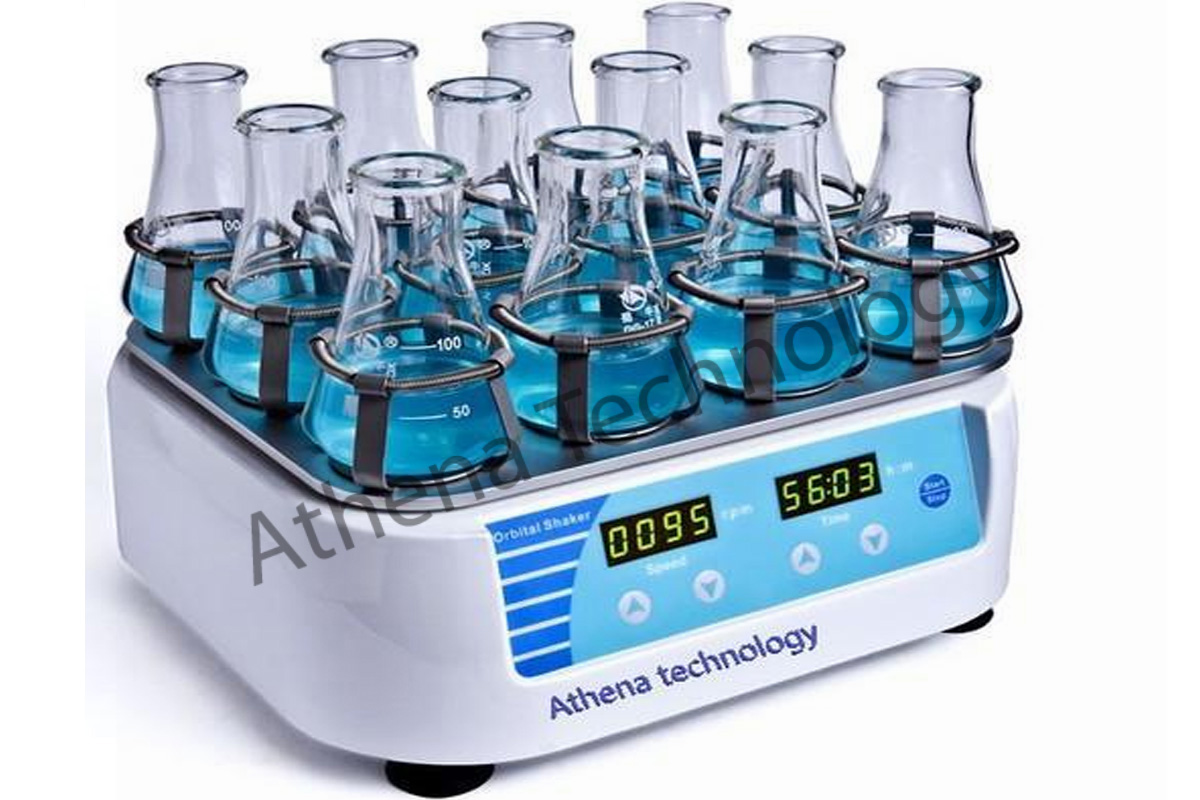

Obrbital SHaker

AT -GS-20 orbital shaker is compact and amazingly designed. It is used for any mixing applications in different industries. Built with DC brushless motor, adopted micro-computer control technology, the orbital shaker is easy to operate. Gentle shaking, it is applied in different laboratories of molecular biology, microbiology, immunology, chemistry, etc. It is low-energy, safe, stable and no noise

Features

• Speed adjustable. Gentle shaking, applied in different industries.
• LED display time and speed.
• Compact and clean designed, streamlined fuselage, simple operation, convenient for cleaning.
• Timing function. Beep alarm when operation ends.
• DC brushless motor, safe, long life and free of maintenance. Operating silent and stable.
• Different platforms to adapt different conical flasks and other sample containers for optional choices

Model	AT-GS-10	AT-GS-20	AT-GS-30
SpeedRange	50rpm~350rpm	50rpm~300rpm	50rpm~250rpm
ShakingOrbit	10mm	20mm	30mm
TimeRange	1min~99h59min	1min~99h59min	1min~99h59min
Max.Loading Capacity	3kgs	3kgs	3kgs
Voltage	AC100~230V,50/60Hz	AC100~230V,50/60Hz	AC100~230V,50/60Hz
Power	50W	50W	50W
FuseProtector	250V,1A,5x20	250V,1A,5x20	250V,1A,5x20
Dimensions	W.284xD.264xH.108mm	W.284xD.264xH.108mm	W.284xD.264xH.108mm
Netweight	5.6kgs	5.6kgs	5.6kgs

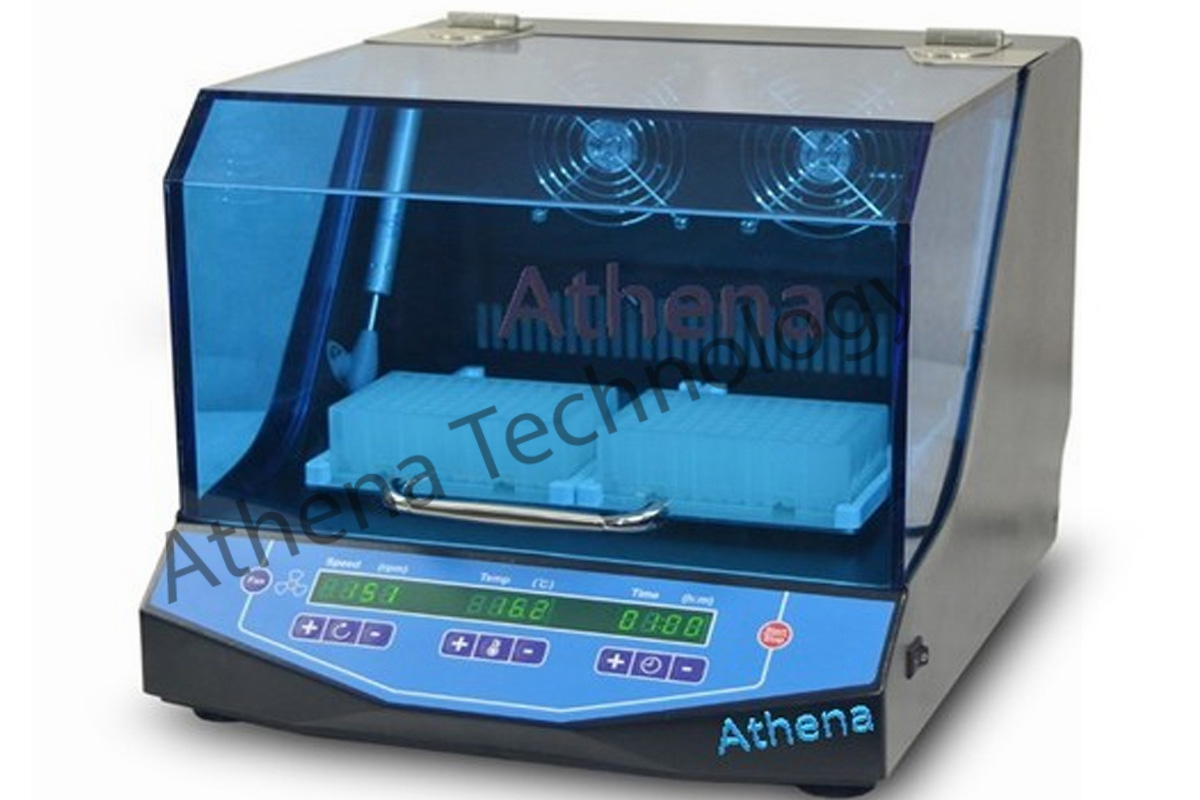

Micro-Plate Incubator Shaker
Product descriptionThe Micro-Plate incubator shaker AT-ES-6E is one temperature controlled biochemical instrument combined incubation and shaking function. It is widely used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which required higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.

Features

1. Integrate incubator and shaker. Save laboratory space.
2. Rational and compact designed, good temperature uniformity, low noisy.
3. Micro-processor controls temperature and shaking speed. Timing function built in.
4. Design of Human-machine interface and operation panel. Cover can be wide-angle opened, convenient to watch and fetch the sample.
5. Built-in cover switch. When the cover is open, air circulation, heating and shaking will automatically stop. Notemperature overshoot problem.
6. Unique speed control circuit to ensure shaker smooth starting and avoid liquid spilling.
7. Speed of the circulation fan is adjustable to avoid high-speed of the circulation fan making the sample volatilizing.
8. Independent temperature alarm system. Heating is cut off when temperature over the limited value.
9. Alarm when program completes.
10. Brushless DC motor, long life and maintenance free.

Model	AT-ES-6	AT-ES-6E	AT-ES-6+
SpeedRange	50rpm~300rpm	200rpm~1200rpm	50rpm~300rpm
ShakingOrbit	20mm(circle)	3mm(horizontal)	20mm(circle)
Temp.ControlRange	R.T.+5~60	R.T.+5~60	R.T.+5~60
Temp.SettingRange	5~60	5~60	5~60
Temp.Stability@37	+-0.3	+-0.3	+-0.3
Temp.DisplayAccuracy	0.1	0.1	0.1
TimeRange	1min~99h59min orcontinuous	1min~99h59min orcontinuous	1min~99h59min orcontinuous
Power	400W	400W	600W
Fuse	250V,3A/5A,5x20	250V,3A/5A,5x20	250V,5A/10A,5x20
Dimension(WxDxH)	360x435x320mm	360x435x320mm	514x660x430mm
OptionalPlatform	Referto"PlatformOption"	PlatformPW-1500	PlatformPW-42

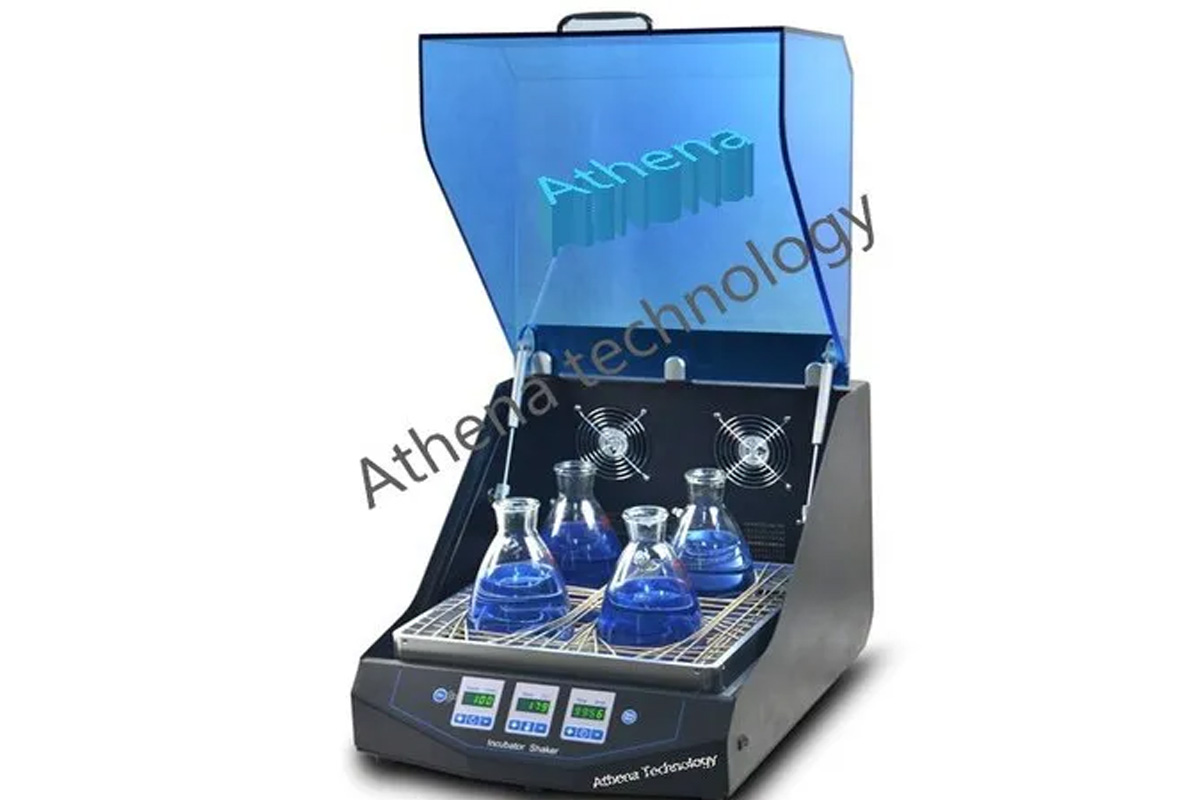

Bench Top Orbital Shaking IncubatorIncubator Shaker
Product description: ATIS-60C Incubator Shaker is one kind of temperature controlled biochemical instrument combining incubation and shaking function. It is widely used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which requires higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.

TYPE	SPEED RANGE	TEMPERATURE RANGE	ORBIT
ATIS-60	50 ~300 rpm	R.T. +5 ~60°C	20mm
ATIS-60E	200 ~1200 rpm	R.T. +5 ~60°C	3mm
ATIS-60C (new)	50 ~300 rpm	4 ~60°C	20mm

Remarks: Above price does not include any flatform. Optional accessories could be selected from below list.

PLATFORM for ATIS-60 and ATIS-60C

TYPE	DESCRIPTION
P-4	flat platform with non-slip rubber mat
P-4A	double deck flat platform with non-slip rubber mat
12-100	platform with clamps for flasks 100-150ml
6-250	platform with clamps for flasks 250-300ml
P-12	universal platform with adjustable bars
W-260	universal platform with springs
PD-GS	sticky pad (not platform. can be put in the platform PP-4 or PP-4A)

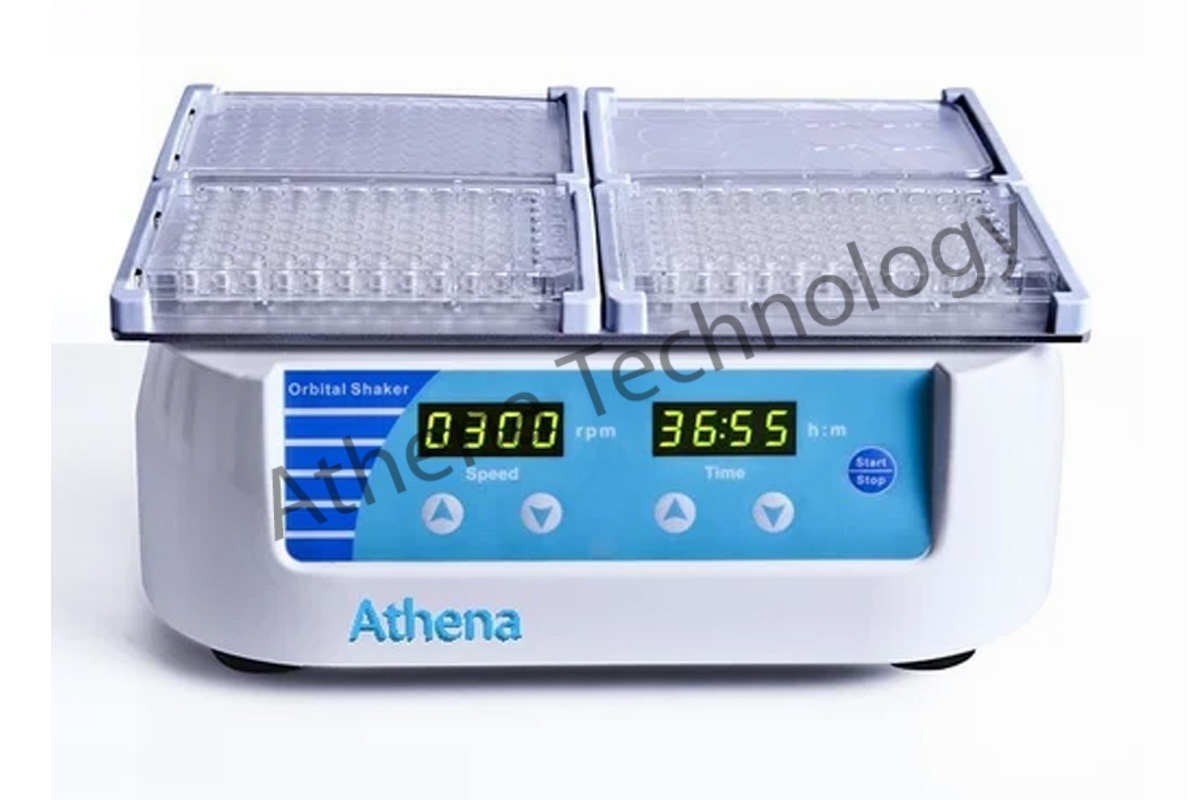

Micro-Plate Shaker
Product description Micro plate shaker AT -MIX-150 is mainly applied in solution mixing and shaking with PCR plate (96-holes/384-holes), cell culture plate (24-holes/48-holes/96-holes etc.) for immunoassay and dyeing experiments. It is safe used in low temperature environment or low temperature incubator. AT -MIX-150 is designed compact with simple and convenient operation. It uses DC brushless motor, safe, stable and no noise.

Features
1. LED digital display. Simple and easy operation designed panel. Display time and speed accurately.
2. Microprocessor controls speed and time, safe, stable, no noise.
3. Accommodate 4 standard PCR plates or micro plates, mixing trace amount of sample efficiently.
4. DC brushless motor, long life and free of maintenance. Provide both gentle and powerful shaking.
5. Provide timing function. Alarm notification when program completes.

Model	AT -MIX-150
SpeedRange	200~1500rpm-standard(increment10rpm)
	200~1000rpm-deep-wellplate(increment10rpm)
ShakingOrbit	3mm(horizontal)
TimeRange	1min~99h59minorcontinuously
SampleCapacity	4standardplates
Voltage	AC100V~230V,50/60Hz
Power	50W
Fuse	250V,1A,5x20
Dimension(WxDxH)	284x264x121mm
NetWeight	5.2kgs

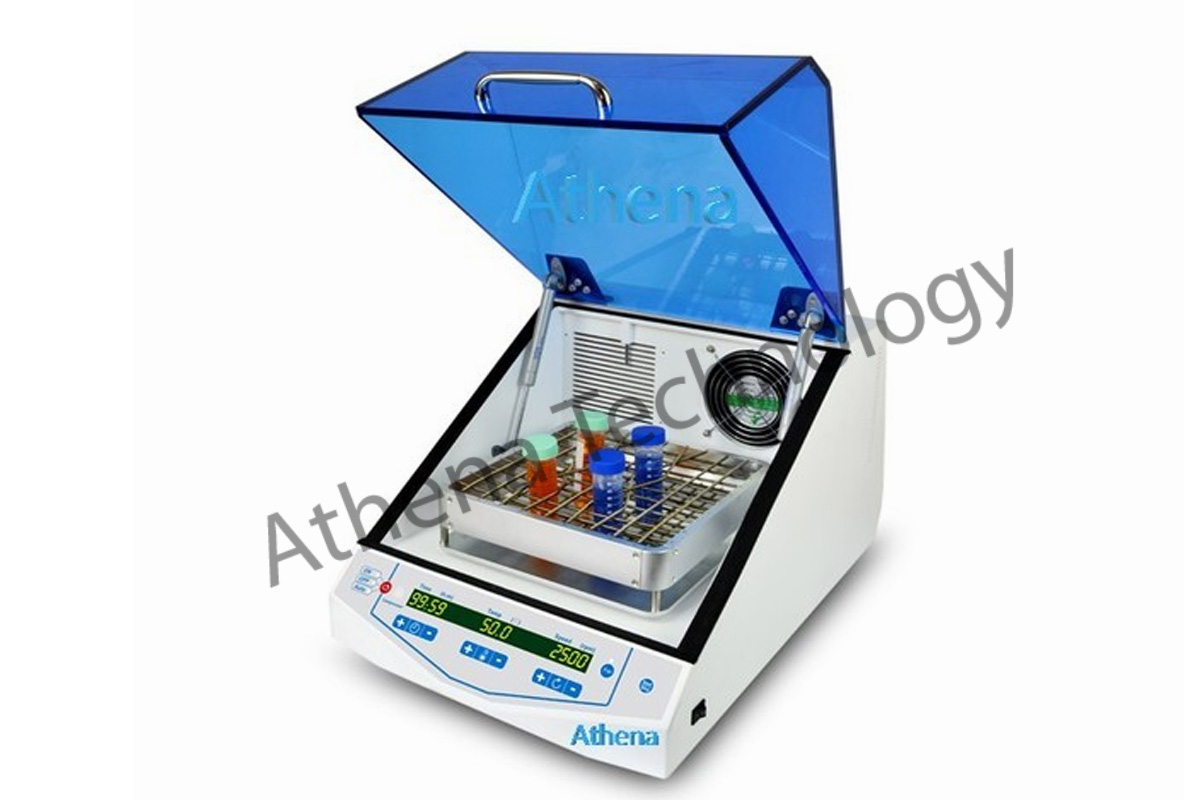

Incubation shaker Product descriptionATIS-60C Incubator Shaker is one kind of temperature controlled biochemical instrument combining incubation and shaking function. It is widely used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which requires higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.

Features

1. Integrate incubator and shaker. Save lab space.
2. Compact design, good temperature uniformity, low noise. 3. Micro-processor controls temperature and shaking speed. Built-in timing function .
4. Friendly equipped with touch screen and operation panel. Cover can be widely angle opened, convenient to watch and pick sample.
5. Equipped with cover switch. When the cover is open, air circulation, heating and shaking will automatically stop. No temperature overshoot problem.
6. Unique speed control circuit to ensure shaker smoothly start to avoid liquid spilling.
7. Circulation fan speed can be adjusted to avoid high-speed of the circulation fan making the sample volatilize.
8. Independent temperature alarm system. Heating is cut off automatically when temperature is over the limited value.
9. Sound alarms after program finishes.
10. Brushless DC motor, long life and maintenance-free.

Model	ATIS-60C
SpeedRange	50rpm~300rpm
ShakingOrbit	20mm(circle)
Temp.ControlRange	4~60@R.T.25
Temp.SettingRange	4~60
Temp.Stability@37	+-0.3
Temp.DisplayAccuracy	0.1
TimeRange	1min~99h59minorcontinuous
Voltage	AC220V/AC110V,50/60Hz
Power	600W
Fuse	250V,5A/10A,5x20
Dimension(WxDxH)	385x560x320mm
NetWeight	18.7kgs
OptionalPlatform	Referto"PlatformOption"

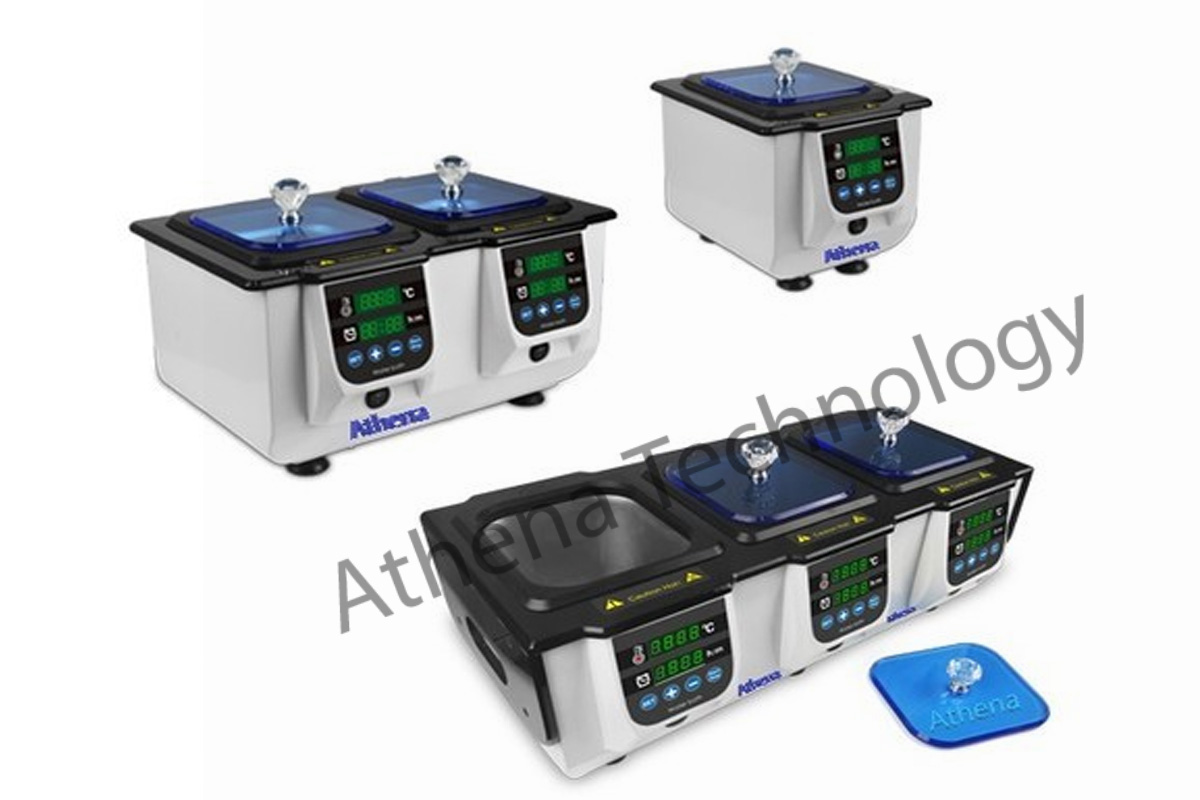

Thermostatic Water Bath
AT-WT10-1/2/3 Thermostatic Water Bath is a temperature-controlled thermostatic bath biochemical equipment, It is mainly used for shaking culture of various liquid and solid compounds such as biology, biochemistry, cell, bacteria and so on in colleges and universities, industrial and mining enterprises and scientific research institutes, is an indispensable laboratory equipment for the close cultivation of plants, animals, microorganisms, genetic viruses, medicine, environmental protection and other scientific research, education and production departments
1Unique and novel appearance, small size, powerful functions. All surface that contact with water adopt stainless steel material and PC material, with strong corrosion resistance. 2Using a once punch-formed stainless steel inner liner, with unique sealing structure to eradicate water leakage; Three groups of water tanks postposition independent drain valves separately, can easily emptying the sewage after clean the Inner container.
3Using microcomputer program PID automatic temperature control, uniform temperature control, high precision. 4Built-in water level sensor, to prevent the hidden dangers of dry burning, safe and reliable.
5Dual digital tube digital holographic display temperature and timing time, parameter display is accurate and intuitionistic, with beep alarm prompt function

Parameters

Model	AT-WT10-1	AT-WT10-2	AT-WT10-3
Temp.range	RT.~100	RT.~100	RT.~100
Temp.accuracy	0.3	0.3	0.3
Temp.fluctuation	0.5	0.5	0.5
Temp.Uniformity@37	0.5	0.5	0.5
Numberofholes	1	2	3
Volume	2Lx1	2Lx2	2Lx3
Innerdimension	135x150x143mmx1	135x150x143mmx2	135x150x143mmx3
Voltage	AC220V50/60Hz	AC220V50/60Hz	AC220V50/60Hz
Power	800W	800W	800W
Dimensions	198x310x255mm	363x310x255mm	510x310x255mm
Netweight	2.3kgs	5.1kgs	6.7kgs

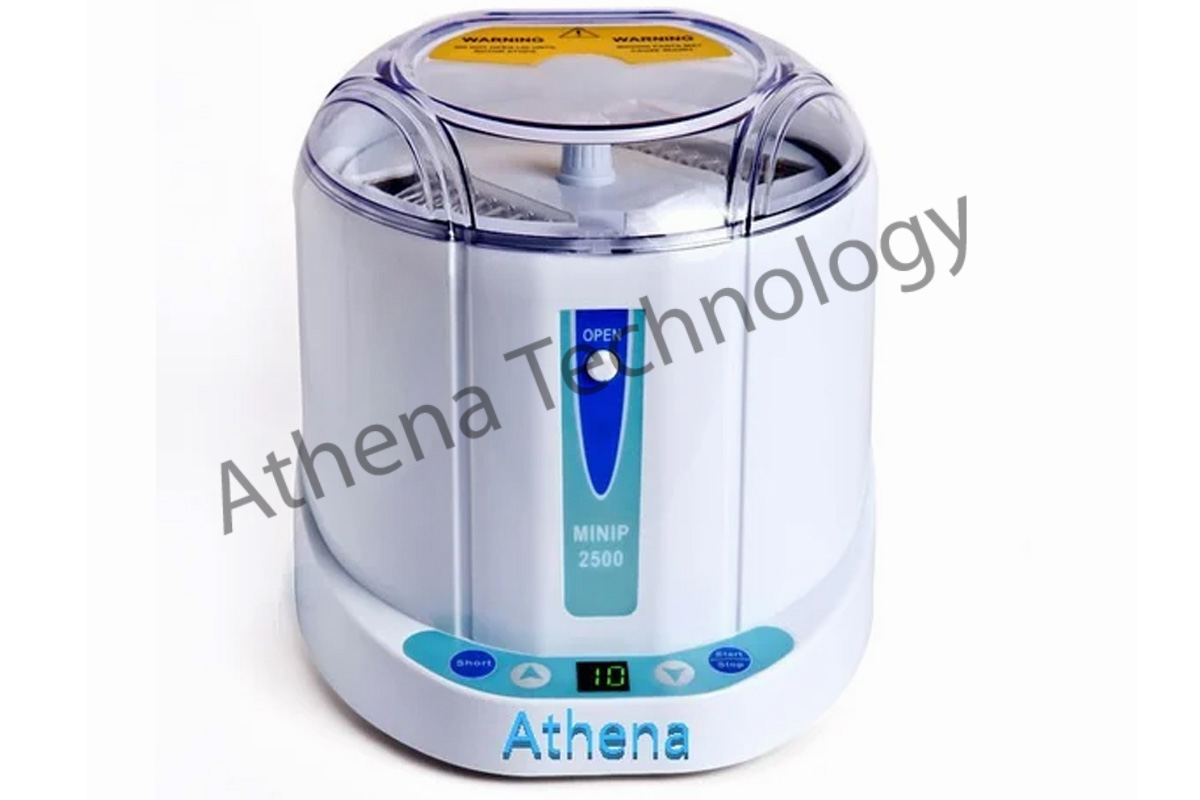

Micro-Plate Centrifuge Product descriptionAT-MIN-25 micro-plate centrifuge is a unique mini instantaneous centrifuge which is special designed for the 96-hole micro plates.It can quickly spin down droplets and condensation. It is used before and after thermal cycling to improve PCR yield. Put the micro plate from the slots of the top vertically (leakage for liquid will be kept in the micro plate under the action of surface tension), the spin-down work is easily finished. Two operation modes humanized configured - short mix and time setting operation, makes the experiment more convenient and efficient..

Features

1. Wide applicable range. It suit for skirted, semi-skirted, non-skirted and all standard PCR plates.
2. Strong centrifugal power. Accelerate to 2500rpm quickly. From top speed to stop cost around 10seconds.
3. Using DC brushless motor. Free of maintenance. Working stable and quietly.
4. Humanized design. Two modes - pressing for operating and setting time for operating - makethe experiments more convenient and efficient.
5. Smart size, simple operation. The cover can be fully opened to 95 Degree, convenient to put andfetch the plates.
6. Quickly spin down droplets and condensation. Used before and after thermal cycling toimprove PCR yield

Model	AT-MINI-25
SpddeRange	2500rpm
RCF	500g
SampleCapacity	2PCRplates
Rotor	fixedvertically
TimeRange	1s~99sortouchoperation
Voltage	DC24Vpoweradapter
Dimension(WxDxH)	190x219x186mm
NetWeight	2.7kgs
