100 Nitrogen Concentrator
Turbovap Evaporatpr for ASE-Ichem Vials 40-60ml vials

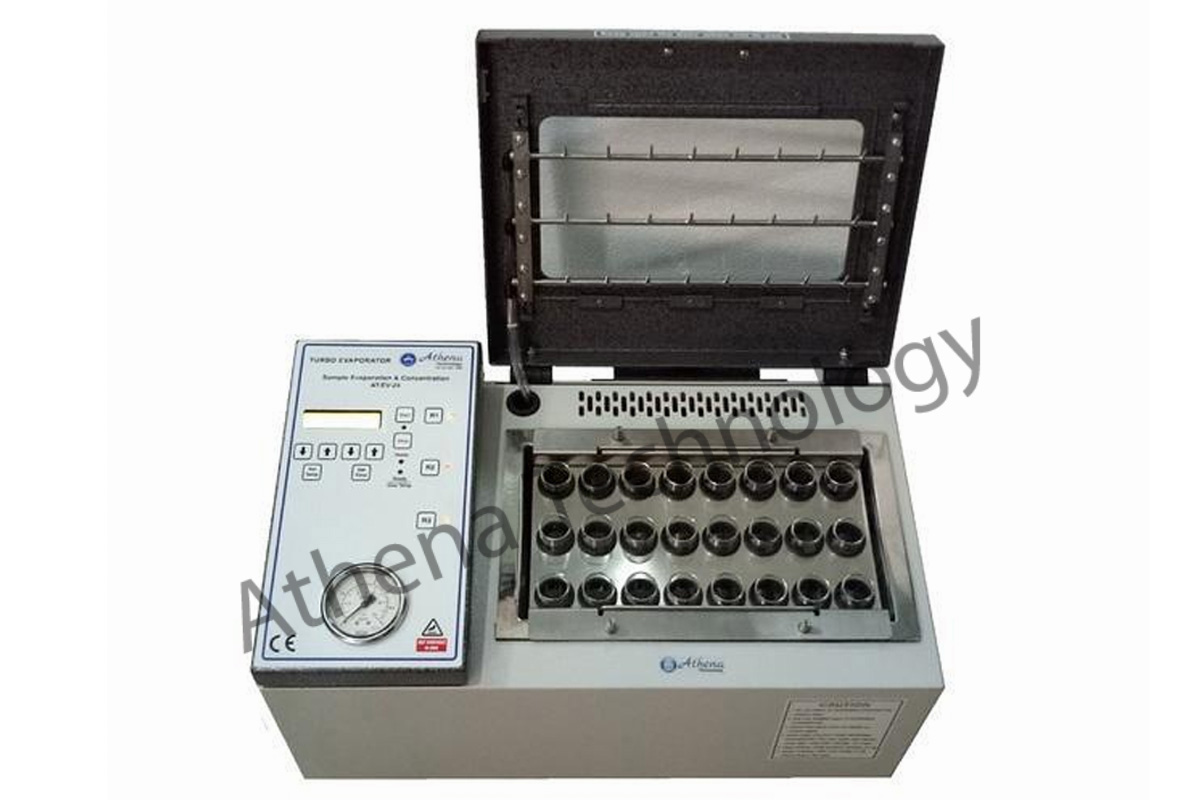

Nitrogen Evaporator AT-EV-24
Concentrating multiple samples by using nitrogen gas 24samples
1. Technology : Gas vortex purging technology
2. No. of Samples : 24 samples
3. Gas control : Control of gas can be turned on to each of five independent manifolds when working with fifty samples.
4. Timer range : 1 min to 99 min – 0.1 h to 9.9 h
5. Tube Capacity : 24 test tubes
6. Volume Range : 40 and 60 ml I chem vials
7. Water Bath Capacity and Temperature : Capacity 6.5 ltrs Ambient to 99°C- Temperature (thermal cutout for safety)
8. Gas supply requirement : Minimum 60 psi -Maximum inlet pressure and 100 psi.
9. Exhaust : venting exhaust with hose pipe
10. Electrical Supply : 220-240 V / 110V, 60 Hzs
11. Certifications :ISO 9001 : 2008 & CE Certified 13. Warranty : The instrument have standard warranty of minimum ONE year Sample Capacity : 24 Nos. Gas Line: 3 Nos. Gas stations : 3 Nos. with LED indication, gas can be turn on each of independent manifolds when working with samples Heater : Internal heaters, adjustable from ambient to 99°C Water Bath Temperature range: Ambient to 99°C (thermal cutout for safety) Error Indication : LED indication with Buzzer

Athena Special Feature :

• Small Tabletop Model Size.
• With imported Glass wool Sheet, the space between the tank and the body is properly insulated.
• CAD/CAM fabrication and water jet cutting.
• Top-notch powder coated.
• Electronic display.
• A specially designed silicon self-adhesive heater is installed on the water tank's bottom side.
• Auto-cutoff sensor for heating, gas, and process timer.
• Janatics and Parker Make use pneumatic fittings.
• Pressure gauge made by Wika.
• Easy carrying handles on the sides.
• Test tube rack, a water tank, and a nozzle manifold Make the SS 316 Well ventilation efficient and customizable.
• Non-breakable, transparent to gas.

CE Certified
100 sample Evaporator
100 sample Concentrator

Export : UK, USA, Europe, Malaysia, Singapore, Thailand, Lanka, Jordan, Africa, Portugal, Taiwan, Australia, Newzealand

Product Specifications:

Vortex Shearing Concentration· ASE (Dionex) Compatible upgrade Kit (For I-Chem vial 40mL, 60mL)

100 Sample Evaporator
Turbovap Evaporator
Sample Evaporator
Nitrogen Concentrator

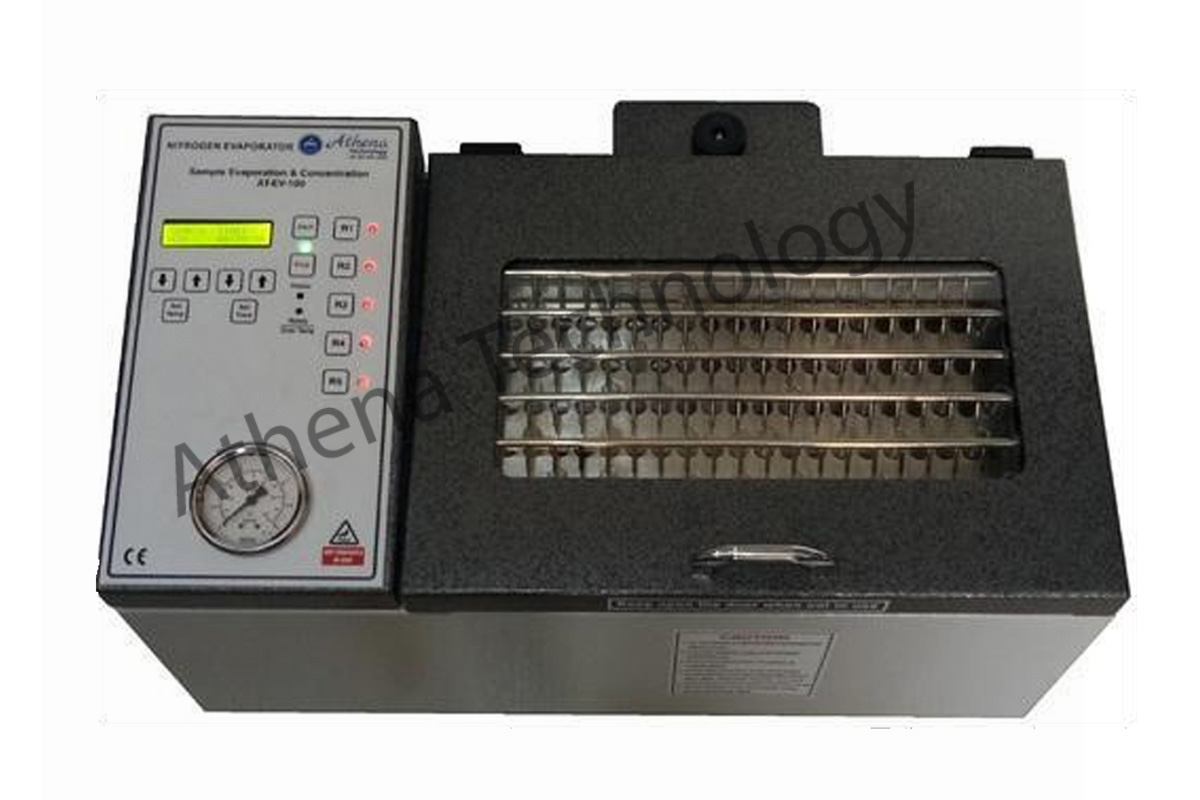

Nitrogen Evaporator AT-EV-100
Concentrating multiple samples by using nitrogen gas 100 samples (Make : Athena)
Specifications:

• Technology : Vortex Sharing Technology
• Display: LCD Digital Display for TIME & TEMP
• Controlled: Fully Microprocessor based
• Nitrogen Flow : Both side Nozzle flow for quick evaporation
• Sample Capacity : 100 Nos. Gas Line: 5 Nos.
• Auto Cut off Sensor for process Timer , Heating & gas.
• Time Range : 15 sec to 10 hrs
• Temperature range: Ambient to 95°C (thermal cutout for safety)
• Temperature set-up / down arrow keys (1°C)
• Start/stop: Green LED indication when process is On
• Gas Pressure range: 0 to 100 PSI (approximate)
• Water tank capacity: 10.5 Ltr. (Do not over flow)
• Power supply: 230 V AC / 3Amp
• Error indication: LED indication with Buzzer
• Certifications :ISO 9001 : 2008 & CE Certified
• Gas stations : 5 Nos. with LED indication, gas can be turn on each of independent manifolds when working with samples
• Heater : Internal heaters, adjustable from ambient to 95°C
• Digital LCD Display
• Automatic Control through microprocessor based key pad for all gas stations.
• Pressure Setteble
• TIME & TEMP LCD Display with microprocessor based controlled
• Start and Stop LED Indication with Alarm
• Fully Automatic controller
• 100 sample Evaporator
• Athena 100 sample Evaporator

Special Feature :

• Small Tabletop Model Size.
• With imported Glass wool Sheet, the space between the tank and the body is properly insulated.
• CAD/CAM fabrication and water jet cutting.
• Top-notch powder coated.
• Electronic display.
• A specially designed silicon self-adhesive heater is installed on the water tank's bottom side.
• Auto-cutoff sensor for heating, gas, and process timer.
• Janatics and Parker Make use pneumatic fittings.
• pressure gauge made by WIKA.
• Easy carrying handles on the sides.
• Test tube rack, a water tank, and a nozzle manifold Use SS 316.
• Adaptable and highly effective ventilation.
• Non-breakable, transparent to gas.
• ISO 9001:2008 and CE Certified

Mini Nitrogen Evaporator

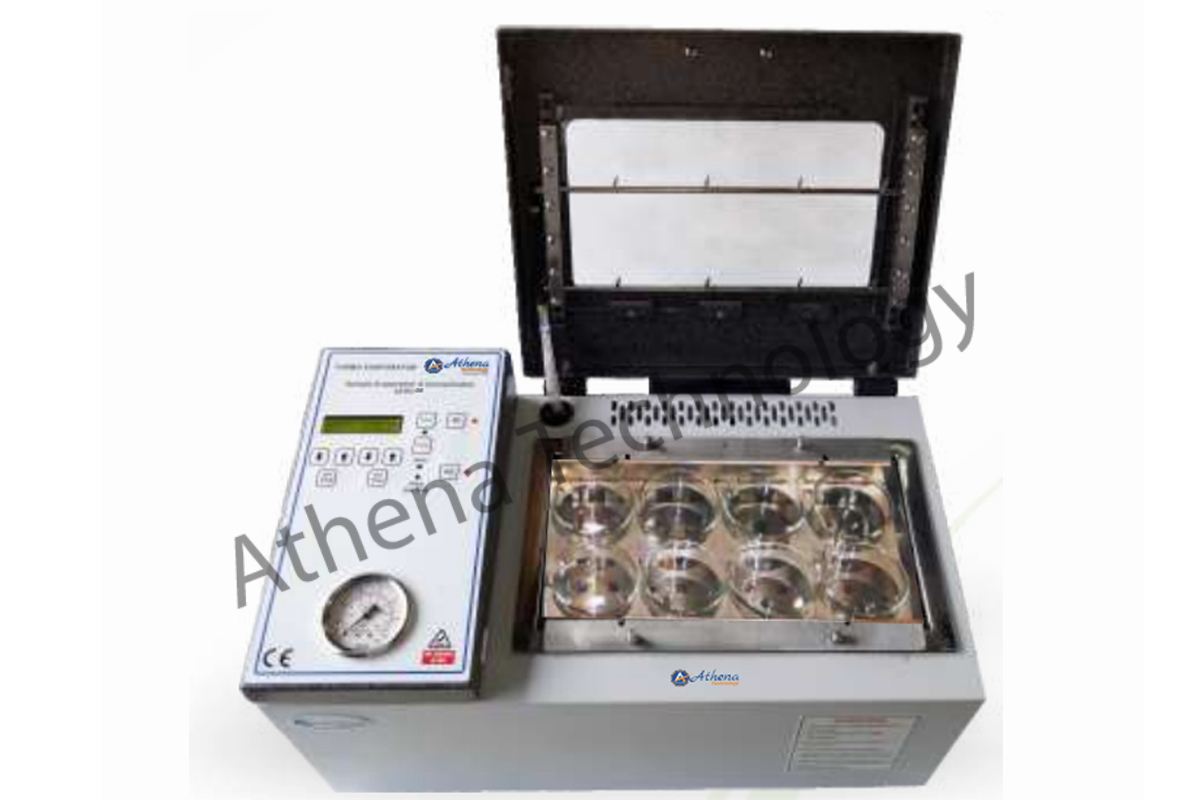

High Volume Nitrogen Evaporator

AT-EV-08

Used in Bio analytical Labs - the features and specifications are as follows: Turbovap II

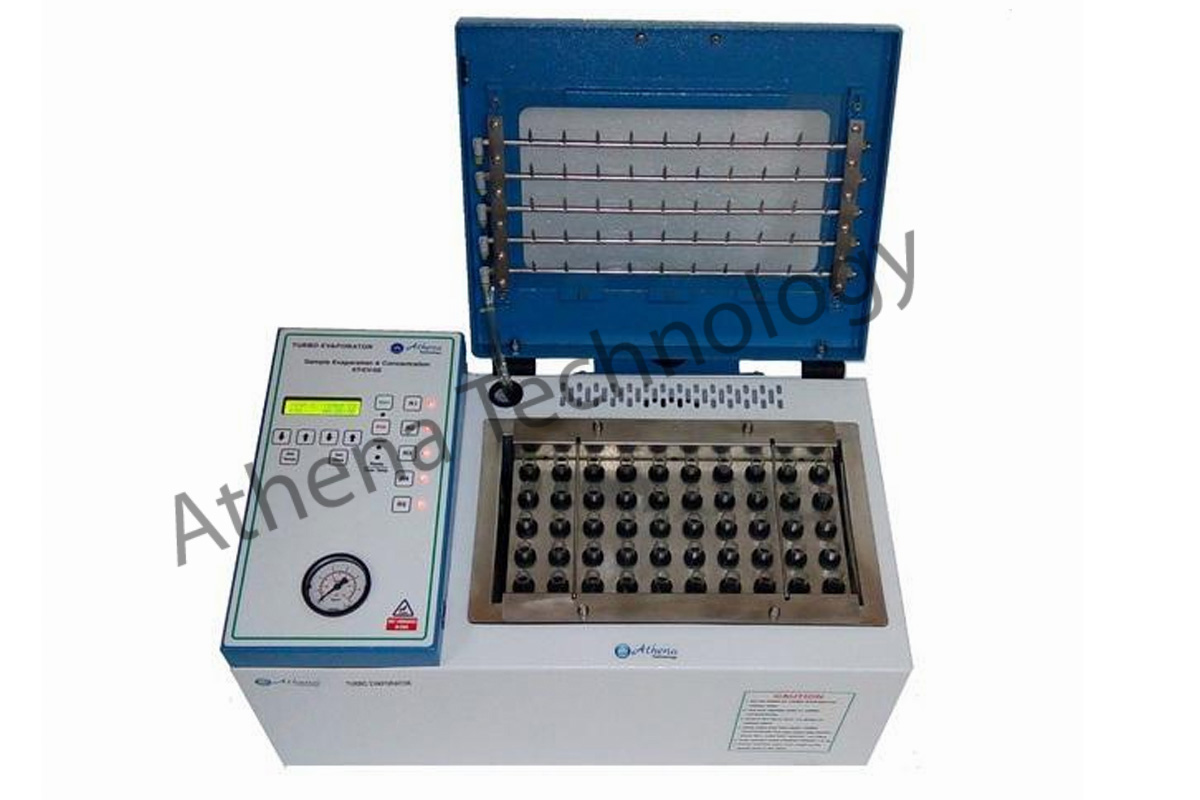

Nitrogen Concentrator /Sample Evaporator (Turbo Evaporator)

Precision Sample Concentrator by Nitrogen Purging, Athena Technology, Nitrogen Concentrator Model: AT-EV-08. It is a newly created Sample Concentrator for pre-concentrating numerous samples in organic media. A tabletop replica. To guarantee proper evaporation, the device can be set to a constant Flow and constant Temperature.
Additionally, the needed level for the Nozzle height can be set electronically. It has an entirely microprocessor-controlled water bath, temperature, gas station, more advantageous LCD display, temperature heater ON/OFF LED, door open display, and high temperature Thermal Coutour for safety, best quality, and best performance.

Product Specifications:

·Vortex Shearing Concentration
· Time Range: 15 sec to 10 hours

• Time Set-up / down arrow keys (15 sec increments)
• Temperature range: Ambient to 99°C (thermal cutout for safety)
• Temperature set-up / down arrow keys (1°C increment)
• Start/stop: Green LED indication when process is On
• Display: LCD Digital Display
• Gas stations: 2 Nos. with LED indication
• Gas regulator range: 0 to 100 PSI (approximate)
• Pressure gauge range: 0 to 100 PSI
• Controlled: Fully Microprocessor based
• Sample capacity: 08 Nos.
• Gas Line: 2 Nos.
• Water tank capacity: 6.5 Ltr. (Not over flow)
• Dimensions: 30cm(H) x 40cm(W) x 55cm(L)
• Weight:20 Kgs (empty tank)
• Colour: Athena Blue
• Exhaust: No fume hood required
• Power supply: 230 V AC / 3Amp
• Error indication: LED indication with Buzzer

Applications

• medical biotech substances
• therapeutic samples
• ecological samples
• Crime scene and forensic samples
• samples of drugs of abuse
• Analysis of foods and beverages
• sample agrochemicals

Nitrogen Evaporator

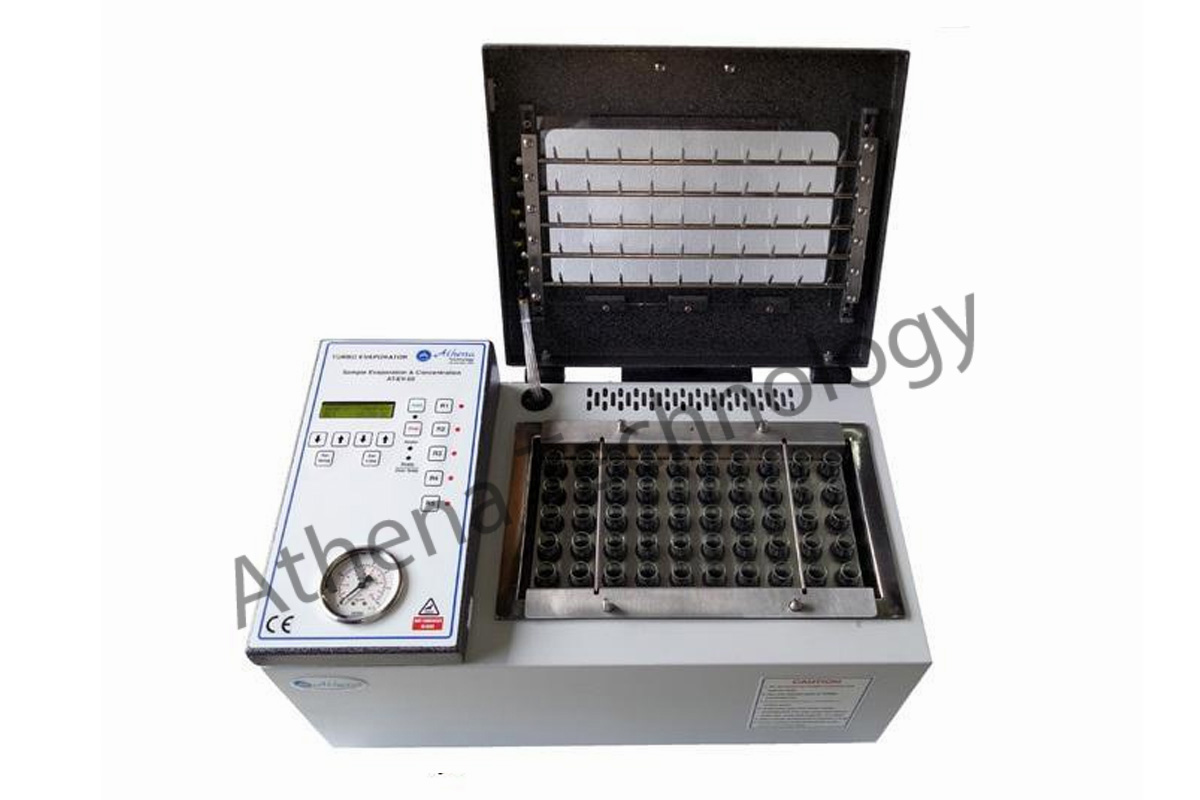

Nitrogen Concentrator /Sample Evaporator (Turbovap)
Precision Sample Concentrator by Nitrogen Purging, Nitrogen Concentrator Model: AT-EV-50. It is a newly created Sample Concentrator for pre-concentrating numerous samples in organic media. A tabletop replica. To guarantee proper evaporation, the device can be set to a constant Flow and constant Temperature.
Additionally, the needed level for the Nozzle height can be set electronically. It has an entirely microprocessor-controlled water bath, temperature, gas station, more advantageous LCD display, temperature heater ON/OFF LED, door open display, and high temperature Thermal Coutour for safety, best quality, and best performance.

• Time Range: 15 sec to 10 hours
• Time Set-up / down arrow keys (15 sec increments)
• Temperature range: Ambient to 99°C (thermal cutout for safety)
• Temperature set-up / down arrow keys (1°C increment)
• Start/stop: Green LED indication when process is On
• Display: LCD (Digital Display)
• Gas stations: 5 Nos. with LED indication
• Gas regulator range: 0 to 100 PSI (approximate)
• Pressure gauge range: 0 to 100 PSI
• Controlled: Fully Microprocessor based
• CE Certified
• Sample capacity: 50 Nos.
• Gas Line: 5 Nos.
• Water tank capacity: 6.5 Ltr. (Not over flow)
• Dimensions: 30cm(H) x 40cm(W) x 55cm(L)
• Weight:20 Kgs (empty tank)
• Colour: Athena Blue
• Exhaust: No fume hood required
• Power supply: 230 V AC / 3Amp
• Error indication: LED indication with Buzzer

Technical Specifications:

• Space requirements: Table top or fume hood with minimum dimension L, W & H (cms) 70 x 50 x 65 table weight capacity 35 kg minimum requirement
• Work area: Flat, level, stable, surface
• Power supply: 230 AC/5amp single phase stable & well grounded
• Gas supply: Laboratory grade nitrogen
• Inlet pressure: 60 PSI minimum, 100 PSI maximum (And ON/OFF control valve)
• Exhaust: Exhaust duct outlet or fume hood - the exhaust duct must go to outside the lab.
• Water bath capacity: 6.5 Ltr. distilled water (6.5 Ltr. do not over flow)

Note: Do not operate the instrument without the exhaust duct.

Rack Specifications:

Rack Type	Working volumes	Type Of Test Tube
12mm x 75mm	04 ml	Round Surface
12mm x 100mm	05 ml	Round Surface
16mm x 100mm (Standard)	13 ml	Round Surface
15mm x 125mm	11 ml	Round Surface
15mm x 150mm	12 ml	Round Surface
17mm x 125 mm	15 ml	Conical
17mm x 150 mm	16 ml	Round Surface
18mm x 150mm	20 ml	Round Surface
20mm x 150mm	30 ml	Round Surface

Export : Europe, USA, UK, America, Poland, Nigeria, Slovakia, UAE, Dubai,

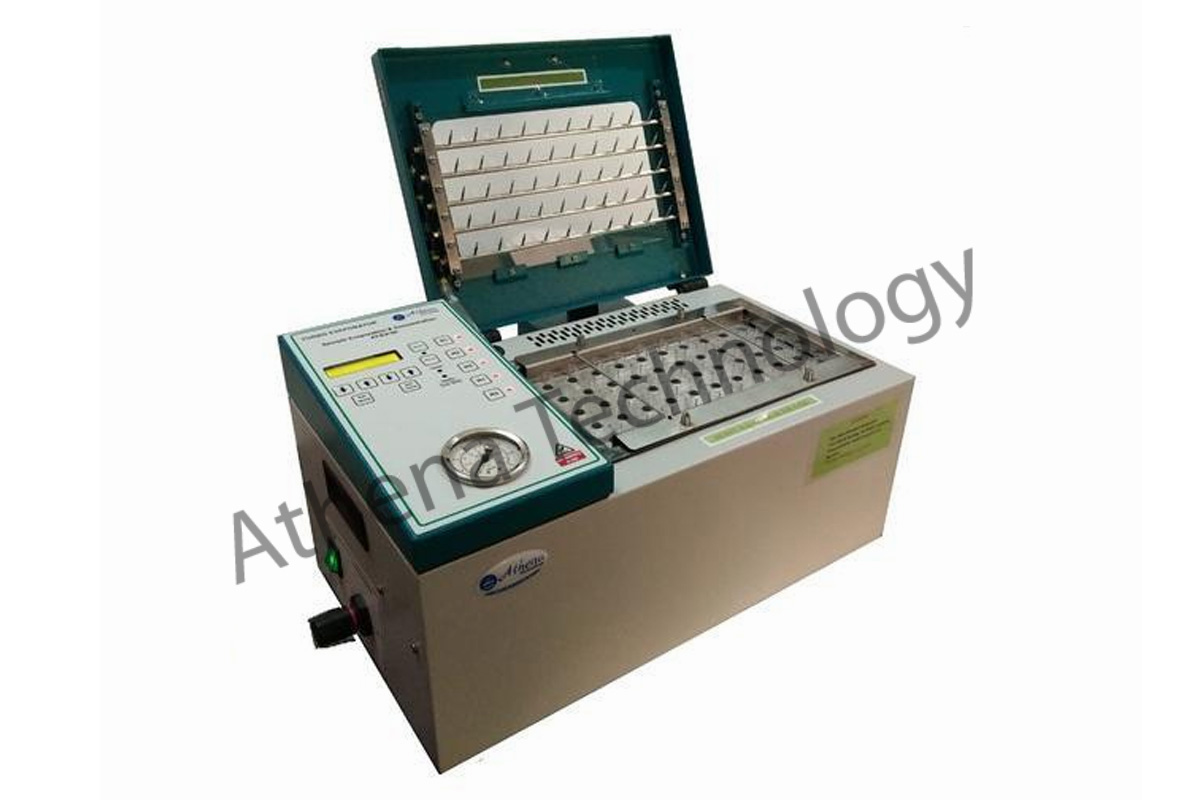

Dry Nitrogen Evaporator
Dry Solvent Evaporator
Advance Dry Block Nitrogen Sample Evaporator for up to 50 samples, each with a maximum volume of 30 ml, with a timer microprocessor-controlled Dry Block with adjustable temperature and a timer for purging Nitrogen Gas, as well as a pressure gauge and concentration control for each sample.
Nitrogen Dry Heat, Temperature, Gas Station, More Advantage LCD Display, Over Temp. Heater ON/OFF LED, Door Open Display, High Temperature Thermal Contour for Safety, Best Quality, and Best Performs are all completely microprocessor controlled.
Athena Nitrogen Evaporator - Evaporation Systems are multi-sample evaporators that quickly evaporate samples to dryness or an end point volume by combining gentle forces such as vortex motion, dry heat, and nitrogen blow down. Vertex Dry Evaporators use dry heat and nitrogen blowdown in the Athena Nitrogen Evaporator toUp to 50 tiny samples can be vaporised quickly at once. Dry block heaters have fewer maintenance requirements than water bath heaters, don't use distilled water or other additives, and don't introduce any potential sources of contamination.
Compact Size Table top Model. Precise manufacturing using latest technology -Water Jet Cutting & CNC fabrication High Quality Pressure Gauge from Wika.
Side Handles for easy movement
SS 316 tank & Nozzle Manifold for durability and maintenance free
Best Quality powder coating for great looks & to avoid rusting
•Dry Block Heating , No Water required
• 600 watt dry block heating system
• Specially Designed Aluminum block for fast & uniform heatin
• No Bacterial fungal Growth, No cleaning required
To prevent heat loss, the tank and body gap is properly insulated with imported glass wool sheet.
LCD digital display
Auto Cutoff with Accurate Time, Temperature, and Gas Flow Sensors
Best quality pneumatic fitting from the operation of Janatics & Parker
With a built-in exhaust fan and blower, the ventilation is effective and customizable.
Easy ventilation using a 2 mtr 1.5 ′′ ID polyethylene exhaust hose.
Flexible, clear gas path tubing measuring 4mm
Nitrogen supply snap-fit 8mm OD flexible polyethylene tubing
5 switches for controlling the flow of nitrogen
fifty nitrogen-dispensing nozzles arranged in five rows of 50
On/Off Self-Glowing Power Switch
Automated Solvent Drying, Evaporation of Solvent, and Concentration of Sample
Medium for Evaporation: Nitrogen and dry Heat (using block)
quickly evaporating
Vortex motion that is microprocessor-controlled enhances surface area for quicker evaporation.
Smooth variable-speed power is provided to drive the vortex motion by a maintenance-free, microprocessor-controlled motor.
Automatic shutdown and audible alarm for timed end point
Temperature sensors at the heater and block have been used to sound and display an alarm for the end point.
For longer longevity, all mechanical components are shielded from chemical vapours and fumes.
Range of time: 15 seconds to 10 hours
Arrows to move down and set the time (15 sec increments)
Ambient temperature to 100 oC (thermal cutout for safety)
Down arrow keys for temperature setup (in 1 °C increments)
Start/stop : Green LED indication when process is On
Gas stations : 5 Nos. with LED indication
Gas regulator range : 0 to 100 PSI (approx)
Pressure gauge range : 0 to 100 PSI
Controlled : Fully Microprocessor based
Sample capacity : 50 Nos
Gas Line : 5 Nos.
Dimensions : 30cm(H) x 40cm(W) x 55cm(L)
Weight : 30 Kgs
Power supply : 230 V AC / 3Amp 50 Hzs
Error indication : LED indication with Buzzer
Easy ON/OFF switches to turn Nitrogen Flow on or off to the nozzle above the sample vials

NITROGEN EVAPORATOR We have been able to offer a high-quality selection of N2 Evaporators thanks to the assistance of our skilled professionals in this field. The offered evaporator is expertly created at our production facility under the supervision of skillful engineers utilising top-notch materials and cutting-edge technology. Our provided evaporator is offered in a variety of specifications. In addition, our clients can get this evaporator for market-beating costs.

Features:

• Gas regulator range: 0 to 100 PSI (approximate)
• Pressure gauge range: 0 to 100 PSI
• Controlled: Fully Microprocessor based

Other Details:

• Precision Sample Concentrator by Nitrogen Purging, Nitrogen Concentrator Model: AT-EV-50. It is a newly created Sample Concentrator for pre-concentrating numerous samples in organic media. A tabletop replica. To guarantee proper evaporation, the device can be set to a constant Flow and constant Temperature. Turbovap allows you to electronically adjust the Nozzle height to the desired setting. It is entirely microprocessor controlled and has an advantage over temperature with an LCD display over a water bath and a gas station. High temperature Thermal Coutour for safety, LED heater ON/OFF, door open display, and finest quality and performance.

Product Specifications:

• Time Range: 15 sec to 10 hours
• Time Set-up / down arrow keys (15 sec increments)
• Temperature range: Ambient to 99°C (thermal cutout for safety)
• Temperature set-up / down arrow keys (1°C increment)
• Start/stop: Green LED indication when process is On
• Display: LCD Digital Display
• Gas stations: 5 Nos. with LED indication
• Gas regulator range: 0 to 100 PSI (approximate)
• Pressure gauge range: 0 to 100 PSI
• Controlled: Fully Microprocessor based
• Sample capacity: 50 Nos.
• Gas Line: 5 Nos.
• Water tank capacity: 6.5 Ltr. (Not over flow)
• Dimensions: 30cm(H) x 40cm(W) x 55cm(L)
• Weight:20 Kgs (empty tank)
• Colour: Athena Blue
• Exhaust: No fume hood required
• Power supply: 230 V AC / 3Amp
• Error indication: LED indication with Buzzer
• Speedo Vap, Nitrogen Evaporator, Turbovap LV

Rack Type	Working volumes	Type Of Test Tube
12mm x 75mm	04 ml	Round Surface
12mm x 100mm	05 ml	Round Surface
16mm x 100mm (Standard)	13 ml	Round Surface
15mm x 125mm	11 ml	Round Surface
15mm x 150mm	12 ml	Round Surface
17mm x 125 mm	15 ml	Conical
17mm x 150 mm	16 ml	Round Surface
18mm x 150mm	20 ml	Round Surface
20mm x 150mm	30 ml	Round Surface

Sample Concentrator

Max No Of Sample:	100 & 50 sample Evaporator
Maximum No Of sample per station:	20 & 10
Sample Volume:	1ml & 13 ml & 2-30ml
Bath Temperature:	Ambient To 99C
Evaporation medium:	Nitrogen
Time setting:	1 min to 90 min or indefinite
Fume Extraction:	Inbuilt vented out
Test Tube rack:	One included with main unit*

SPEEDOVAP HV NITROGEN EVAPORATOR & CONCENTRATION SYSTEM
· CE Certified

Features:

• Fast evaporation rates. Methylene chloride evaporates at a rate up to 7.3 ml/minute/tube. Water evaporates at a rate up to 1.1 ml/minute/tube.
• Microprocessor-controlled nitrogen blow down manifold introduces nitrogen to 2, 4, 6 or 8 individual sample tubes.
• Microprocessor-controlled 1000-watt dry block heating system supplies a controlled amount of heat up to 100º C.
• Microprocessor-controlled vortex motion increases surface area for faster evaporation.
• Maintenance-free, microprocessor-controlled motor provides smooth variable-speed power to drive the vortex motion up to 500 rpm.
• Epoxy-coated cast aluminum cabinet base and acrylic/PVC thermoplastic upper housing
• Glass lid
• Dual lid clamps
• Phenol-free gasket provides complete sealing.
• Unique Cool-Zone insulates sample remaining in glassware stem to permit processing to a desired end point.
• Alarm signals completion of run allowing samples to be left unattended while evaporating to desired end point.
• Up to 9 different user-set programs, each with different parameter set points, may be stored in memory. Parameters of time, heat, vortex speed and number of active nitrogen positions may be set. • Easy-to-read LCD display
• All mechanical components are isolated from the chemical fumes and vapors for longer life.
• ETL listed (115 volt models)
• CE Conformity (230 volt models)
• Full one year warranty

Rapidvap Vertex Dry Evaporator Dry Evaporator Automated Drying And Concentration System
Nitrogen Blow Down Dry Evaporators
Dry Nitrogen Evaporator
Dry Nitrogen Evaporator Microprocessor Controlled Dry Block with Adjustable Temperature and Timer for Purging Nitrogen Gas with Individually Controlled Sample Concentration Pressure Gauge for 50 Samples each of Maximum 30 ml Volume.
Nitrogen Dry Heat, Temperature, Gas Station, More Advantage LCD Display, Over Temp. Heater ON/OFF LED, Door Open Display, High Temperature Thermal Contour for Safety, Best Quality, and Best Performs are all completely microprocessor controlled.
Athena Nitrogen Evaporator - Evaporation Systems are multi-sample evaporators that quickly evaporate samples to dryness or an end point volume by combining gentle forces such as vortex motion, dry heat, and nitrogen blow down. Vertex Dry Evaporators utilise dry heat and nitrogen in the Athena Nitrogen Evaporator.
Automated Solvent Drying, Evaporation of Solvent, and Concentration of Sample
Automated Drying and Concentration System for Dry Evaporators
Blower Down Evaporator for Nitrogen (dry Type)
Prior to chromatographic examination, the Technology Dry type Concentrator System automates the drying, evaporation, and concentration of organic extracts, merging previously manual stages into a single automated procedure. Unattended operation produces better and more reliable findings by freeing up laboratory staff for other duties and removing variation in chemists' approaches. The Dry type Concentrator System can dry and concentrate samples in under 30 minutes when using the Dry type Separation Membrane option, boosting the lab's sample throughput.
Prior to GC and GC/MS analysis, the Dry Evaporator Concentrator System dries and concentrates organic extracts for use in environmental applications. The Concentrator System quickly evaporates and softly concentrates extracts down to a precise desired volume using a novel mix of vacuum, heat, and nitrogen spurge gas.
The Dry Evaporator Concentrator System removes leftover solvents from your product in a lot shorter time than conventional evaporation techniques for biopharmaceutical, pharmaceutical, and other applications. The Dry Evaporator Concentrator System precisely applies vacuum, heat, and nitrogen spurge gas to your compound, gently and predictably evaporating all remaining solvent so that you can go to the next phase right away.
Small Tabletop Model Size.
Using the most recent technologies, precise production is performed. Wika offers a high-quality pressure gauge.
Side Handles to facilitate movement
Nozzle Manifold for SS 316 tank for durability and maintenance-free
For superb appearances and to prevent rusting, use the best powder coating.
Without the need for water, dry block heating
heater for dry blocks that is 600 watts
Aluminum block with a special design for quick, consistent heating
No bacterial growth; no need for cleaning
Tank To prevent heat loss, the body gap is properly insulated with imported glass wool sheet.
LCD digital display
Auto Cutoff with Accurate Time, Temperature, and Gas Flow Sensor
the best pneumatic fittings from the Janatics Parker company
Export to Iran, Iraq, Italy, Spain, Germany, UK, USA, Canada, Brazil, Argentina, Colombia, Malaysia, Thailand, Korea, Saudi Arabia, and other countries in the region.

96 well plate Evaporator
Automated Evaporation System
Concentration Nitrogen Evaporator 96 Model: AT-EV-96 A microprocessor-controlled evaporation system called the Evaporator Workstation allows for the rapid, convenient, and unattended concentration of several samples at once. It can hold one or two deep well plates or 96-well microplates. Microprocessor-controlled evaporation device created for the unattended, automated concentration of several samples quickly and conveniently.

Specifications:

• Capacity: 2 standard 96 well microplates or deep-well plates
• Power Requirements: 220V , 50 Hz
• Dimensions: 24" X 12" x 12”
• Temperature Range: Ambient to 80°

The 96 Deep or Shallow 96 Well Plates The 96 has two separate compartments that may accommodate either 1 or 2 microliter deep well plates and regulate both electrical heating and gas flow. The smaller 400-L shallow plates can be raised to the right height using the included spacers. The volume of solvent in the plate determines the gas flow rate, and temperature values can be controlled with the aid of an evaporation guide that is provided. Since no extra maintenance is necessary, the nozzle blocks can be readily cleaned.

Key Applications Genomic and proteomic applications that require concentration of purified extracts. The evaporation of DMSO solvent in plates is very common as well as HPLC solvent mixtures of Methanol or Acetonitrile with water. The 96 complements the Zephyr SPE workstation that is widely used for drugs of abuse concentration of the eluant and other pharmaceutical SPE methods.

Key Applications Applications in genomics and proteomics that call for concentration of pure extracts As well as HPLC solvent combinations of acetonitrile or methanol with water, DMSO solvent frequently evaporates off plates. The 96 is a supplement to the Zephyr SPE workstation, which is frequently used for pharmaceutical SPE procedures and drug misuse concentration of the eluant.
96 WELL PLATE NITROGEN EVAPORATOR

• Precision Sample Concentrator by Nitrogen Purging, Nitrogen Concentrator Model: AT-EV-96. It is a newly created Sample Concentrator for pre-concentrating numerous samples in organic media. A tabletop replica. To guarantee proper evaporation, the device can be set to a constant Flow and constant Temperature.
• Additionally, the needed level for the Nozzle height can be set electronically.
• For the purpose of evaporating samples from well plates, we have introduced nitrogen evaporators. The sample from a single Standard or Deep Well plate can be evaporated using this technique.
• Through Extraction, Evaporation, and Analysis, this technology is well suited to the CRO and bioanalytical industries.

Features:

• Unattended operation for evaporation of 96 samples
• Dry heating upto 80°C
• Built-in nitrogen regulator
• LED displays for better visibility, if used under fume hood
• Observation window for accurate placing of nozzle and evaporation process
• Convenient size—no hood space required
• Exhaust open to atmosphere or within Fume Hood

Applications :

• Two separate compartments on the Nitrogen Evaporator 96 plate hold 1 or 2 mL standard or deep well plates. Temperature and gas flow are independently regulated in each compartment.
• The volume of solvent in the plate determines the gas flow rate, and temperature values can be controlled with the aid of an evaporation guide that is provided. Nozzles require little upkeep and are simple to clean.

96 Concentration Evaporator
96 Well Plate Nitrogen Evaporator
