Oil Sampling Bomb
Oil Sampling Cylinder
LPG Sampling Bottle
LPG Sampling Cylinder
Transform Oil Sample Cylinder
Athena Industrial Gases manufacturers Oil/Gas sampling bottle and are specially designed to collect and store high pressure Oil/Gas samples from the field & transport the same to laboratories. Procured from well-established manufacturers, these are made to undergo rigorous quality control tests to ensure high performance.

Features:

• Used to store oil/gas samples
• Ensure maximum integrity
• Effective corrosion resistance
• Available in different sizes and specifications
• Most competitive price

No	Containers	Make	Capacity	Filling Pressure
1	Disposable Oil/Gas Canister	Aluminum	500ml	20, 40 kgs / cm
2	Steel Sampling Bottles	S.S. 316	100ml, 250ml, 500ml	120 kg / cm
3	Cylinders	Carbon Steel Aluminum	3, 10, 47 ltrs. W/C 10 ltrs. W/C	130 kg / cm 130 kg / cm
4	Glass Ampoules	Glass	5 to 7 ml

We manufacture quality gas/oil sampling bottles. The product & the Quality has received acceptance from most of the leading industrial establishments, Top level Research Origination, Laboratories, Refineries, mines, chemical Industries, Fertilizer, pharmaceutical Enterprises.

Athena Gas/Oil Sampling Bottles are manufactured in S.S. 316/304 construction.

Each bottle is tested to hydraulic test pressure of 250 bar.

Suitable for working pressure of 150 bar.

Gas Sampling Bottle export Iraq, Iran, Oman, UAE, Dubai, Saudi Arebia, Korea, USA, Europe, Egypt, Israel, Turkey, Jordan, Kuwait, Yemen.

Features:

• Used to store gas samples
• Ensure maximum integrity
• Effective corrosion resistance
• Available in different sizes and specifications
• Most competitive price

No	Containers	Make	Capacity	Filling Pressure
1	Disposable Gas Canister	Aluminum	500ml	20, 40 kgs / cm
2	Steel Sampling Bottles	S.S. 316	100ml, 250ml, 500ml	120 kg / cm
3	Cylinders	Carbon Steel Aluminum	3, 10, 47 ltrs. W/C 10 ltrs. W/C	130 kg / cm 130 kg / cm
4	Glass Ampoules	Glass	5 to 7 ml

We manufacture quality gas sampling bottles. The product & the Quality has received acceptance from most of the leading industrial establishments, Top level Research Originations, Laboratories, Refineries, mines, chemical Industries, Fertilizer, pharmaceutical Enterprises.

Athena Gas Sampling Bottles are manufactured in S.S. 316 construction.

Each bottle is tested to hydraulic test pressure of 250 bar.

Suitable for working pressure of 150 bar.

Technical Specifications:

Model	Volume ml	Wall Thickness	Length	Outside Dia	Weight Kg	Valve Details
ATSB-25	250	5	250	48	2	¼” NPT
ATSB-50	500	5	300	55	3.5	¼”NPT
ATSB-100	1000	5	300	115	6	¼”NPT

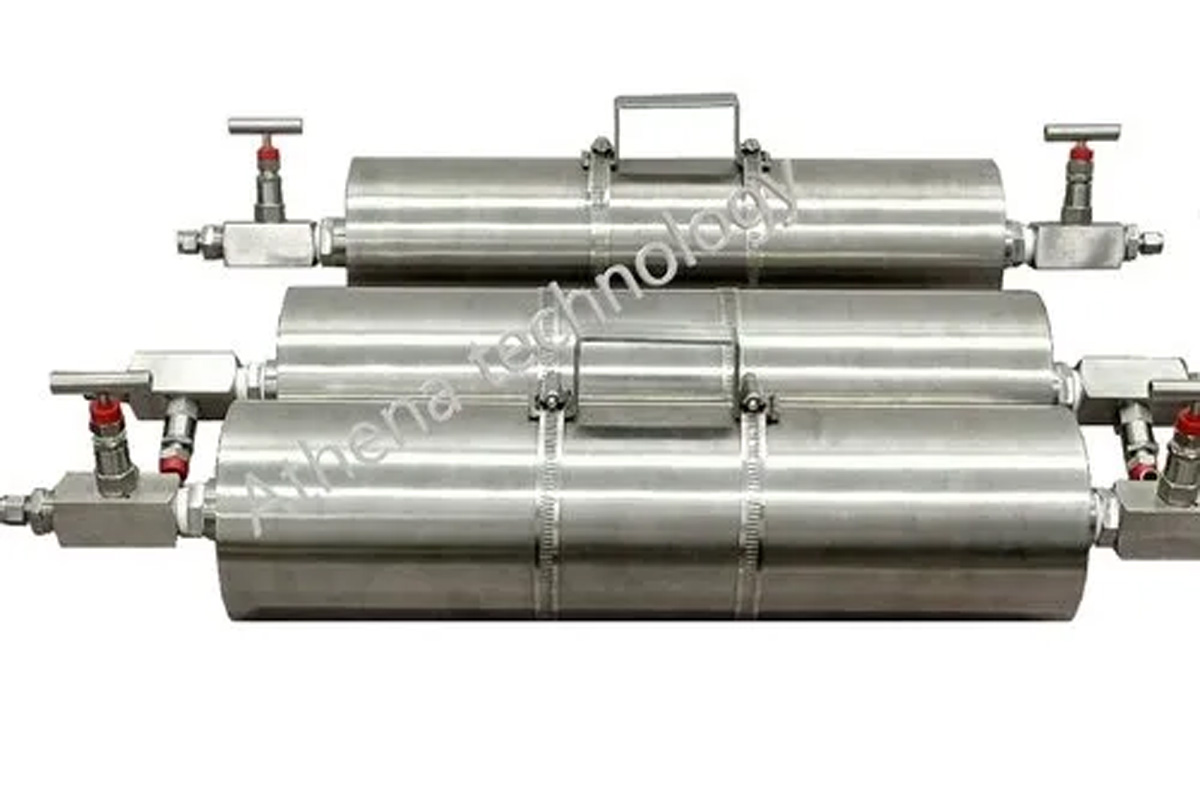

Gas Sampling Bomb
Gas sampling bottles that are specially designed to collect and store high pressure gas samples from the field & transport the same to laboratories. Superior in quality, these bottles pass through rigorous quality control tests and inspections to ensure maximum integrity and cleaning process for effective corrosion resistance.
Designed as per exact industry standards and guidelines, the gas sampling bottles are available in different sizes and specifications.
Sample Cylinder offer a way to collect pressurized samples in a transportable container. Sample Cylinders can be arranged with a wide range of options including different end connections, and valve styles.

Emission free sampling

Available with Quick Connects

All parts Stainless Steel

Custom designs available

Test Method

All samplers conform to ASTM D4057 (formerly ASTM D270), D6074 or ASTM D1265 specifications.

Features and Benefits :

Two-valve type with 20% outage tube

Built-in pressure relief valve

Conforming to ASTM D1265 and GPA 2140 specification

LPG Sample Cylinder, 150ml

LPG Sample Cylinder, 300ml

LPG Sample Cylinder, 500ml

LPG Sample Cylinder, 1000ml

LPG Sample Cylinder, 3000ml

We produce high-quality bottles for gas sampling. The majority of the top industrial institutions, Top Level Research Originations, Laboratories, Refineries, Mines, Chemical Industries, Fertilizer, and Pharmaceutical Enterprises have accepted the product and the quality.

S.S. 316 structure is used in the manufacturing of Athena Gas Sampling Bottles.

Each bottle is put through a 250 bar hydraulic test pressure.

150 bar operating pressure suitable.

Technical Specifications:

Model	Volume ml	Wall Thickness	Length	Outside Dia	Weight Kg	Valve Details
ATSB-25	250	5	250	48	2	¼” NPT
ATSB-50	500	5	300	55	3.5	¼”NPT
ATSB-100	1000	5	300	115	6	¼”NPT

Oil/Gas sampling bottles are made by Athena Industrial Gases and are specifically made to collect, store, and transport high-pressure Oil/Gas samples from the field to labs. These are purchased from reputable manufacturers and put through stringent quality control checks to guarantee good performance. We produce high-quality bottles for sample gas and oil. The majority of the top industrial institutions, Top Level Research Originations, Laboratories, Refineries, Mines, Chemical Industries, Fertilizer, and Pharmaceutical Enterprises have accepted the product and the quality.

Features:

used to keep samples of oil and gas

Consistently uphold integrity

effective resistance to corrosion

obtainable in a range of sizes and features

most affordable costs

Athena Gas/Oil Sampling Bottles are made of stainless steel 316/304.

Each bottle is put through a 250 bar hydraulic test pressure.

150 bar operating pressure suitable.

Technical Specifications

Model	Volume ml	Wall Thickness	Length	Outside Dia	Weight Kg	Valve Details
ATSB-25	250	5	250	48	2	¼” NPT
ATSB-50	500	5	300	55	3.5	¼”NPT
ATSB-100	1000	5	300	115	6	¼”NPT

Gas Sampling Bottle:

Gas sampling bottles are made by Athena Industrial Gases and are specifically made to collect, store, and transport high pressure gas samples from the field to labs. These are purchased from reputable manufacturers and put through stringent quality control checks to guarantee good performance.

TPED/DOT Compliant Sample Cylinders
Sampling Cylinders enable sample collection from distant processing locations and offer secure confinement for storage and transportation to the lab for analysis. These cylinders have a 3000 psi liquid and gas pressure rating at room temperature. Condensate sampling in fossil fuel and nuclear power plants, gas sample for chromatography, and hydrocarbon sampling in refineries are a few examples of applications. Petrochemical facilities and gas processing plants both use sample cylinders in related applications. Other frequent applications for sample cylinders include pressure surge accumulators and reaction vessels.
produced and verified cylinders that adhere to DOT regulations Material: ASTMA 269-compliant seamless cold-finished stainless steel tubing. spinning technique used to generate heads
Heat codes are traceable for raw materials. Each cylinder is traceable from production through heat treating, cleaning, and pressure testing.
For safe and secure storage and transportation of collected samples, ATHENA provides a full array of DOT (Department of Transportation) approved sample cylinders and cylinder accessories. Cylinders with spinning ends and those with constant pressure can be found in a range of diameters and valve arrangements. They are made of 316 stainless steel and are perfect for a variety of sample collecting and analysis requirements. The cylinders, which are made of double-ended seamless tubing, offer consistency in wall thickness and internal capacity.

Double LPG Sampling Cylinder/Bomb Ethane, ethylene, propane, propylene butadiene gas, and any other gas or liquid product can be sampled, transported, and stored using the products.
Gas samples can be collected at pressure using the Model BPY's sample cylinder, preventing the loss of sample components that can change state with pressure reduction. LPG or other two-phase fluids that could flash off sample components if the pressure was dropped are an example of this kind of sample.
Our selection of LPG Sampling Cylinders is well-liked by customers and is made from premium stainless steel that is obtained from reliable suppliers. These cylinders are available in a variety of sizes, styles, and shapes and were created in accordance with ASTM 1265. Additionally, the selection of cylinders we offer is available in capacities of 300, 500, 1000, 2000, 3000, and 8000 ml.

Double LPG Sample Cylinders:

• The item complies with ASTM D1265 and SH/T0233.
• which are manufactured using the spinning process to create seamless tubing with a constant thickness, size, and capacity.
• Smooth internal neck transition facilitates cleaning and removes fluid that has been retained.
• Overpressurization is prevented by rupture disc units by releasing the surplus content to the atmosphere.
• To provide a nonstick surface, the interior of the cylinder can be coated with PTFE.

Transformer Oil Sampling Bottle in SS 304
Consistent wall thickness, size, and capacity are provided by a body composed of seamless tubing.
Cleaning is made simple by the smooth internal neck transition. sizes between 10 and 3785 cm3 (1 gal).
500 psig (34 bar) to 5000 psig working pressure (344 bar).
Materials: 400 alloy, 316L, and 304L.
300cc volume double-ended Gas Sampling Cylinder blast

LPG Miniature Stainless Steel Sample Cylinder:

• Sizes ranging from 10 to 3785 cu cm (1 gal);
• Work pressures of up to 5000 psig (344 bar);
• 316/316L and 304 stainless steel
