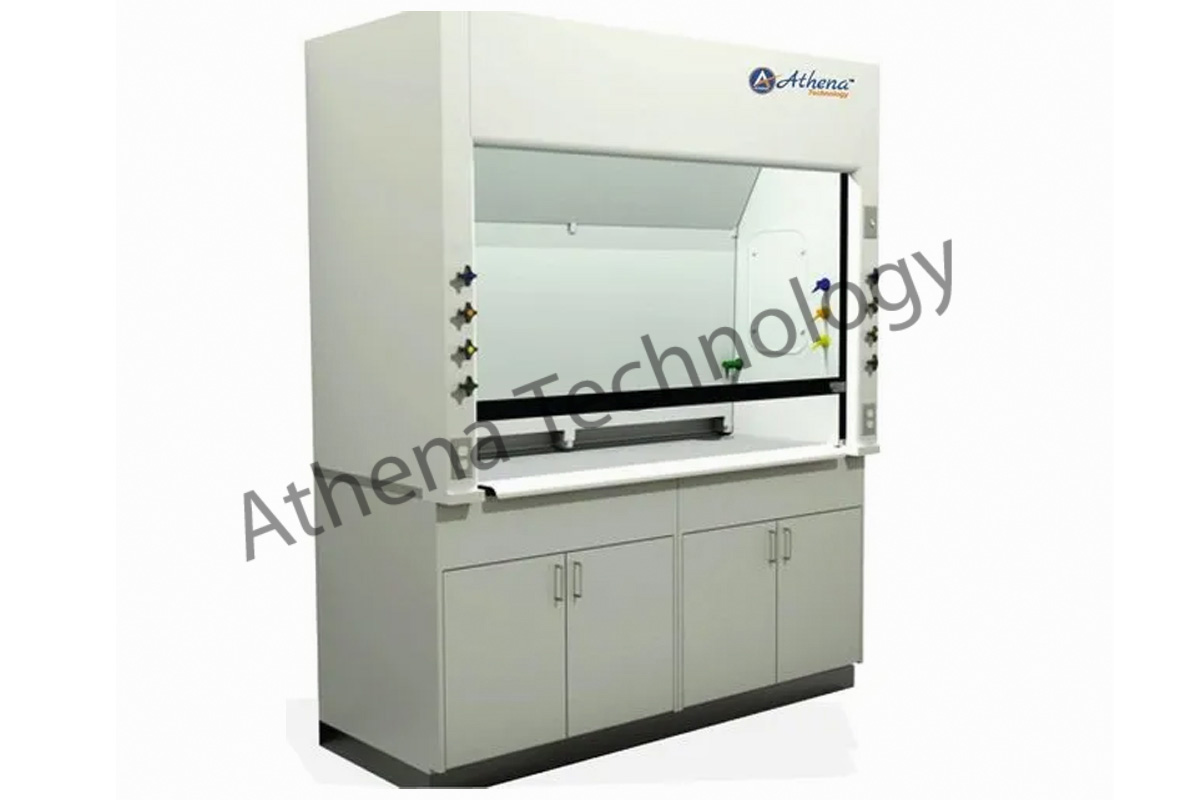

Athena Technology’s Fume Hood
Fume Hood

FUME CHAMBER:
Size: 1500mm L 900mm D 2250mm H with Under Bench Storage Design Structure : Floor Mounted Air Flow type : Auto bypass type
Construction (Exterior) :Powder coated (70-80 micron) Durable attractive grey & blue 1 mm& 1.2mm heavy duty Electroglavanised Sheet with rigid structure
Corner Post : Squared profiled corner post made of highly chemical resistance heavy duty sheet, It is place left & right hand side of the fume hood and it houses the utility line fittings & electrical recptacles.
Construction Interior : Chemical and Heat resistance fire retardant, smooth finish easily cleanable Panel made out of durable special material integral work wall.
Baffle arrangement : Interstitial 3 point suction system for Light normal & heavy fumes with baffle to ensure smooth and immediate exhaust of fumes
Airfoil : Aerodynamic Design Horizontal airfoil mounted on the worktop made of SS 316L (1.2mm) Worktop : Chemical resistant splash & spillage proof dished JET Black Granite worktop 18-20mm thick
Sink, Water tap with Drain arrangement : worktop will have oval shaped 100 mm x 200mm sink for drainage waith water tap on left side of worktop
Sash (Shutter) : Vertical rising counter -balanced sash, Toughened Float glass sash 5mm thick Smooth and light sash operation. Clear openable height = 850mm. Impact Resistance of the sash is four time igher than other sash materials Wet & Dry Service Fittings : Remotely operated colour coded Needle Valves for fine control over utilities ( as per DIN 12920 norms) total 2 L nos service valves with PU plumbing with 6mm internal dia and brass fittings for gas connection Water a
