LC-MS-MS Nitrogen Gas Generator

Introduction:

• Nitrogen Generator produces a continuous flow of high purity Nitrogen at the selected pressure.
• The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease
• Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber.
• Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity.
• During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.
• Flow range available from 10 LPM to 30 LPM and above.

Features:

• Deliver constant pressure & flow: Fully Automatic Programmable System
• Easy Maintenance and space-saving: Effortless and easy operation
• Improves instrument performance
• Fully regenerative, durability with PSA technology (pressure swing absorption)

Introduction:

• Nitrogen Gas Generator produces a continuous flow of high purity Nitrogen at the selected pressure.
• The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease.
• Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity.
• During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.
• Flow range available from 10 LPM to 30 LPM and above.

Specifications

Specifications	For LC-MS (TNG-02L)	For LC-MS-MS (TNG-02LS) (for Sciex model)
Flow rate Capacity of N2 Generator	6 to 30 LPM6 to 30 LPM (as per selection of model)	12 LPM (filtered zero air), 8 LPM ( purified dry air), 4 LPM (pure nitrogen)
Pressure	5 kg/cm² or 100 psig / 60 psig
Purity	100.00%	> 99.995%
Moisture	2 ppm	2 ppm
Total Hydro Carbon	< 0.5 ppm	< 0.5 ppm
CO & CO2	< 2 ppm	< 2 ppm
Micro Particulates	< 0.01μ	< 0.01μ
Method of purification	Pressure Swing Adsorption
Room temperature	5 °C - 45 °C
Startup time	1 hrs / programmable timer
Electrical requirements without Compressor	230 V AC, 50 Hz, 1 Ph, 2 Amp

Features

• Easy maintenance and space saving
• Effortless and easy operation
• Improves instrument performance

Salient Features:

• Deliver constant pressure & flow
• Fully Automatic Programmable System
• Easy Maintenance and space saving
• Effortless and easy operation
• Improves instrument performance
• Fully regenerative, durability with PSA (pressure swing absorption) technology

Nitrogen Generator for LC-MS / LC-MS-MS:

• Nitrogen Gas Generator produces a continuous flow of high purity Nitrogen at selected pressure.
• The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease.
• Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity.
• During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.
• Flow range available from 10 LPM to 30 LPM and above.

Specifications:

Technical Specification for N2 Generator for LCMS:
SPECIFICATIONS	For LC-MS (TNG-02L)	For LC-MS-MS (TNG-02LS) (for Sciex model)
Flow rate Capacity of N2 Generator	6 to 30 LPM (as per selection of model)	12 LPM (filtered zero air)
		8 LPM ( purified dry air)
		4 LPM (pure nitrogen)
Pressure	5 kg/cm² or 100 psig or 60 psig
Purity	99.90%	> 99.99%
Moisture	5 ppm	5 ppm
Total Hydro Carbon	< 0.5 ppm	< 0.5 ppm
CO & CO2	< 2 ppm	< 2 ppm
Micro Particulates	< 0.01μ	< 0.01μ
Method of purification	Pressure Swing Adsorption
Room temperature	5 °C - 45 °C
Startup time	1 hrs / programmable timer
Electrical requirements without Compressor	230 V AC, 50 Hz, 1 Ph, 2 Amp

Introduction:
Nitrogen Gas Generator produces a continuous flow of high purity Nitrogen at the selected pressure. The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease. Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity. During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle. Flow range available from 10 LPM to 30 LPM and above.

Technical Specifications:

Specifications	For LC-MS (TNG-02L)	For LC-MS-MS (TNG-02LS) (for Sciex model)
Flow rate Capacity of N2 Generator	6 to 30 LPM (as per selection of model)	12 LPM (filtered zero air), 8 LPM ( purified dry air), 4 LPM (pure nitrogen)
Pressure	5 kg/cm² or 100 psig or 60 psig
Purity	99.90%	> 99.99%
Moisture	5 ppm	5 ppm
Total Hydro Carbon	< 0.5 ppm	< 0.5 ppm
CO & CO2	< 2 ppm	< 2 ppm
Micro Particulates	< 0.01μ	< 0.01μ

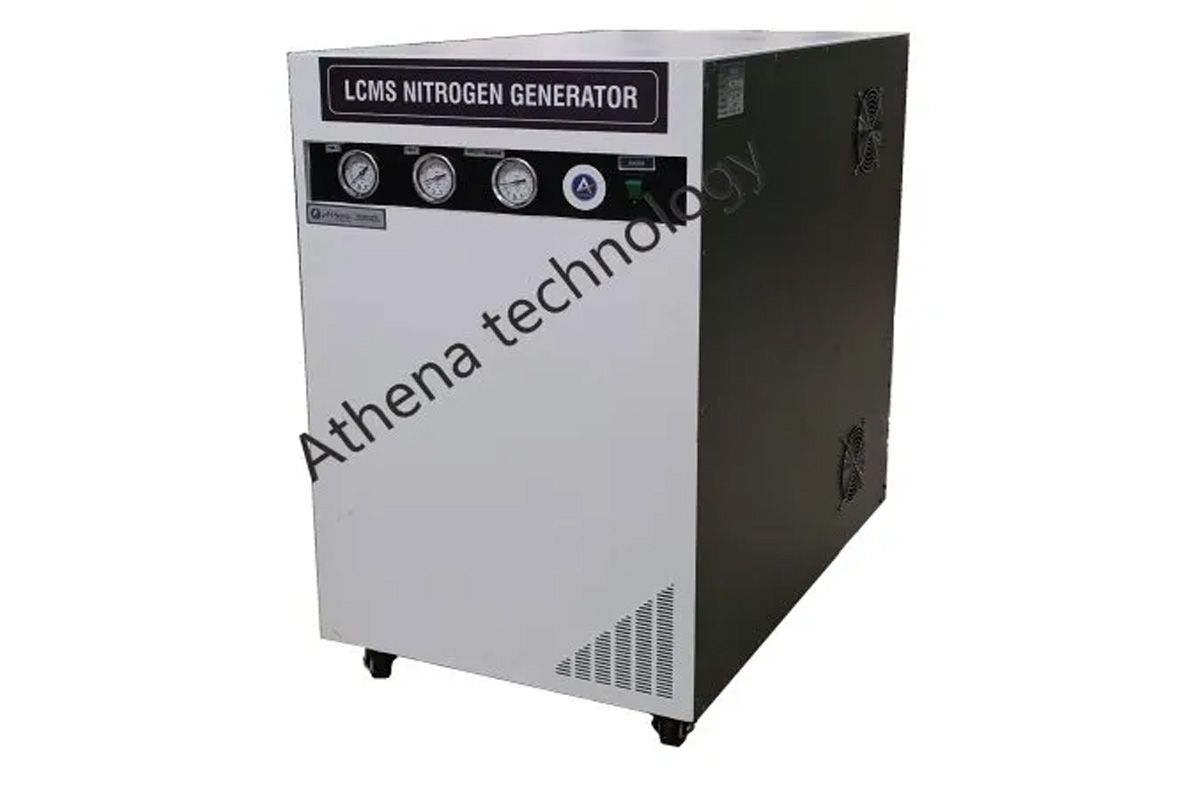

Nitrogen Generator for LCMS:
Nitrogen Gas Generator produces a continuous flow of high purity Nitrogen at the selected pressure. The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease. Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity. During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.

Technical Specifications:

Specifications	For LC-MS (TNG-02L)	For LC-MS-MS (TNG-02LS) (for Sciex model)
Flow rate Capacity of N2 Generator	6 to 30 LPM (as per selection of model)	12 LPM (filtered zero air),8 LPM ( purified dry air), 4 LPM (pure nitrogen)
Pressure	5 kg/cm² or 100 psig / 60 psig
Purity	100.00%	> 99.995%
Moisture	2 ppm	2 ppm
Total Hydro Carbon	< 0.5 ppm	< 0.5 ppm
CO & CO2	< 2 ppm	< 2 ppm
Micro Particulates	< 0.01μ	< 0.01μ

Nitrogen Generator for Waters LCMS
LCMS Nitrogen Generator for Waters LCMS

• Extensive experience producing PSA and membrane units
• All the ATHENA Group’s facilities are ISO 9001:2015 Certified
• Modular design for easy installation
• Systems designed for long-term reliability

Features:

Safe and convenient
Compact structure. Take up very little laboratory space. Nitrogen generators supply ideal ultra pure nitrogen
for ELSD, CAD Detector, FTIR , GC(Gas Chromatography), LC/MS(Liquid Chromatograph/Mass Spectroscopy) and Thermal Analyzer. Continuously generate ultra pure nitrogen through Pressure Swing Adsorption (PSA) technology.
No longer need to use inconvenient and dangerous high pressure nitrogen cylinders in laboratory.

Why Choose Athena Nitrogen Generator Units:

• Warranty 2 years
• Extensive experience producing PSA and membrane units
• All the ATHENA Group’s facilities are CE, FDA, ISO 9001:2015 Certified
• Modular design for easy installation
• Systems designed for long-term reliability

• Smallest physical footprint available
• Strategic alliance with dryer and compressor suppliers
• Extensive global service network
• ATHENA  Group has a top-rated PSA & membrane when comparing nitrogen/air ratio
• we manufacture gas generators for many specialist applications including Waterst LCMS. Our PG range of Purge Gas generators provide CO2 free gas which is ideal for Waters LCMS
• nitrogen generators which are suitable for Waters LCMSMS

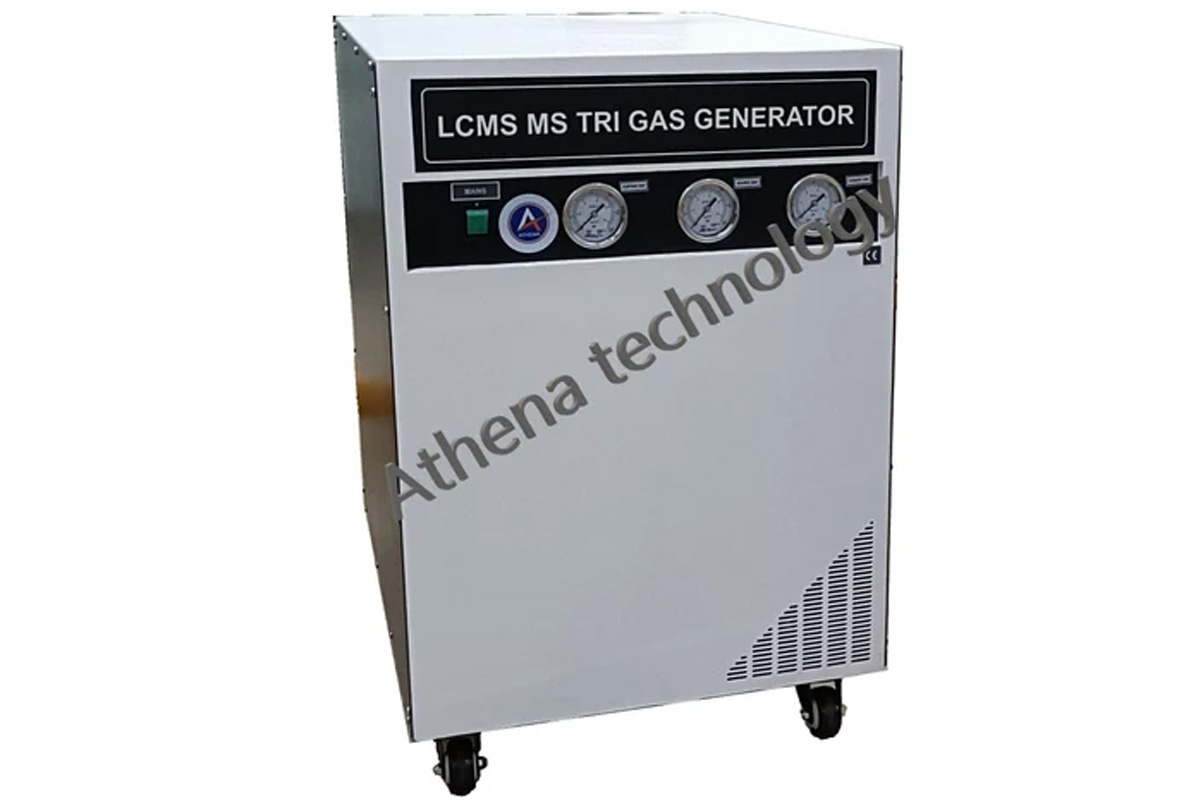

Sciex LCMSMS Nitrogen Air Gas Generator

Features

Safe and convenient
Compact structure. Take up very little laboratory space.
Nitrogen generators supply ideal ultra pure nitrogen for ELSD, CAD Detector, FTIR , GC(Gas Chromatography), LC/MS(Liquid Chromatograph/Mass Spectroscopy) and Thermal Analyzer. Continuously generate ultra pure nitrogen through Pressure Swing Adsorption (PSA) technology.
No longer need to use inconvenient and dangerous high pressure nitrogen cylinders in laboratory.

Why Choose Athena Nitrogen Generator Units:

• Warranty 2 years
• Extensive experience producing PSA and membrane units
• All the ATHENA Group’s facilities are CE, FDA, ISO 9001:2015 Certified
• Modular design for easy installation
• Systems designed for long-term reliability

• Smallest physical footprint available
• Strategic alliance with dryer and compressor suppliers
• Extensive global service network
• ATHENA  Group has a top-rated PSA & membrane when comparing nitrogen/air ratio
• we manufacture gas generators for many specialist applications including LCMS. Our PG range of Purge Gas generators provide CO2 free gas which is ideal for LCMSMS analysis
• nitrogen generators which are suitable for LCMSMS & LCMS

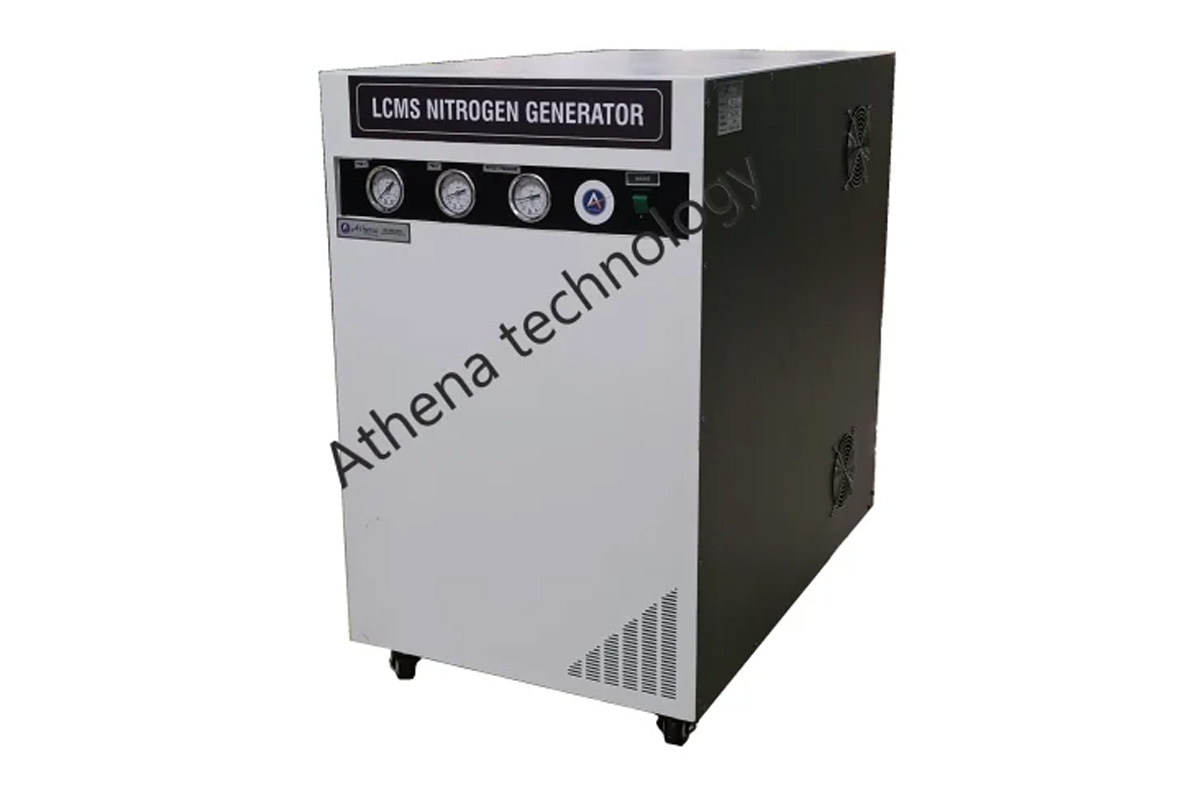

LCMS Nitrogen Generator for Agilent LCMS

• Extensive experience producing PSA and membrane units
• All the ATHENA Group’s facilities are ISO 9001:2015 Certified
• Modular design for easy installation
• Systems designed for long-term reliability

• Smallest physical footprint available
• Strategic alliance with dryer and compressor suppliers
• Extensive global service network
• ATHENA  Group has a top-rated membrane when comparing nitrogen/air ratio

Features

* Safe and convenient
* Compact structure. Take up very little laboratory space.
* Nitrogen generators supply ideal ultra pure nitrogen for ELSD, CAD Detector, FTIR , GC(Gas Chromatography), LC/MS(Liquid Chromatograph/Mass Spectroscopy) and Thermal Analyzer.
* Continuously generate ultra pure nitrogen through Pressure Swing Adsorption (PSA) technology. No longer need to use inconvenient and dangerous high pressure nitrogen cylinders in laboratory.

Why Choose Athena Nitrogen Generator Units:

• Warranty 2 years
• Extensive experience producing PSA and membrane units
• All the ATHENA Group’s facilities are CE, FDA, ISO 9001:2015 Certified
• Modular design for easy installation
• Systems designed for long-term reliability

• Smallest physical footprint available
• Strategic alliance with dryer and compressor suppliers
• Extensive global service network
• ATHENA  Group has a top-rated PSA & membrane when comparing nitrogen/air ratio
• we manufacture gas generators for many specialist applications including Agilent LCMS. Our PG range of Purge Gas generators provide CO2 free gas which is ideal for Agilent LCMS
• nitrogen generators which are suitable for Agilent LCMSMS
