Nitrogen Evaporator

Two-year warranty on the AT-EV-50 Nitrogen Concentrator/Sample Evaporator (Turbo Evaporator). Model of the nitrogen concentrator from Athena Technology. Precision Sample Concentrator by Nitrogen Purging is AT-EV-50. It is a newly created Sample Concentrator for pre-concentrating numerous samples in organic media. A tabletop replica. To guarantee proper evaporation, the device can be set to a constant Flow and constant Temperature. Additionally, the needed level for the Nozzle height can be set electronically. Water bath, temperature, a gas station, and complete microprocessor control are all advantages. High temperature Thermal Coutour for safety, LCD display, over temperature heater ON/OFF LED, door open display, and finest quality and performance.

Product Specifications:

Vortex Shearing Concentration· ASE (Dionex) Compatible upgrade Kit (For I-Chem vial 40mL, 60mL)

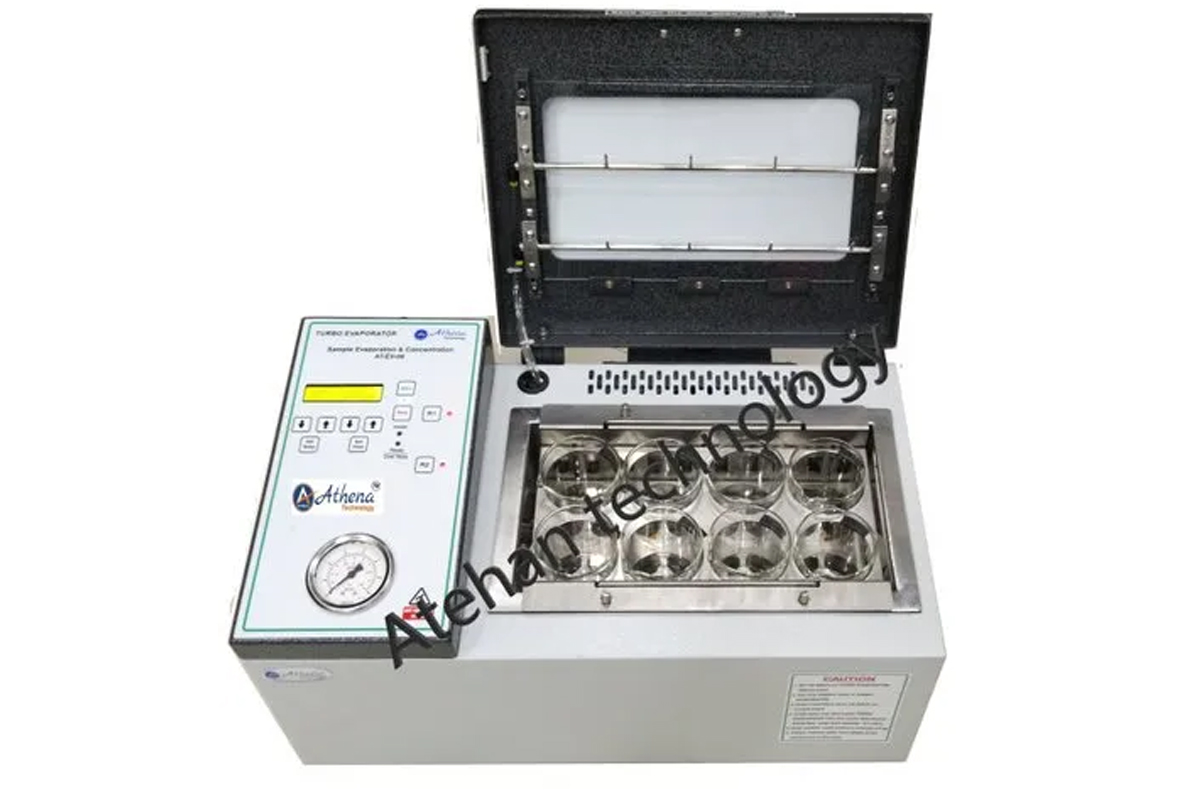

High Volume Nitrogen Evaporator

This evaporator is used for a variety of purposes, including the analysis of food and drink, clinical samples, environmental samples, forensic and crime samples, pharmaceutical biotech chemicals, and other samples. This evaporator is skillfully made under the strict supervision of our nimble engineers using quality assured components and cutting-edge technology in accordance with established industry standards.

Features

• Optimum functionality
• Maintenance free
• Precisely designed

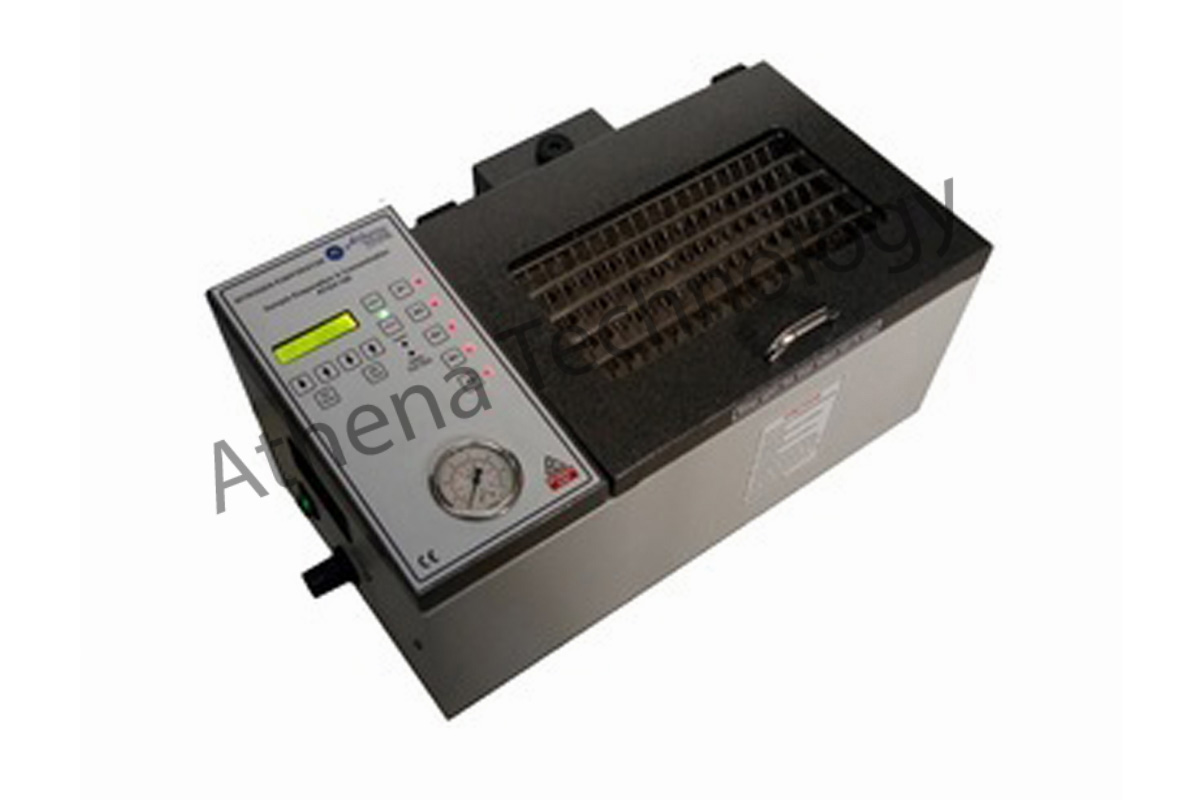

100 Sample Nitrogen Evaporator
Nitrogen Evaporator 100 Position
Warraty : 2 years
We can offer a premium selection of 100 Position Nitrogen Evaporators thanks to our extensive knowledge and industry experience. This automated, high-speed, low-volume sample concentrator is an evaporator. It is especially made for large batches and tiny sample sizes. For sample quantities ranging from 1 ml to 12 ml, it works well. We produce this evaporator in accordance with established industry standards and norms utilising top-tier components and cutting-edge technique.

Features

• Anti-corrosive body
• Minimum maintenance
• High performance

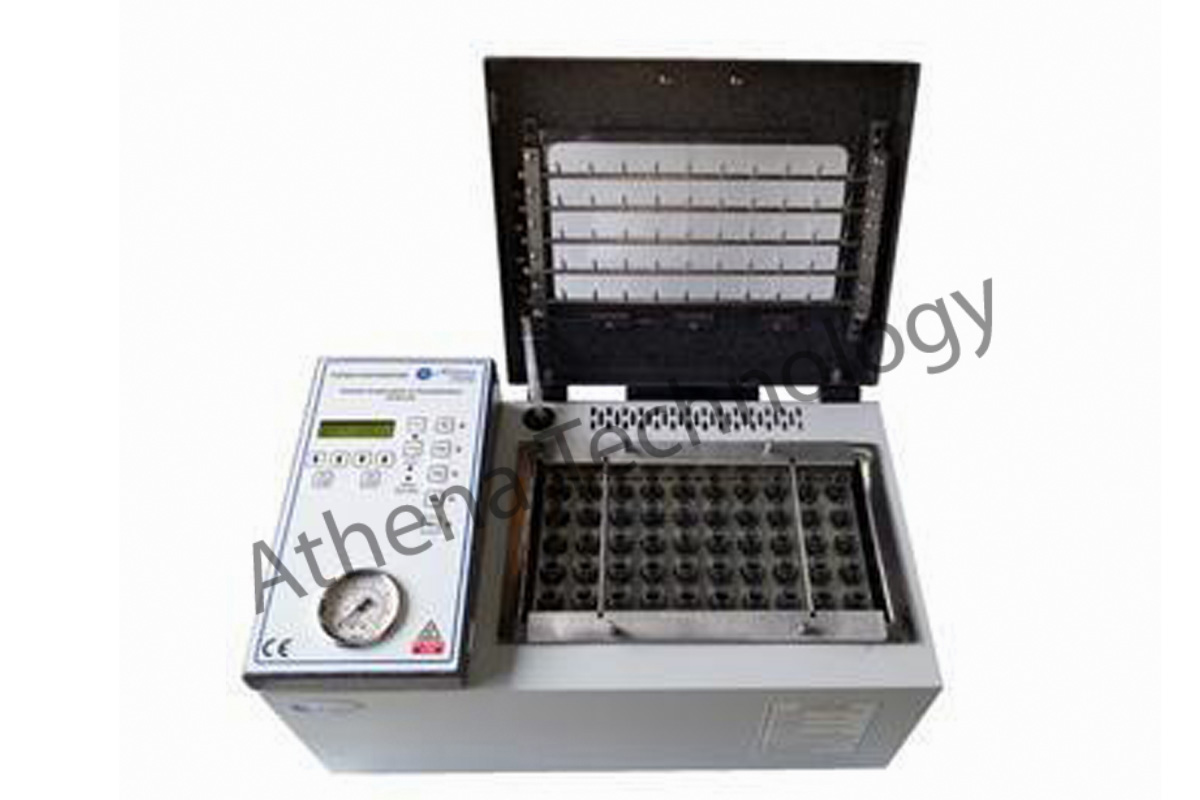

Nitrogen Evaporator
Nitrogen Concentrator
Sample Concentrator · CE Certified
Warranty : 2 years
AT-EV-50
Samples : -50 sample evaporator
Athena Technology N2 Concentrator Used in Bio analytical Labs - the features and specifications are as follows:

• Compact Size Table top Model.
• The gap between tank & Body well insulated with imported Glass wool Sheet
• Water Jet Cutting & CNC fabrication.
• Best Quality powder coated.
• Digital Display.
• Specially Designed Silicon self-Adhesive Heater fitted at the bottom side of the water tank .
• Auto Cut off Sensor for process Timer , Heating & gas
• Pneumatic Fitting Janatics & Parker Make are using.
• Pressure Gauge Wika Make.
• Side Handles for easy to carry.
• Water tank , Test tube Rack & Nozzle Manifold Make SS 316
• Well efficient & adjustable ventilation.
• Technology : Vortex Sharing Technology
• Display: LCD Digital Display for TIME & TEMP
• Controlled: Fully Microprocessor based
• Sample capacity : 50 Nos. Gas Line: 5 Nos
• Auto Cut off Sensor for process Timer , Heating & gas.
• Time Range : 15 sec to 10 hrs
• Temperature range: Ambient to 99°C (thermal cutout for safety)
• Temperature set-up / down arrow keys (1°C)
• Start/stop: Green LED indication when process is On
• Gas stations: 5 Nos. with LED indication
• Gas Pressure range: 0 to 100 PSI (approximate)
• Water tank capacity: 6.5 Ltr. (Not over flow)
• Power supply: 230 V AC / 3Amp
• Error indication: LED indication with Buzzer
• Certifications : ISO 9001 : 2008 & CE Certified
• Gas stations : 5 Nos. with LED indication, gas can be turn on each of independent manifolds when working with samples
• Heater : Internal heaters, adjustable from ambient to 99°C
• Speedovap Hv Nitrogen Evaporator & Concentration System
• The ATHENA AT-EV-50 / 08 / 24 / 100 Special Features include: • High Quality Pressure Gauge from Wika. • Side Handles for easy movement. • SS 316 tank & Nozzle Manifold for durability and maintenance free. • Best Quality powder coating for great looks & to avoid rusting. • Silicon Heater with SS316 Water bath Tank system. • Specially Designed for fast & uniform heating. • Tank & Body gap is well insulated with imported Glasswool Sheet to prevent heat loss. • Precise manufacturing using latest technology. WaterJet Cutting • 2 mtr 1.5?ID Polyethylene Exhaust Hose for Easy Ventilation • 5 Nitrogen Control valves with ON/OFF Switches • 50 nitrogen-dispensing nozzle in five horizontal rows • Best quality Pneumatic Fitting from Janatics and Parker operation • Efficient & Adjustable Ventilation with Built-in Exhaustfan with Blower

Nitrogen Evaporator Concentrator
Sample Concentrator · CE Certified
Solvent Evaporator for Seafood lab
Nitrogen Evaporator for Fishries Indurties
In order to prepare samples for examination, nitrogen evaporators are employed. Nitrogen evaporators are used to dry and concentrate samples in a variety of industries, including food, biotechnology, analytical chemistry, petroleum, and environmental sciences, in order to subject them to tests like mass spectrometry, gas chromatography, and high performance liquid chromatography (HPLC).
Primary purpose:
Nitrogen sample concentrator is used for sample preparation for HPLC, LCMS techniques. A sample concentrator is a fast and convenient way of concentrating multiple samples at once. Utilizing a simple gas delivery system the sample concentrator passes an inert/ N2 gas over the surface to samples via stainless steel needles. This in combination with the heat from the N2 gas puring below produces ideal conditions for fast, efficient evaporation. Specifications:

• Time Range : 15 sec to 5 hrs
• Temperature range: Ambient to 99°C (thermal cutout for safety)
• Start/stop: Green LED indication when process is On
• Display: LCD (Digital)
• Gas stations: 5 Nos. with LED indication
• Gas regulator range: 0 to 100 PSI (approximate)
• Pressure gauge range: 0 to 100 PSI
• Sample capacity : 24 Nos. Gas Line: 3 Nos
• Water tank capacity: 6.5 Ltr. (Not over flow)
• Power supply: 230 V AC / 3Amp
• Error indication: LED indication with Buzzer

Technical Specification:

Time Range	15 secs to 10 hours
Material of construction	Aluminum with powder coating and SS 316 for tank, Rack
Rack Size	12mm/15mm/16mm/18mm/20mm
Water tank capacity	6.5 liters
Inlet	8mm push fit connector
Pressure	30 LPM per row at 15psi (approx)
N2 Flow requirement	150 ltr / min
Max. operating temperature	Ambient to 99’C
Size (Dimensions)	H = 25cm, W = 35cm, L = 55cm
Weight	15kg (empty tank)
Connection	220V, 2Amp
No. of Test-tubes	50 Nos.
Power supply	230 VAC/ 3Amp
Control	Fully microprocessor based.

N2 Evaporator for sea food testing
Nitrogen Evaporator Seafood Lab
Nitrogen Evaporator for Fishries
Digital Display
CE Marking
The ATHENA AT-EV-50 / 08 / 24 / 100 Special Features include: • High Quality Pressure Gauge from Wika. • Side Handles for easy movement. • SS 316 tank & Nozzle Manifold for durability and maintenance free. • Best Quality powder coating for great looks & to avoid rusting. • Silicon Heater with SS316 Water bath Tank system. • Specially Designed for fast & uniform heating. • Tank & Body gap is well insulated with imported Glasswool Sheet to prevent heat loss. • Precise manufacturing using latest technology. WaterJet Cutting • 2 mtr 1.5?ID Polyethylene Exhaust Hose for Easy Ventilation • 5 Nitrogen Control valves with ON/OFF Switches • 50 nitrogen-dispensing nozzle in five horizontal rows • Best quality Pneumatic Fitting from Janatics and Parker operation • Efficient & Adjustable Ventilation with Built-in Exhaustfan with Blower Polyethylene exhaust hose with a 2 mtr. 1.5?ID for simple ventilation 50 nitrogen-dispensing nozzles in five rows of five, five ON/OFF switches, and five nitrogen control valves with ON/OFF switches. • Automated Solvent Evaporation and Drying

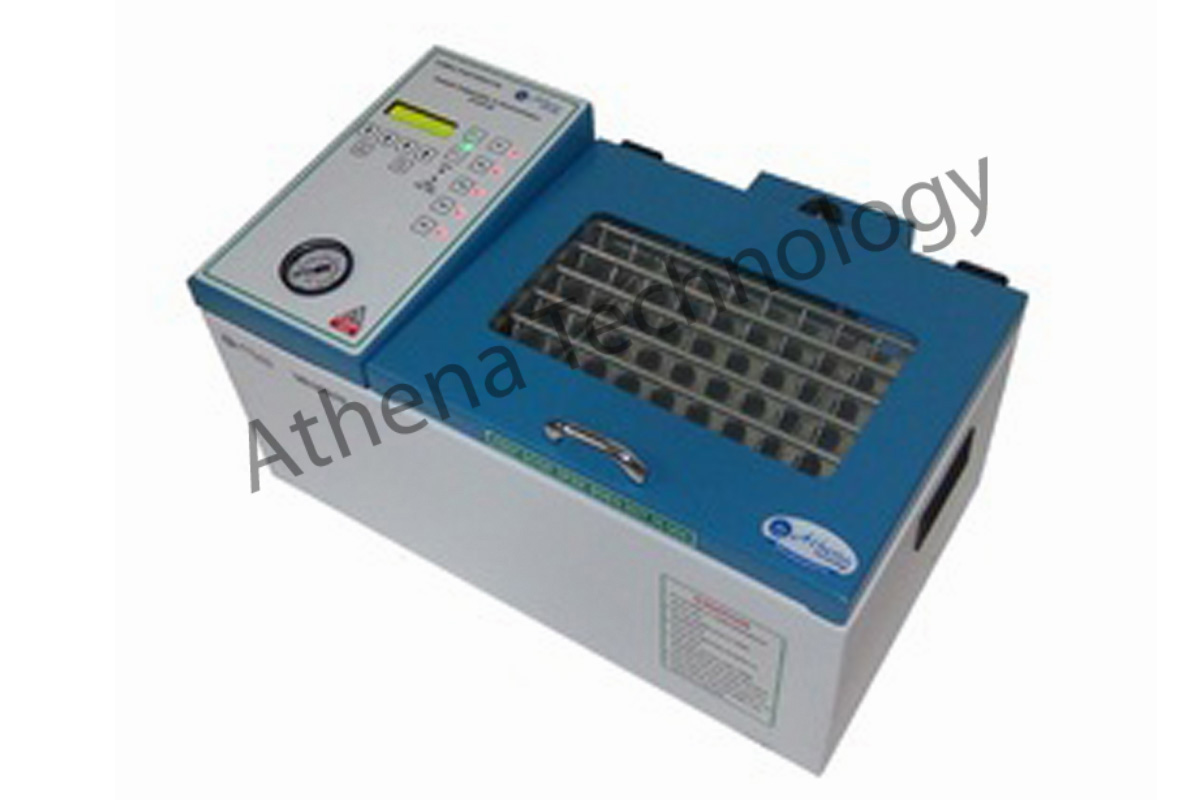

Turbovap Evaporator
Sample Evaporator

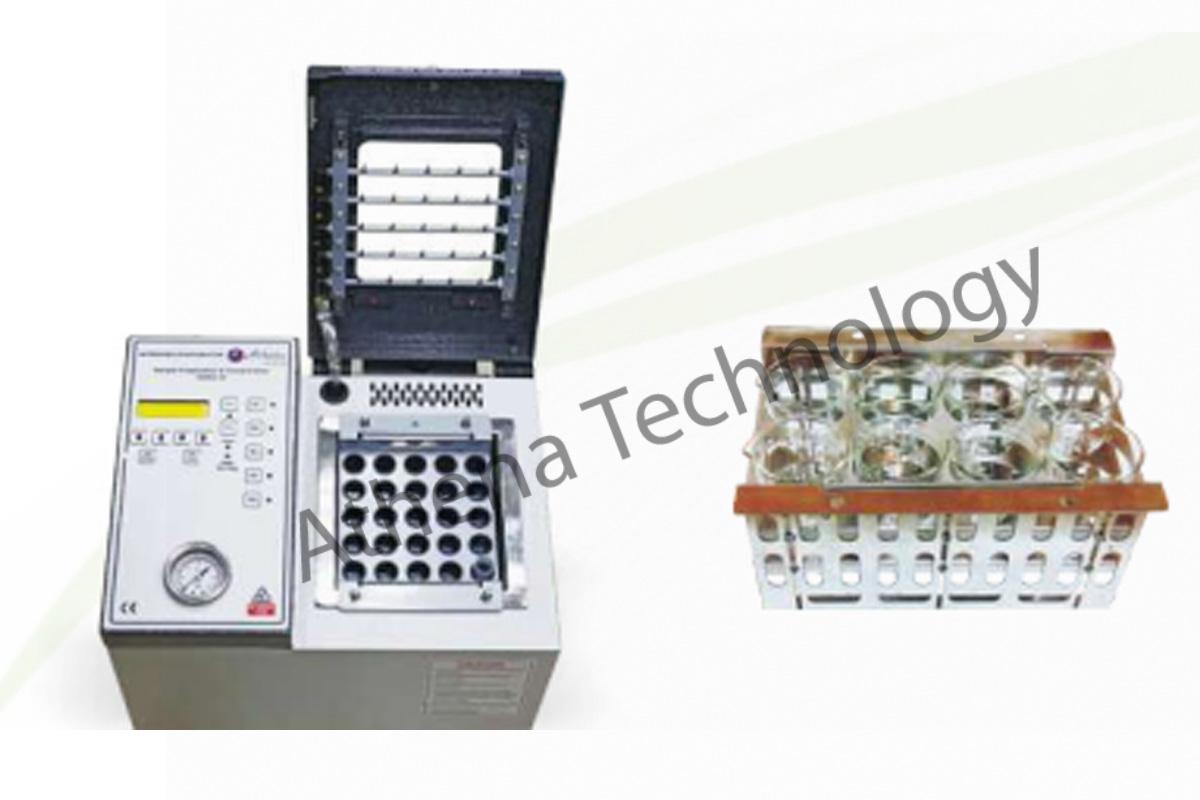

Athena Nitrogen Concentrator
Warranty : 2 years
Used in Bio analytical Labs - the features and specifications are as follows:
·Vortex Shearing Concentration
· ASE (Dionex) Compatible upgrade Kit (For I-Chem vial 40mL, 60mL)
* Digital LCD Display
Automated Evaporation Concentrator An effective automatic system for sample concentration after organic solvent extraction. Quick and economical concentration achieved with effective gas inlet control A specially created nozzle produces a semi-helical air/gas flow to increase surface area, which speeds up concentration. Gas introduction is controlled in two steps. For the gas inlet, there are 5 different timer options. Up to 50 samples can be concentrated simultaneously under 5 different circumstances (5 x 10) There are numerous racks available for sample containers of all sizes.

Athena Evaporator special Features :

• Compact Size Table top Model.
• The gap between tank & Body well insulated with imported Glass wool Sheet.
• Water Jet Cutting & CNC fabrication.
• Best Quality powder coated.
• Digital Display.
• Specially Designed Silicon self-Adhesive Heater fitted at the bottom side of the water tank .
• Auto Cut off Sensor for process Timer , Heating & gas.
• Pneumatic Fitting Janatics & Parker Make are using.
• Pressure Gauge Wika Make
• Side Handles for easy to carry.
• Water tank , Test tube Rack & Nozzle Manifold Make SS 316
• Well efficient & adjustable ventilation.
• Gas Path Transparent Non Breakable Tubing.
• CE Certified

Technical Specification:

Max No Of Sample:	50
Maximum No Of sample per station:	10
Sample Volume:	1 - 30 ml
Bath Temperature:	Ambient To 99C
Evaporation Medium:	Nitrogen
Time Setting:	1 min to 90 min or indefinite
Test Tube rack:	One included with main unit*

Each Rack can accommodate any one test tube size Other Details:

SpeedoVap, Hypervap

Control:	Microprocessor
Temp & Time Display:	LCD Digital
Tank & Rack Material:	SS316
Supplied With:	IQ/OQ/PQ Documents
Rating:	230 Volts,650 Watts

Export : Nigeria, Ethiopia, Slovakia, France, Germany, UK, USA, Canada, Mexico, Singapore, Bangladesh, Srilanka, Israel, Egypt, Jordan, Iran, Iraq

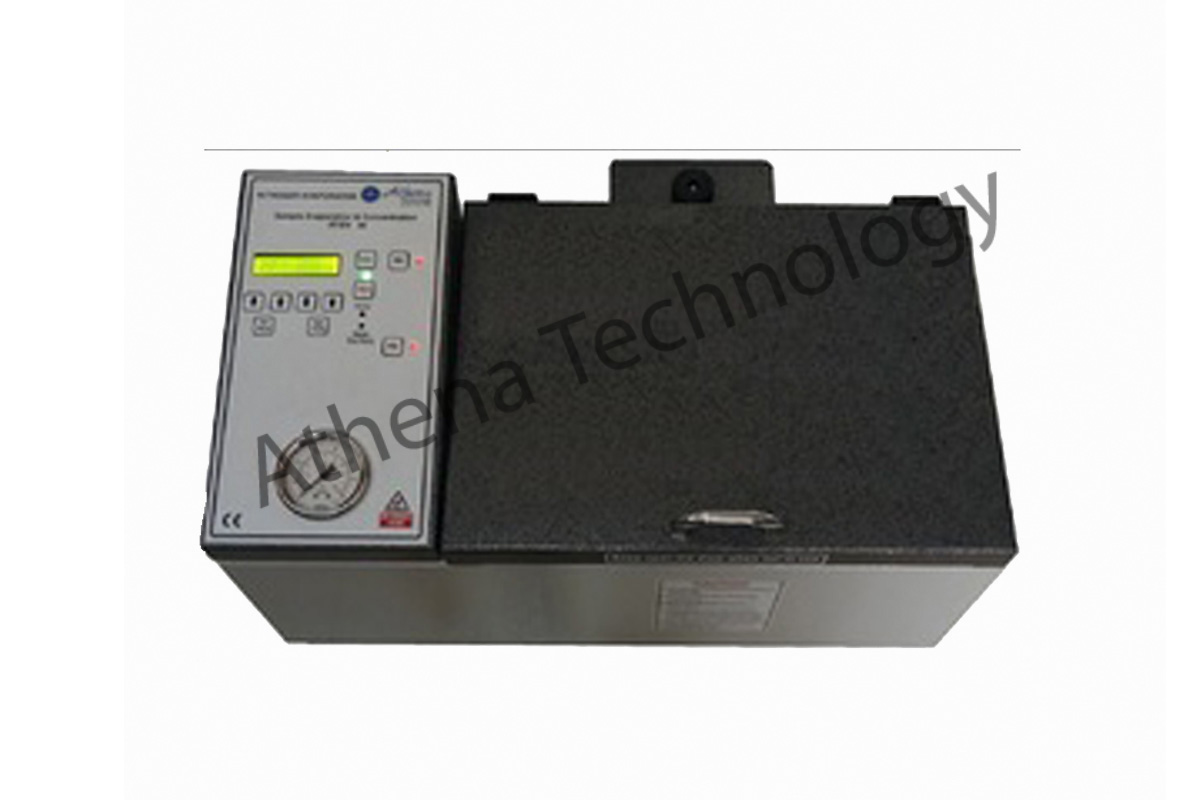

96 Well Plate Nitrogen Evaporator
Used in Bio analytical Labs - the features and specifications are as follows:

Max No Of Sample:	96
Max sample volume:	Standard Well Plate specs
Number of Stations:	1
Number of wellplates:	1
Evaporation medium:	Nitrogen
Time setting:	1 min to 10 hrs
Fume Extraction:	Inbuilt vented out

Control:	Microprocessor
Temp & Time Display:	LED / LCD
Supplied With:	Manual/IQ/OQ/PQ Doc
Rating:	230 Volts 600W
Dimensions:	21" X 14" 11"

Sample Concentrator
Sample Evaporator (Turbovap) Precision Sample Concentrator by Nitrogen Purging, Nitrogen Concentrator Model: AT-EV-50. It is a newly created Sample Concentrator for pre-concentrating numerous samples in organic media. A tabletop replica. To guarantee proper evaporation, the device can be set to a constant Flow and constant Temperature. Additionally, the needed level for the Nozzle height can be set electronically. It has an entirely microprocessor-controlled water bath, temperature, gas station, more advantageous LCD display, temperature heater ON/OFF LED, door open display, and high temperature Thermal Coutour for safety, best quality, and best performance.
Certificate : CE & ISO 9001:2008

Product Specifications:

• Vortex Shearing Concentration
• ASE (Dionex) Compatible upgrade Kit (For I-Chem vial 40mL, 60mL)
• Time Range: 15 sec to 10 hours
• Time Set-up / down arrow keys (15 sec increments)
• Temperature range: Ambient to 99°C (thermal cutout for safety)
• Temperature set-up / down arrow keys (1°C increment)
• Start/stop: Green LED indication when process is On )
• Display: LCD (Digital
• Gas stations: 2 Nos. with LED indication
• Gas regulator range: 0 to 100 PSI (approximate)
• Pressure gauge range: 0 to 100 PSI
• Controlled: Fully Microprocessor based
• Sample capacity: 50 Nos.
• Gas Line: 5 Nos.
• Water tank capacity: 6.5 Ltr. (Not over flow)
• Dimensions: 30cm(H) x 40cm(W) x 55cm(L)
• Weight:20 Kgs (empty tank)
• Colour:Grey
• Exhaust: No fume hood required
• Power supply: 230 V AC / 3Amp
• Error indication: LED indication with Buzzer

Technical Specifications:

• Space requirements: Table top or fume hood with minimum dimension L, W & H (cms) 70 x 50 x 65 table weight capacity 35 kg minimum requirement
• Work area: Flat, level, stable, surface
• Power supply: 230 AC/5amp single phase stable & well grounded
• Gas supply: Laboratory grade nitrogen
• Inlet pressure: 60 PSI minimum, 100 PSI maximum (And ON/OFF control valve)
• Exhaust: Exhaust duct outlet or fume hood - the exhaust duct must go to outside the lab.
• Water bath capacity: 6.5 Ltr. distilled water (6.5 Ltr. do not over flow)
• export to Russia, Greece, USA, UK, Europe

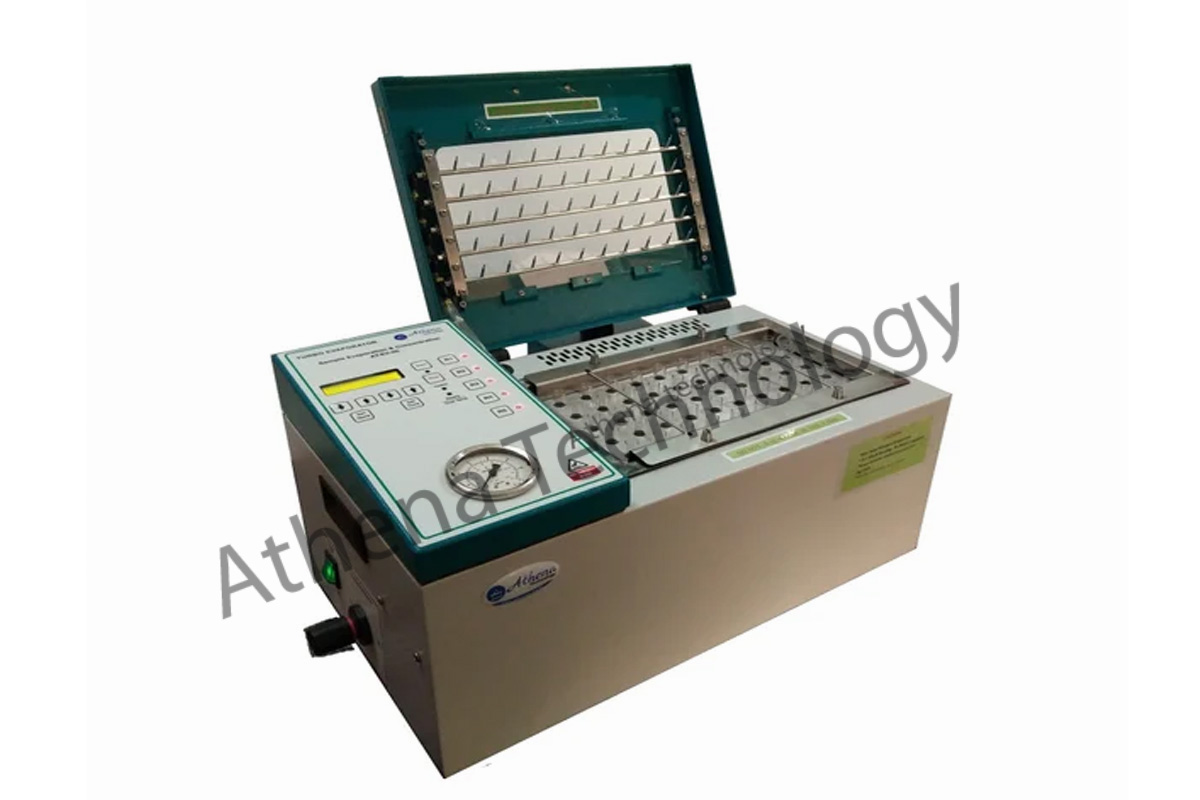

Dry Evaporator Automated Drying And Concentration System

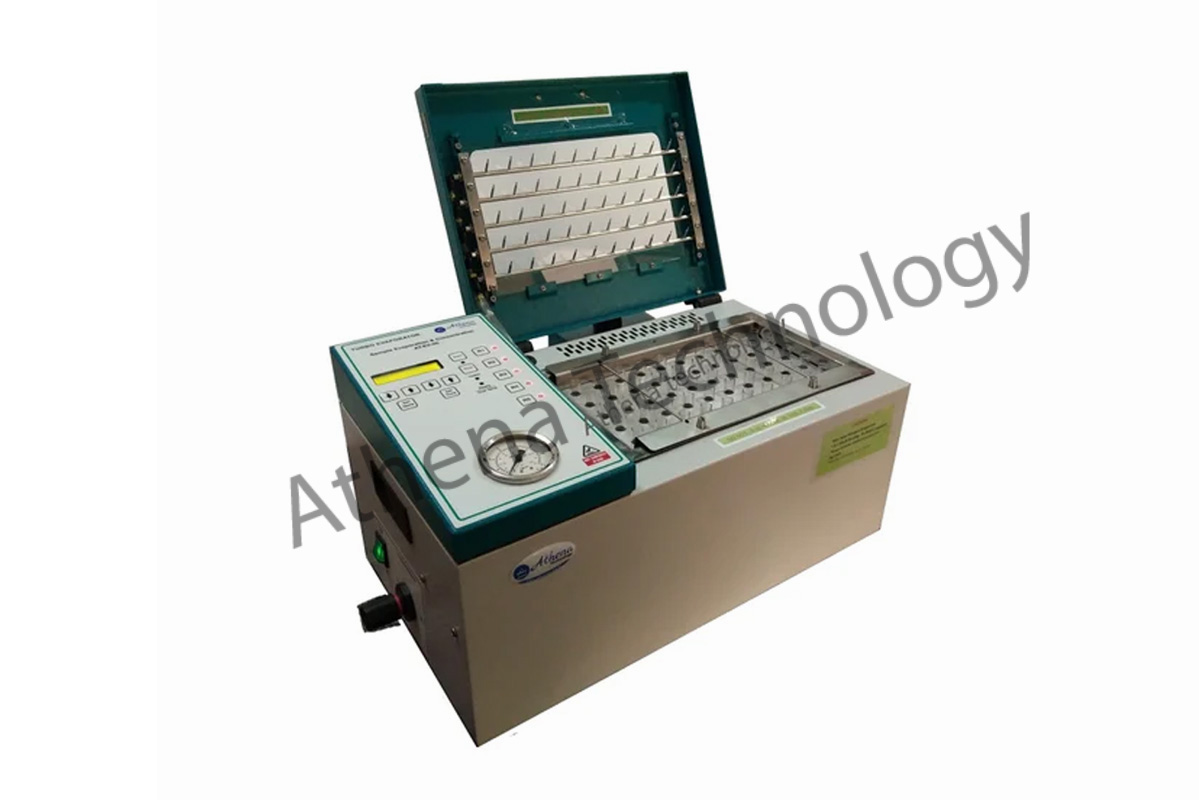

Dry Type Solvent Evaporator
Dryvap
Model of the Turbovap Evaporator: AT-EV-50D Nitrogen Dry Heat, Temperature, Gas Station, More Advantage LCD Display, Over Temp. Heater ON/OFF LED, Door Open Display, High Temperature Thermal Contour for Safety, Best Quality, and Best Performs are all completely microprocessor controlled. Athena Nitrogen Evaporator - Evaporation Systems are multi-sample evaporators that quickly evaporate samples to dryness or an end point volume by combining gentle forces such as vortex motion, dry heat, and nitrogen blow down. The Athena Nitrogen Evaporator Vertex Dry Evaporators accelerate the evaporation of up to 50 tiny samples at once using dry heat and nitrogen blow down. Dry block heaters have fewer maintenance requirements than water bath heaters, don't use distilled water or other additives, and don't introduce any potential sources of contamination.
Product Specifications:
Small Tabletop Model Size.
Using the most recent technologies, precise production is performed.
Wika offers a high-quality pressure gauge.
Side Handles to facilitate movement
Stainless steel 316 tank and nozzle manifold for longevity and maintenance-free
Best Quality powder coating for stunning appearance and to prevent corrosion
Dry Block Heating, 600 watt dry block heating system, no water needed.
Aluminum block with a special design for quick and even heating No bacterial growth; no need for cleaning
To prevent heat loss, the tank and body gap is properly insulated with imported glass wool sheet.
Time, temperature, and gas flow accuracy sensors on a digital LCD display with auto-off
Best quality pneumatic fitting from the operation of Janatics & Parker
effective and flexible ventilation integrated exhaust fan and blower
2mtr 1.5 ″ID Exhaust hose made of polyethylene for simple ventilation
Snap fitting 8mm OD, 4mm Flexible Transparent Gas Path Tubing Flexible polyethylene tubes for supplying nitrogen
5 switches for controlling the flow of nitrogen
fifty nitrogen-dispensing nozzles arranged in five rows of 50
Self luminous Power Switch (ON/OFF)
Automated Sample Concentration, Solvent Drying, and Solvent Evaporation
Evaporation Medium: dry heat and nitrogen (using block)
quickly evaporating
Vortex motion that is microprocessor-controlled enhances surface area for quicker evaporation.
Smooth variable-speed power is provided to drive the vortex motion by a maintenance-free, microprocessor-controlled motor.
Audible alarm with automatic shut down for timed end point
Audible/visual alarm for end point detected by temperature sensors at heater and block.
All mechanical components are isolated from the chemical fumes and vapors for longer life.
Time Range: 15 sec to 10 hours
Time Set-up / down arrow keys (15 sec increments)
Temperature range: Ambient to 100 ºC (thermal cutout for safety)
Temperature set-up / down arrow keys (1 °C increment)
Start/stop : Green LED indication when process is On
Gas stations : 5 Nos. with LED indication
Gas regulator range : 0 to 100 PSI (approx)
Pressure gauge range : 0 to 100 PSI
Controlled : Fully Microprocessor based
Sample capacity : 50 Nos
Gas Line : 5 Nos.
Dimensions : 30cm(H) x 40cm(W) x 55cm(L)
Weight : 30 Kgs
Power supply : 230 V AC / 3Amp 50 Hzs
Error indication : LED indication with Buzzer
Easy ON/OFF switches to turn Nitrogen Flow on or off to the nozzle above the sample vials
Horizon Evaporator, Xcelvap, Turbovap, Biovap, Labconco evap

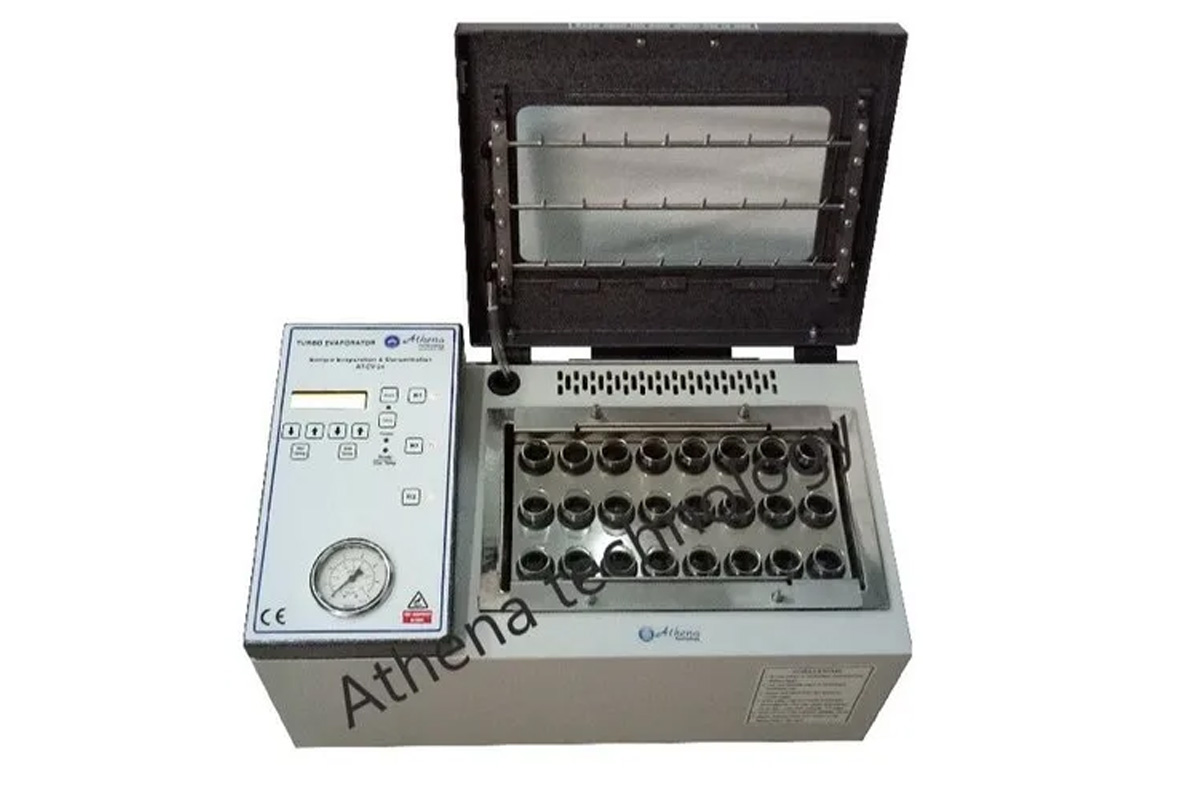

Automated Evaporation System
Athena Technology N2 Concentrator Used in Bio analytical Labs - the features and specifications are as follows:

Small Size Model for a table.
With imported Glass wool Sheet, the space between the tank and the body is properly insulated.
CAD/CAM fabrication and water jet cutting.
Top-notch powder coated.
Electronic display.
A specially designed silicon self-adhesive heater is installed on the water tank's bottom side.
Auto-cutoff sensor for heating, gas, and process timer.
Janatics & Parker Make use pneumatic fitting.
Pressure gauge made by Wika.
Side Handles for easy to carry.
Water tank , Test tube Rack & Nozzle Manifold Make SS 316
Well efficient & adjustable ventilation.
Gas Path Transparent Non Breakable Tubing.
Technology : Vortex Sharing Technology
Display: LCD Digital Display for TIME & TEMP
Controlled: Fully Microprocessor based
Sample capacity : 50 Nos. Gas Line: 5 Nos.
Auto Cut off Sensor for process Timer , Heating & gas.
Time Range : 15 sec to 10 hrs
Temperature range: Ambient to 99°C (thermal cutout for safety)
Temperature set-up / down arrow keys (1°C)
Start/stop: Green LED indication when process is On
Gas stations: 5 Nos. with LED indication
Gas Pressure range: 0 to 100 PSI (approximate)
Water tank capacity: 6.5 Ltr. (Not over flow)
Power supply: 230 V AC / 3Amp
Error indication: LED indication with Buzzer
Certifications :ISO 9001 : 2008 & CE Certified
Gas stations : 5 Nos. with LED indication, gas can be turn on each of independent manifolds when working with samples
Heater : Internal heaters, adjustable from ambient to 99°C Speedovap Hv Nitrogen Evaporator & Concentration System

ATHENA Special Features of AT-EV-50 / 08 / 24 / 100:

• Precise manufacturing using latest technology -WaterJet Cutting & CNC fabrication
• High Quality Pressure Gauge from Wika.
• Side Handles for easy movement
• SS 316 tank & Nozzle Manifold for durability and maintenance free
• Best Quality powder coating for great looks & to avoid rusting
• Silicon Heater with SS316 Water bath Tank system
• Specially Designed for fast & uniform heating
• Tank & Body gap is well insulated with imported Glasswool Sheet to avoid heat loss.
• Digital LCD Display
• Auto Cut off with precision sensor for Time,temperature & gas flow
• Best quality Pneumatic Fitting from Janatics & Parkeroperation
• Efficient & adjustable ventilation with Built-in exhaust fan with blower
• 2mtr 1.5 ?ID Polyethylene Exhaust hose for easy ventilation
• 5 Nitrogen Control valves with ON/OFF Switches
• 50 nitrogen –dispending nozzle in five horizontal rows
• Self glowing Power ON /OFF Switch
• Automated Solvent Drying, Solvent Evaporation

Nitrogen Evaporator (AT-EV-144)
Compatible of 144 SPE Rack

It is fully automatic microprocessor controlled and waterbath, temp., gas station, more advantage LCD digital display
• Temperature RT - 99 °C• 144 positions with userselectable racks forgreater flexibility• 1 ml - 5 ml volume• The SPE plasma wastecollected in 144 Tube andsame rack fit to 144Nitrogen Evaporator toevaporator the same.
• Positive Pressure SPE 144 12 x 75mm tube5 ml collection rack compatible.SPE-144 • SPE 144 ria vial 4ml collection rack can fit to144 Nitrogen Evaporator• Mostly used in Bio Analytical lab

Nitrogen Blow-Down Dry Evaporators

Features:

• Best Quality powder coating for great looks & to avoid rusting
• Dry Block Heating , No Water required
• 600 watt dry block heating system
• Specially Designed Aluminum block for fast & uniform heating
• No Bacterial fungal Growth, No cleaning required
• Tank & Body gap is well insulated with imported Glass wool Sheet to avoid heat loss.
• Digital LCD Display
• Auto Cut off with precision sensor for Time, temperature & gas flow
• Best quality Pneumatic Fitting from Janatics & Parker operation
• Export to Egypt, Saudi Arebia, Iran, Iraq, Italy, Spain, Germany, UK, USA, Canada, Brazil, Argentina, Colombia, Malaysia, THailand, Korea, Kenya, Nigeria, Poland, Greece, Turkey, Africa, Russia, UAE, Dubai, Yemen, Israel, Slovakia, Hungry
