Minimum Order Quantity	1 Piece
Automatic Grade	Automatic
Capacity	0-500 ml/min
Power (W)	200
Fluid Tank Capacity (l)	2
Voltage (V)	230V
Model Number	ATH-300
Temperature (deg. Celsius)	5-45C
Frequency (Hz)	50
Condition	New
Output Flow (%)	99.999
Gas Type	Hydrogen
Hydrogen Purity	99.999
Dew Point (deg. Celsius)	-75
Fluid Consumption	1 week
Color	Athena Grey
Purity	99.999%

Product Details:

Minimum Order Quantity	1 Piece
Brand/Make	Athena
Automation Grade	Automatic
Hydrogen Purity	99.999 %
Model	AT-5000/ AT-10000/ AT-17000/ AT-22000/ AT-34000
Output Flow	0-5/ 0-10/ 0-17/ 0-22/ 0-34 Lpm
Water Tank Volume	15/ 30/ 60 Litres
Output Pressure	0.05 -0.4 (Conventional Type) , 1-5 (High Pressure Type) Mpa
Power Voltage	AC 220 V / 380 V 60 HZ AC
Dimension	(L x W x H) : 1035 x 550 x 1100 / 1035 x 550 x 1500 / 1650 x 650 x 1900 mm

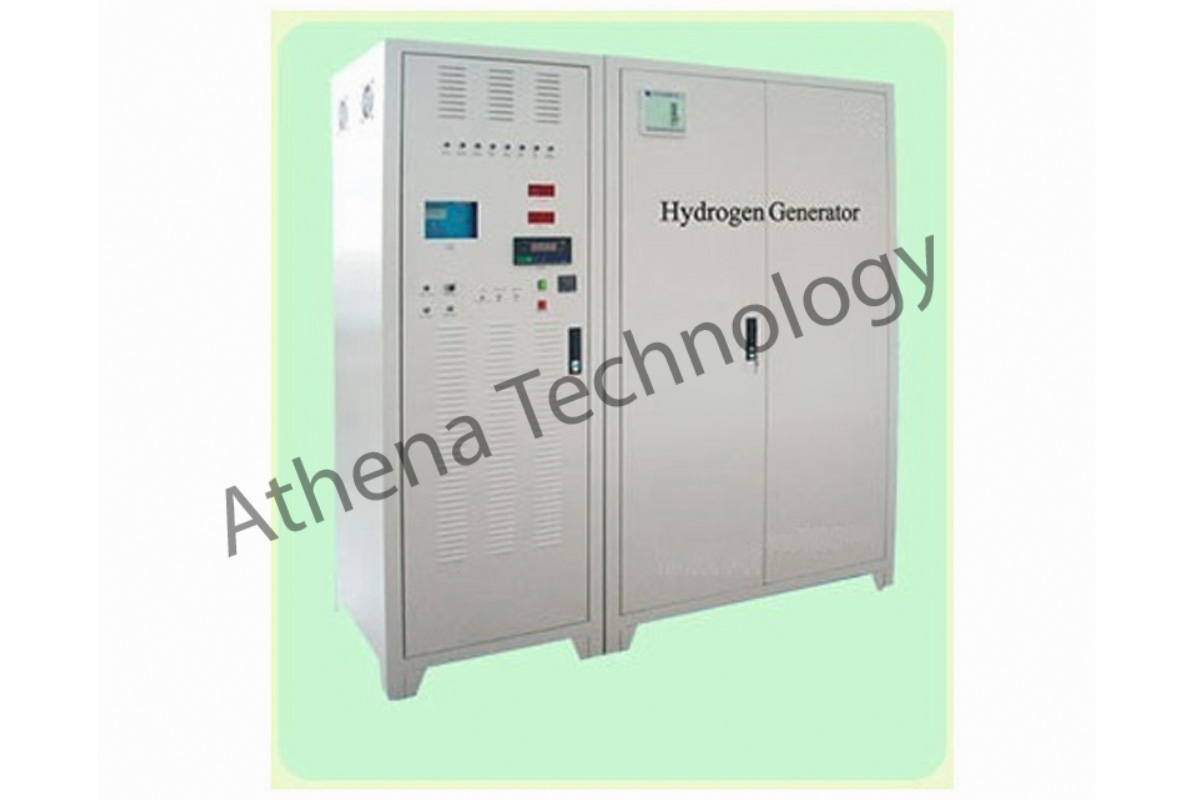

Large Hydrogen Generator. This generator is used with power station cooling systems, hydrogenation, restoring protection, metal smelting and heat treatment, under any circumstance that needing large and ultra pure hydrogen gas, hydrogen stations. This generator is manufactured under the stern vigilance of our deft professionals using quality tested components with the assistance of ultra-modern methodology.

Features:

High reliability, space saving

High purity hydrogen

Stable output flow

Technical parameters

Model AT-5000 AT-10000 AT-17000 AT-22000 AT-34000
Output Flow(L/min) 0-5 0-10 0-17 0-22 0-34
Water Tank Volume(L) 15 30 60
Output Pressure(MPa) 0.05-0.4(Conventional Type)Or 1-5(High Pressure Type)
Hydrogen Purity (%) >99.999
Power Voltage (V) AC 220V\380V 60HZ AC 380V 60HZ
Power Consumption(kw) Dimension(L*W*H)(mm) 1035*550*1100 1035*550*1500 1650*650*1900

Benefits:

• No longer need to use dangerous and expensive hydrogen cylinders.
• Generate 99.9999% ultra pure hydrogen continuously or on demand.
• High reliability, space saving.
• High purity hydrogen, stable output flow, safe and convenient to operate, various alarm devices (sensor alarm, overpressure alarm, hydrogen permeation alarm, hydrogen leak alarm, water accumulated alarm, water overfall alarm, water shortage alarm, oxygen permeation alarm, water over -temperature alarm ).

Product Details:

Minimum Order Quantity	1 Unit
Output Pressure	0.02 - 0.7 Mpa
Hydrogen Purity	99.99999 %
Automation Grade	Automatic
Brand	Athena

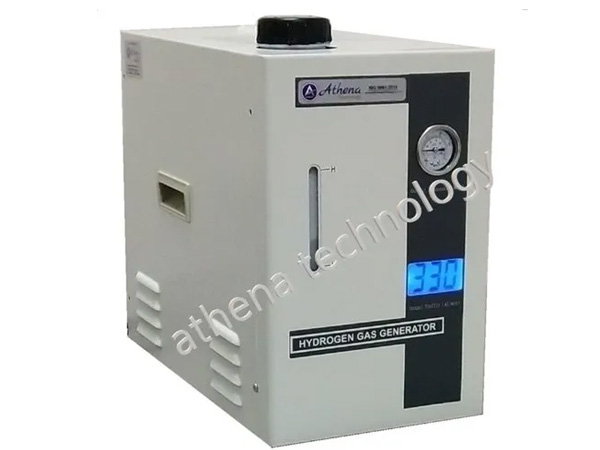

Ultra-pure Palladium Technology Hydrogen Generator
PEM water electrolyzer
1. Introduction
The PEM hydrogen generators, which producing high purity hydrogen by utilizing PEM( Proton Exchange Membrane) technology to electrolyze pure water (no adding alkali), are light, highly efficient, energy saving, and of environmental protection. They are our advanced patent products.
2. H2 Generator Features
Adopt world advanced SPE/PEM technology to electrolyze pure water and produce hydrogen gas Adopt palladium tube for purification process, hydrogen purity is higher than 99.99999%. Pressure and gas flow are shown in digital display, and easy to watch. Pressure could be set at will. Gas production tracks the usage flow. Safe and convenient to operate. Various alarm sets. High electrolysis efficiency, stable purity and gas flow. Match with single set or several sets of GC. No corrosion, no pollution.
3. Technical Parameter

Model	AT-1000P	AT-2000P	AT-3000P
Output Flow (ml/min)	1000	2000	3000
Output Pressure (MPa)	0.02-0.7
Hydrogen Purity (%)	99.99999
Input Power (KW)	1.5	2	2.5
Power Voltage (V)	AC 220 50~60Hz
Dimension (L*M*H) (mm)	645*540*960
Water Requirements	Water electric resistivity >1Megohm •cm
Weight (kg)	60	65	70

Minimum Order Quantity	1 Piece
Flow Rate	500 ml/min
Automation Grade	Automatic
Brand	Athena

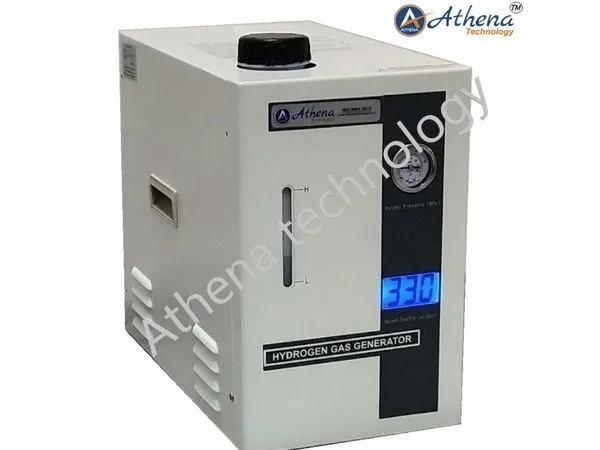

PEM Hydrogen Generator

Product Introduction

The series of products, producing highly pure hydrogen by utilizing SPE technology to electrolyze pure water(no adding alkali), are light, highly effective, energy-saving, and of environmental protection. They are advanced patented products.

Application

1.Fuel gas and carrier gas for GC (Gas Chromatography). 2.Reaction gas for ELCD (Electrolytic Conductivity Detector). 3.Reaction gas for AED (Atomic emission detectors).

Technical parameters

Model	AT-150	AT-300	AT-500
Output Flow(ml/min)	0-150	0-310	0-510
Output Pressure(MPa)	02-0 .4 / 0.02-0.7 ( under stable pressure)
Hydrogen Purity(%)	>99.999/>99.9999
Power Consumption(W)	<90	<150	<200
Power Voltage(V)	AC 220 110 50 ~ 60HZ
Dimension(L*W*H)mm	420 * 227 * 352
Weight(kg)	<15

Product Details:

Minimum Order Quantity	1 Unit
Automatic Grade	Automatic, Semi- Automatic
Capacity	0-5000 ml/min
Brand	Athena
Model no	ATHS-1000
Output Flow	0-1020 (ml/min)
Output Pressure	0.02-0.4MPa/0.02-0.7MPa (under stable pressure)
Hydrogen Purity	less than 99.999/ 99.9999%
Power Consumption	Less than 500 W
Power Voltage	AC 220 110V 50~60Hz
Dimension LxWxH	435x365x352 mm
Weight	Less than 20 kg

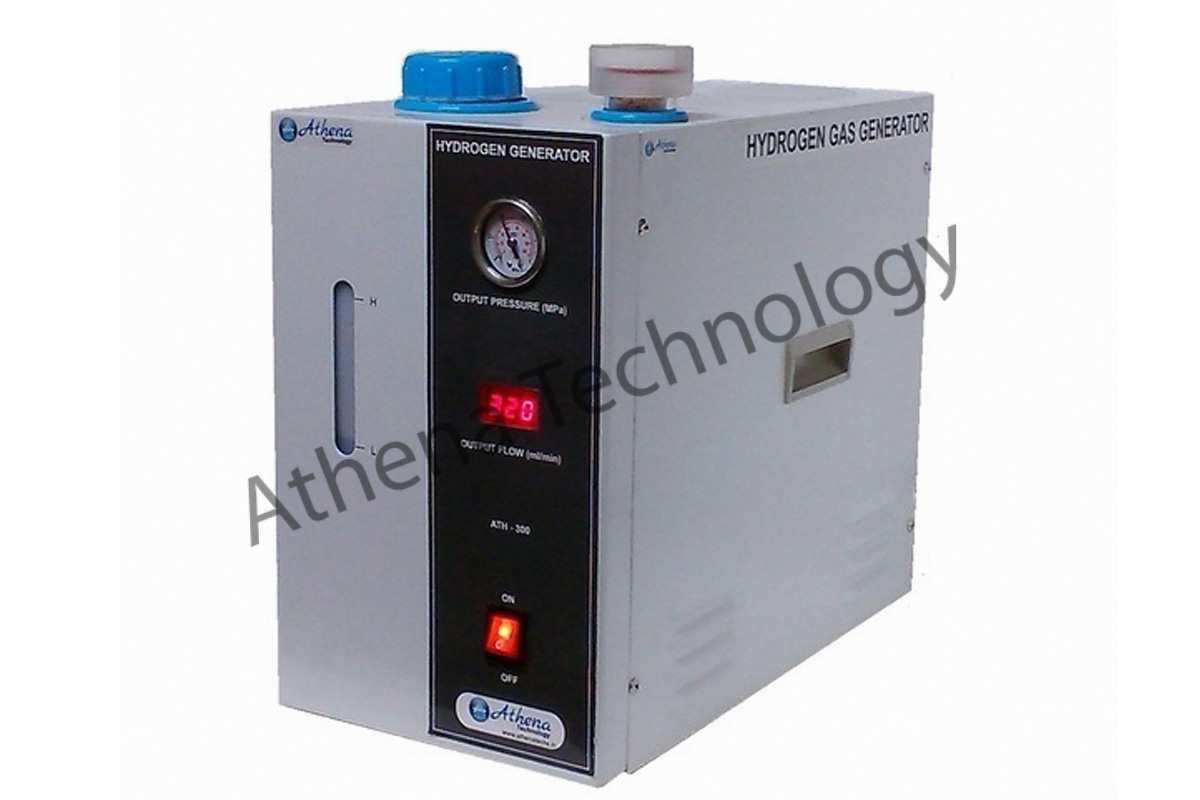

Hydrogen Generator SPE 1000

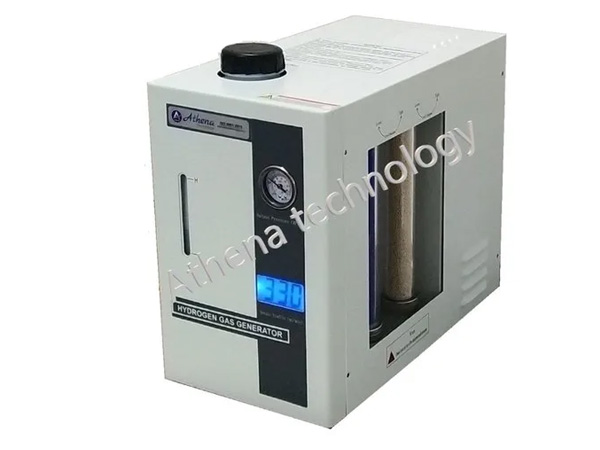

Product Details:

Minimum Order Quantity	1 Unit
Automatic Grade	Automatic
Brand/Make	Athena
Capacity	2-10 lpm
Output Flow	2lpm to 10 lpm
Material	SS
Power	2KW
Purity	99.999%
Design	Standard
Display	LED
Frequency	50
Model Number	ATHH-200
Color	Cream
Gas Type	hydrogen
Dew Point	-75
I deal in	New Only
Flow Rate	2000-3000 ml/min

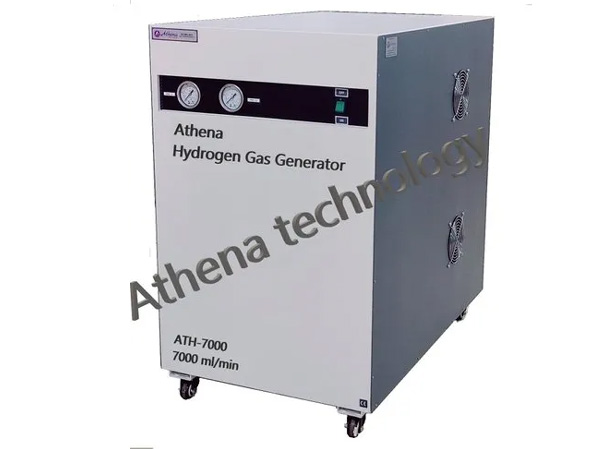

Product Details:

Minimum Order Quantity	1 Piece
Model	AthS - 5000
Output Flow	0 - 5 Lpm
Automation Grade	Automatic
Water Tank Volume	15 L
Output Pressure	0.05-0.4(Conventional Type) Or 1-5(High Pressure Type)
Hydrogen Purity	Less than 99.999
Power Voltage	AC 220/380 50~60Hz
Power Consumption	Less than 2 kW
Dimension LxWxH	1035 x 550 x 1100 mm

Hydrogen & Oxygen Generator PEM Oxy Hydrogen Generator Product Introduction ATH Series hydrogen & oxygen generator uses PEM technology to produce high-purity hydrogen and oxygen gas. Collect hydrogen and oxygen gas separately, not HHO gas mixture. Oxygen flow rate is half of hydrogen flow rate. We could also supply customized products according to your requirements on these two gases. Features and Advantages 1. PEM technology to electrolyze pure water, no needing KOH, NaOK, etc. 2. H 2 and O 2 are supplied separately. 3. Patent product. Customized product. The equipment is equipped with some safety alarm devices. If it has some faults, it could stop eletrolyzing automatically. It's safe and convenient for operation. Technical Parameters Gas Type Hydrogen Oxygen Output Flow Rate (ml/min) 0--500 0--250 Output Pressure (MPa) 0.4 0.2 Purity of Hydrogen (%) > 99.999 >99.9 Overpressure Protection (MPa) 0.48 0.28 Power Voltage (V) 220 V ~ 50 -60 Hz Input Power (W)
