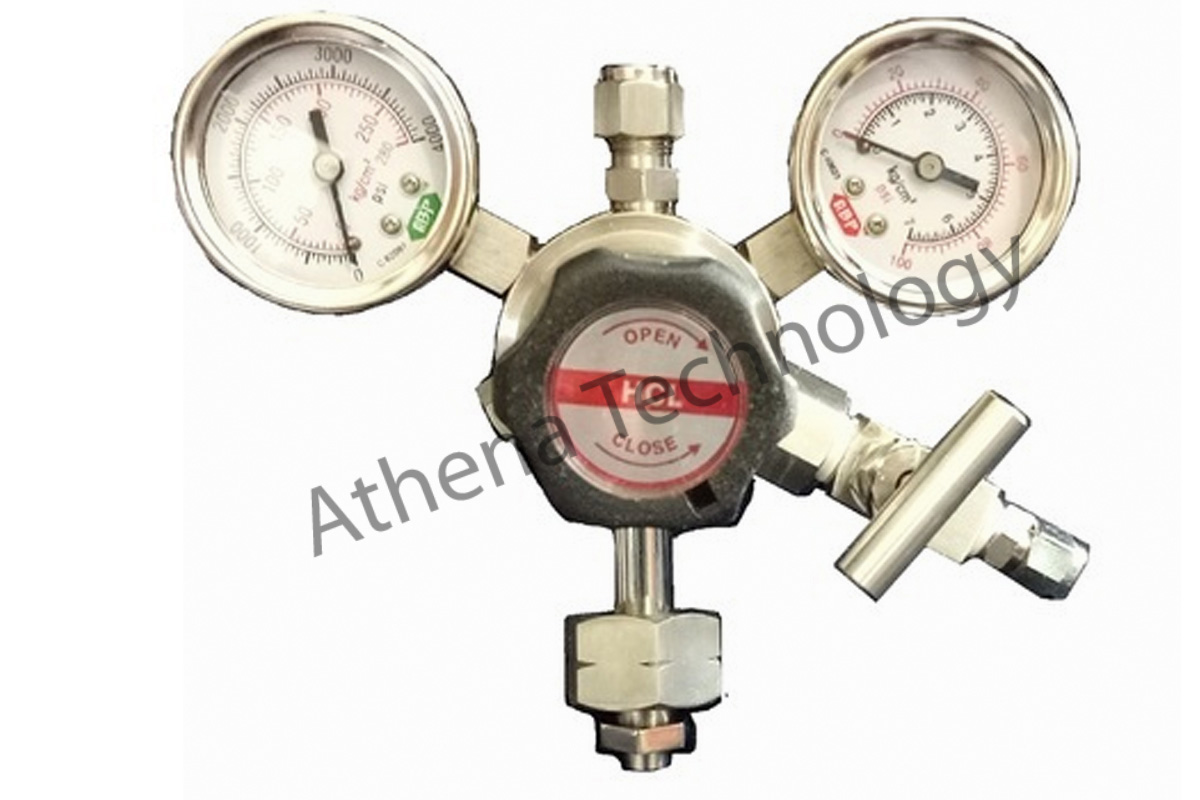

Gas Cylinder Regulator.

There are pressure gauges for the input and outflow of this regulator. The cylinder's total pressure is shown on the inlet pressure gauge, while the regulated pressure is shown on the output pressure gauge. To increase compliance with established industry standards of quality, only components of the highest quality are used in the creation of the products offered. Our customers laud the supplied regulator for its sturdiness, flawless finish, and simplicity of use.

Features:

• Easy usage
• Corrosion resistance
• Perfect finish

General Specifications:

• Inlet pressure range: 0 - 240 kg/cm2
• Outlet pressure range: 0 - 14 kg/cm2 in diaphragm type
• Outlet pressure range: 0 - 40, 0 - 70, 0 - 100 kg/cm2 in piston type

Regulator Specifications:

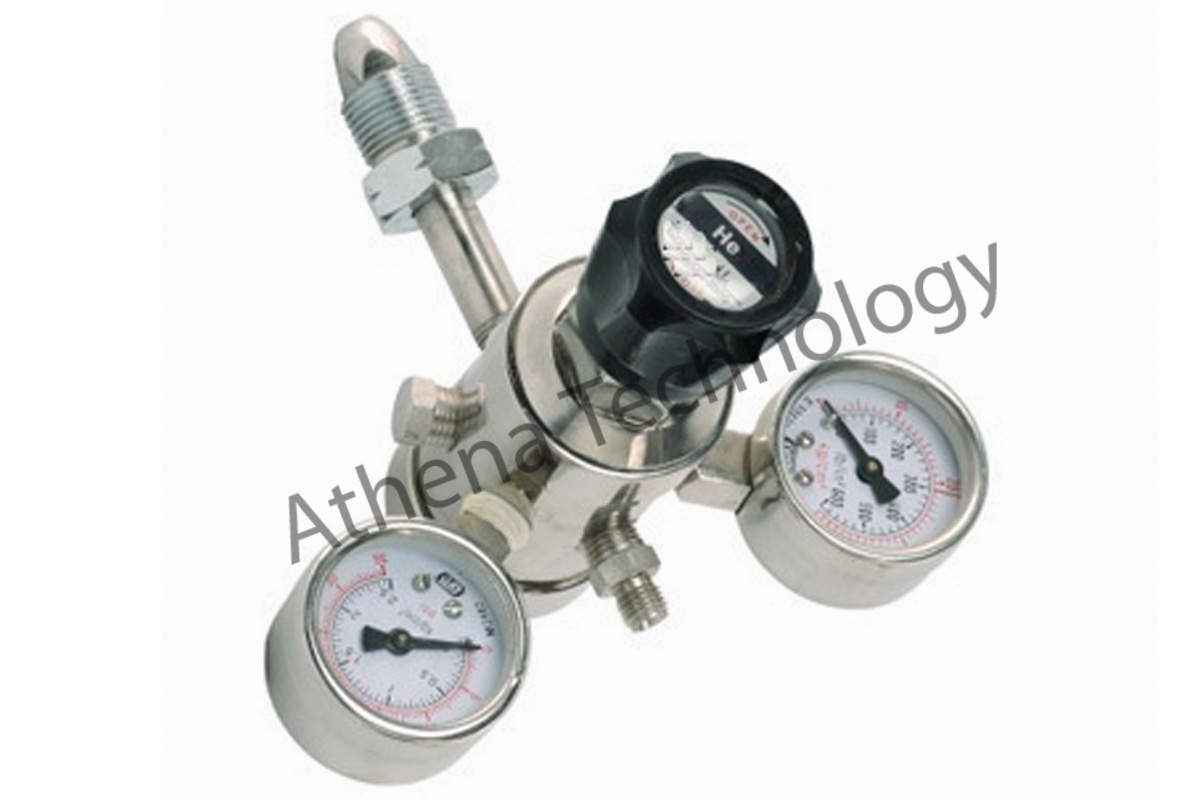

Single Stage High Pressure Regulator

Features:

• Stainless steel Piston
• Standard 10µm sintered Bronze filter at inlet of main valve assembly
• 1.6 µm internal surface finish as standard
• Cleaned for Oxygen service
• Bubbles tight shut-off
• Inlet pressure: 210 bar (3000 psi)
• Outlet range: 0 to 90 bar (1300 psi)
• Flow Coefficient: Cv 0.06
• Design Pressure: 1.5 times working pr
• All connections: ¼” NPT (F)
• Seat : PTFE/PCTFE
• Max. Operating Temperature: PTFE – 66° C, PCTFE - 80° C
• Inlet end connection: ¼” NPT (F)

High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium/ Chlorine gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
Ammonia Gas Regulators. The offered regulators are widely used for regulating high pressure ammonia gas in pipeline or cylinder for required working pressure. These regulators are highly appreciated by our clients for their durability and easy installation feature

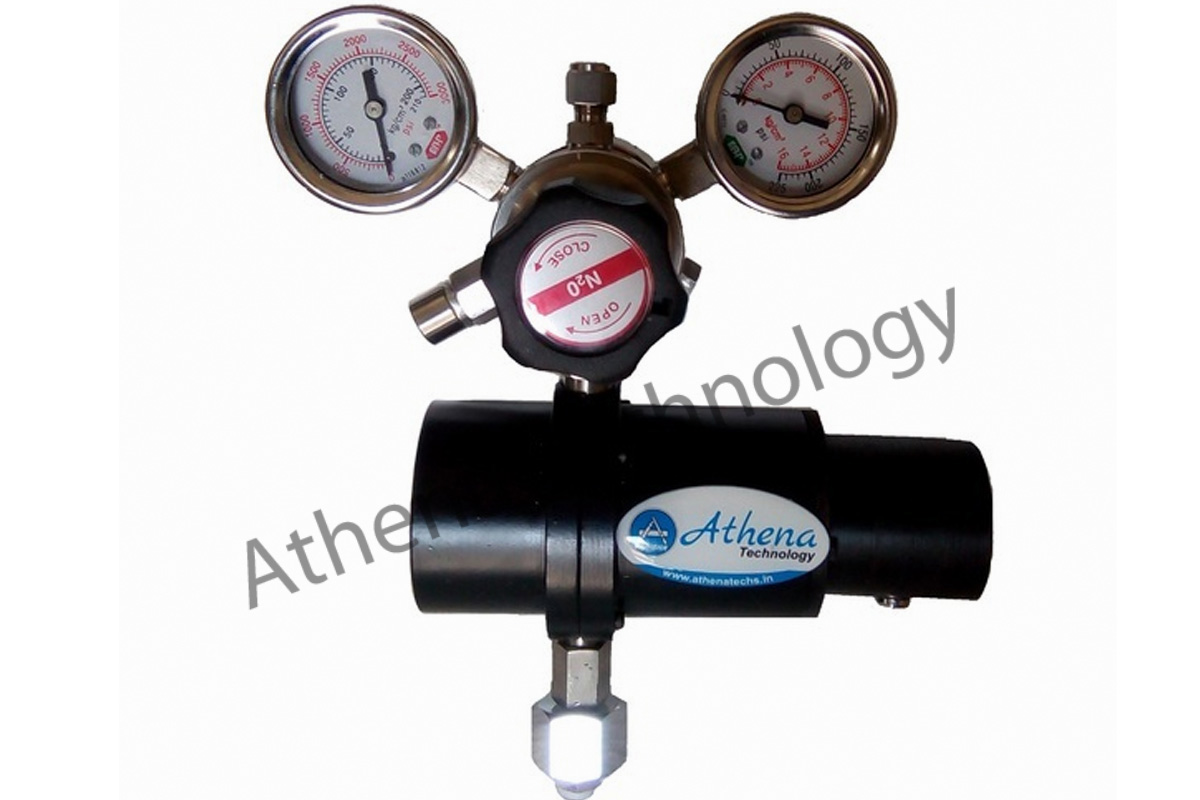

Nitrous Oxide Gas Two stage cylinder regulator SS316 / Brass Chromplated body with S S Diaphragm with Pre Heater
Inlet pressure gauge 0-280 kg/cm²
Outlet pressure gauge 0-14 kg/cm²
Athena manufacturers various kinds of Regulators. Athena Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture
Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm.
Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure.

High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Chlorine, etc. are also available.

Regulator Specifications :

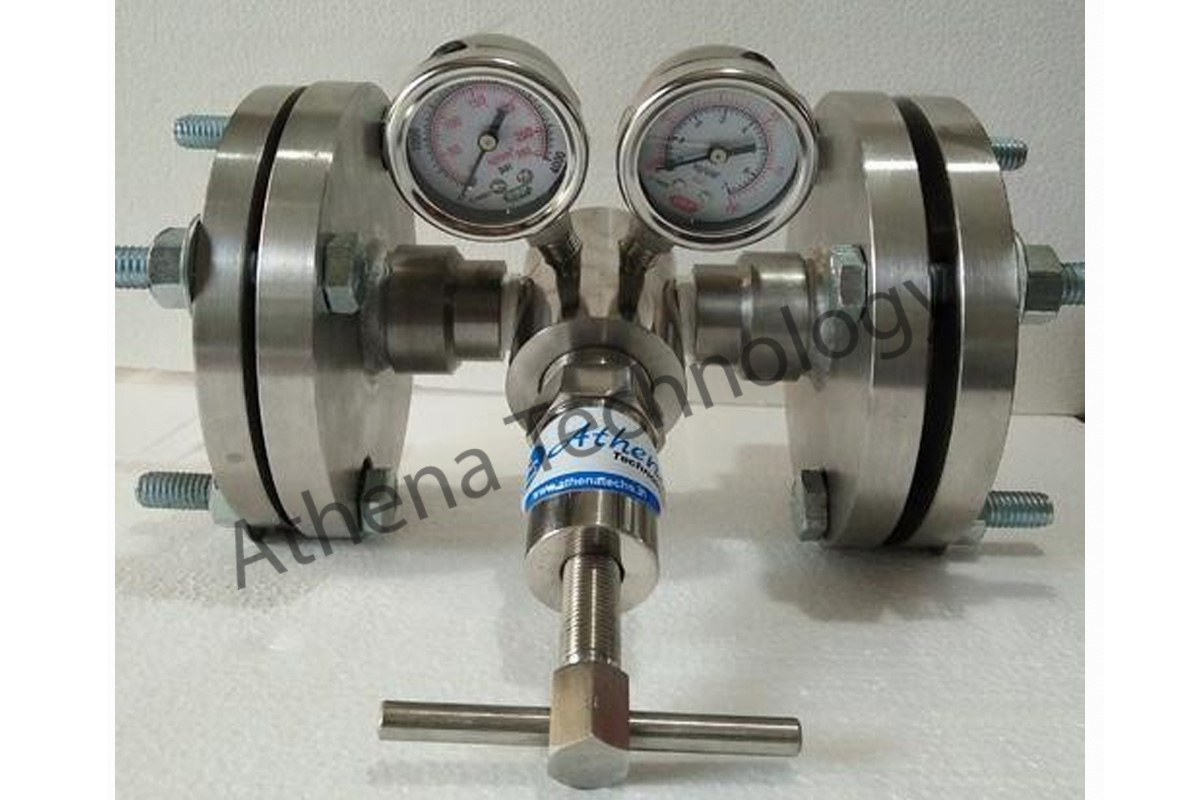

High Pressure Line Regulator
The High Pressure Line Regulator that we give to our clients are a gas weight controller, used to decrease the weight of a gas chamber. These controllers can likewise be utilized as a part of the methodology line to a word related level, which makes it suitable for different supplies and procedure. Line controllers are made utilizing high-review crude material and quality tried on different parameters for assembling deformities & blemishes.

Features:

• Optimum sharpness
• Fine finish
• Rugged construction

Specifications:

• Size: 1/4"-1"
• Pressure: 15 bar

Regulators of several types are produced by Athena. In order to address the demand for High Purity Corrosion Resistance Products Specifically Suited for Low Level PPM Moisture, Athena Regulators have been created.
There are two different types of cylinder regulators: Brass SS body with SS diaphragm and chrome-plated body with SS diaphragm.
Pressure gauges for the intake and outflow make up the regulator. The cylinder's total pressure is shown on the inlet pressure gauge, while the regulated pressure is shown on the output pressure gauge.
There are also high pressure piston type regulators and regulators for corrosive gases, such as ammonia, chlorine, etc.

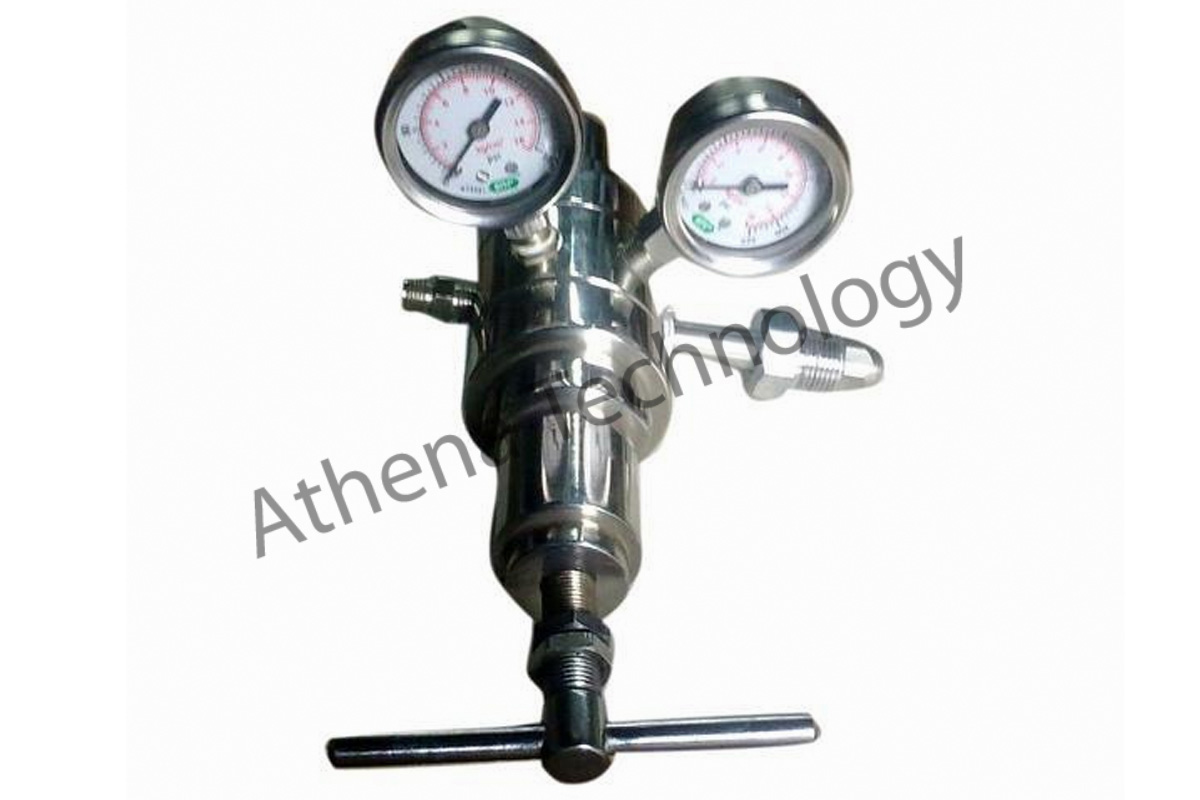

Double Stage High Pressure Piston Regulator
We are focused on providing a distinctive assortment of Double Stage High Pressure Piston Regulator because we are a customer-driven company. Our talented craftsmen create this controller using cutting-edge technology and tried-and-true raw materials. However, to provide a deformity-free experience for consumers, our offered reach is rigorously tested by our quality controllers against a variety of criteria. Additionally, our clients greatly improve the value of the offered item by highlighting its numerous attributes, such as its durability and convenience of use.

Features:

• Sturdiness
• Corrosion-resistance
• Enhanced durability

Specifications:

High pressure piston type cylinder regulator brass chromplated body.
Inlet pressure gauge 0-280 kg/cm²
Outlet pressure gauge 0-100 kg/cm² (as per requirement)
For O2, Ar, He, CO2, N2, H2, Air, Gas

High pressure piston type cylinder regulator SS316 body.
Inlet pressure gauge 0-280 kg/cm²
Outlet pressure gauge 0-100 kg/cm² (as per requirement)
For O2, Ar, He, CO2, N2, H2, Air, Ga

High pressure piston type cylinder regulator brass chromplated body.
Inlet pressure gauge 0-280 kg/cm²
Outlet pressure gauge 0-100 kg/cm² (as per requirement)
For O2, Ar, He, CO2, N2, H2, Air, Gas

High pressure piston type cylinder regulator SS316 body.
Inlet pressure gauge 0-280 kg/cm²
Outlet pressure gauge 0-100 kg/cm² (as per requirement)
For O2, Ar, He, CO2, N2, H2, Air, Gas

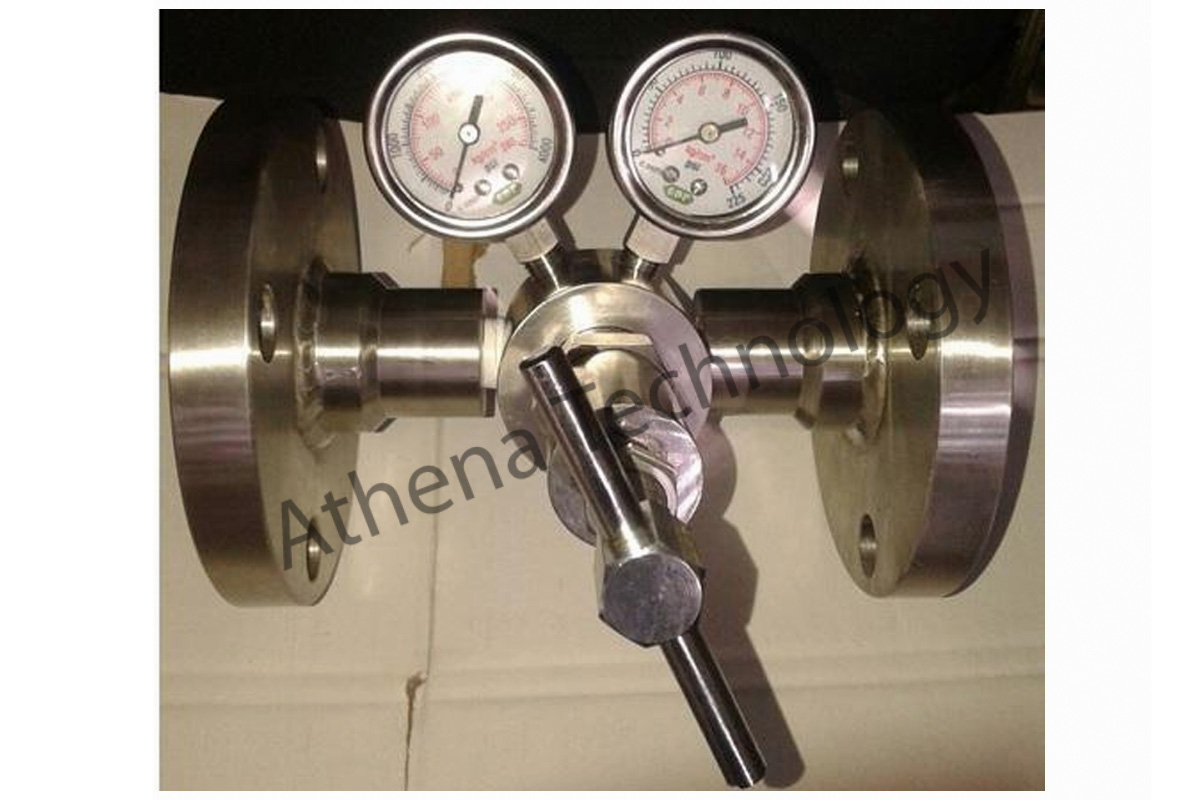

High Flow Line Regulator
Line pressure regulator
PIPE Size : 1/4" 1/2" 1" & 2"
Ultra high-purity stainless steel regulators for use with semiconductor applications.

• All semiconductor industry applications requiring precise pressure control.
• LINE Dual-Stage Ultra High-Purity with Tied Diaphragms Regulator - SS Design Features 316 stainless steel with 316 stainless steel internals
• Dual tied seat design ensures regulator closure under extreme conditions
• 2” inlet and delivery pressure gauges
• Autogeneous butt-welded connections
• The seats are the only non-metallic components in the process stream
• Standard 10 Ra surface finish
• Sealed and ventable bonnets
• Helium leak tested to 1 x 10-9 scc/sec
• Assembled, tested and packaged in a Class 100 clean area

Specifications

• Maximum Inlet Pressure: 3000 psig (20,700)
• Maximum Flow Rate: 5 SCFM (150 SLPM) (At 3000 psig Inlet, N2)
• Flow Capacity (Cv): 0.05
• Operating Temperature: -40°F to 160°F (-40°C to 71°C)
• Porting: 1/4” VCR compatible
• Materials of Construction
• Gauges: 316 stainless steel
• Body: 316 stainless steel
• Diaphragms: 316 stainless steel
• Linkages: 316 stainless steel
• Springs: 316 stainless steel
• Seals: Metal to metal

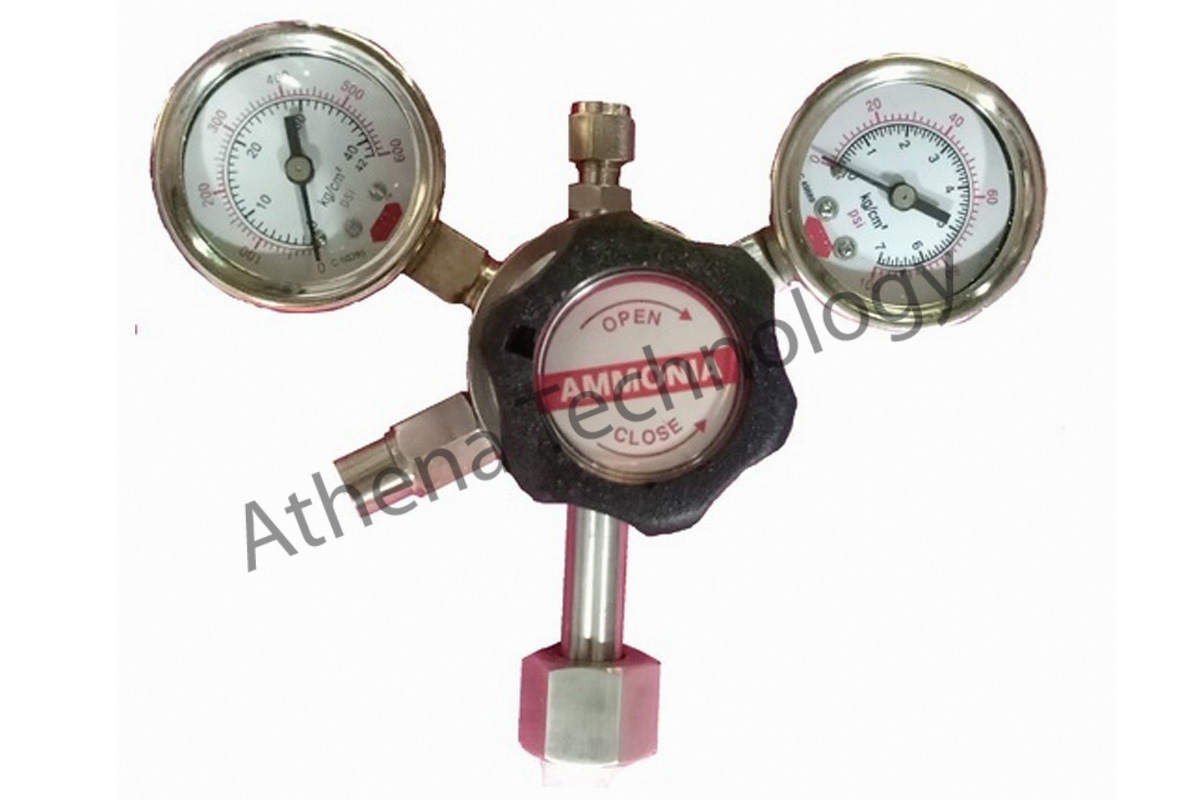

Ammonia Gas Pressure Regulator
High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium gases.
Inlet pressure 0-42 kg/cm²
Outlet pressure gauge 0-7 kg/cm²
Athena NH3 Regulator
1. All stainless steel material
2. High quality
3. Safety valve design
4. Stable performance High Purity
Regulator for ammonia gas in stainless steel with two gauges A unique type of ammonia regulator is made for controlling the pressure of corrosive ammonia gases. Application: This high purity stainless steel ammonia regulator is used to regulate high pressure gas cylinders or pipelines for the necessary operating pressure and guarantee steady outlet pressure when input pressure and outlet flow change. Materials: The measuring system, pointer, and case of the stainless steel pressure gauge are of the highest quality.
We are providing an extensive selection of Ammonia Gas Regulator with the earnest goal to uphold and enhance our name in the market. Our dependable vendors make the gas regulator we offer, which is used to control gas flow. There are various sizes of this gas regulator available. Due to its outstanding features,given that high-quality gas regulators are highly sought-after in the industry.

Features:

• Light weight
• Sturdy design
• Easy installation

High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium/ Chlorine gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
Regulators for ammonia gas. The provided regulators are frequently used to maintain the required working pressure for high pressure ammonia gas in a pipeline or cylinder. Our customers highly value these regulators for their dependability and simplicity of installation.

Cylinder Regulator
N2O Cylinder RegGas Two stage Cylinder Regulator Brass Chromplated body with S.S.Diaphragm with Pre-heater
Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure.
High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Clorine, etc. are also available.
Inlet pressure range: 0 - 240 kg/cm²
Outlet pressure range: 0 - 16 kg/cm² in diaphragm type
Outlet pressure range: 0 - 40, 0 - 70, 0 - 100 kg/cm² in piston type

CO, CO2, Helium, Argon, Oxygen, Cl2, H2S, SO2, NH3, N2, H2, Air, gases Regulators Nitrous Oxide Gas Two stage cylinder regulator
SS316 / Brass Chromplated body with S S Diaphragm with Pre Heater
Inlet pressure gauge 0-280 kg/cm²
Outlet pressure gauge 0-14 kg/cm²
Athena manufacturers various kinds of Regulators. Athena Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture
Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm.
Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure.
High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Chlorine, etc. are also available.

• Chlorine Gas Regulator
• Acetylene Gas Regulator
• Helium Gas Regulator
• SO2 Gas Regulator
• Argon Gas Regulator
• Methane Gas Regulator
• Ammonia Gas Regulator
• HCL gas regulator

Regulators of several types are produced by Athena. In order to address the demand for High Purity Corrosion Resistance Products Specifically Suited for Low Level PPM Moisture, Athena Regulators have been created.
There are two different types of cylinder regulators: Brass SS body with SS diaphragm and chrome-plated body with SS diaphragm.
Pressure gauges for the intake and outflow make up the regulator. The cylinder's total pressure is shown on the inlet pressure gauge, while the regulated pressure is shown on the output pressure gauge.
There are also high-pressure piston type regulators and regulators for corrosive gases like ammonia, chlorine, etc.
Inlet pressure range: 0 - 240 kg/cm²
Outlet pressure range: 0 - 14 kg/cm² in diaphragm type
Outlet pressure range: 0 - 40, 0 - 70, 0 - 100 kg/cm² in piston type

Regulator Specifications :

Features:

• Stainless Steel Diaphragm
• Standard 10 μm sintered bronze filter at inlet of main valve assembly
• Cleaned for Oxygen service

Specifications:

• Stainless Steel Diaphragm
• Standard 10 μm sintered bronze filter at inlet of main valve assembly
• 1.6 μm internal surface finish as standard
• Cleaned for Oxygen service
• Bubble tight shut-off
• Inlet pressure: 210 bar (3000 psi)
• Outlet range: 0 to 25 bar (360 psi)
• Supply pressure effect less than 0.05%
• Flow Coefficient: Cv 0.05
• Design Pressure: 1.5 times working pr.
• All connections: ¼” NPT (F)
• Seat: PTFE/PCTFE
• Max. Operating Temperature : PTFE – 66° C, PCTFE – 80° C

Regulators of several types are produced by Athena. In order to address the demand for High Purity Corrosion Resistance Products Specifically Suited for Low Level PPM Moisture, Athena Regulators have been created.
There are two different types of cylinder regulators: Brass SS body with SS diaphragm and chrome-plated body with SS diaphragm.
Pressure gauges for the intake and outflow make up the regulator. The cylinder's total pressure is shown on the inlet pressure gauge, while the regulated pressure is shown on the output pressure gauge.
There are also high pressure piston type regulators and regulators for corrosive gases, such as ammonia, chlorine, etc.

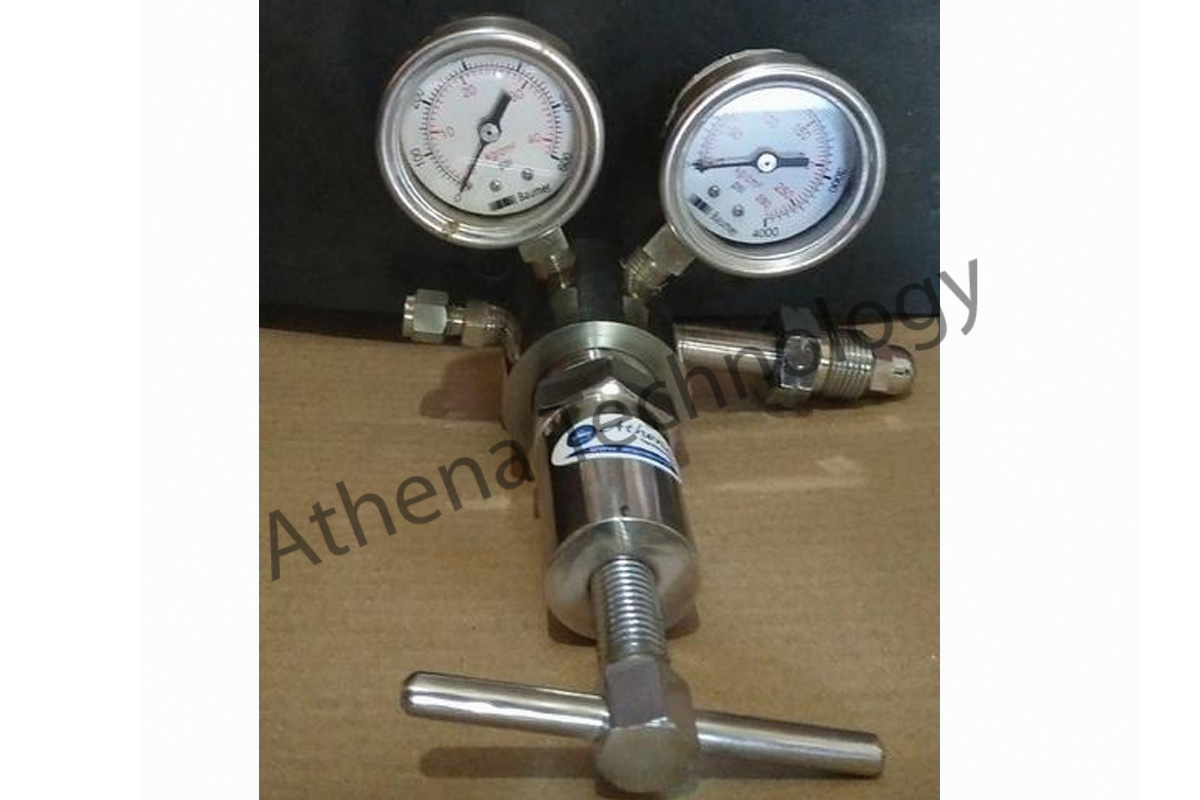

High pressure piston type cylinder regulator. Brass body with chromium plating, high pressure piston style cylinder regulator. Measure of inlet pressure, 0-280 kg/cm2. High pressure piston type cylinder regulator with SS body and outlet pressure gauge ranging from 0 to 100 kg/cm2 (depending on requirements). Measure of inlet pressure, 0-280 kg/cm2. Gauge for outlet pressure, 0-100 kg/cm2 (as per requirement) Regulators of several types are produced by Athena. In order to address the demand for high purity corrosion resistance, Athena Regulators were created. Product Particularly Suitable for Low PPM Moisture There are two different types of cylinder regulators: Brass SS body with SS diaphragm and chrome-plated body with SS diaphragm. Pressure gauges for the intake and outflow make up the regulator. The cylinder's total pressure is shown on the inlet pressure gauge, while the regulated pressure is shown on the output pressure gauge. corrosive high pressure piston type regulators and regulators.

Other Details:

• Inlet pressure range: 0 - 240 kg/cm²
• Outlet pressure range: 0 - 14 kg/cm² in diaphragm type
• Outlet pressure range: 0 - 40, 0 - 70, 0 - 100 kg/cm² in piston type
• High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium/ Chlorine gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
• High pressure single stage regulator with SS 316 body with SS 316 diaphragm with purge value for Ammonium gases. Inlet pressure 0-42 kg/cm² & Outlet pressure gauge 0-7 kg/cm²
• Ammonia Gas Regulators. The offered regulators are widely used for regulating high pressure ammonia gas in pipeline or cylinder for required working pressure. These regulators are highly appreciated by our clients for their durability and easy installation feature
